Perkins Diesel Engine Service & Workshop Manuals

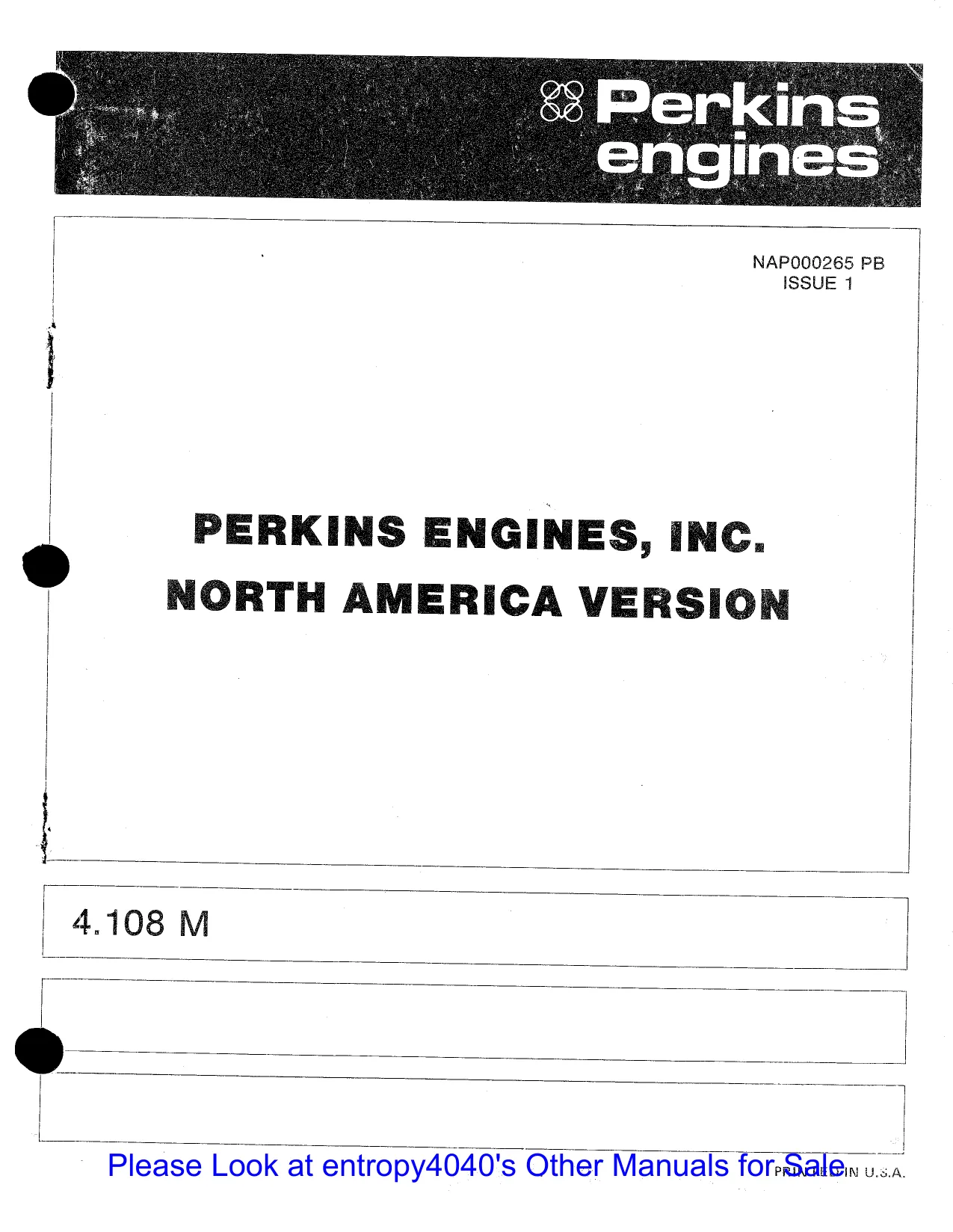

Perkins diesel engines are the backbone of global industry, powering everything from Ag tractors and marine sailboats to industrial gensets and construction rigs. Since a single engine block can be configured in dozens of ways depending on the application, a generic guide just won't cut it. To get the job done right, you need the exact data for your engine family and build list—whether it’s a modern 400 Series, the 1100 Series, or a vintage 4.108M marine setup.

Authentic Factory-Sourced Service Data

The lifespan of a commercial diesel engine depends on the quality of the data you use. When you’re performing a frame-out overhaul or timing an injection pump, "close enough" isn't an option. We provide high-fidelity, factory-sourced service manuals—the same documentation used by authorized Perkins dealerships. Unlike aftermarket summaries that often skip critical torque-to-yield sequences or specific sub-designations, our manuals provide the exact clearances and tolerances engineered by the manufacturer.

Comprehensive Technical Coverage for Professionals

Our digital library is built for diesel mechanics, fleet owners, and marine technicians who require deep-dive technical specs. These are not simplified "how-to" guides, but complete technical references including:

• Cylinder Block & Internal Assemblies: Exact specs for head resurfacing, piston ring end gaps, and crankshaft journals for the 100 Series through the New 1000 Series and Tier 4 Final engines.
• Fuel & Air Systems: Official calibration data for rotary and inline pumps, injector pop-test pressures, and turbocharger wastegate settings.
• Application-Specific Variations: Detailed data for the unique cooling circuits, heat exchangers, and PTO setups found in marine and industrial builds.
• Systems Diagnostics: Logical troubleshooting trees for low oil pressure, starting issues, and exhaust smoke analysis based on mechanical testing and fault codes.

Instant PDF Downloads from Official Archives

Stop waiting for a physical book to arrive in the mail. All manuals are available as instant, high-resolution PDF downloads. These files are digitized directly from the official manufacturer archives, ensuring that every wiring schematic and exploded parts view is crystal clear—even when zoomed in on a tablet in the shop. Find your Perkins engine family and build list below to access the authorized factory documentation.

Technical Safety & Shop Disclosure

The Perkins service documentation hosted here is intended for professional diesel technicians and experienced mechanics. Working on heavy-duty diesel systems involves inherent risks, including high-pressure fuel discharge and heavy lifting. By purchasing a manual, you acknowledge that RepairLoader provides authentic, manufacturer-sourced data for technical reference and archival purposes. Always follow standard workshop safety protocols: use the correct Perkins service tools, wear required PPE, and consult a certified master technician if a procedure is outside your expertise.
