2004 Perkins 400 Series Diesel Engine Service, Operation and Maintenance Manual Set (P/N SEBU7992-01)

The 2004 Perkins 400 Series industrial engine manual set covers the 402C-05, 403C-07, 403C-11, 403C-15, 404C-15, 404C-22, and 404C-22T, with engine prefixes HB, HD, HH, HL, HN, HP, and HR.

It combines Operation and Maintenance SEBU7992-01 (November 2004) with Specifications SENR9971, Systems Operation, Testing and Adjusting SENR9972, and Disassembly and Assembly SENR9973.

• Fuel system: Injection-pump removal and installation, timing checks and shim selection, injector leakage and spray-pattern tests, and fuel-system priming.

• Internal engine repair: Cylinder-head removal, valve and rocker-shaft service, camshaft and crankshaft work, piston-ring replacement, and bearing inspection.

• Cooling and lubrication: Overheating diagnosis, cooling-system pressure testing, thermostat and water-pump replacement, and gerotor oil-pump inspection.

• Turbocharger: Removal and installation, condition checks, and wastegate testing for the turbocharged engine.

• Electrical diagnosis: Alternator fault charts, starting-circuit checks, glow-plug and fuel-shutoff-solenoid tests, and automatic-shutdown wiring diagrams.

• Maintenance reference: Operating and storage routines, scheduled servicing, fluid recommendations, crankcase-breather procedures, and component-specific torque tables and wear limits.

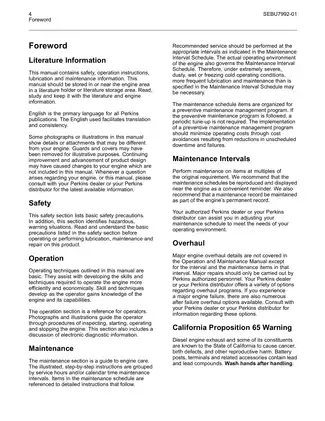

The operating guidance is for engine operators; the manual reserves major repairs for Perkins-authorized personnel.

Engine Care and Maintenance Coverage

Daily checks, cold-weather operation, long-term storage, and service schedules are covered alongside belt-adjustment procedures, belt-tension charts, engine model views, and cylinder-and-valve location drawings.

The listed minimum-to-maximum oil-sump capacities include the standard filter: approximately 1.61–2.01 L for the 402C-05 and 8.9–10.6 L for the 404C-22 and 404C-22T. Auxiliary filters require additional oil, and sump configuration affects the refill quantity.

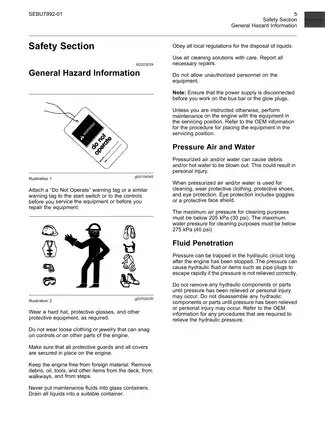

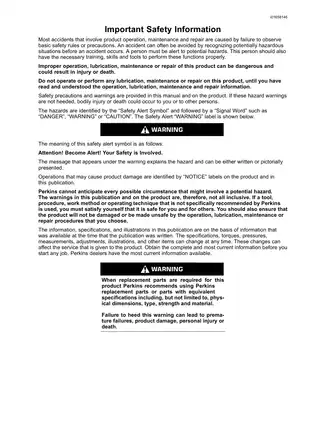

The safety sections address injury risks from pressurized coolant and high-pressure fuel, including pressure-release and isolation precautions.

Fuel Injection and Turbocharger Testing

Injection-timing tables distinguish industrial and generator applications by engine model and rated speed. Injector testing covers leakage, opening pressure, and spray patterns, with illustrations showing the nozzle's operating phases.

The fuel-line procedures warn that turning an injector's upper section can damage the nozzle and distort the spray pattern.

The turbocharger specifications and wastegate test identify S/N HR11-Up. The turbocharger is treated as a nonserviceable assembly; wastegate pressure can be checked but cannot be adjusted.

Cylinder Head, Crankshaft and Bearing Work

Head-gasket selection tables relate gasket thickness to piston height. The inspection procedures specify dial gauge 21825617 and holder 21825496, helping the technician match the gasket to measured piston position before reassembly.

Flywheel-housing procedures distinguish assemblies with a backplate from housings mounted directly to the engine. Crankshaft instructions flag potential damage to the crankshaft or oil relief valve if the valve remains installed during crankshaft removal or installation.

The bearing-clearance chapter describes Plastic Gauge checks but explains their limitations on small journals. Perkins does not recommend these clearance checks, particularly on small engines, because inaccurate readings and bearing-surface damage are possible.

Charging, Starting and Shutdown Circuits

Wiring diagrams cover 14/15-, 40-, and 55-amp alternator arrangements. Automatic-shutdown connector views identify pins and wire colors; relay and circuit-breaker schematics and a starter-motor cross section support circuit diagnosis.

For the 403C-15, 404C-22, and 404C-22T, cylinder-block oil-pressure-switch data distinguish blue connectors before serial number 519585L from black connectors after it. This helps identify the applicable switch version before selecting a replacement.

Selected Cylinder-Head and Injector Specifications

These examples show a small selection of the component specifications in the set.

For lubricated cylinder-head bolts, the assembly chapter lists 36.5 N·m for the 402C-05, 50.5 N·m for the 403C-11, and 100.5 N·m for the 403C-15, alongside the applicable tightening sequences. Intake and exhaust valve lash is 0.20 mm with the engine cold.

Injector opening pressures are 14,707 kPa for the 403C-11, 403C-15, 404C-22, and 404C-22T, and 11,769 kPa for the 402C-05, 403C-07, and 404C-15.

PDF Navigation and Included Publications

Text search and diagram detail: Main technical text is searchable, but some safety and publication text and lettering within diagrams are not. Fifteen numbered bookmarks jump at 20-page intervals; two land on blank pages. Small labels in the wiring diagrams are readable when enlarged.

One printable 290-page PDF contains Operation and Maintenance (80 pages), Specifications (39 pages), Systems Operation, Testing and Adjusting (63 pages), and Disassembly and Assembly (105 pages). The total includes three blank divider pages, with the existing cover and end matter counted within the publication totals.
