JCB 8052 & 8060 Mini Excavator Service Manual 1999–2008 (P/N 9803/9290)

JCB Service Manual P/N 9803/9290, Issue 4 covers the 8052 and 8060 compact excavators, with serial-specific operating and electrical information.

PDF Text Search, Drawing Detail and Page Count

Reading and navigation: PDF text search and embedded bookmarks are not available. Small wire codes and connector-table entries require zooming, and several electrical drawings are stored sideways.

One printable PDF contains 297 pages, including the manufacturer's cover, two blank pages and four repeated content pages.

Hydraulic Repair, Track Drives and Electrical Diagnosis

These selected coverage highlights outline the manual's content rather than reproduce its full contents. Further topics include hydraulic hand-tool kit installation and rotating-beacon service.

• Hydraulic repair: Step-by-step pump removal and internal assembly, pressure and flow tests, control-valve section repair, ram overhaul, rotary coupling and oil-cooler service.

• Track and slew drives: Model-specific track-motor and gearbox work, slew-motor service, gearbox removal and illustrated internal teardown procedures.

• Undercarriage repair: Steel/rubber track conversion, track tension, roller overhaul, idler and recoil-unit assembly, driven sprocket service and metallic face seals.

• Body, attachments and controls: Bucket and Quickhitch work, breaker installation, auxiliary circuits, boom and dozer removal, direct-glazing replacement, servo hand controls and cable adjustment.

• Electrical fault finding: Model-specific wiring schematics, fuse and relay data, alternator and starter tests, harness repair, wire identification and connector destinations.

• Maintenance and reference data: Service schedules, grease-point maps, model-specific fuel bleeding, filter and coolant service, approved fluids, torque tables and JCB special tools.

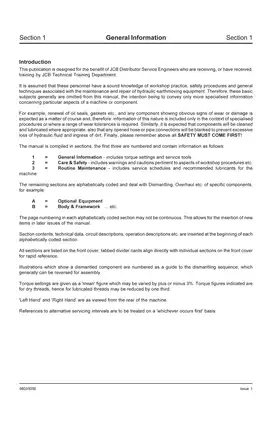

Written for JCB distributor service engineers receiving or having received JCB technical training, this manual assumes established workshop and hydraulic-equipment repair knowledge.

Hydraulic Diagnosis and Component Repair

The general fault-diagnosis charts separate all-service, servo-control and tracking problems. The compensator-shuttle signal test helps isolate a valve section when one function is slow or inoperative, connecting the symptoms to component checks.

Pump coverage explains maximum-flow, standby and maximum-pressure/no-flow operation, with initial-build performance checks, 8052 pump-drive replacement, shaft-seal service and bearing-preload setup. The 8052 has a nine-section control valve; the 8060 has a ten-section assembly with an extra auxiliary section.

Ram procedures address boom, dipper, bucket, dozer and swing cylinders. Separate valve chapters cover load-sense relief, servo relief, auxiliary relief, anti-cavitation and load-sense flow-control valves.

The pump-refitting chapter warns that starting with an unprimed pump can cause irreparable damage. The track-motor brake-valve chapters warn that incorrectly oriented spools can prevent proper valve operation.

Gearbox Scope and Track Configurations

Both models receive track gearbox removal and internal teardown procedures. Slew gearbox removal is covered for both, while internal slew gearbox dismantling is specific to the 8052.

Track conversion pages explain the different guide arrangements for steel and rubber tracks. Recoil-unit assembly includes model- and track-specific spring settings, while the face-seal procedures explain inspection and refitting of matched seal pairs.

Operating Differences, Body Work and Maintenance

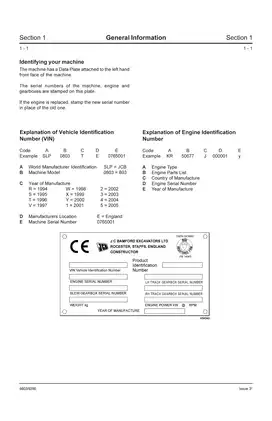

General Information includes machine identification, storage and ROPS/TOPS/FOGS information. The operating pages distinguish early and later 8052 controls and instruments at serial 0803371. The 8060 material documents different slew-lock arrangements before and from August 2001.

Operation covers pre-start inspection, cab and seat setup, ISO/SAE control-pattern selection, cold-weather warm-up, site travel, digging, lifting limits, disabled-machine handling and transport.

Maintenance extends from daily checks through the 2,000-hour/two-year service, including hydraulic-fluid checks, track gearbox oil changes, engine oil, air filters, fan-belt adjustment and battery inspection.

Body procedures cover removal and refitting of the bucket-ram linkage, dipper, boom, kingpost and dozer, plus slew-ring setup and bonded cab glass. Controls include servo-controller operation, track and dozer lever replacement, and control-cable setup.

Single- and double-acting auxiliary circuit layouts are included. Their illustrations are representative; the fitting instructions supplied with the actual kit take priority.

Schematics, Harnesses and Workshop Tools

Electrical drawing coverage separates the 8052 schematic for serials 0802000–0803370, the revised schematic from 0803371 and the 8060 schematic from 0883000. This distinction supports selection of the appropriate fuse, instrument and harness information.

Other named drawings include Harness Locations and Connections — 8052, Schematic Hydraulic Circuit diagrams for both models, and the 8060 Hydraulic Valve Block Schematic. Harness chapters add sealed splice repairs and connection/destination tables for the main, cab, canopy, optional working-light and boom-light harnesses.

The tool references identify Hydraulic Circuit Pressure Test Kit 892/00253, Flow Monitoring Unit 892/00268, ARV Test Block 331/31069 and Direct Glazing Kit 993/55700, alongside adapters, gauges and electrical test equipment.

Reference tables distinguish zinc-plated and Dacromet fasteners, O-ring face-seal fittings and torque-stop hoses. Lubricant standards, sealing compounds, fluid capacities and component-specific test settings accompany the procedures.

Engine Reference Coverage and Workshop Safety

Section L contains technical data for both engines and an 8052 fuel-system layout. Full internal engine service requires separate manuals: English-language manual 9806/2100 for the 8052 KR 104-22 IDI and 9806/2180 for the 8060 4JG1-S. These engine manuals are not included.

The oil-selection table also distinguishes 100 Series KR and 400 Series HP builds of the 8052.

Before repair work, support raised structures, release stored hydraulic pressure, isolate the electrical system, and use suitable lifting equipment for heavy components.

Examples of Linkage Wear Limits and Brake Data

For the bucket-ram pivot linkage used on both models, the pin's reference diameter is 44.90 mm and its allowable limit is 43.90 mm. The matching bushing has a 45 mm reference bore and a 46 mm allowable limit.

The 8060 track-motor and gearbox data lists a minimum parking-brake release pressure of 13 bar.
