JCB Models Covered & Key Technical Specifications

Models: 8027Z (track motor: PHV-290-45-5-8541A), 8032Z (track motor: PHV-290-45-5-8196A)

Sub-models / Variants: Canopy, Cab

Engine (both models): HL 403C-15


  • Main relief valve pressure: At 50 °C hydraulic oil temperature: 185 bar (2683 psi) for Swing/Slew/Dozer/Dipper Boost; for Tracks/Dipper/Boom/Bucket/Auxiliary: 207 bar (3000 psi) on 8027Z, 240 bar (3480 psi) on 8032Z

  • Hydraulic tank capacity: 58.0 liters (12.7 UK gal / 15.3 US gal)

  • Coolant system capacity (Cab): 8.0 liters (1.5 UK gal / 1.8 US gal)

  • Track motor weight (8032Z): 44 kg (97 lb)

  • Electrical system: 12 Volt negative earth

  • Primary fuse rating: 80 A

  • Drive sprocket to motor bolt torque: 113 Nm (83 lbf ft)

JCB Manual Features & Selected Content Preview

Factory JCB service manual for the 8027Z and 8032Z mini excavators, P/N 9803/9300. The cover is marked Issue 1, with revised pages marked Issue 2 or Issue 2*.

Searchable PDF and Diagram Detail

Text search and navigation: The PDF has searchable text and two embedded bookmarks that divide the file into parts rather than individual chapters. Small wiring labels, connector numbers, and hydraulic schematic details require zooming.

One printable PDF in English, 216 pages total, including the original cover and 11 blank pages.


Hydraulic Testing, Component Repair, and Track Service

The following selected coverage highlights outline the main workshop content. Additional topics include rotating-beacon bulb replacement and hydraulic oil-cooler removal.

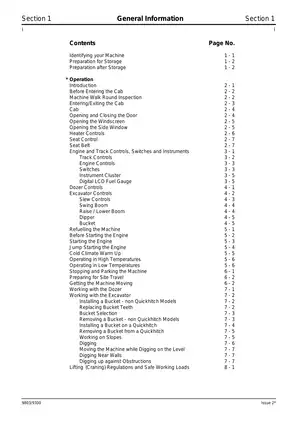

  • Operation and maintenance: Cab and canopy configurations, scheduled service, storage, transport, lifting precautions, quickhitch and non-quickhitch bucket use, and auxiliary attachments.
  • Body and framework: Bucket linkage, dipper, boom, slew-ring, and kingpost removal and replacement, plus direct-glazed cab window replacement.
  • Hydraulics: Pump flow testing, relief and servo pressure checks, control-valve repair, track- and slew-motor service, ram inspection, and rotary-coupling work.
  • Servo controls: Hand-controller operating theory, dismantling and assembly, symptom-based fault finding, and leakage and wear specifications.
  • Gearboxes and running gear: Track and slew gearbox teardown, steel/rubber track conversion, tensioning, lower-roller and idler repair, recoil-unit service, sprockets, and metallic face seals.
  • Electrical system: Component-keyed Circuit Diagram; Main Harness, Cab Harness, Canopy Harness, and Boom Light Harness drawings; battery tests; and alternator/starter removal and installation.

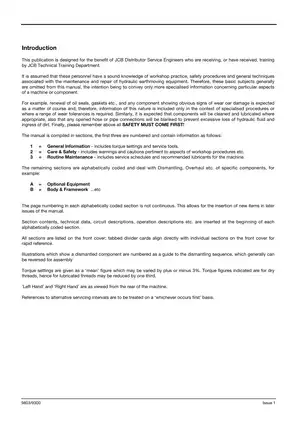

Written for JCB distributor service engineers receiving or having completed JCB Technical Training, this manual assumes a sound knowledge of workshop practice, safety procedures, and hydraulic earthmoving-equipment repair.

Machine Identification and Configuration

The identification section explains the machine data plate, VIN and engine-number formats, and component serial-number locations. These references support identity checks before parts or procedures are selected.

Configuration-specific material distinguishes cab cooling-system data, ISO and SAE servo hose routing, the standard ISO control layout, the optional 3CX hand-controller pattern, double-acting auxiliary pipework, and steel-versus-rubber track hardware.

Hydraulic Circuits and Fault Isolation

The Hydraulic Circuit schematic is paired with circuit descriptions and component-location views. It explains the variable-displacement pump’s constant-horsepower control and the roles of the sectional control valve, main and auxiliary relief valves, pressure-maintenance valve, and dual-solenoid valve.

The general fault-diagnosis tables separate faults affecting all services from servo, tracking, and slew problems. Their checks help distinguish pump, controller, track-motor, and rotary-coupling faults before an assembly is selected for further investigation.

Pressure-testing sections also address the dipper-boost dump valve and slew cross-line relief valves. Step-by-step procedures cover hydraulic pump removal and replacement and servo hand-controller dismantling and assembly; ram sections provide disassembly illustrations, piston-rod inspection criteria, seal orientation, and assembly torque data.

Service Specifications and Test Equipment

Routine-service data includes fluid and lubricant requirements, capacities, coolant mixtures, service schedules, grease points, fuel-system bleeding, hydraulic level checks, track-gearbox oil service, and track adjustment. Component sections add fastener and hydraulic-fitting torque tables, pump-flow and pressure-test data, inspection limits, and electrical test specifications.

The service-tool pages identify the 892/00253 Pressure Test Kit, 892/00268 Flow Monitoring Unit, and 331/31069 ARV Test Block, with associated gauges, adapters, and seal kits. Electrical and glazing equipment includes the 892/00298 Fluke 85 Multimeter and 993/55700 Direct Glazing Kit. These references allow the documented procedures to be matched to the intended test and installation hardware.

Repair Cautions and Component Limits

During slew-gearbox installation, misaligned mounting dowels can be driven through the slew frame and foul the slew ring. When changing between steel and rubber tracks, incorrect track-guide or roller-spacer arrangements can damage the tracks.

Running-gear limits: Upper rollers are inspected and replaced rather than dismantled for repair. The recoil-unit section also identifies non-serviceable spring-assembly parts and specifies assembly replacement when those parts are damaged.

Engine scope: Section K identifies the HL 403C-15 three-cylinder diesel and provides operating specifications and component torque data, but no internal engine-overhaul procedures. JCB refers further engine work to separate Engine Service Manual 9806/2190, which is not included.

Hydraulic pressure may remain trapped after the controls have been operated. Follow the manual’s pressure-release, machine-support, heavy-lifting, and electrical-isolation precautions before beginning service or repair.

Servo Controller Wear Limits: A Preview

The controller maintenance table specifies plunger replacement when tip wear exceeds 1 mm (0.039 in). It also calls for replacement of worn pin and joint parts when control free travel exceeds 2 mm (0.079 in).
