2004 ASV RC-50 & RC-50 Turf Edition Rubber Track Loader Service Manual (P/N 0200-373)

ASV publication ASVSP002 (07/04), P/N 0200-373, is the factory service manual for the 2004 RC-50 and RC-50 Turf Edition rubber track loaders. Its 15 chapters also include R-50 specifications, control descriptions, and hydraulic system diagrams.

Text search, bookmarks, and diagram detail: Body text is searchable; labels within hydraulic drawings are not. Chapter and subsection bookmarks provide navigation, although the top-level file-name entries have no page destinations. Small labels in the auxiliary circuit drawings need zooming for comfortable reading.

• Hydrostatic drive: Rexroth tandem pump, auxiliary gear pump, pump drive coupler, and drive motor removal and installation.

• Undercarriage service: Track replacement, sprocket roller service, wheel and sprocket bearing removal, and track tension inspection and adjustment.

• Loader hydraulics: Lift/tilt cylinder replacement, Husko loader valve removal, pilot control joystick service, and quick-coupler block/pressure release valve (low-flow relief valve) replacement.

• Cooling and reservoir: Radiator/oil cooler and fan guard replacement, filter manifold service, suction screen access, and hydraulic reservoir cleaning.

• Engine and fuel maintenance: Engine oil service, air cleaner maintenance, fuel-water separator cleaning, fuel filter replacement, and fuel system bleeding.

• Cab and chassis: Light bar, ignition switch, console gauge panel, lap bar gas assist spring, seat, and fuel sending unit replacement.

• Pressure checks and troubleshooting: Charge-pressure checking, auxiliary-pressure testing and adjustment, plus fault lists for starting, travel, loader operation, and auxiliary flow.

This manual is suited to mechanics familiar with hydraulic equipment, since component replacement involves supporting the machine and handling heavy assemblies, while pressure testing requires gauges.

RC-50 and R-50 Controls

The RC-50 uses separate loader and drive joysticks. The R-50 splits bucket/boom operation and individual track travel between its two controls. Loader float magnet removal and installation applies to the RC-50 only.

These control descriptions and the model-specific drawings help match the machine's joystick arrangement to the correct hydraulic layout before repair work.

Hydraulic Diagnosis and Repair Scope

Troubleshooting distinguishes a machine that will not crank from one that cranks but will not start. Other fault lists address inactive hydraulics, one-direction-only auxiliary flow, charging failures, float problems, hot hydraulic oil, and track popping.

The pressure chapter covers charge-pressure checking and auxiliary-pressure checking and adjustment. It calls for manufacturer assistance before these procedures; it does not provide the drive-pressure adjustment procedure listed in the contents.

Pump, Rexroth drive motor, and lift/tilt cylinder procedures cover removal and installation of assemblies. Internal pump, motor, and cylinder rebuilds are outside this manual's scope.

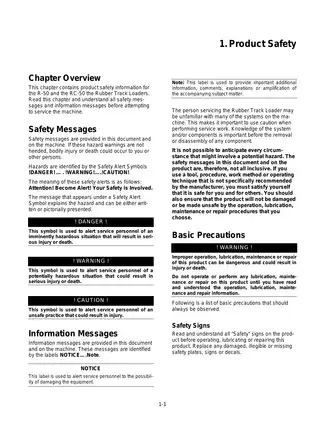

Working on high-pressure hydraulics and heavy loader arms carries physical risks. Follow the manual's pressure-release and mechanical lift-arm support requirements before service.

Undercarriage Tools and Repair Precautions

Track replacement identifies a wheel extractor, track tool, and bullet-shaped thread/seal protector. Sprocket rollers can be replaced without removing the track, which helps distinguish roller service from a full track-removal job.

The track-tension section warns that loose tracks can misfeed or ratchet and damage the track.

Engine, Cooling, and Cab Service

Engine coverage includes Cat 3024C (Perkins 404C-22) specifications, oil service intervals, and fuel system maintenance. Internal engine overhaul is outside the scope.

Radiator/oil cooler instructions cover hose connections and assembly replacement. Cab and chassis procedures address the fuel sending unit's hoses, wiring, and pickup line; the float mechanism can be damaged as the sender passes through the tank opening.

Hydraulic Drawings and Service Data

The Filtering and Cooling System drawing maps the reservoir, radiator/oil cooler, and loader valve. Separate Auxiliary Circuit System and Drive Loop System drawings for the RC-50 and R-50 show their pilot control manifolds and hydraulic connections.

Reference data includes component-specific torque specifications, hydraulic pressure and flow data, lubricant requirements, and engine oil and hydraulic fluid capacities. Electrical coverage consists of component service and symptom-based troubleshooting; a full electrical wiring diagram is not included.

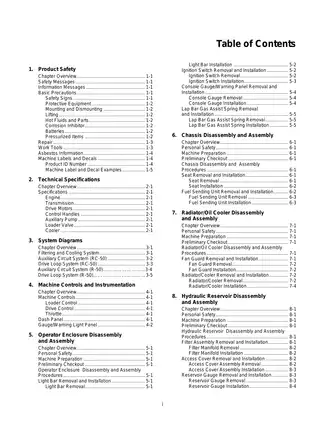

PDF Edition and Included Pages

One printable English-language PDF contains 84 pages total: 73 technical chapter pages, a front cover, two contents pages, seven blank pages, and a back-cover page. All cover and blank pages are already included in the total.
