2004–2006 ASV RC-100 Rubber Track Loader Service, Operation & Parts Manual Set, 2004–2006 (P/N 0201-669)
129 Pages • 1 Printable PDF (English) • Download
ASV Models Covered & Key Technical Specifications
Model: RC-100, RC-85 (operation and maintenance guide only)
Sub-models / Variants: Rubber Track Loader (RC-100 engines: Cat 3054CT Turbo and Perkins 1104C-44T. RC-85 engine: Perkins 1104C-44). The RC-100 Service Manual specifies a hydrostatic transmission with a Cat AA20VG38.5 tandem pump (Rexroth).
Model Year: 2004–2006 (2004, 2005, 2006)
Serial numbers (parts manual): RSD 00101–Current. “Current” refers to production at the September 2007 printing; component-specific serial breaks apply.
-
Engine displacement: 4.4 liter
-
Gross horsepower: 99.5 hp (74 kW) for the RC-100. The 2300 rpm rating is specified for the Perkins 1104C-44T.
-
Torque: 304 lb-ft (412 Nm)
-
Fuel tank capacity: 26 gal (98 L)
-
Hydraulic reservoir capacity: 20 gal (76 L)
-
Auxiliary pump flow: 38 gpm (144 lpm) at maximum output in the operation and maintenance guide. The RC-100 Service Manual lists 38 gpm (143 lpm) @ 2300 rpm.
ASV Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

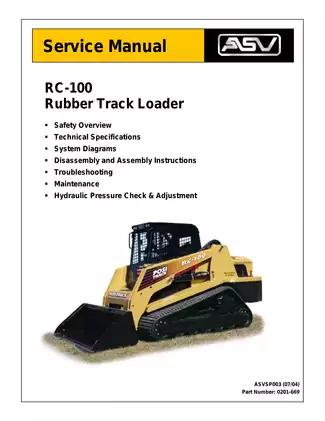

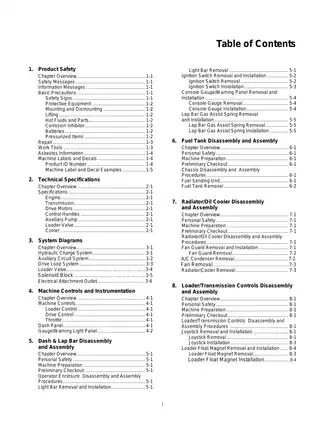

| ASV RC-100 Service Manual, Cat-powered rubber track loader (P/N 0201-669, July 2004) | 60 |
| ASV RC-85 / RC-100 Guide to Machine Operation and Maintenance, Perkins-powered rubber track loaders (ASVRC2OM-05, December 2006) | 28 |
| ASV RC-100 Master Parts Manual (P/N 0201-993, September 2007) | 38 |
Use the service manual to diagnose faults and plan component removal, then match replacement assemblies to the machine's serial number in the illustrated parts catalog. The operation guide covers machine controls, attachment use, and routine maintenance.
RC-85 manual coverage is limited to operation and maintenance. The RC-100 service manual covers charge and auxiliary valve pressure checks. Drive-pressure adjustment and internal engine overhaul fall outside the supplied repair coverage.
PDF Search, Cover Links, and Schematics
Text search and schematic detail: Manual text and parts lists are searchable. The electrical schematic and some labels in the service-manual figures are outside the text search. Cover links jump to all three publications and both schematic sheets. There are no embedded PDF bookmarks. Small labels on the appended sheets need zooming, and some service-manual labels remain pixelated.
The download is one printable English-language PDF with 129 pages. That total includes the combined cover, the hydraulic schematic sheet (0201-222), and the electrical schematic sheet (0201-217).
Hydrostatic Drive, Track Service, and Parts Identification
This selection from the set focuses on shop work and parts lookup. The operation guide also covers tilt-up ROPS access and includes a service log.
-

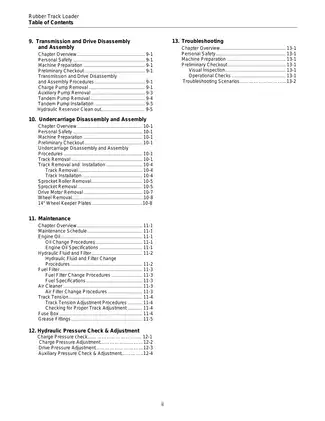

Hydrostatic and auxiliary pumps: Charge and auxiliary pump removal, tandem pump removal and installation, and hydraulic reservoir cleanout after pump failure.
-
Undercarriage repair: Step-by-step instructions for track removal and installation, plus procedures for sprocket rollers, drive motors, and wheel replacement.
-
Controls and electrical diagnosis: Joystick and loader float magnet service, starting and charging faults, operator-presence interlocks, and electrical attachment connections.
-
Fuel and cooling systems: Fuel sender, crossover tube, and tank removal, plus procedures for the fan guard, fan, optional A/C condenser, and radiator/oil cooler.
-
Routine maintenance: Service intervals and fluid specifications for engine oil, hydraulic fluid and filters, the fuel filter and water separator, air cleaner, and lubrication points.
-
Illustrated parts: Exploded assemblies and serial-specific parts listings, including cylinder service parts, optional enclosed cab, air conditioning, and forestry equipment.
The repair sections suit mechanics familiar with hydrostatic equipment and equipped for pressure testing and heavy-component handling. The operation guide is intended for operators carrying out routine checks and maintenance.
Drivetrain & Hydraulic System Breakdown
The specifications identify Rexroth MCR 5 drive motors and a Rexroth variable load-sense auxiliary pump. The charge-pressure procedure distinguishes the pump test point from the filter-side port, so each reading can be compared with the specification for that location.
The Hydraulic Charge System, Auxiliary Circuit System, and Drive Loop System diagrams show circuit routing. The Loader Valve and Solenoid Block views identify connections for functions such as operator presence and power quick-attach.
Electrical Diagnosis and Operator Controls
The Electrical Attachment Outlet view maps joystick buttons to receptacle terminals. The separate RC-100/85/RCV electrical schematic shows connector pins, wire color codes, fuses, and relays.
The troubleshooting section groups faults by symptom, including no-crank, loss of track drive, lift arms that won't operate, and a loader control that won't stay in float. Operator-enclosure procedures cover the light bar, ignition switch, console gauge and warning panel, and lap bar gas assist springs.
Component Teardown & Routine Maintenance
Track installation calls for tool P/N 0703-138. The undercarriage procedures cover sprocket bearing removal, split center-wheel replacement, and keeper plate repositioning when the standard track adjustment range is exhausted. The track-tension guidance explains how overtension can damage bearings and tracks and how sprocket misalignment can cause derailment or abnormal wear.

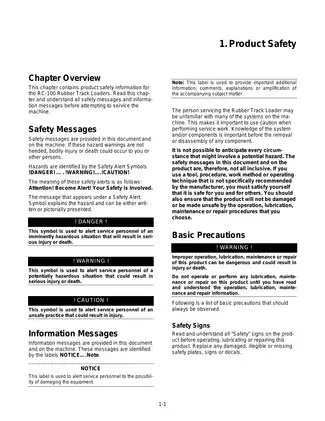

The fuel sender procedure flags the risk of damaging the float during removal. Review the manual's precautions for pressurized systems and hot fluids before opening hydraulic lines or valves.
Engine and Serial-Specific Parts
The catalog lists Caterpillar engine service items for RSD 00101–1031 and the Perkins engine assembly from RSD 01032. Other parts breaks include the chassis at RSD 01556, quick-attach at RSD 02212, lift-arm control valve at RSD 02369, and radiator/oil cooler at RSD 02646.
The cylinder section distinguishes earlier and current designs by port style. It specifies matched pairs when current cylinders replace the earlier design.
Preview of Auxiliary Pump and Drivetrain Specifications
The RC-100 service manual lists a marginal pressure of 362 psi (2,495 kPa) for the variable load-sense auxiliary pump.
The drivetrain torque references list 85 ft-lb with blue Loctite for the transmission mounting bolts and 160 ft-lb dry for the drive sprocket lug nuts.
