ASV RC-30 / RC-50 Track Loader Manual Set, 2004–2009 (P/N 0304-820)

Use the repair procedures alongside the serial-specific parts drawings to identify replacement components and plan RC-30 service work. The operator guide provides the controls and routine-maintenance information needed for day-to-day machine care.

RC-50 coverage is limited to operation and maintenance. The RC-30 service material covers external engine components and fuel-system bleeding, rather than internal engine overhaul. A full machine wiring schematic is not included.

The service PDF is incomplete: the Product Safety chapter and printed undercarriage pages 12-8 through 12-14 are absent. The listed track-installation and sprocket, bearing-plate, and drive-motor removal/installation procedures are therefore not included.

Searchable PDFs and Diagram Detail

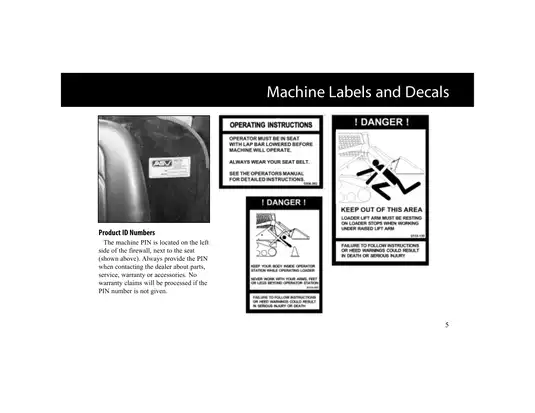

Text search and illustrations: Text is searchable in all three files, although wording within the operator guide’s auxiliary-control illustration is not searchable. None of the PDFs has embedded bookmarks. The service manual’s hydraulic diagram labels are clear; the operator guide’s small control-decal lettering requires zooming and remains soft.

The ZIP download contains three printable PDFs totaling 156 pages. That total includes the original covers and publication pages, one supplementary page, and three service-log pages.

Hydraulic Repairs, Serial-Specific Parts, and Loader Operation

These selected topics illustrate the contents rather than reproduce the complete table of contents. Further material includes RC-50 water-separator maintenance and lift-arm-brace operation.

• Fuel and cooling: Step-by-step fuel-tank and sender removal/installation, radiator/oil-cooler service, fan and shroud adjustment, exhaust-component replacement, and fuel-system bleeding.

• Hydraulic drive: Auxiliary gear pump, tandem hydrostatic pump, and pump-drive coupler removal/installation; charge and auxiliary pressure testing, plus drive-pressure relief adjustment.

• Loader controls: Joystick and float-magnet replacement, loader-valve removal/installation, lift/tilt cylinder replacement, pressure-release valve service, and quick-attach repairs.

• Undercarriage: Wheel, sprocket-roller, and brake-cylinder replacement, track removal, and track-tension adjustment, supported by serial-specific exploded parts views.

• Troubleshooting: No-crank/no-start conditions, loss of hydraulic operation, auxiliary-flow and float faults, charging problems, hot hydraulic oil, and track popping.

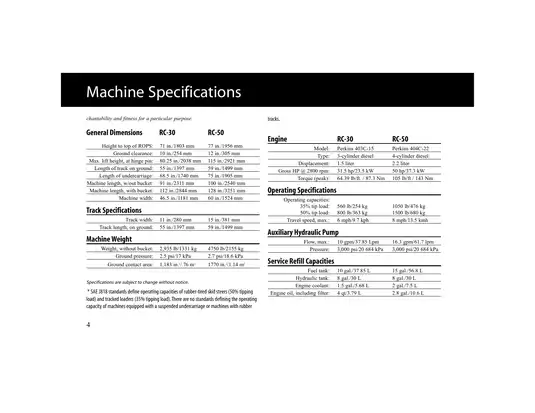

• Routine maintenance: Pre-start checks, operating limits, grease locations, fluid recommendations, refill capacities, and scheduled engine, hydraulic, fuel-filter, and air-cleaner service.

The repair sections suit technicians familiar with hydraulic systems and equipped with pressure gauges, a wheel extractor, and suitable lifting/support equipment; operators can use the guide for routine machine care.

Fuel Bleeding and Component Handling

Fuel-bleeding coverage distinguishes starter-cranked priming for serial numbers 001 through 1357 from hand-bulb priming for 1358 and higher.

The fuel-sender instructions identify the float mechanism as vulnerable to damage when passing through the tank opening. Exhaust flex-pipe guidance explains how kinking or twisting can cause premature failure because the engine moves relative to the frame-mounted muffler.

Hydraulic Tests and Electrical Fault Tracing

The Filtering and Cooling System, Auxiliary Circuit System, and Drive Loop System diagrams show the connections between pumps, pilot controls, loader valve, drive motors, and brake cylinders.

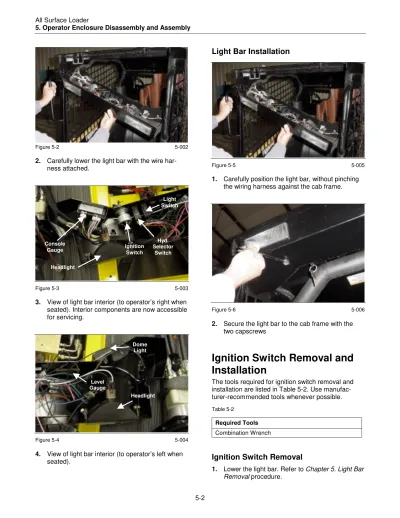

Troubleshooting connects operating symptoms with probable causes involving operator-presence switches, relays, solenoids, grounds, and wiring-harness connections. Electrical service material also covers the ignition switch, console gauge/warning panel, and fuse box.

The hydraulic-pressure chapter describes charge-pressure checks and adjustment, drive-pressure relief adjustment, and auxiliary-pressure checks and adjustment. It calls for manufacturer assistance before beginning these procedures.

Reference data includes low- and high-idle specifications and component-specific torque guidance for sprocket-retainer bolts, drive-tooth bolts, transmission mounting bolts, and bogie-wheel retaining nuts.

Parts Matching Across Production Changes

The parts manual organizes exploded views into 19 assembly groups, including the cab/ROPS, chassis, hood, engine installation, torsion axles, and lift arm. Optional enclosed-cab, cab-heater, and quick-attach-adapter assemblies are also documented.

Named views such as Drive/Auxiliary Pump Assembly, Undercarriage Assembly RT/LT, and Fuse Panel Assembly distinguish production changes before replacement parts are selected. The service specifications describe Eaton/Charlynn 4000 Light Series drive motors; the later pump assembly view for RSA02053-Current lists Sauer drive motors, P/N 2010-143.

Cylinder designs: The lift-arm cylinder, P/N 0304-349, and bucket/tilt cylinder, P/N 0304-350, have threaded end glands in the later design. Early cylinders use external wire-ring retention; the listed gland, rod, and nut components do not fit that design. Seal kit P/N 0402-946 is the available repair item for the early cylinders, with cylinder replacement required for more extensive repairs.

Control Options and Hydraulic Precautions

The operator guide distinguishes standard pilot-operated controls from optional Case-style controls. With the optional arrangement, each joystick combines travel and loader functions, and float must be held manually instead of being retained by the normal magnetic detent.

Hydraulic work can involve hot pressurized oil, and several procedures require lowering attachments, relieving pressure, disconnecting the battery, and keeping open hydraulic lines capped to prevent contamination. Use the factory safety information and appropriate shop equipment before carrying out repair work.

Selected Charge-Pressure, Pilot-Pressure, and Track Checks

At high idle with warm oil, RC-30 charge-pressure specifications are 450–500 psi for RSA001 through RSA01056 and 340–380 psi for RSA01057 and higher.

The Husko loader-valve data specifies 180–220 psi pilot pressure to move the spools.

The track-adjustment check allows no more than 0.75 in. deflection under 50 lb of downward force at the midpoint between the drive sprocket and front idler.
