JCB Models Covered & Key Technical Specifications

Models: Micro, Micro Tier 3, Micro Plus, Micro Plus Tier 3, 8008, 8010

Sub-models / Variants: 8008 CTS, 8010 CTS, TOPS configuration, FOPS configuration

Model Years: 2004–2010 (2004, 2005, 2006, 2007, 2008, 2009, 2010)

Serial Numbers: Micro: M1148300 Onwards; Micro Tier 3: M1149553 Onwards; Micro Plus: M1007000 Onwards; Micro Plus Tier 3: M1007129 Onwards; Micro 8008: M1239500 Onwards; Micro 8010: M1149553 Onwards

Engine variants: KD 103-10 I.D.I. (Micro, Micro Plus, 8008CTS and 8010CTS up to machine no. 1148299); 403C-11 (Micro, Micro Plus and 8010CTS from machine no. 1148300); 403C-07 (Micro 8008 and 8008CTS from machine no. 1239500)

Transmission: Hydraulic track motors with two-stage planetary reduction gearboxes


  • Engine power: KD 103-10 I.D.I.: 12.4 kW (16.6 hp) at 2000 rpm; 403C-11: 13.4 kW (18 hp) at 2200 rpm; 403C-07: 9.5 kW (12.7 hp) at 2200 rpm

  • Electrical system: 12V Negative Earth

  • Main Relief Valve pressure: 180 bar (2610 lbf/in²) at 12 l/min

  • Engine oil capacity: KD 103-10 I.D.I.: 3.8 liters (0.8 UK gal); 403C-11: 4.9 liters (1.07 UK gal); 403C-07: 3.5 liters (0.77 UK gal)

  • Hydraulic tank capacity: 16 liters (3.52 UK gal)

JCB Manual Features & Selected Content Preview

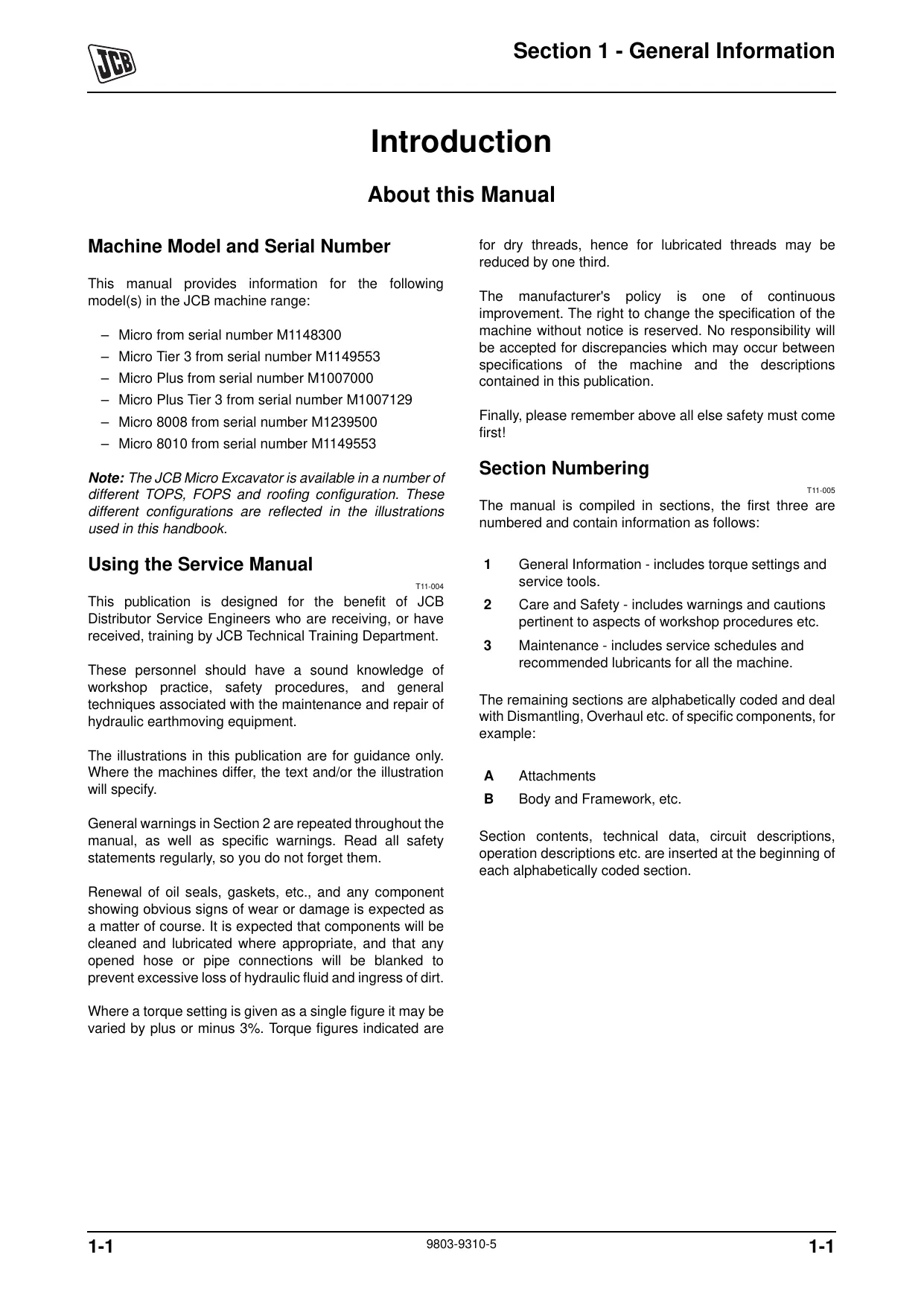

JCB’s factory Service Manual, P/N 9803/9310-5, covers Micro, Micro Tier 3, Micro Plus, Micro Plus Tier 3, 8008 and 8010 mini excavators, with 8008CTS and 8010CTS applications identified in the repair sections. Issued by JCB Technical Publications, it carries a 2004 copyright.

PDF Search, Diagram Detail and File Organization

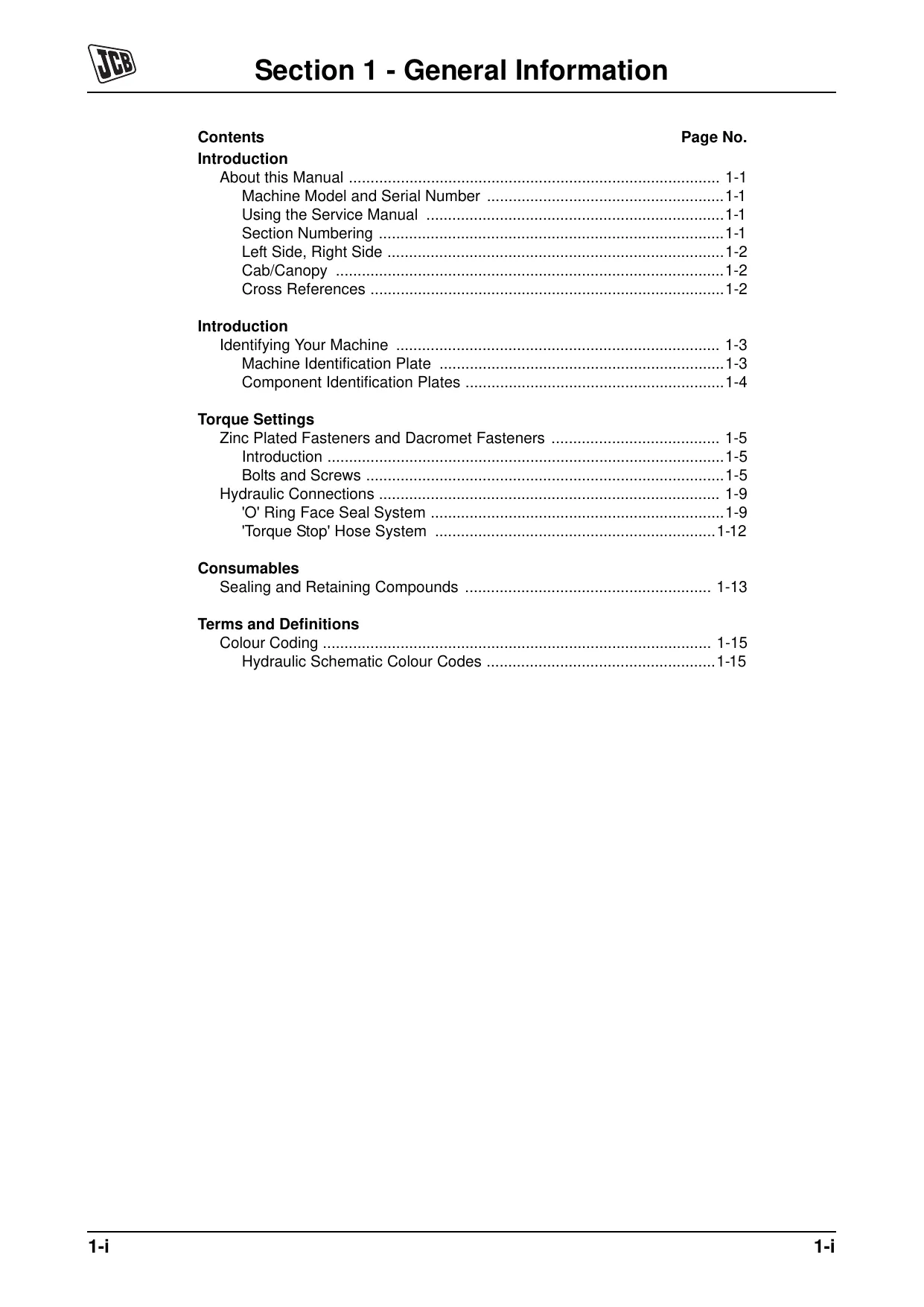

Finding procedures and reading schematics: The PDFs contain searchable text, although some drawing labels are not searchable, including labels in the later electrical circuit diagrams. Each file has two broadly labeled bookmarks rather than a detailed chapter outline. Small wiring, connector and hydraulic-port labels require zooming.

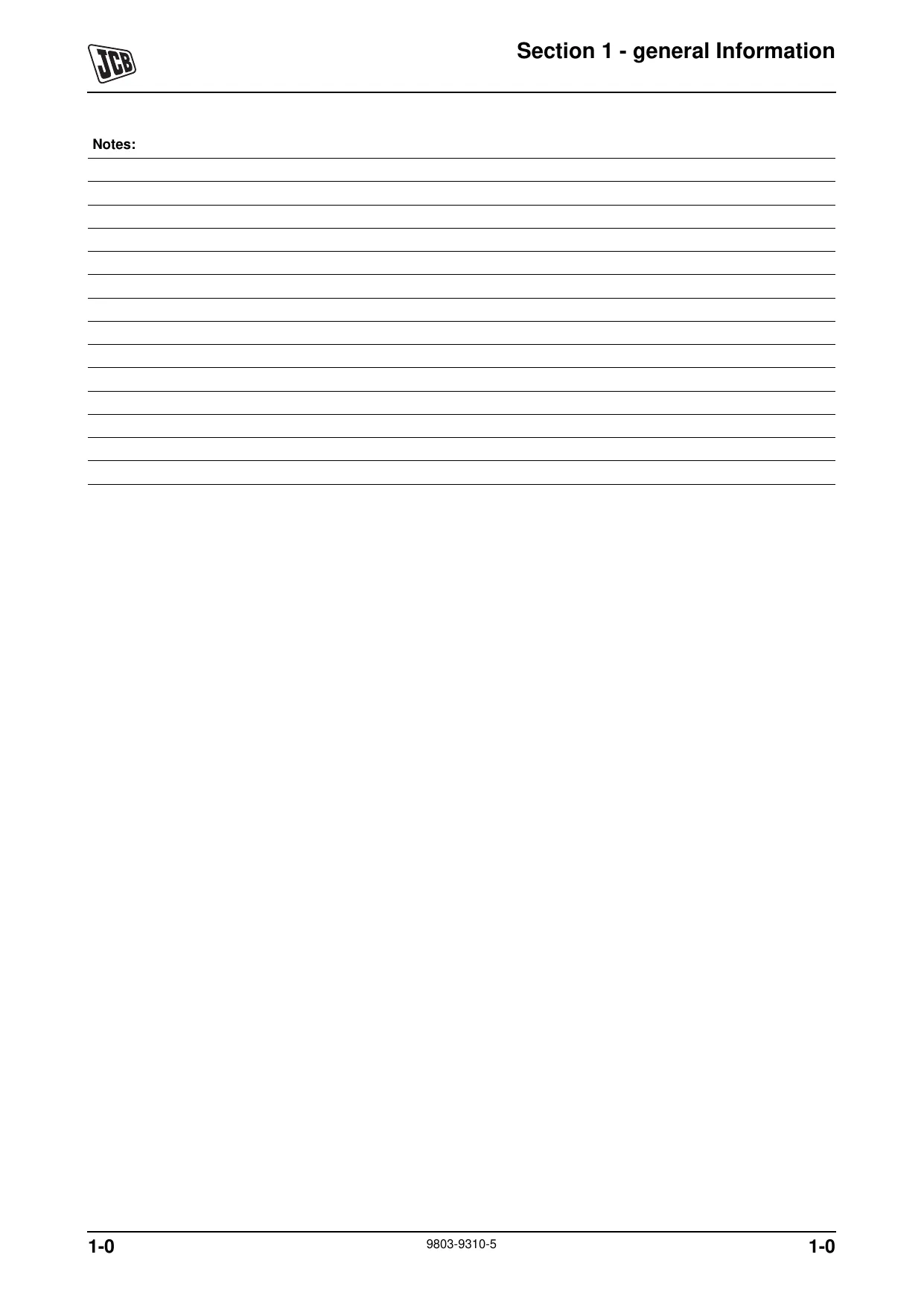

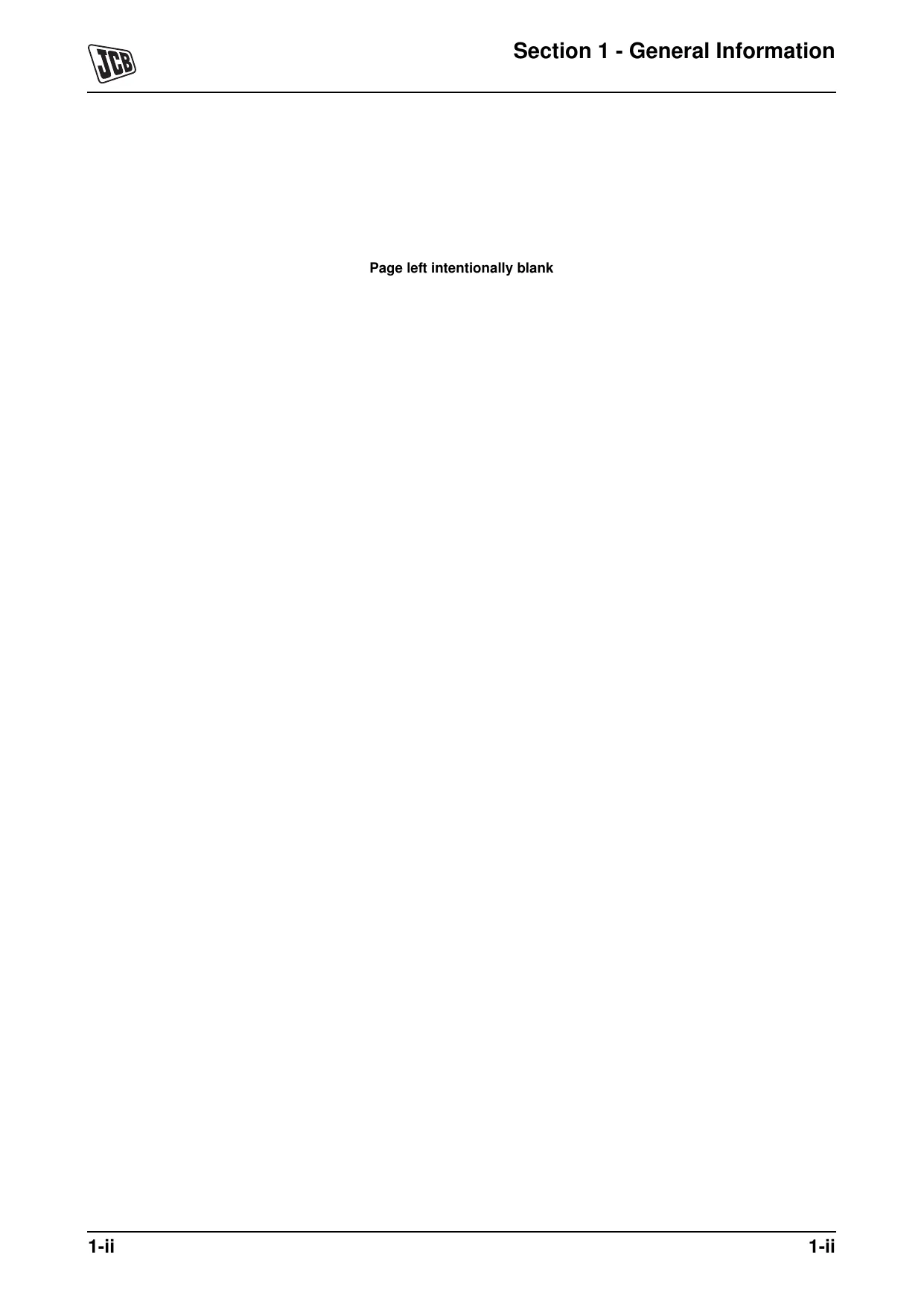

The ZIP download contains 306 pages across 12 printable English PDFs: a two-page cover file and 304 pages in 11 section files. The total includes 12 cover pages, 12 notes pages and 34 intentionally blank pages.


Hydraulic Fault Finding, Structural Repair and Track Service

The following is a selection of covered work, rather than a complete contents list. Other topics include bucket-tooth replacement and valve-control-rod adjustment.

  • Body and framework repair: Upper-structure separation, bucket linkage service, boom, dipper and kingpost removal, model-specific dozer-blade disassembly, tank replacement, and front and rear TOPS-frame removal.

  • Hydraulic diagnosis and component repair: Cycle-time testing, system fault diagnosis, pump removal and resealing, control-valve overhaul, relief-valve testing, track and slew motor service, ram repair, and rotary-coupling replacement.

  • Model-specific schematics: Micro Plus and Micro/8010CTS hydraulic circuits, 8008/8008CTS single- and double-acting auxiliary circuits, and electrical diagrams divided by machine-number group.

  • Electrical testing and harness identification: Starter and alternator removal, battery testing, wire-number identification, Series 1–3 harness drawings, fuse specifications, and multimeter checks for voltage, resistance, continuity, frequency and diodes.

  • Travel and undercarriage service: Track gearbox removal and internal disassembly, model-specific track replacement, and Micro Plus roller, metallic-face-seal, idler and recoil-unit overhaul, with inspection and wear-limit data.

  • Engine reference coverage: Build-specific engine specifications and torque data; detailed internal engine repair requires the separate engine publications identified in Section K.

Written for JCB distributor service engineers receiving or having completed JCB training, this manual assumes sound workshop practice, safety knowledge and experience maintaining and repairing hydraulic earthmoving equipment.

Hydraulic Diagnosis and Component Repair

The hydraulic section explains the neutral circuit and the track, slew, dipper, swing, undercarriage-extension, auxiliary, dozer, bucket and boom functions. It also describes load-hold check valves, main and auxiliary relief valves, pump operation, and track-motor counterbalance and braking operation.

The fault chart separates whole-system problems from track-only and slew-only faults. Together with cycle-time and track-speed tests, it supports fault isolation before components are removed.

Control-valve repair is organized by spool section, with component keys, inspection points, assembly notes and torque data. Pressure-testing pages identify the 892/00279 pressure gauge, 892/00223 hand pump and 331/31069 test block.

The manual provides step-by-step procedures for pump resealing and slew-motor disassembly and assembly. Pump repair is limited to seal replacement; wear or damage to other pump components calls for replacement. Hydraulic contamination and system-cleaning procedures are also included.

Electrical Circuits and Build Differences

Electrical circuit diagrams distinguish machines up to serial no. 1148299 from machines starting at 1148300. Harness material includes later-build drawing 332/S9225-1, alongside connector layouts and wire lists.

The serial-specific fuse tables and circuit diagrams let technicians match the electrical reference to the machine’s build before tracing a fault. TOPS, FOPS and roof configurations appear in the illustrations; references to the cab also apply to canopy machines.

Scheduled Service and Workshop Reference Data

Service schedules run from daily and 10-hour checks through the 2,000-hour interval, with first-100-hour and 250-hour requirements also addressed. They cover engine, fuel, hydraulic, electrical, transmission, undercarriage, body, lifting-equipment and attachment checks, followed by functional testing and final inspection.

Separate procedures cover greasing, battery and jump-start service, engine oil and cooling work, fuel-filter replacement and bleeding, hydraulic pressure release, hydraulic oil and filter service, track adjustment, and track-gearbox oil changes.

Torque references distinguish zinc and Dacromet fasteners, UNF and metric hardware grades, rivet nuts and internal-hex screws. Hydraulic connection data covers BSP and SAE fittings, bonded-washer adapters and Torque Stop hoses. Further tables provide fluid capacities, approved lubricants, hydraulic pressure and cycle-time specifications, ram dimensions, engine data and Micro Plus undercarriage wear limits.

Engine Scope and Assembly Cautions

Section K supplies KD 103-10 I.D.I., 403C-11 and 403C-07 engine data by machine-number group. It is not a complete engine-overhaul chapter. Detailed KD 103-10 repair is referred to Engine Service Manual 9806/2100, and 403C-11 repair to 9806/2190; neither publication is included.

Track-gearbox assembly notes identify O-ring damage caused by a tilted cover during installation. The Micro Plus roller instructions address matched metallic face seals and warn that skin contact with their sealing surfaces can cause corrosion.

The safety material requires trapped hydraulic pressure to be released, starting to be isolated when appropriate, and raised components to be mechanically supported. Upper-structure, boom, track, recoil-spring and pressure-testing work requires the training and equipment specified by JCB.

Examples of Linkage Wear and Ram Inspection Limits

For bucket-ram pivot and linkage inspection, the tables give a 30 mm reference pin diameter and a 29 mm permitted minimum. The matching bush has a 30 mm reference inside diameter and a 31 mm permitted maximum.

The ram-inspection section defines piston-rod warp as half the total indicator variation and calls for replacement when warp exceeds 0.5 mm.
