Perkins 4.108, 4.107 & 4.99 Manual Set | 1980–1981 Parts Book (P/N NAP000265 PB)
453 Pages • ZIP Download: 8 Printable PDFs • 16.27 MB
Perkins Models Covered & Key Technical Specifications
Models & Model Codes: 4.108M, 4.107M, 4.99M, 4.108 (ED), 4.107 (EB), 4.99 (EA)
Model Years: 1980–1981
Sub-models / Variants: 4.108M Low Line, 4.108M North America (Build List NAP000265), 4.108 refrigeration-unit engine
-
Engine identification: The 1978 workshop manual covers marine-spec 4.108M, 4.107M, and 4.99M diesel engines. The 1983 workshop manual covers non-marine 4.108, 4.107, and 4.99 diesel engines.
-
Parts documentation: The 4.108M North America parts catalog includes detailed exploded-view diagrams for engine block, cylinder head, fuel system, and cooling components.
-
Marine gearbox configurations: Mechanically or hydraulically operated direct-drive and reduction gearboxes. The listed 4.108M Low Line gearbox configurations are hydraulically operated.
-
4.108M electrical options: The parts catalog lists switch option NAA000189 up to engine no. 108U107098 and NAA000204 from engine no. 108U107099.
-
Marine serial breaks: The 4.99M anti-stall device was fitted from engine no. 7005061 on engines with a hydraulically governed injection pump. The earlier valve-timing check applies before approximate engine nos. 7061328 (4.99M) and 7106799 (4.107M).
-
Non-marine serial breaks: Earlier factory static fuel-pump timing is listed for 4.108 engines prior to engine nos. 108U15973 and 108UD20214. On the 4.108 refrigeration-unit engine, the interim controlled-expansion piston was introduced from engine no. 108U113592 and the final version from engine no. 108U119423.
Perkins Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 4.108M North America Core & Option Parts Book, 1980–1981 (P/N NAP000265 PB, Issue 1 cover with Issue 1–3 sheets) | 106 |
| 1978 Marine Workshop Manual for 4.108M, 4.107M, and 4.99M (P/N 601 SER 0478 1088) | 134 |
| 1983 Workshop Manual for 4.108, 4.107, and 4.99 non-marine diesel engines (P/N 601 SER 0383 1072) | 114 |
| Engine Number Guide Including Number Location Guide (P/N PP827(E)/5) | 2 |
| Gen Set Power Selector Chart for listed 50 Hz and 60 Hz generator models | 2 |
| Electrical T.I. Bulletins for listed Perkins and ITL applications | 29 |
| General T.I. Bulletins for listed Perkins and ITL applications | 65 |
| Locking Sealants reference chart | 1 |
Use the workshop edition that matches the engine installation for diagnosis and repair. For the North American marine build, the parts book lets you match the assembly on the bench to its build-list and option entries before ordering.
Parts catalog coverage is limited to 4.108M build NAP000265. References to NAP000273 apply to individual items. The alternator and generator plate appears twice, leaving that assembly without its matching parts list. The bulletins and generator chart apply to the products listed in each reference.
Text Search, Bookmarks, and ZIP Contents
Finding parts and procedures. Both workshop manuals have chapter bookmarks and partial text search. Parts lookup relies on the printed indexes and page browsing. The five reference PDFs have searchable text, and both bulletin indexes contain clickable entries. Zoom in for the smallest labels in the 1983 electrical test diagrams and the electrical bulletin connector views.
The ZIP contains eight printable PDFs totaling 453 pages. That total includes covers, blank pages, appendices, and the 99 pages in the five separate reference PDFs.
Diesel Overhaul, Marine Cooling, and Parts Lookup
These are selected topics from the set. The workshop editions also cover flywheel-housing alignment and list approved service tools.
- Engine overhaul: Step-by-step procedures cover cylinder head disassembly, piston and connecting rod service, cylinder liner renewal, and crankshaft and main bearing inspection.
- Timing and fuel delivery: The workshop manuals cover timing gear setup, injection pump timing, fuel-system bleeding, and injector inspection. The marine edition also covers anti-stall adjustment.
- Marine cooling and lubrication: Seawater pump and freshwater pump service, heat exchanger maintenance, lubricating oil pump checks, and oil cooler routing on Low Line engines.
- Electrical fault finding: Charging-system checks, starter testing, and alternator output tests. The non-marine edition includes alternator and glow-plug test circuits.
- Build-specific parts lookup: Exploded views cover core assemblies, three low-pressure fuel arrangements, PTO clutch and gearbox-related hardware, and top and bottom gasket sets.
- Marine accessories: Parts plates distinguish front-end drive, engine lifting plates and mounts, throttle and stop controls, senders, tachometer and hour-meter equipment, harnesses, and instrument panels.
- Refrigeration engines: A dedicated 4.108 section compares the vehicle and refrigeration builds and documents timing cover seals, piston revisions, and ring specifications.
The set suits marine diesel and engine rebuild technicians familiar with normal workshop practice, as well as parts staff matching assemblies by build and option code.
Build Lists and Parts Ordering

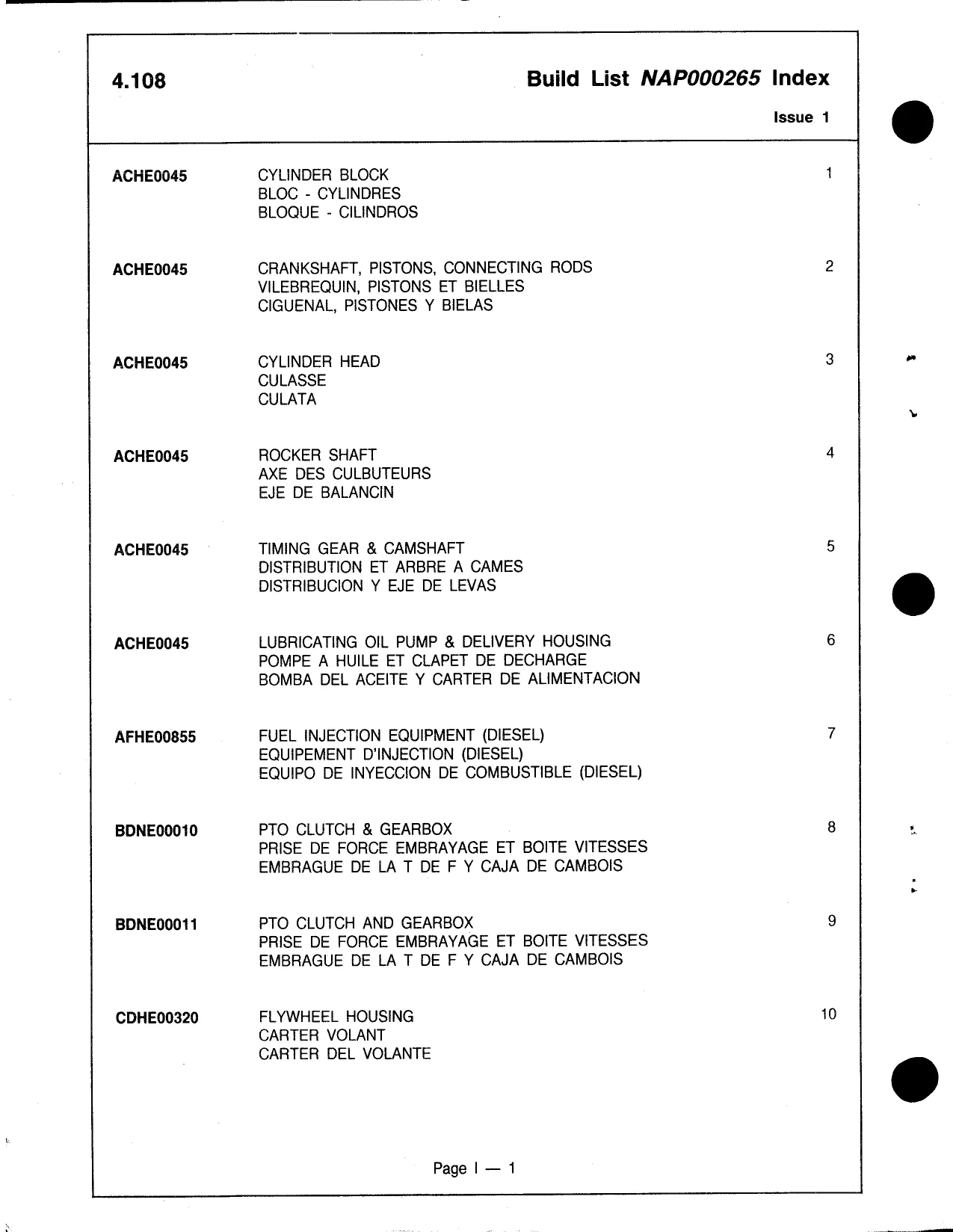

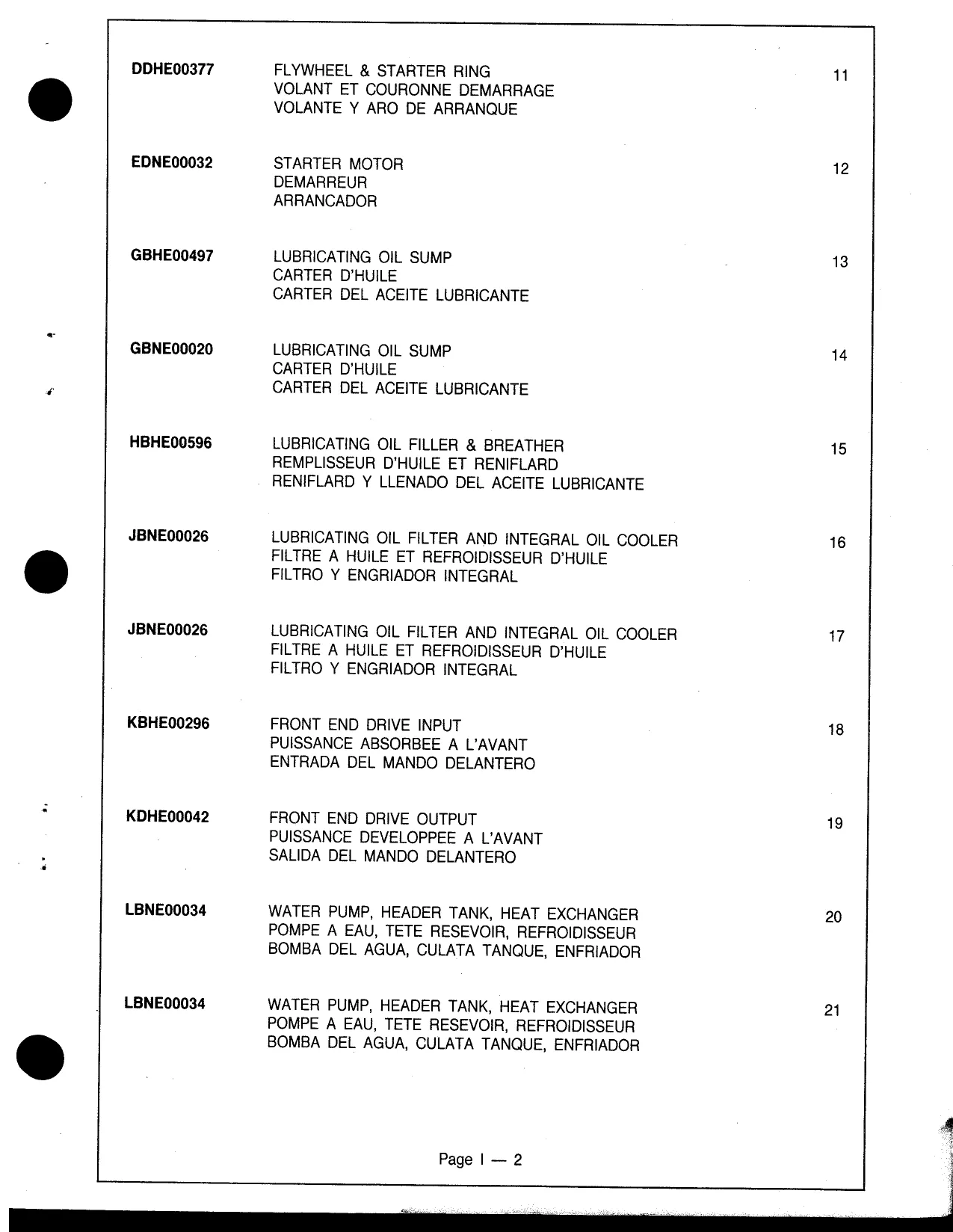

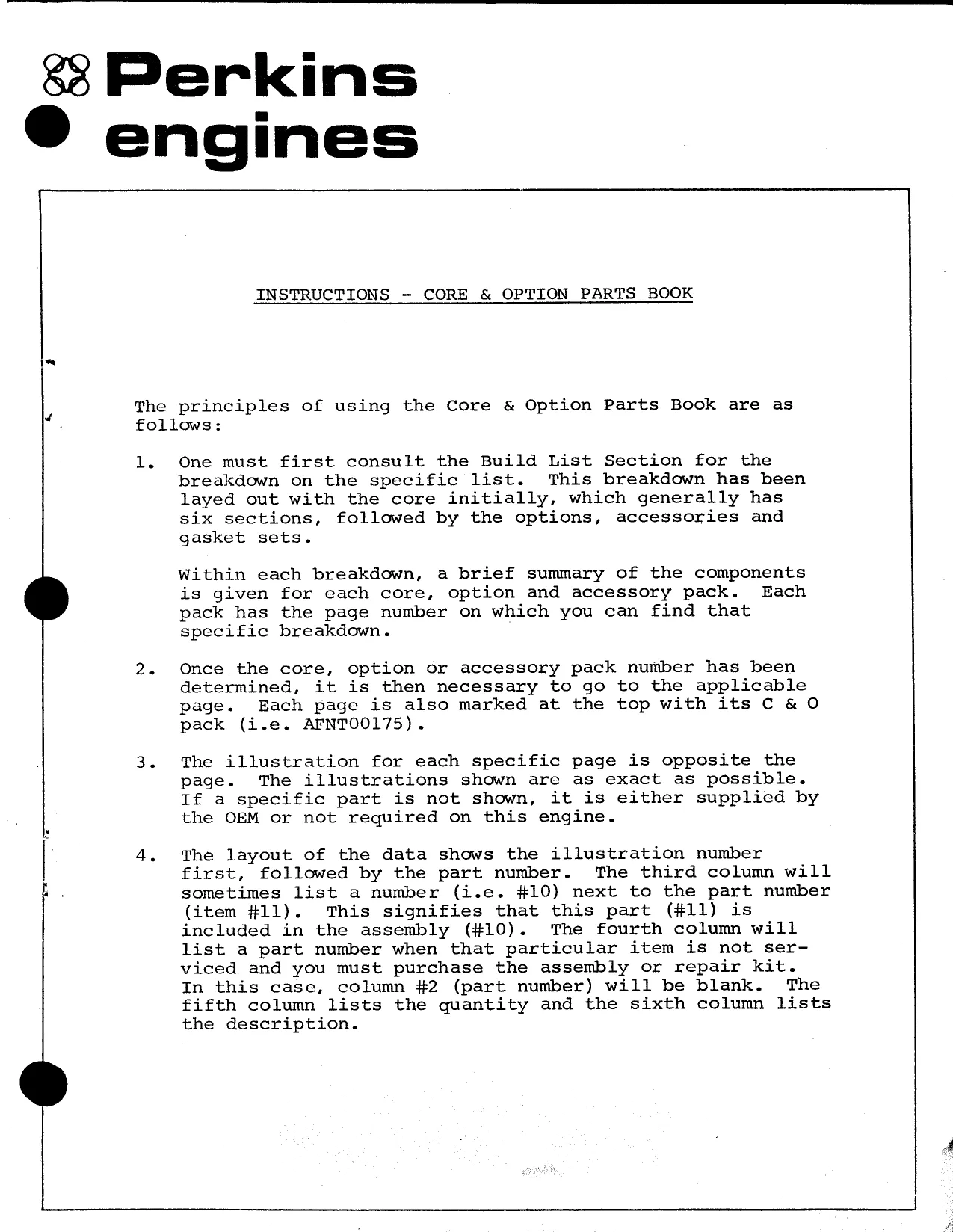

The catalog indexes 47 subjects by pack code and plate number, with a separate numerical index for known part numbers. Parts lists tie drawing callouts to Perkins numbers, quantities, and descriptions in English, French, and Spanish. Notes identify items included in larger assemblies, supplied in repair kits or pairs, or sourced through Delco. An item absent from a plate may belong to the equipment manufacturer's parts list.
The electrical application plate separates alarm-switch options by engine number and ties different harness extension lengths and instrument panels to their option codes. Other plates distinguish alternate oil sumps, integral oil coolers, and pressure and temperature sender arrangements.
Pump Seals and Refrigeration Pistons
On marine water pumps with a ceramic counterface, even brief dry running can crack the ceramic and cause a leak. In the refrigeration section, Perkins explains how skirt damage or distortion on close-fitting controlled-expansion pistons can cause seizure.
Thermostat and Alternator Test Examples
The marine manual gives different thermostat opening temperatures for the two cooling systems. The wax-capsule thermostat in an indirectly cooled engine begins opening at 156°F (69°C), while the bellows thermostat in a directly cooled engine begins opening at 125°F (52°C).
The non-marine manual lists nominal hot output of 28 A for the 15ACR alternator and 36 A for the 17ACR at 6,000 alternator rpm. The figures apply near normal alternator operating temperature.
