Massey Ferguson 5400, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475 2004–2009 Workshop Manual (P/N 3378545M5)
2,111 Pages • Printable PDF • 144.84 MB • Download
Massey-Ferguson Models Covered & Key Technical Specifications
Models: 5425 (Perkins 1104C-44; engine lists RE 37873 Standard / RE 37917 Steep Nose), 5435 (Perkins 1104C-44T; RE 37831 Standard / RE 37919 Steep Nose), 5445 (Perkins 1104C-44T; RG 37832 Standard / RG 37915 Steep Nose), 5455 (Perkins 1104C-44T; RG 37826 Standard / RG 37916 Steep Nose), 5460 (Perkins 1104C-44TA; RJ 37833), 5465 (Perkins; engine lists VK 31483 up to 21/09/03 / VK 31486 from 22/09/03), 5470 (SISU; engine list V832661108)
Sub-models / Variants: 5460 SA (Perkins 1104C-44TA; RJ 37833), 5470 SA (SISU 44DTA; V832661417), 5475 SA (SISU 44DTA; V832661418) (Orchard models), Power Shuttle (wet clutch, GBA20 or GBA25), Dyna 4 (GBA25; all listed models and SA variants), Speedshift (GBA20; 5425, 5435, 5445, 5455, 5460, 5465, and all three SA variants; dry clutch/mechanical reverse shuttle or wet clutch/Power Shuttle)
Model Years: 2004–2009 (2005, 2006, 2007, 2008)
-
Engine Displacement: 4.4 L (5425, 5435, 5445, 5455, 5460, 5470, and all three SA variants); 6.0 L (5465)
-
Engine Configuration: 4-cylinder Perkins (5425, 5435, 5445, 5455, 5460, 5460 SA); 6-cylinder Perkins (5465); 4-cylinder SISU (5470, 5470 SA, 5475 SA)
-
Bore: 105 mm (4-cylinder Perkins); 100 mm (6-cylinder Perkins); 108 mm (SISU)
-
Stroke: 127 mm (Perkins); 120 mm (SISU)
-
Compression Ratio: 19.3/1 (5425, 5435); 18.2/1 (5445, 5455, 5460, 5460 SA); 17.25/1 (5465, 5470, 5470 SA, 5475 SA)
-
Operating Speed: 2200 RPM
-
Axle Shaft Diameter: 76 mm
Massey-Ferguson Manual Features & Selected Content Preview

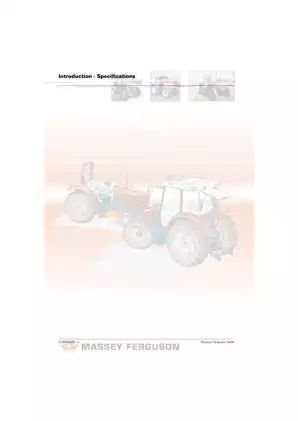

AGCO workshop service manual P/N 3378545M5, October 2007, for Massey Ferguson 5425, 5435, 5445, 5455, 5460, 5465, and 5470 tractors, plus the 5460 SA, 5470 SA, and 5475 SA Orchard variants. Coverage of the 5475 is limited to the SA Orchard version.
Searchable Service Text and Chapter Bookmarks
Search, navigation, and diagram detail: The service chapters support PDF text searches, with 12 embedded bookmarks for the main chapters. The cover has no searchable text. Small connector numbers and wire codes in dense wiring diagrams require zooming.
One 2,111-page printable PDF, including the original cover and 71 blank pages already counted in the total.
Tractor Splitting, Drivetrain Repair, and Control Diagnostics
The following is a selection of the manual’s coverage. Other topics include retaining compounds and sealing products, along with Orchard cab dimensions and attachment points.
-
Tractor splitting: Step-by-step procedures for front-frame separation, engine-to-GTA2020 separation, and GBA20/GPA20 splits with different cab support arrangements.
-
Engine and dry clutch: Perkins injection-pump timing, removal and installation, fuel bleeding, water-pump service, and GBA20 clutch and hydraulic slave assembly repair.
-
Transmission repair: GBA20 mechanical reverse shuttle and Power Shuttle units, Speedshift, and GBA25 PowerShuttle, Powershift, and robotic mechanical gearbox work.
-
Axles and PTO: GPA20 final drives, differential, brakes, hitch and rear hubs; PTO shaft and clutch repair; DANA, CARRARO, 2WD, and 4WD front-axle procedures.
-
Hydraulics and braking: Open-center and Load Sensing tests, pump and valve service, assisted and unassisted master cylinders, brake bleeding, and trailer-brake systems.
-
Electrical and electronic diagnosis: Cab, engine, transmission, lighting, and controller-supply diagrams, with Wintest diagnostics, error codes, programming, parameter setting, and calibration.
-
Cab air conditioning: R134a troubleshooting, compressor-clutch checks, leak detection, evacuation, refilling, and pressure checks.
Written for AGCO dealers and agents, this manual assumes workshop equipment and special tools for the operations that call for them.
Splitting Access and Perkins Engine Work
Configuration tables and separate repair sections help you choose the appropriate split, clutch, and hydraulic test procedure for the tractor’s build. Access procedures distinguish the vibration damper, flywheel, transmission input components, creeper or super-creeper drive, PTO clutch, hand brake, differential ring gear and pinion, and center housing.
Reassembly cautions: The manual warns against forcing resisting engine/transmission splines, which can damage the input shaft, friction disc, or vibration damper. Its four-cylinder front-frame measuring, installation, and final-check procedure also addresses undue loading of the engine/lower-housing and frame mating faces during shimming.
For splitting work, axle oscillation must be blocked and the separated assemblies secured with correctly positioned stands and slings.
Engine scope: Perkins 1104 and 1106 procedures distinguish Bosch VE10, Delphi DP210, and Bosch VP30 injection pumps and related front-cover components. SISU applications receive model-specific specifications. Full internal engine overhaul is outside this manual’s scope; separate engine overhaul literature is needed for that work.
Service-tool references include the 3376803M1 input-shaft seal drift; 4224730M1 and 4224757M1 four-cylinder timing pins; and the 4224787M1 timing tool, PD245 pump timing pin, and PD239 pump removal wrench for the six-cylinder injection system.
Clutch, Gearbox, and Final-Drive Detail
GBA20: Dry-clutch coverage extends to the diaphragm mechanism, friction disc, thrust bearing, hydraulic slave assembly, piston seals, guide rings, and bleeding. Gearbox sections separate input-unit and shuttle work from Speedshift, selectors, output shaft, layshaft, and intermediate-shaft repair.
GBA25: The robotic gearbox sections add primary- and secondary-shaft shimming, selector-rail and fork adjustment, interlock adjustment, and intermediate speed-sensor installation. Reference tables distinguish Speedshift and Dyna-4 road speeds, dimensions, attachment points, track widths, and fluid capacities. Component-specific torque tables accompany the assembly instructions.
Axles and PTO: GPA20 instructions distinguish Normal Duty and Heavy Duty trumpet housings, brake pistons, hand-brake adjustment, differential backlash and preload, hitch and linkage, and auto-hitch work. PTO sections cover intermediate shafts, drive gears, the brake, removable and shiftable shafts, GSPTO, and the clutch.
Front-axle tables identify DANA AG 85 for the 5425 through 5455, AG 105 for the 5460 and 5460 SA, and CARRARO 20.19 ACP for the 5465. DANA AG 130 is listed for the 5470, 5470 SA, and 5475 SA. Exploded views accompany the axle procedures; rear-wheel and hub sections cover track-width changes and wheel-stud replacement.
Hydraulic Tests and Controller Fault Tracing
Hydraulic chapters separate open-center layouts from Load Sensing circuits, including variable-displacement pump removal and open-center pump disassembly. Suspended-front-axle tests and accumulator checks supplement the main pressure and flow tests. Hydraulic cover plates, linkage and auxiliary spool valves, and Power Shuttle control receive their own service sections.
The Mechanical Reverse Shuttle and Speedshift hydraulic diagram, Power Shuttle and Speedshift hydraulic diagram, and Load Sensing circuit diagrams show how the applicable circuits connect.
Electronic systems: Wintest sections separate Perkins electronic injection from Autotronic 5 Power Shuttle, linkage, and Dyna-4 functions. EHRB linkage component tests use a multimeter and test harness 3378077M1. Connector pin allocations, Autotronic 5 wiring and connector views, error-code tables, calibration requirements, and final checks support fault tracing and setup after component replacement.
Air-Conditioning Diagnosis and Service Equipment
The air-conditioning schematic is paired with fault analysis for cooling, compressor cycling, and electrical supply problems. Air-conditioning repair requires proper R134a recovery, evacuation, leak-test, and filling equipment.
Examples of Gearbox Preload and Compressor Adjustment Data
For GBA25 robotic gearbox assembly, the shimming section specifies primary-shaft bearing preload P1 of 0.05–0.10 mm and secondary-shaft preload P3 of 0.05–0.15 mm. These are assembly preload targets used with the measured clearance to select shims.
The air-conditioning section gives a compressor-clutch air gap of 0.4–0.8 mm for the Sanden SD-7H15, alongside the related clutch inspection and adjustment material.
