Massey Ferguson 6400 Series Tractor Workshop Manual 2005–2018 (P/N 3378405M5)
4,420 Pages • Printable PDF • 299.68 MB • Download
Massey-Ferguson Models Covered & Key Technical Specifications
Models: 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499
Sub-models / Variants: Dynashift (GBA20: 6445, 6455, 6460, 6465, 6470, 6475, 6480; GBA10: 6485, 6490, 6495, 6497, 6499), Dyna-6 (GBA25: 6445, 6455, 6460, 6465, 6470, 6475, 6480; GBA15: 6485, 6490, 6495, 6497, 6499), Tier 2, Tier 3, 4WD, 2WD, HDE, SHD, Composite
Model Years: 2005–2018 (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)
SisuDiesel engine-software serial breaks: 6485: up to N258068 / from N258069; 6490: up to N342061 / from N342062; 6495: up to N344031 / from N344032; 6497: up to N345039 / from N345040; 6499: up to N307025 / from N307026.
Vistronic introduction — Dynashift/DCC2: 6480: from N285074; 6485, 6490, 6495: from N295045; 6497, 6499: from N348018.
North American roof-indicator and warning-light wiring — GBA20/GBA10: up to N145024 / from N145025, with separate diagrams for tractors with and without fender extensions.
-
Engine: Perkins 1104C-44T (6445, 6455), Perkins 1104C-E44TA (6460, 6470), Perkins 1104D-E44TA (6445, 6455 — Dyna-6 Tier 3), Perkins 1106C/D (6465, 6475, 6480; Dyna-6 Tier 3: 1106D-E66TA), Sisu 44 CWA (6460, 6470 — Dyna-6 Tier 3), Sisu Fortius 66ETA (6485, 6490, 6495, 6497 — Dynashift), Sisu Fortius 74ETA (6499 — Dynashift), Sisu Citius 66CTA (6485, 6490, 6495 — Dyna-6), Sisu Citius 74CTA (6497, 6499 — Dyna-6)
-
Perkins engine list numbers: 6445: RG 37832; 6455: RG 37826; 6460: 43942; 6470: 43943; 6465: VK 31483; 6475: VK 31484; 6480: VK 31485
-
Horsepower range: 90–215 HP
-
Transmission types: Dynashift, Dyna-6
-
Drive systems: 2WD, 4WD
-
Hydraulic options: Open Centre, Closed Centre (110–150 l/min), TFLS
-
PTO types: Interchangeable, shiftable, Proportional, Automated
Massey-Ferguson Manual Features & Selected Content Preview
This Massey Ferguson 6400 Series workshop service manual, P/N 3378405M5, dated September 2008, covers 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, and 6499 tractors. Coverage follows the installed engine, transmission, axle, hydraulic system, and electronic controls.
PDF Search, Chapter Bookmarks, and Wiring Detail
Search and diagram detail: Technical text is searchable, and twelve chapter bookmarks provide access to the main sections. The two original cover pages have no searchable text. Small pin numbers and wiring codes require zooming in dense electrical diagrams.

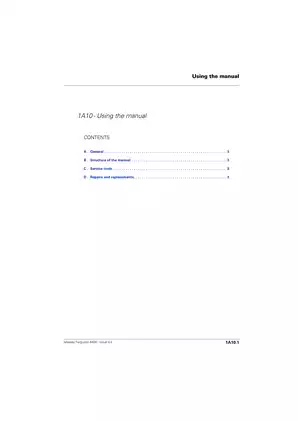

One printable 4,420-page PDF, including the two original cover pages, section contents pages, and blank reverse pages.
Tractor Splitting, Drivetrain Repair, and Electronic Diagnosis
These are selected workshop topics. Ground-speed charts by transmission and tire size, plus track-width and attachment-point drawings, are also included.
-
Tractor splitting: Step-by-step procedures for front-frame removal, engine/transmission separation, gearbox-to-center-housing work, intermediate-housing separation, and PTO-housing removal.
-
Transmission repair: PowerShuttle clutch service, Dynashift and Dyna-6 Powershift modules, robotic range gearboxes, shafts, selector rails, creeper units, shimming, and operational checks.
-
Axles and linkage: GPA20/GPA40/GPA30 final drives, differentials, service brakes, ParkLock, hitch and auto-hitch repair, and Carraro and DANA front-axle work.
-
Power take-off: Rear PTO clutch and brake repair, interchangeable and shiftable shafts, 4WD clutch service, and Zuidberg front PTO procedures.
-
Hydraulics and steering: Open Center, Load Sensing, and Twin Flow Load Sensing diagnosis, pressure tests, pump and spool-valve service, brake bleeding, and steering repair.
-
Electronic controls: Wintest and WinEEM3 programming, fault diagnosis, error-code interpretation, and calibration for engine, transmission, linkage, and suspended-axle systems.
-
Cab and accessories: Cab-suspension checks, standard and automatic air-conditioning diagnosis, refrigerant servicing, and front-linkage hydraulics.
Written for dealers and service agents, this manual calls for workshop lifting equipment, measuring tools, and the specified service and diagnostic equipment.
Configuration Matching and Engine Scope
The configuration tables distinguish Perkins 1104/1106 and Sisu 44 CWA, Fortius, and Citius installations. They also separate mechanical and electronic injection, Tier 2 and Tier 3 builds, PowerShuttle and AutoDrive arrangements, creeper options, axle families, and fixed or suspended front axles. Match the installed assemblies rather than relying on model year alone.
Engine coverage: The engine chapters provide general specifications and tractor-interface repair rather than complete internal engine overhaul. Work includes engine-to-transmission spacers and seals, vibration dampers, flywheels, adapter plates, sealed bearings, and starter ring gears.
The SisuDiesel programming material distinguishes engine software by tractor serial number and covers matching the injection-pump serial number to the ECU after either component is replaced.
Splitting Procedures and Assembly Preparation
Separate sections cover Perkins/GBA20 and Perkins/GTA2520 separation, plus Sisu/GBA10, GTA1030, and GTA1540 connections. Further procedures address GBA20 and GBA25 center-housing connections, GBA10/GPA30 separation, and intermediate- and PTO-housing work.
On MF 6497/6499 4WD tractors, the dedicated front-frame procedure requires front-axle removal because the lower frame fasteners face the drive-pinion carrier. The four-cylinder Perkins EEM section identifies front-frame shim orientation and support-stand positioning during gap measurement.
Factory tool references include 3378262M1 and 3378712M1 for Sisu vibration-damper centering, 3378225M11 for GBA20 input-unit handling, and 3378804M1/3378805M1 for GBA15 shaft handling and solenoid/limit-switch testing.
Gearbox, Final-Drive, and Hydraulic Detail
Drivetrain procedures extend to clutch packs, brake pistons, synchronizers, selector-fork positioning, shaft and bearing preload, planet carriers, lubrication circuits, speed sensors, and solenoid valves. Creeper and super-creeper sections include internal adjustment and post-repair checks.
Rear-axle material adds pinion-depth, differential-backlash, tooth-contact, and axle-shaft-preload checks. ND, HD, SHD, HDE, and composite final-drive arrangements are distinguished, alongside lift-cylinder and position-sensor work.
The hydraulic sections identify test ports and separate high-pressure, low-pressure, cooling, and lubrication circuits. Their diagrams and test specifications help relate a faulty function to the appropriate circuit before pump, cover-plate, steering, trailer-brake, or spool-valve work is selected. Suspended-front-axle material includes accumulator checks.
Assembly cautions: The engine/transmission procedures warn against forcing resistant assemblies together, where the vibration-damper and input-shaft splines meet. GPA20 differential reassembly also requires a matched ring gear and drive pinion; mixing the pair can compromise tooth contact and damage the gearset.
Controller Tests and System Schematics
Diagnostic coverage includes DCC2, Autotronic 3/5, EHRC, Datatronic 2/3, and SMS Joystick/FingerTIP systems. Programming, parameter tables, calibration constants, connector views, and component tests support diagnosis and setup after repairs.
Electrical schematic examples include SisuDiesel electronic injection, DCC2 Dyna-6, Autotronic 5 transmission control, Autotronic 5 linkage, suspended-front-axle controls, and automatic air conditioning. Hydraulic circuit diagrams and exploded gearbox, axle, PTO, and hitch views accompany the relevant procedures.
Reference material includes fluid-capacity tables, general and component-specific tightening torques, inspection limits, shim calculations, and electrical test values.
Support the tractor with rated stands and lifting equipment, isolate electrical power, and follow the manual’s pressure-release precautions before opening systems or splitting the chassis. Refrigerant work requires the specified servicing equipment.
Selected Clutch and Differential Adjustment Specifications
The GBA20 PowerShuttle section specifies forward-clutch end play J1 of 0.60–0.80 mm between the pump cover and spacer. Its secondary-shaft bearing setup specifies preload P1 of 0.10–0.18 mm.
The GPA20 differential section separately specifies 0.08–0.30 mm clearance between the pinion gears and sun gears. These component-specific values accompany the relevant shimming and reassembly procedures.
