2006–2012 Perkins 1104D Industrial Engine Service Manual Set (P/N SEBU8172)

This Perkins manual set combines SEBU8172 operation and maintenance guidance with diagnostic, testing, specification, repair, and electrical documentation for 2006–2012 1104D engines (NH and NJ). The shared troubleshooting publication also covers 1106D engines (PJ); the other publications apply to the 1104D.

• Fuel system: Fuel priming, high-pressure fuel rail and injection pump replacement, electronic unit injector removal and installation, and injector trim-file programming.

• Engine repair: Cylinder-head and valve work, valve lash adjustment, piston and connecting-rod service, crankshaft bearings, front gear timing, and balancer removal and installation.

• Electronic diagnosis: Symptom-based troubleshooting, diagnostic flash codes, CID/FMI codes, event codes, Electronic Control Module (ECM) replacement, flash programming, and sensor circuit tests.

• Cooling and lubrication: Water-pump replacement, water temperature regulator testing, engine oil cooler inspection, oil-pressure testing, and oil-pump inspection.

• Air intake and exhaust: Turbocharger inspection and replacement, wastegate solenoid testing, exhaust manifold service, and aftercooler cleaning and inspection.

• Electrical references: Engine harness schematics, ECM connector and pin-location views, J1939 CAN data-link testing, and starting and charging circuit diagrams.

The operating sections provide a reference for operators; major repairs call for Perkins-authorized personnel, while electronic diagnosis requires the specified service tools and electrical test equipment.

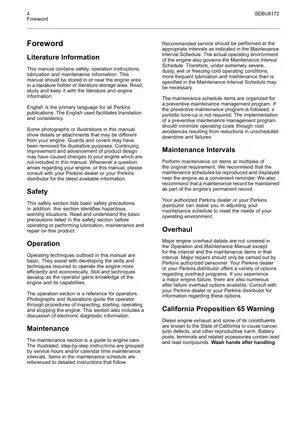

Operational and Maintenance Documentation

Engine lifting, storage, cold-weather starting, and preventive maintenance are covered alongside oil, fuel, coolant, and supplemental coolant additive recommendations. Maintenance schedules link inspections and filter changes to the relevant service procedures.

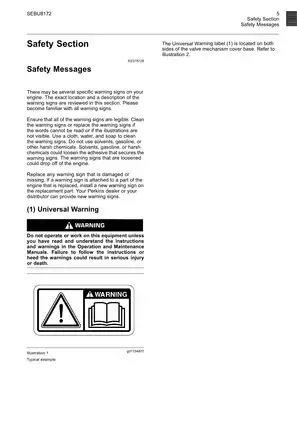

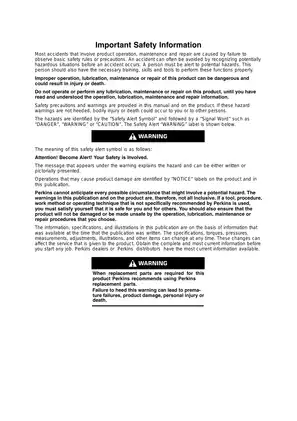

Follow the manual's safety procedures and use appropriate protective equipment when working with high-pressure fuel, hot fluids, or suspended engine components.

Fuel Injection and ECM Diagnosis

Hand and electric priming arrangements have separate procedures. Fuel injection pump timing checks identify tool 27610302. The high-pressure pump and electronic injectors are treated as non-serviceable assemblies, with diagnosis and replacement procedures rather than internal rebuilding instructions.

Injector trim-file loading, ECM configuration transfer, monitoring parameters, and WinFlash programming support electronic component replacement. The no-start diagnostic paths distinguish fuel supply, rail-pressure, and speed/timing faults, helping technicians narrow the cause before replacing an injector or ECM.

Circuit tests address the primary speed/timing sensor at the crankshaft, the secondary sensor at the fuel pump, and the glow plug start aid relay. The required diagnostic equipment includes the Perkins Electronic Service Tool and communication adapter 27610251.

Internal Engine Repair and Configuration Differences

The disassembly material identifies NH1 and NJ1 and extends to piston cooling jets, camshaft bearings, crankshaft seals, and bearing-clearance checks. Separate procedures account for engines with or without a balancer, standard or heavy-duty idler gears, and alternative belt-tensioner arrangements.

Crankshaft position sensor replacement, cylinder-head inspections, and crankshaft dimensional drawings are included. Belt tension charts distinguish new and used belts; wear limits, clearances, and multi-stage tightening specifications accompany the mechanical procedures.

The connecting-rod procedures explain matching and handling of fracture-split rods and caps. Stamping or punching these rods can cause fractures, a specific damage risk highlighted in the manual.

Cooling, Lubrication, and Wiring References

Coolant-flow and lubrication-system flow diagrams show the paths through the engine oil cooler and related passages. The test sections cover cooling-system leaks, water temperature regulator operation, and oil-pump condition.

Separate 1104D and 1106D engine-harness schematics accompany the troubleshooting material. The 1104D electrical-system sheets add the Starting and Charging schematic, ECM pin-location views, wire codes, and connector identification.

Oil-Service Torque Examples

These two values are a small sample of the lubrication-service specifications provided for the 1104D.

The oil-filter installation section specifies 12 N·m (8.8 lb ft). The oil-pan draining procedure gives 34 N·m (25 lb ft) for the sump drain plug.

PDF Search, Navigation, and Publication Breakdown

Text search and diagram detail: Body text is searchable, although labels within some embedded diagrams are not. Six bookmarks open the individual publications. Small wiring labels require zooming. The Systems Operation index lacks its first page; PDF p. 406 contains a duplicate starter-test page in its place.

Supplied as one printable 628-page PDF: Operation and Maintenance, 94 pages; Troubleshooting (SENR9982-01), 228; Systems Operation/Testing and Adjusting (RENR7967), 88; Specifications (RENR8913), 44; Disassembly and Assembly (RENR9525), 172; Electrical System Schematic (RENR9959-00), 2. These totals include the original covers and back matter, six largely blank index pages, one product/dealer record page, and the duplicate starter-test page.
