1995–1998 Massey Ferguson 6110/6120/6130 6140/6150 6160/6170 6180/6190 Workshop Manual (P/N 3378 015 M7, 1856562 M1)

• Covers Massey Ferguson 6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, and 6190 tractors, with 2WD and 4WD front axles, standard and heavy-duty gearboxes, spring-loaded and pressure-loaded clutches, Speedshift, Dynashift, reverse-shuttle, creeper, and super-creeper configurations.
• Documents tractor splitting at the engine/gearbox, gearbox/rear axle, and front-frame/engine joints, followed by clutch, transmission, rear-axle, PTO, brake, steering, and final-drive removal, disassembly, inspection, adjustment, reassembly, and operational checks.
• Separates open-center and closed-center hydraulics into their own circuit, component, bleeding, and pressure-test sections, including lift, steering, auxiliary-valve, trailer-brake, clutch, and Dynashift functions.
• Provides electronic diagnosis for the Massey Ferguson tester-programmer, Electronic Lift Control, Autotronic 2, and Datatronic 2, with self-diagnostics, tester and non-tester checks, parameter data, sensor adjustment, and reprogramming coverage.
• Includes component-specific torque and adjustment tables, MF special-tool references, exploded assemblies, transmission section views, hydraulic schematics, wiring diagrams, diagnostic charts, and tester-screen illustrations.
• 1,213-page PDF set — combined cover: 1 page; Workshop Service Manual: 815 pages; Operator Instruction Book: 122 pages; Repair Time Schedule: 275 pages.

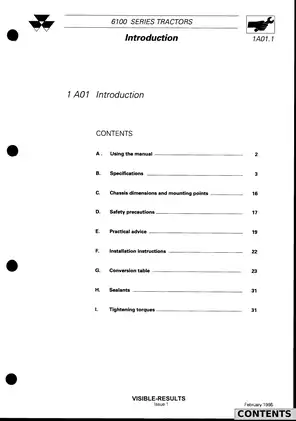

Workshop Repair Coverage

The workshop volume is organized around major assemblies rather than routine maintenance alone. Its splitting chapters identify the hoses, harnesses, controls, air-conditioning couplings, and support points involved when separating the engine from the gearbox, the gearbox from the rear axle, or the front frame from the engine. Repair sections then move through both clutch designs, gearbox input units, selector mechanisms, output and layshaft assemblies, Speedshift and Dynashift units, creeper gearing, rear-axle trumpet housings, differentials and brakes, PTO drives, and 2WD/4WD front axles.

Transmission coverage is configuration-specific. The manual distinguishes the standard gearbox from the reinforced heavy-duty version and covers mechanical and electrohydraulic selector arrangements. The heavy-duty section records a French-production change beginning at serial F008020 for the MF 6170 and F008029 for the MF 6180, helping identify the correct internal layout before repair parts or procedures are selected.

The hydraulic chapters also avoid treating every tractor as identical. Open-center material covers low- and high-flow circuits, distribution and control valves, pumps, steering, clutch and brake hydraulics, Dynashift control, and system testing. Closed-center material adds load-sensing steering, the variable-displacement and booster pumps, override and distribution components, plus its own low- and high-pressure test procedures.

Electrical, Electronic, and Cab Systems

Electrical coverage includes engine and equipment wiring, lighting, fuses, and extra work-lamp circuits, with separate lighting diagrams for USA and non-USA tractors. The electronics section goes further into the tester-programmer, Electronic Lift Control auto-diagnostics, Autotronic 2 checks with or without the tester, controller parameters and reprogramming, and Datatronic 2 tester operation. Cab repair material covers the instrument panel and digital displays along with air-conditioning fault analysis, compressor service, evacuation, flushing, charging, pressure checks, and wiring.

Representative illustrations include longitudinal transmission section views; exploded Speedshift and Dynashift planetary, clutch, and brake assemblies; open- and closed-center hydraulic circuit schematics; Electronic Lift Control electrical and diagnostic diagrams; Autotronic 2 and Datatronic 2 tester screens and parameter charts; and cab air-conditioning circuit drawings. MF tool callouts appear beside the relevant repair work, including air-conditioning coupling plug set 3376935M91 and Dynashift centering and holding tools 3376887M1, 3376888M1, and 3376920M1.

Engine Scope — Important Before Purchase

The workshop manual identifies the engine fitted to each model, including Perkins 4.41, 1004-family four-cylinder, and 1006-series six-cylinder builds. Included engine-related work is limited to model-specific specifications, the viscostatic fan, engine flywheel, shock absorber, flywheel ring gear, and spring- or pressure-loaded clutch spacers.

A complete internal Perkins engine overhaul is not contained in this PDF. The manual directs full engine technical data, adjustments, and removal/refitting procedures to separate Massey Ferguson publications 1856562 M1 and 1646906 M1. Those engine publications are not part of this set, an important distinction for anyone buying specifically for full internal engine disassembly, adjustment, inspection, and rebuilding procedures.

Operator and Labor-Time References

The included Operator Instruction Book, Publication No. 3378 015 M7, covers tractor identification and serial-number locations, controls, starting and driving, Dynashift operation, brakes, differential lock, PTO, steering, hydraulic lift, remote hydraulics, three-point hitch, drawbars, maintenance, lubricants, adjustments, specifications, and accessories.

The Repair Time Schedule, publication 3378043M1, is a labor-reference volume rather than a second step-by-step repair manual. It supplies operation codes, standard time allowances, special-tool references, warranty-work information, and a detailed failure-code index for engine, drivetrain, hydraulic, electrical, electronic, cab, and accessory jobs.

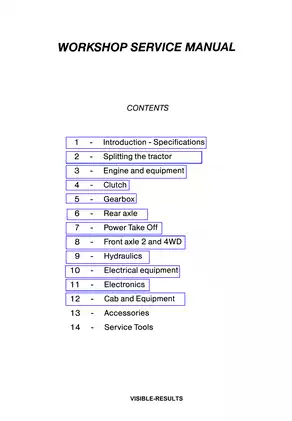

The workshop portion of this PDF ends with the cab and air-conditioning material. Although its opening contents page lists separate Accessories and Service Tools headings, those are not supplied here as standalone workshop chapters; tool references remain embedded in the repair sections, while accessory information appears in the operator and repair-time volumes.

The Speedshift chapter flags two easy-to-miss assembly risks: incorrect planetary-gear indexing can damage the unit, while even minor damage to the ring-carrier sealing rings can cause leakage and loss of operating pressure. Tractor splitting, stored hydraulic pressure, PTO work, heavy-component lifting, electrical isolation, and refrigerant service all require the safety procedures and support equipment specified in the manual.
