1989 Massey Ferguson 304 Series, 354, 364, 374, 384, and 394, S/F/V Variants Tractor Workshop Manual Set – 1989 (P/N 3537964M1)

375 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$28.95 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Massey-Ferguson Models Covered & Key Technical Specifications

Models: 354, 364, 374, 384, 394

Models & Model Codes:

354 — 354 S, 354 F, 354 V

364 — 364 S, 364 F, 364 V

374 — 374 S, 374 F, 374 V

384 — 384 S, 384 F

394 — 394 S, 394 F

Sub-models / Variants: Orchard Narrow (S), Orchard Wide (F), Vineyard (V); electronic hydraulic lift supplement: SPECIAL Range MF 304 S-F-A (Cab)

Model Year: 1989


  • Engine types: AD3.152 / CE 31223 (354 V), AD3.152S / CN 31197 (354 S/F), T3.152.4 / CN 31198 (364 S/F/V), A4.236 d. / LD 31202 (derated; 374 S/F/V), A4.236 / LD 31200 (384 S/F), A4.248 / LF 31204 (394 S/F)

  • Fuel system: DPA type rotative CAV pump with mechanical regulator

  • Cylinder head bolt torque: 3-cylinder engines: 100 Nm cold; 4-cylinder engines: 136 Nm cold, 129 Nm hot

  • Cooling system max pressure: 0.96 bar

  • Fuel tank capacity: S: 53 Liters; F: 62 Liters; V: 48 Liters, with an optional 38-Liter tank

  • Crankshaft end float: 3-cylinder engines: 0.05–0.38 mm; 4-cylinder engines: 0.10–0.38 mm

  • Brake system: Oil-immersed disk brakes acting on differential axle shaft

  • Transmission variants: Standard constant-mesh synchromesh gearbox: 12 forward and 4 reverse speeds; reverse shuttle with 1:5.12 creeper or 1:1.206 underdrive: 24 forward and 12 reverse speeds

Massey-Ferguson Manual Features & Selected Content Preview

Publication Pages

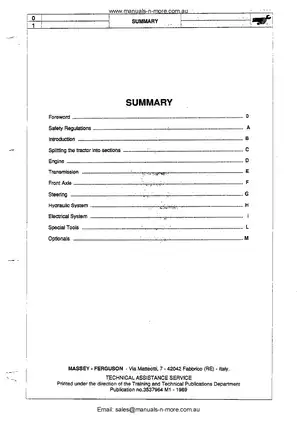

1989 Massey Ferguson 304 Series workshop manual for 354 S/F/V, 364 S/F/V, 374 S/F/V, 384 S/F, and 394 S/F — P/N 3537964M1 273
1993 electronic hydraulic lift supplement for SPECIAL Range MF 304 S-F-A cab tractors — P/N 3539599M1 66
July 1993 training publication, Main Adjustment and Tightening Torque of 4WD S-F-A 304 Q/P — P/N 3548996M1 4
Technical inserts: MF 373 transmission notes, MF 394 F parts and section drawings, hydraulic differential-lock material, Series II Advantage maintenance pages, brake excerpts, and 1997 service faxes 30

The workshop manual covers the tractor’s mechanical systems, while the electronic-lift supplement adds control-system testing. The training pages and technical inserts provide references for particular configurations and service questions.

Coverage limits: This annotated compilation has pagination gaps: main-manual pages F31–F33 and electronic-lift pages H8–H9 are absent. Some brake diagrams carry handwritten market notes, and an inserted differential-lock schematic is marked inaccurate and for reference only. The MF 373 material consists of transmission notes, not a complete workshop manual for that model.

PDF Search, Diagram Detail, and Included Pages

Search and diagram detail: The technical pages do not support PDF text search, and there are no embedded PDF bookmarks. Small wiring labels require magnification; some closely spaced wire codes remain difficult to distinguish when enlarged.

Supplied as one printable, English-language PDF with 375 pages, including the publications and inserts listed above plus two introductory and advertising pages. Some diagram captions are multilingual.


Engine Timing, Drivetrain Repair, and Lift-System Testing

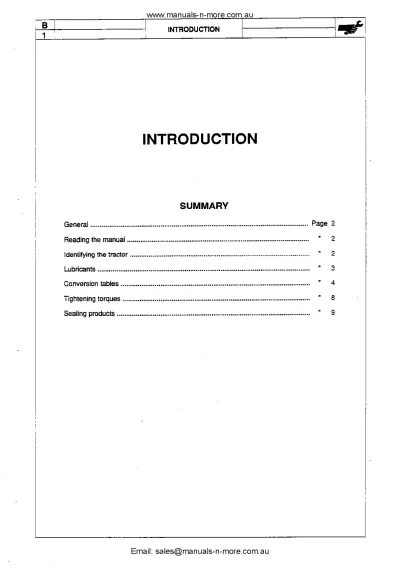

The following highlights are a selection of the contents, rather than a complete contents list. Further topics include lubricant specifications and recommended sealing products.

  • Engine timing: Step-by-step timing-gear installation, camshaft timing checks, CAV DPA injection-pump timing verification, and valve-clearance adjustment.

  • Clutch and gearbox: LUK/OMG dual dry clutch inspection and alignment, synchromesh gearbox disassembly and reassembly, and reverse shuttle, creeper, and underdrive configurations.

  • Final drive and PTO: Tractor-splitting guidance, bevel gear pair settings, differential housing bearing preload calculations, rear epicyclic hubs, and independent or ground-speed PTO operation.

  • Front axles: Separate 2WD and 4WD sections cover hub service, differential assembly, NO-SPIN operational checks, and front-to-rear wheel lead calculations.

  • Brake systems: Oil-immersed disc inspection, hydraulic circuit operation, pedal adjustment, bleeding, front-brake arrangements, and export-market hydraulic trailer-brake valve overhaul.

  • Mechanical hydraulic lift: Position, draft, and intermix control, main control-valve bench tests, linkage adjustment, pump overhaul, and fault-finding charts.

  • Electronic lift diagnosis: Rapid function checks, multimeter tests, connector views, control-panel testing, sensor adjustment, and troubleshooting tables.

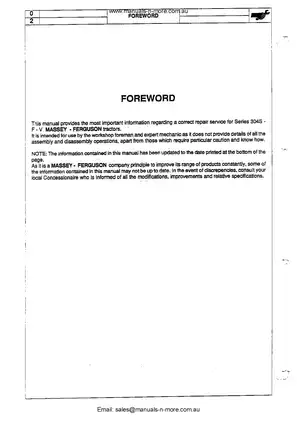

Written for workshop foremen and expert mechanics, the factory text assumes repair experience and omits some routine disassembly and assembly details.

Perkins Engine Repair and Injection Timing

The engine section provides assembly and inspection data for cylinder liners, piston rings, connecting rods, crankshaft end float, and four-cylinder balancing weights. Compression specifications, cooling-system limits, lubrication data, injector calibration tables, and component torque specifications support engine repair.

The alternative injection-timing method identifies MS 67B and adapter PD 67B-1. Its pump-checking notes warn that excessive test pressure can damage the injection pump.

When handling high-pressure fuel injection components or servicing the cooling system, always follow standard shop safety protocols.

Transmission, Axles, and Brake Variants

Gearbox section views distinguish standard, reverse-shuttle, creeper, and underdrive gear paths. PTO coverage separates 540/750 and 540/1,000 arrangements. Mechanical differential-lock adjustment is accompanied by hydraulic-lock inserts and MF 394 F parts drawings.

Brake inserts distinguish conventional brake-fluid circuits from LHM mineral-fluid systems on SPECIAL and Series II Advantage tractors. These fluid requirements are configuration-specific; mixing the types can cause brake failure.

Hydrostatic Steering and Hydraulic Circuits

Steering repair covers the Danfoss OSPC Orbitrol and Turolla TFP 200 pump, with separate steering-cylinder arrangements for orchard and vineyard tractors. Pressure checks, leak-isolation tests, and bleeding procedures accompany the Orbitrol Valve in Cross Section.

Lift-pump overhaul covers Turolla and Bosch units. The optional independent hydraulic circuit uses Cessna tandem pumps on three-cylinder engines and Bosch or Sundstrand pumps on four-cylinder engines. Its compatibility notes specify a heavy-duty steel engine timing gear.

Günter Till auxiliary-valve coverage distinguishes single- and double-acting operation, float, kick-out, and hydraulic-motor applications. The Independent Hydraulic Circuit Diagram shows the separate auxiliary supply.

The lift troubleshooting chart connects slow lifting and failure to hold an implement with specific circuit faults. Bench leak tests help isolate the valve involved before replacement. Pump repair notes also explain how dry running or inadequate initial lubrication can cause seizure.

Electrical Testing and Electronic Lift Limits

The electronic-lift supplement covers force and position sensors, control-panel switches and potentiometers, raising/lowering solenoids, and external lift buttons. A connection tester and digital multimeter support checks of component resistance, supply voltage, and wiring continuity.

The ECU can be tested but is not internally serviceable. Most electronic lift-valve components are also not individually repairable or replaceable.

Electrical references include the Traditional Tractor Electric System Diagram, Main Power Wiring Diagram, and Electronic Control Lift Electrical Diagram with connector pinning. Fuse assignments, wire colors, and trailer-socket connections support circuit tracing.

Dimensioned Workshop Tools

The 30-page special-tools section includes dimensioned drawings for pullers, fixtures, and gauges. These support workshop fabrication of the illustrated equipment. Examples include R500 and R500/B clutch-setting tools, R501 and R501/A pinion-setting tools, and the CR342 lift-valve test fixture.

A Preview of Valve-Clearance and Sensor-Test Data

The engine assembly tables list cold intake and exhaust valve clearances of 0.30 mm for AD3.152 and AD3.152S engines, compared with 0.32 mm for the T3.152.4.

The electronic-lift component test table specifies position-sensor resistance of 48 ± 1 ohm between probe connectors 19–10, and 24 ± 1 ohm between 19–9 or 10–9. The accompanying connector diagrams identify the measurement connections.
