Perkins Phaser 1000 Series
- AA to AH (4cyl)
- AY to YE (4cyl)
- AA to AH (6cyl)
- AY to YE (6cyl)
Perkins Phaser 1000 series, AA to AH, AY to YE, 4cyl, 6cyl diesel engine workshop manual
Includes the following models
File specifications
File type: PDF
Language: English
Pages: 440
Printable: Yes
Estimated download time: 0.56 Minutes
Product Information
Table of Contents

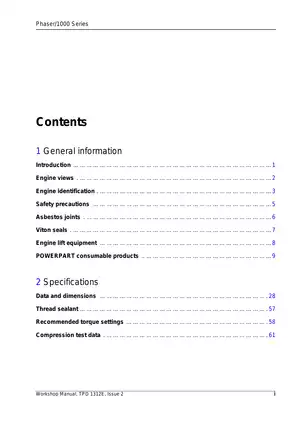

1. General Information
- Introduction
- Engine Views
- Engine Identification
- Safety Precautions
- Asbestos Joints
- Vital Statistics
- Engine Lifting Equipment
- POWERPART Consumable Products
2. Specifications
- Data and Dimensions
- Thread Sealant
- Recommended Torque Settings
- Compression Test Data

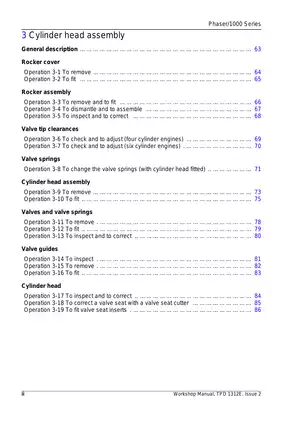

3. Cylinder Head Assembly
- General Description
- Rocker Cover
- Operation 3-1 to 3-2: Remove and to Fit
- Rocker Assembly
- Operation 3-3: To Dismantle and to Assemble
- Valve Clearances
- Valve Guides
- Operation 3-10: To Remove
- Cylinder Head Fittings

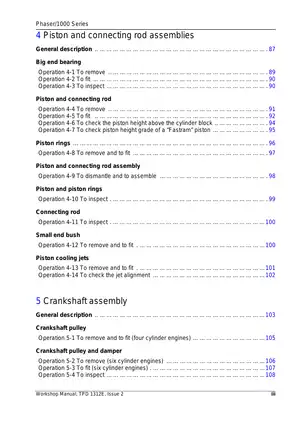

4. Piston and Connecting Rod Assemblies
- General Description
- Piston and Connecting Rod
- Operation 4-1 to 4-8: To Remove and to Fit
- Small End Bush
- Operation 4-12: To Remove and to Fit
- Piston Cooling Jets
5. Crankshaft Assembly
- General Description
- Crankshaft Pulley
- Operation 5-1: To Remove and to Fit
- Crankshaft Front and Rear Oil Seals
- Operation 5-10: To Remove and to Fit
6. Timing Case and Drive Assembly
7. Cylinder Block Assembly
8. Engine Timing
9. Aspiration System
10. Fuel System
11. Lubrication System
12. Cooling System
13. Flywheel and Housing
14. Electrical Equipment
15. Auxiliary Equipment
16. Special Tools
The Perkins Phaser 1000 series diesel engine manual is a valuable resource for mechanics, technicians, and owners. It contains detailed information on specifications, maintenance, troubleshooting, repair procedures, and wiring diagrams, essential for servicing and repairing the engine.
- The pricing of the Perkins Phaser 1000 series diesel engine manual is determined by the seller and may vary across different platforms. We advise comparing prices before making your purchase.
- At the end of the detail page, you will find comments and ratings from other users to assist in your decision-making process. After your purchase, consider leaving a review to help other users.
- Don't hesitate – download the repair manual now and benefit from a lifetime guarantee for the download, as outlined in our FAQs.
- To contact the seller of the manual, please use our contact form, and we will ensure your request is addressed promptly.
