John Deere GX Series Professional Technical Manual (2001) – 500+ Pages | Tractor | Instant PDF Access

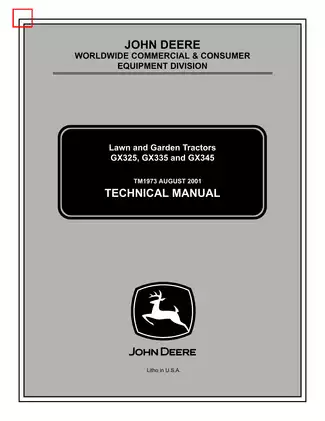

John Deere GX325, GX335, and GX345 Technical Manual - 2001 Edition

This factory-issued technical manual provides engineering-level service data for the maintenance and structural repair of the GX-series chassis. Utilizing John Deere Low Viscosity HY-GARD™ (J20D) oil is critical for this equipment, as the Kanzaki K71A transaxle relies on this specific lubricant to maintain internal hydraulic pressures and prevent thermal degradation of the rotating groups. The documentation serves as the primary technical authority for diagnostic, test, and repair procedures across both air-cooled and liquid-cooled engine platforms.

Machine Identification & Technical Applicability

Technical coverage is organized by engine cooling architecture and steering system configurations:

John Deere GX Series (Technical Designations)

• GX325 (Manual Steering): Equipped with the Kawasaki FH531V-BS04 overhead valve (OHV) air-cooled engine.
• GX335 (Power Steering): Equipped with the Kawasaki FH601V-BS04 overhead valve (OHV) air-cooled engine.
• GX345 (Power Steering): Equipped with the Kawasaki FD611V-FS01 liquid-cooled overhead valve (OHV) engine.

Component Series Specifications

• Transaxle Series: Kanzaki K71A Hydrostatic Transaxle (Common across all GX models).
• Steering Systems: Sector-and-pinion manual gear (GX325) and hydraulic power steering cylinder (GX335/345).

Operational Performance & Maintenance ROI

• Precise valve clearance adjustments (0.075–0.125 mm) optimize engine aspiration and prevent premature exhaust valve seat recession.
• Detailed electrical diagnostic paths for the Ignition Interlock Module ensure safety system integrity while minimizing downtime during "no-start" scenarios.
• Comprehensive transaxle overhaul specifications, including motor and pump bore clearances, allow for component-level repair rather than costly full-unit replacement.

Technical Document Metadata

• Publication Number: TM1973
• Edition Date: August 2001
• File Format: PDF/Markdown
• Technical Content: 500+ Pages (Estimated based on 12 Section structure)

System Architecture & Factory Benchmarks

Engine performance and chassis stability are verified through adherence to the following factory-certified specifications:

Engine Calibration Data

• Fast Idle (No Load): 3350 - 3500 rpm (depending on engine model).
• Cylinder Compression (Minimum): 390 kPa (57 psi) for FH-series; 1170 kPa (170 psi) for FD611V.
• Spark Plug Gap: 0.75 mm (0.030 in.).
• Oil Pressure (at 3000 rpm): 240–310 kPa (35–45 psi).

Hydrostatic & Hydraulic Benchmarks

• Charge Pressure: 620–930 kPa (90–135 psi) at 3350 rpm.
• Implement Relief Pressure: 4825–5860 kPa (700–850 psi).
• Steering Torque: 6.8 N•m (60 lb-in) maximum input for power steering engagement.

Visual Service Navigation

• Electrical Logic Schematics: Color-coded wiring harness legends (W1–W10) and full-system circuit maps.
• Power Train Flow Diagrams: Sectional views of the K71A hydrostatic pump and motor rotating groups.
• Component Location ID: Detailed spatial mapping of safety switches, relays, and hydraulic line routing.

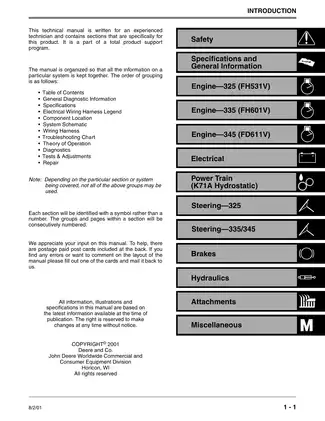

Table of Contents

• Section 1: Safety (Operational procedures and signal words)
• Section 2: Specifications and Information (General torque and fluid capacities)
• Section 3: Engine - FH531V (GX325) (Air-cooled repair and adjustments)
• Section 4: Engine - FH601V (GX335) (Air-cooled repair and adjustments)
• Section 5: Engine - FD611V (GX345) (Liquid-cooled repair and adjustments)
• Section 6: Electrical (Diagnostics, wiring, and component testing)
• Section 7: Power Train (K71A Transaxle repair and theory of operation)
• Section 8: Steering - GX325 (Manual steering gearbox service)
• Section 9: Steering - GX335/345 (Hydraulic power steering service)
• Section 10: Brakes (Wet-disk brake internal service and linkage)
• Section 11: Hydraulics (Implement lift valve and cylinder service)
• Section 12: Attachments (Mower deck drive and leveling)

Operational Limits & Fluid Specifications

• Transaxle Fluid: 4.4 L (4.6 qt) John Deere Low Viscosity HY-GARD (J20D).
• Engine Lubrication: SAE 10W-30 (Class SG or higher); 1.5–1.7 L (1.6–1.8 qt).
• Cooling System (GX345): 3.1 L (3.3 qt) 50/50 Ethylene Glycol mixture.
• Rear Wheel Torque: 88 N•m (65 lb-ft).

FAQ

Which specific John Deere machine configurations and engine models are supported by this technical documentation? This manual provides factory-level service coverage for the GX325, GX335, and GX345 Lawn and Garden Tractors. It specifically details maintenance for the Kawasaki FH531V and FH601V air-cooled engines, as well as the Kawasaki FD611V liquid-cooled engine, ensuring technical accuracy for both the manual steering and hydraulic power steering chassis variants.

What are the precise torque requirements for securing the rear wheels to the transaxle hubs? According to the technical specifications in Section 2, the rear wheel bolts must be tightened to a specific torque of 88 N•m (65 lb-ft). Adhering to this exact value is critical for preventing lug nut loosening and ensuring the structural integrity of the drivetrain during heavy-duty operation.

Does this manual provide comprehensive schematics and troubleshooting for the tractor's electrical systems? Yes, the manual contains a dedicated Electrical section that includes the specialized Wiring Harness Legend, identifying circuits W1 through W10. It features full-system logic schematics and detailed component location maps for the Ignition Interlock Module and safety switches, allowing for systematic isolation of electrical faults.

Can I find specific procedures for diagnosing a loss of power in the hydrostatic drive system? The documentation includes a deep-dive into the Kanzaki K71A transaxle within the Power Train section, providing testing procedures for charge pump pressure and motor efficiency. A key maintenance insight provided is the requirement for John Deere Low Viscosity HY-GARD (J20D) fluid, which is essential for maintaining the 4825–5860 kPa (700–850 psi) implement relief pressure range.

How does the digital nature of this manual assist in performing complex hydraulic or engine repairs? The digital format offers high-utility benefits such as the ability to instantly jump to the "Tests & Adjustments" group within any section or print high-resolution sectional views of the transaxle assembly. This immediate access allows technicians to reference critical data, like the 0.75 mm (0.030 in.) spark plug gap or cooling system bleeding steps, directly at the workbench without searching through a physical binder.
