2011 Arctic Cat Prowler 550 XT / 700 XTX / 1000 XTZ UTV Service & Repair Manual (P/N 2258-937)

• 226-page PDF for the 2011 Arctic Cat Prowler XT (550), XTX (700), and XTZ (1000), with separate XT/XTX H1 and XTZ H2 engine/transmission repair paths.
• Engine coverage takes the technician through powertrain removal and installation, top-side and side-cover work, crankcase separation, valve and piston inspection, clutch service, and internal transmission repair.
• EFI, lubrication, and cooling sections document throttle-body service, oil-pressure testing, oil cooler work, fuel-pump diagnosis, and radiator, thermostat, fan, and water-pump procedures.
• Electrical diagnosis includes the Power Distribution Module (PDM), EFI sensors, ECU error codes, EPS fault isolation, TPS testing and adjustment, stator and crankshaft-position (CKP) sensor, starter and charging circuits, switches, and front-drive actuator.
• Driveline and chassis procedures cover differential and rear gearcase teardown, backlash and tooth-contact adjustment, CV axle and boot service, XTZ universal joints, brake calipers, suspension, steering/EPS, and wheel alignment.

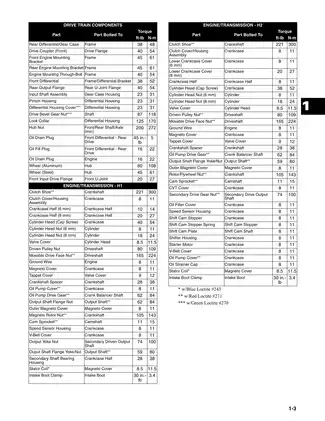

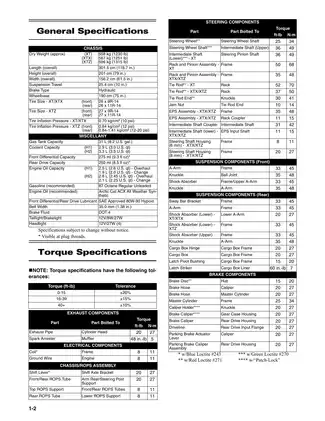

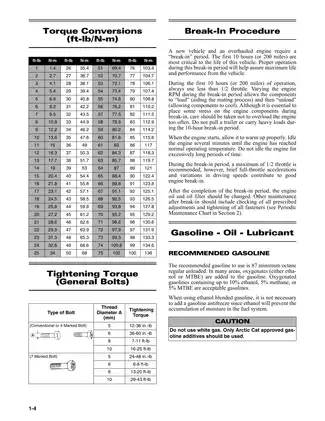

• Reference data includes component-specific torque tables, fluid capacities, clearances and wear limits, shim-selection data, electrical test specifications, a periodic maintenance chart, troubleshooting tables, and illustrated assembly views.

XT/XTX and XTZ System Differences

This factory service PDF is suited to technicians and experienced owners who already have workshop practice and access to precision measuring tools, pullers, holding fixtures, a multimeter, and safe lifting equipment. Maintenance procedures include valve-clearance and compression checks, fluid and filter service, hydraulic brake bleeding, parking-brake adjustment, and V-belt replacement. Internal repair work assumes more than beginner-level experience.

The XT/XTX portion includes separate 550 cc and 700 cc specification entries, while the XTZ receives its own engine/transmission procedure sequence. Model-specific differences continue through the manual: XT/XTX and XTZ brake arrangements are handled separately, the oil cooler applies to XTX/XTZ, water-pump and thermostat procedures differ by model group, and XTZ driveline coverage adds a clutch pack and universal joints. The manual also flags a production difference within the XTZ engine section: some units use an external water-pump drive assembly, so the installed design must be identified before repair work begins.

Engine and Transmission Repair Depth

Both powertrain paths cover engine/transmission removal and installation, cylinder-head and valve service, cam timing, piston and cylinder inspection, oil-pump work, stator and flywheel service, crankcase separation and joining, and final shift-operation checks. The repair data includes valve-train, piston, cylinder, camshaft, crankshaft, clutch, gear, shaft, and backlash inspection limits. Valve-guide and valve-seat work is specifically referred to a qualified machine shop.

Countershaft dogs and gears must return in their original orientation; reversing a major component can damage or disable the transmission and require another complete teardown. The cylinder must not be forced into place because the piston, rings, cylinder, or crankshaft assembly can be damaged.

Fuel, Cooling, and Electrical Diagnosis

H1 and H2 EFI chapters address throttle-body removal and installation, intake protection, injector-related troubleshooting, the electric fuel pump and level sensor, and gas-tank service. Lubrication and cooling material covers oil-pump pressure testing, the XTX/XTZ oil cooler, radiator service, thermostat testing, fan diagnosis, and the distinct XT/XTX and XTZ water-pump arrangements.

Electrical fault tracing is organized around component-level tests. Diagnostic references include the Battery Charging Chart, ECU Error Code List, EPS P0635 condition checks, drive-select and front-actuator voltage tables, H1/H2 ignition and charging specifications, and connector-terminal illustrations. TPS installation and adjustment, tilt-sensor testing, ignition timing verification, and ECU code clearing are also documented. A full vehicle wiring-diagram section is not included in this PDF.

Driveline, Chassis, and Shop Requirements

The drive-system chapter goes beyond removal and replacement. It covers front differential disassembly and assembly, ring-gear backlash and tooth-contact setup, shim selection, axle-seal repair, CV joint and boot service, rear gearcase inspection, hub work, hydraulic brake caliper service, and XTZ universal joints. Suspension and frame sections add shock and A-arm repair, rack-and-pinion service, EPS removal and installation, steering-shaft work, front-wheel alignment, body panels, cargo box, and exhaust components.

Factory tools are identified by part number, including the Crankcase Separator/Crankshaft Remover P/N 0444-152, Magneto Rotor Remover Set P/N 0444-254, Secondary Drive Gear Holder P/N 0444-253, Oil Pressure Test Kit P/N 0644-495, and Test Plug/Error Code List P/N 0444-216. Driveline setup calls out separate 24-spline and 27-spline backlash tools, P/N 0544-010 and 0544-011.

Use properly rated stands for underbody work and an adequate spring compressor for shock service. Arctic Cat specifically recommends that only authorized Arctic Cat ROV dealers perform hydraulic brake service. This is the service manual, not the separate Illustrated Parts Manual it references, so parts-catalog coverage is outside the scope of the file.
