2013 Arctic Cat Prowler XT / XTX / XTZ ROV Service Manual

Detailed procedures for the 2013 Arctic Cat Prowler XT, XTX, and XTZ ROV. Includes wiring diagrams, specifications, and repair sequences.

4.5starstarstarstarstar_half(4)
visibility Preview Available
Arctic Cat 2013 Arctic Cat Prowler XT / XTX / XTZ ROV Service Manual manual page preview - page 1 of 236

Sample pages from the 2013 Arctic Cat Prowler XT / XTX / XTZ ROV Service Manual manual

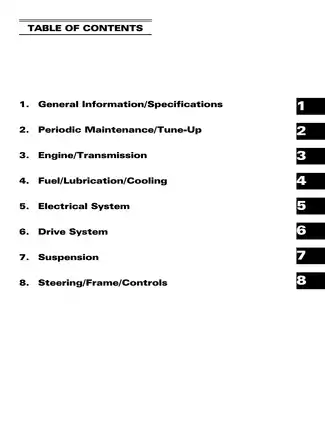

Arctic Cat 2013 Arctic Cat Prowler XT / XTX / XTZ ROV Service Manual manual preview page 1 - thumbnail
Arctic Cat 2013 Arctic Cat Prowler XT / XTX / XTZ ROV Service Manual manual preview page 4 - thumbnail
Arctic Cat 2013 Arctic Cat Prowler XT / XTX / XTZ ROV Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.97 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Arctic Cat Models Covered & Key Technical Specifications

Models: Arctic Cat Prowler XT, Arctic Cat Prowler XTX, Arctic Cat Prowler XTZ
Sub-models / Variants: 550, 700
Build Years: 2013
Technical Data:

  • Engine Displacement: 550 cc (XT/XTX), 700 cc (XT/XTX/XTZ)
  • Engine Oil Capacity: 2.5 L (Overhaul), 1.9 L (Change)
  • Coolant Capacity: 2.9 L (XT/XTX), 3.3 L (XTZ)
  • Fuel Type: 87 Octane Regular Unleaded
  • Spark Plug Gap: 0.5–0.6 mm
  • Valve/Tappet Clearance (Intake): 0.1016 mm
  • Valve/Tappet Clearance (Exhaust): 0.1524 mm
  • Brake Fluid Type: DOT 4
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31543 / Richard Lopez
File Size:
37.21 MB
File Type:
PDF
Language:
English
Pages:
236
Printable:
Yes
Category:
UTV
Last updated / verified
Jul 16, 2025

Arctic Cat Manual Features & Content Preview

2013 Arctic Cat Prowler Service Coverage

  • Covers 2013 Arctic Cat Prowler XT, XTX, and XTZ ROV models including the 550 and 700 engine variants
  • Original OEM publication, October 2012 release
  • Contains 236 pages of technical specifications, exploded diagrams, and maintenance procedures
  • File delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • Laid out for standard letter and A4 printing
  • This 2012 factory manual is the definitive reference for the 2013 Arctic Cat Prowler product line, documenting the transition between 550 and 700 engine configurations

Component Documentation

This 2013 Arctic Cat Prowler service manual provides detailed documentation for the maintenance and repair of the XT, XTX, and XTZ variants. The manual documents the engine and transmission, fuel and lubrication systems, cooling, electrical, drive system, suspension, and steering frame components. The documentation includes instructions for engine removal, top-side servicing, and crankcase disassembly. It provides descriptions of component construction and standard maintenance procedures like oil changes, brake system bleeding, and valve clearance adjustments.

Specification Previews

The 2013 Arctic Cat Prowler technical data section contains comprehensive torque values, tolerance charts, and fluid capacities for the ROV fleet. Intake valve clearance for the 2013 Arctic Cat Prowler is listed at 0.1016 mm in the cylinder head specification table. Front differential capacity is documented at 275 ml. Engine oil capacity for an oil change is specified at 1.9 liters. This manual is an official Arctic Cat OEM publication covering the 2013 Arctic Cat Prowler XT, XTX, and XTZ, featuring extensive engine, chassis, and electrical system data for the specified 2013 production cycle.

Manual FAQ, Purchase & Download Details

Are fluid capacity tables for coolant and oils included for the 2013 Prowler XT, XTX, and XTZ models? keyboard_arrow_down

General Specifications section in this manual lists engine oil capacities for overhaul and oil change, as well as coolant capacity specifications for the Prowler models. These capacity tables provide the reference values needed for service fluids.

Does the manual contain electrical system information such as ignition timing, AC generator output, and stator coil resistance values? keyboard_arrow_down

Yes, this manual includes specific electrical system specification tables for the Prowler XT/XTX and XTZ variants that list ignition timing, stator coil resistance, and generator output reference values.

Can I find edition information or document identifiers in this service manual? keyboard_arrow_down

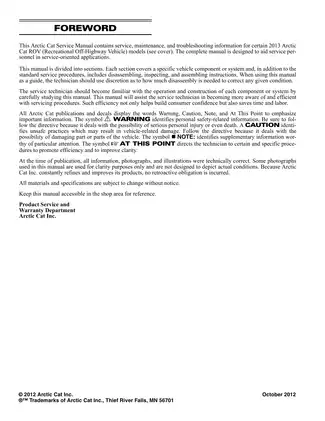

Document foreword displays an October 2012 publication date and includes an Arctic Cat copyright notice. It provides a comprehensive reference for the 2013 Prowler model series. This manual is designed to aid service personnel and remains consistent with the provided 2013 ROV product documentation.

Is there a reference chart for tightening torque specifications? keyboard_arrow_down

Section 1 of the manual contains comprehensive torque specification tables categorized by chassis, suspension, engine/transmission, and steering components.

What kind of coverage does the manual provide for engine and transmission systems? keyboard_arrow_down

Manual includes technical specification tables for the 871 cc and 695 cc engines, covering bore and stroke data, piston measurements, and valve/tappet clearance references. It also lists gear ratio specifications and torque values for the drive train components.
