2009 Arctic Cat Prowler XTZ Service Manual – Document Listing

Diagnostics, removal sequences, and maintenance for Arctic Cat Prowler XTZ 2009: engine, transmission, fuel system, electrical system, steering, suspension, brakes. 0444-213

4.6starstarstarstarstar_half(5)
visibility Preview Available
Arctic Cat 2009 Arctic Cat Prowler XTZ Service Manual – Document Listing manual page preview - page 1 of 169

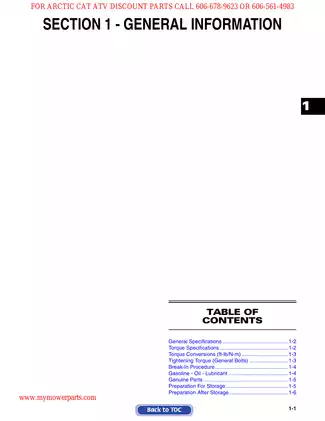

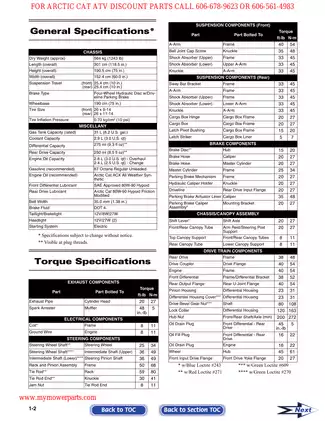

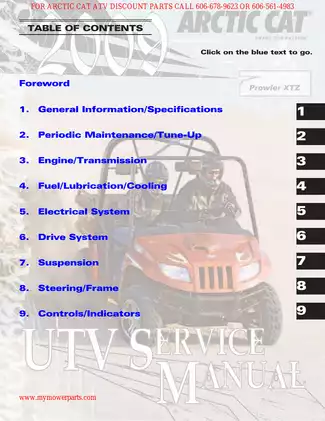

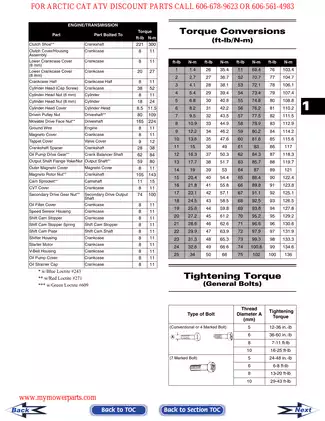

Sample pages from the 2009 Arctic Cat Prowler XTZ Service Manual – Document Listing manual

Arctic Cat 2009 Arctic Cat Prowler XTZ Service Manual – Document Listing manual preview page 2 - thumbnail
Arctic Cat 2009 Arctic Cat Prowler XTZ Service Manual – Document Listing manual preview page 3 - thumbnail
Arctic Cat 2009 Arctic Cat Prowler XTZ Service Manual – Document Listing manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.45 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
3 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Arctic Cat Models Covered & Key Technical Specifications

Models: 2009 Arctic Cat Prowler XTZ
Trade Names: Prowler XTZ
Build Years: 2009
Technical Data:

  • Dry Weight: 564 kg (1243 lb)
  • Engine Displacement: Not specified
  • Engine Type: Liquid-cooled 4-stroke
  • Engine Oil Capacity: 2.8 L (3.0 U.S. qt) for overhaul, 2.4 L (2.5 U.S. qt) for change
  • Coolant Capacity: 2.9 L (3.0 U.S. qt)
  • Suspension Travel (front/rear): 25.4 cm (10 in.)
  • Tire Inflation Pressure: 0.70 kg/cm² (10 psi)
  • Fuel Type: 87 Octane Regular Unleaded
  • Drive System: Four-Wheel Hydraulic Disc with Driveline Parking Brake
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31747 / Margaret Ramirez
File Size:
57.17 MB
File Type:
PDF
Language:
English
Pages:
169
Printable:
Yes
Category:
ATV
Last updated / verified
Sep 7, 2025

Arctic Cat Manual Features & Content Preview

2009 Arctic Cat Prowler XTZ Service and Maintenance Documentation

  • This 169-page manual covers the 2009 Arctic Cat Prowler XTZ UTV, providing technical specifications and service procedures for the chassis, engine, and drive train systems
  • Official Arctic Cat publication, January 2009 edition
  • Contains 47 descriptive figures and diagrams, including torque and specification tables, electrical connection charts, and system troubleshooting guides
  • Delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • This first edition serves as the foundational reference for the 2009 Prowler XTZ build, documenting the specific liquid-cooled powertrain and hydraulic braking configurations required for service work

Component and System Documentation

The 2009 Arctic Cat Prowler XTZ manual is organized into nine sections covering the mechanical and electrical integrity of the vehicle. Documentation spans the general chassis dimensions, engine/transmission assembly, and complex fuel injection, lubrication, and liquid cooling systems. It provides technical detail on the drive system, suspension geometry, steering components, and dashboard indicators, alongside procedures for routine maintenance, valve clearance checks, and compression testing.

Technical Specifications and Data Preview

Technical data is presented for identification and service calibration. The engine oil capacity is documented at 2.8 liters for full overhauls and 2.4 liters for routine changes. Cylinder compression values are listed at 75–85 psi for the front cylinder and 120–130 psi for the rear unit at full-throttle. Intake valve clearance is specified at 0.1016 mm and exhaust clearance at 0.1524 mm in the tolerance data tables.

Understanding how factory workshop documentation is structured assists technicians in locating specific torque values, such as the 165 ft-lb requirement for the movable drive face nut. Note: This page is a contents overview for the manual; it does not provide repair or diagnostic instructions.

This 169-page Arctic Cat OEM service manual covers the 2009 Prowler XTZ, documenting engine, chassis, electrical, fuel, and transmission specifications for the primary Prowler XTZ release.

Manual FAQ, Purchase & Download Details

What technical reference sections are available in the 2009 Arctic Cat Prowler XTZ Service Manual? keyboard_arrow_down

Manual includes comprehensive sections such as General Information and Specifications, Engine and Transmission details, and a Periodic Maintenance and Tune-Up chart. These sections provide reference data for various vehicle components, including chassis specifications and lubricant recommendations.

Is the document formatted as a searchable PDF file for easy navigation? keyboard_arrow_down

Yes, this digital service manual is provided in a PDF format, which allows for convenient navigation and accessibility on various electronic devices.

Are fluid capacities and lubrication requirements listed within the specification tables? keyboard_arrow_down

Yes, the manual contains a detailed miscellany section that lists fluid capacities for the fuel tank, engine oil, coolant, and differential systems. It also includes specific recommendations for engine oil, front differential lubricant, and rear drive gear lube to assist with reference needs. These tables ensure that the necessary information for the 2009 Prowler XTZ is readily available.

Which chapters cover the tightening torque specifications and general bolt reference charts? keyboard_arrow_down

Section 1 provides extensive specification tables detailing tightening torques for engine, transmission, steering, suspension, and brake components.

Can I preview the chapter coverage for the electrical system and engine components? keyboard_arrow_down

Document structure includes dedicated chapters for the Electrical System and Engine and Transmission assemblies. These sections provide technical coverage of system components and relevant reference data for the 2009 Prowler XTZ.
