2000 John Deere 5105 / 5205 Tractor Service & Repair Manual (TM1792)

This 2000 John Deere 5105 and 5205 service and repair manual covers 2WD and mechanical front-wheel-drive (MFWD) configurations. John Deere publication TM1792, dated March 20, 2000, combines machine repair information with operation, tests, and adjustments.

Search, bookmarks, and diagram detail: Searchable PDF text and embedded bookmarks provide navigation to sections and individual procedures. Small wiring labels require zooming in the full-width diagrams; separate page-sized views are also included.

• Engine and cooling: Engine removal and installation, radiator inspection, thermostat replacement, cylinder compression testing, and oil-pressure and cooling-system checks.

• Fuel and air: Fuel tank service, filter/primer pump replacement, air-cleaner inspection, injection pump timing adjustment, and fuel-system bleeding.

• Power train repair: Tractor splitting, dual-clutch overhaul, SyncReverser transmission and synchronizer inspection, and MFWD drop gearbox disassembly and repair.

• Hydraulics: Tandem gear pump service, rockshaft diagnosis, float and regenerative SCV repair, and Mid Mount Coupler valve and joystick service.

• Steering and brakes: Steering valve and cylinder repair for 2WD and MFWD axles, mechanical wet disk brake service, and pedal adjustment.

• Electrical troubleshooting: Starter, alternator, and wiring harness replacement, connector identification, and circuit-by-circuit fault tracing with electrical schematics.

Written for experienced technicians, this manual assumes workshop knowledge and use of the specified service tools.

3029D PowerTech Engine, Fuel, and Cooling

The John Deere 3000 Series engines are identified as PE3029DLV51 for the 5105 and PE3029DLV52 for the 5205. The Engine Lubrication System Operation drawing identifies the oil cooler fitted to the 5205 only.

Troubleshooting charts address hard starting, low power, excessive smoke, and oil/coolant contamination. Valve-clearance and fast/slow idle adjustments accompany the engine tests.

Repair coverage: Internal engine overhaul, water pump repair, and injection pump, nozzle, and governor repair require the separate CTM8 component technical manual. The fuel-bleeding instructions explain why attempting to start the engine during bleeding can damage the injection pump.

SyncReverser Transmission, PTO, and MFWD

Power train sections extend to the rear PTO shaft, planetary final drives, differential lock, and differential cone-point and backlash adjustments. Transmission Power Flow—Gear Shift and Transmission Operation—Reverse and A Range Synchronizer drawings explain the gear arrangements. Exploded assembly views identify clutch and differential components.

Clutch procedures identify the JDG1337 repair fixture and JDG1338 PTO/traction clutch finger-height gauge. The manual also supplies the drawing for the DFLV1A final drive turning tool.

MFWD differential carrier repair covers pinion-bearing preload and matched gear sets. It warns that overtightening the pinion nut can damage the collapsible spacer.

Hydraulic Tests, Steering, and Chassis

Separate pump-flow and relief-valve tests cover tractors without SCVs, with SCVs, and with a Mid Mount Control Valve. Rockshaft leakage tests, draft/position-sensing adjustments, and joystick cable adjustment are included.

Hydraulic Schematic—With Mid Mount Control Valve and Hydraulic Schematic—With Selective Control Valve and Power Beyond Valve show the optional circuit arrangements.

Chassis coverage extends to the 2WD front axle, wheel bearings, 3-point hitch, and ROLL-GARD ROPS, along with seat, platform, and fender removal.

Electrical Diagnosis and Workshop References

The 5105 and 5205 Electrical Schematic sheets are backed by wire-color charts, component location drawings, connector/pin identification, and normal/abnormal test tables. Tests address starting interlocks, PTO warnings, charging, instrument gauges, and lighting.

Starter and alternator overhaul information belongs to the separate CTM77 publication; this manual covers on-tractor tests, removal, and replacement.

Operational checkout procedures direct abnormal results to the appropriate diagnostic group, helping isolate power train or hydraulic faults before teardown.

Reference tables cover component torques, wear limits, electrical test values, and capacities for the fuel tank, cooling system, crankcase, transmission, and MFWD components.

Review the factory safety instructions and properly support the tractor on level ground before diagnostic or repair work.

PDF Contents and Included Pages

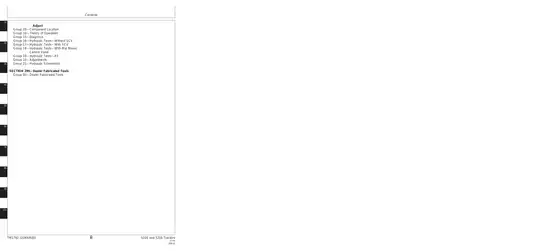

The single printable English PDF contains 894 pages, including 26 tiled views of wide diagrams and eight front/end-matter pages: cover, foreword, four general contents pages, rear title page, and final blank page. The index and section divider pages are also included in this total.
