John Deere 5105 & 5205 Tractor Professional Technical Manual (2000) – 850+ Pages | Factory Grade

John Deere 5105 and 5205 Repair Technical Manual - 2000 Edition

This professional service manual provides the engineering benchmarks and procedural workflows necessary to maintain the structural integrity and operational uptime of John Deere utility tractors. It features a critical focus on system longevity, such as the requirement to reduce engine oil drain intervals by 50% if fuel sulfur content exceeds 0.7%, a vital preventative measure against accelerated component wear caused by combustion acids. This documentation serves as the authoritative reference for high-level diagnostic and repair operations.

Technical Applicability & Commercial Designations

The following series and models are covered under the scope of this technical manual, categorized by their primary engine and chassis configurations:

John Deere 3000 Series (Naturally Aspirated)

• John Deere 5105 (3-Cylinder Diesel, 40 PTO hp)
• John Deere 5205 (3-Cylinder Diesel, 48 PTO hp)

Chassis & Steering Configurations

• 2-Wheel Drive (2WD) Adjustable Front Axle Variants
• Mechanical Front Wheel Drive (MFWD) Center Line Design Variants

Operational Asset Preservation

• Uptime Optimization: Adherence to the specified 125-hour oil service interval during high-sulfur fuel use prevents internal sulfuric acid corrosion.
• System Integrity: Utilization of the exact 335 N·m (247 lb-ft) torque specification for ROLL-GARD™ mounting bolts ensures certified rollover protection remains intact.
• Component Safety: Strict implementation of the "clip-on chuck and extension hose" protocol during tire inflation mitigates risk of injury from explosive rim separation.

Document Metadata

• Print Number: TM1792 (20MAR00)
• Language: US English
• Pagination: 850+ Pages
• Format: High-Resolution Markdown Digital Archive

Technical Depth & Factory Benchmarks

Maintenance protocols are supported by rigorous factory-standard calibration data to ensure system synchronization. The dual-clutch system requires precise finger height adjustments using JDG1338 gauges to maintain independent PTO operation. Hydraulic performance is benchmarked at a minimum flow rate of 33.3 L/min (8.8 gpm) at 2000 rpm, ensuring secondary implements receive sufficient power for heavy-duty cycling.

System Architecture & Visual Navigation

Documentation includes high-resolution system schematics and component mapping to facilitate rapid fault isolation.

• Power Train Mapping: Detailed breakdowns of the SyncReverser™ 8F/4R transmission and inboard planetary final drives.
• Hydraulic Schematics: Flow diagrams covering the tandem gear pump architecture, including dedicated steering and rockshaft circuits.
• Electrical Logic: Comprehensive wiring harness overlays including fuse link junctions and sensor terminal identifications.

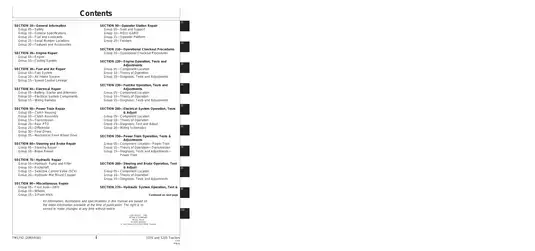

Table of Contents

• Section 10: General Information (Safety, Specifications, Lubricants, Serial Locations)
• Section 20: Engine Repair (Removal, Installation, Cooling System)
• Section 30: Fuel and Air Repair (Fuel System, Air Intake, Speed Control)
• Section 40: Electrical Repair (Battery, Starter, Alternator, Wiring Harness)
• Section 50: Power Train Repair (Clutch, Transmission, PTO, Differential, Final Drives, MFWD)
• Section 60: Steering and Brake Repair (Steering Column, Valves, Cylinders, Wet Disk Brakes)
• Section 70: Hydraulic Repair (Pumps, Filters, Rockshaft, SCV, Mid-Mount Couplers)
• Section 80: Miscellaneous Repair (2WD Front Axle, Wheels, 3-Point Hitch)
• Section 90: Operator Station Repair (Seat, ROPS, Platform, Fenders)
• Section 210+: Operational Checkout, Theory, and Diagnosis (System-specific testing)

Operational Limits & Critical Specifications

Engine and chassis performance are governed by the following technical tolerances:

• Torque Sequence (Engine-to-Transmission): 225 N·m (165 lb-ft).
• Hydraulic Relief Pressures: Steering (13,000–13,500 kPa); Implement (18,995–19,685 kPa).
• Fluid Capacities: Transmission/Hydraulic System (33 L / 8.7 gal); Cooling System (8.93 L / 2.4 gal).
• Lubricant Specifications: John Deere PLUS-50® for engines; HY-GARD® (JDM J20C) for transmission and hydraulics.

FAQ

Does this manual cover both 2WD and MFWD configurations for the John Deere 5000 series? Yes, this technical manual specifically details repair procedures for the John Deere 5105 and 5205 tractors in both 2-Wheel Drive (2WD) and Mechanical Front Wheel Drive (MFWD) layouts. It provides dedicated service instructions for components like the center line design MFWD axle and the adjustable 2WD front axle assemblies.

What is the specific relief pressure setting for the implement hydraulic system? The manual specifies that the implement hydraulic relief valve is set to operate within a pressure range of 18,995 to 19,685 kPa (2,755 to 2,855 psi). Maintaining this exact pressure is critical for the proper operation of the rockshaft and any attached mid-mount or rear-mounted implements.

Can I find detailed diagnostic information for the SyncReverser™ transmission? Absolutely. The documentation includes comprehensive repair and theory-of-operation sections for the SyncReverser™ 8F/4R transmission. It covers everything from the removal and installation of the range reduction shaft to the disassembly and inspection of the synchronizer and top driven shaft components.

Are there specialized tools required for adjusting the tractor’s clutch assembly? Yes, the manual identifies several essential service tools, such as the JDG1338 gauge, which is required to perform precise traction clutch finger height adjustments. Following these specific measurements ensures independent PTO functionality and prevents premature wear of the clutch discs.

How does the digital format of the TM1792 manual assist with field repairs? The digital manual allows for instant navigation to high-resolution visual aids, such as the wire color charts (Group 240-15-2) and hydraulic schematics. This accessibility ensures that technicians can immediately print specific wiring diagrams or torque sequence pages to take directly to the machine, reducing downtime during critical maintenance windows.
