1986–1996 John Deere F911, F915, F925, F932, F935 Front Mower Technical Manual (P/N TM1487)

John Deere TM1487, with a cover date of October 1, 1995, provides repair and diagnostic information for the 1986–1996 F900 Series front mowers: F911, F915, F925, F932, and F935. Applicability follows the serial-number notes and F925 cross-references below.

• Engine and fuel systems: Engine removal and installation, valve-clearance adjustment, diesel injection-pump timing, fuel-system bleeding, and carburetor adjustments.

• Cooling system: Radiator removal and inspection, cooling-system pressure tests, radiator-cap testing, and checks for combustion leakage into coolant.

• Electrical diagnosis: Model-specific wiring diagrams, starting and charging tests, PTO interlock troubleshooting, glow-plug checks, and wiring-harness repairs.

• Power train: Sundstrand Series 15 hydrostatic transmission and Peerless differential rebuilding, axle service, PTO clutch inspection, and drive-shaft repairs.

• Steering and hydraulics: Hydrostatic steering-valve overhaul, hydraulic control-valve service, lift-cylinder leakage tests, weight-transfer valve repair, and brake adjustments.

• Mower decks: Gearbox rebuilding, spindle disassembly and inspection, drive-belt replacement, and assembly procedures for the different deck configurations.

This manual is written for experienced technicians and identifies the service tools and test equipment required.

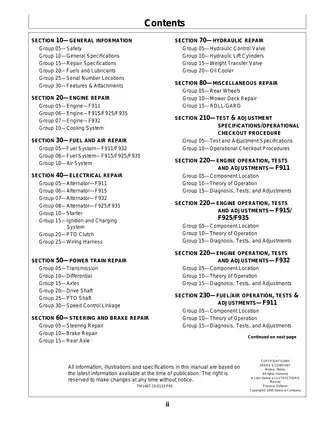

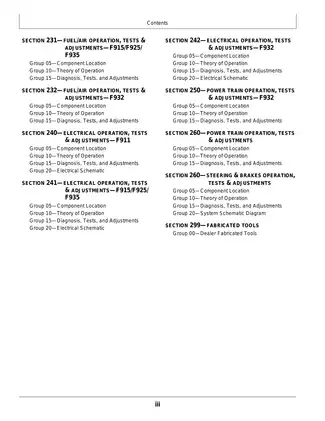

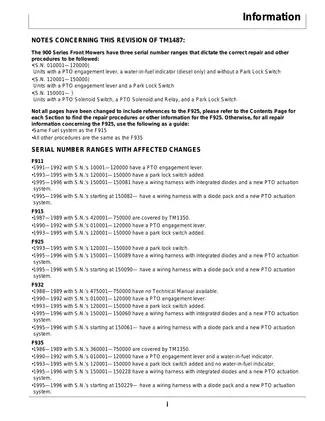

Serial Ranges and F925 Cross-References

Revision notes distinguish PTO-lever machines at S.N. 010001–120000, the addition of a park lock switch at 120001–150000, and solenoid-actuated PTO configurations at 150001 onward. Later wiring diagrams separate P.I.N. 150001–160000 and 160001 onward for the F911, F925, F932, and F935.

F925 procedures: The fuel system follows the F915; other repair procedures follow the F935. These cross-references help locate the correct procedure when an older chapter heading does not name the F925.

Earlier serials: F915 machines at 420001–750000 and F935 machines at 360001–750000 are assigned to TM1350. F932 machines at 475001–750000 are outside this manual's listed coverage.

Engine Service and Component-Manual Requirements

Engine removal, external service, compression testing, and fuel-system adjustments are covered. Complete engine repair requires separate component manuals: CTM39 for the F911's Kawasaki FD620D, CTM3 for the Yanmar diesels, and CTM12 for the F932's Yanmar gasoline engine.

Those component manuals are not included. Carburetor rebuilding and diesel injection-pump, nozzle, and governor repair are also referred to the applicable component manual.

Hydrostatic Drive, Steering, and Deck Repair

The transmission chapter includes a Cross Section of Transmission drawing and internal inspection of cylinder blocks, pistons, and swashplates. Symptom-based test charts connect slow or erratic travel to linkage, suction-line, charge-pump, and relief-valve checks, helping narrow the fault before transmission disassembly.

Hydraulic testing: Charge-pump pressure and flow tests, steering leakage checks, and lift-cylinder and control-valve leakage tests include equipment requirements. The JT01765 hydraulic fitting kit is identified for test connections. A System Schematic Diagram shows the steering, lift, weight-transfer, and transmission circuits together.

Steering-valve handling: Clamping the valve directly in a vise can damage it. The overhaul section specifies a holding fixture, with a fabrication drawing in Section 299.

Deck service distinguishes 50-, 60-, 72-, and 76-inch spindle assemblies and covers gearbox bearing, race, and shim relationships. Brake and linkage sections address service-park brakes, individual turning brakes, neutral return, and cruise control.

Follow the manual's hydraulic-pressure relief precautions before disconnecting lines or servicing lift components.

Electrical Schematics and Test-Point References

The F911 Electrical Schematic, F915–F935 Electrical Schematic, and F932 Electrical Schematic accompany test-point drawings and tables of normal readings and follow-up checks. Separate circuit coverage includes PTO solenoids, diode packs, fuel gauges, and the F935 water-in-fuel indicator.

Alternator disassembly procedures apply from engine S.N. 000791 for the F932 and 0030104 for the F925/F935; earlier alternator repairs refer to the component manuals. Wiring-harness service includes Weather Pack connector replacement.

A Preview of Cooling Capacities and Assembly Torques

These examples are a small selection from the manual's capacity and assembly data, alongside inch and metric fastener torque charts.

For cooling-system service, the table lists total capacities of 3.5 L for the F911 and 4.93 L for the F932.

For differential installation, the frame mounting cap screws are specified at 106 N·m (78 lb-ft), with machine weight on the drive wheels and the screws positioned at the top of the frame slots.

PDF Search, Bookmarks, and Diagram Legibility

Navigation and small labels: Text sections support searching, but some diagram pages have no searchable text. Embedded bookmarks cover sections and groups, although some labels and destinations are incorrect or inactive. Small wiring labels require zooming; some older schematic labels remain faint or partly illegible when enlarged.

One printable, English-language PDF contains 1,091 pages: five opening pages, 18 pages of electrical schematic revisions dated September 29, 1997, and 1,068 remaining pages of technical sections, diagrams, and index. All are included in the total.
