1965–1974 Ford 4500 Industrial Tractor Parts Catalog (P/N E0NN4032CC)

Covers 1965–1974 Ford 4500 Industrial Tractors, with illustrated parts breakdowns for engine, transmission, steering, hydraulic, and axle assemblies. This catalog supports parts identification and repair planning; shared Ford-series listings retain their individual model and regional application notes.

The 669-page PDF contains searchable headings and parts tables, plus illustrated assembly views and reference appendices.

• Engine components: Cylinder heads, blocks, crankshafts, pistons, valve gear, lubrication components, and gasket and overhaul kit contents for the listed engine applications.

• Transmission and PTO: Manual reversing, Select-O-Speed, and torque-converter assemblies, with clutch, gear, control-valve, and power take-off parts breakdowns.

• Steering and front axle: Steering gear mechanisms, power steering pumps and reservoirs, steering cylinders, and the 4500 front axle assembly.

• Rear axle and brakes: Differential housings, differential-lock linkage, brake discs and controls, transmission handbrakes, and regional trailer-brake components.

• Hydraulic assemblies: Lift covers, remote-control valves and cylinders, Cessna gear-type and vane-type pumps, and the 4500 self-leveling loader control valve.

• Electrical components: Illustrated harness and lamp layouts, starter motors, generators, distributors, battery supports, and instrument-cluster parts with application-specific listings.

The catalog is suited to mechanics and experienced owners who can read exploded views and match the parts-list application notes to their tractor.

Engine and Fuel-System Parts

Separate gasoline and diesel sections identify internal engine components and the contents of service kits. Fuel-system breakdowns include Holley and Zenith carburetors, the CAV diesel injection pump, fuel filters, and cold-start equipment. Radiator and water-pump assemblies have their own illustrated listings.

The shared gasoline/LPG engine headings and 4000 LPG fuel-system entries require attention to the individual application notes. Their inclusion does not make every listed component suitable for a 4500.

Transmission and PTO Assemblies

The manual reversing sections distinguish input shafts and related components by PTO configuration. Select-O-Speed coverage extends to carriers, brake bands, clutch packs, the control valve, and selector assembly.

The torque-converter section separates the transmission case, oil distributor and pump, clutch and gears, control lever, and cooler plumbing. Shared sections also cover 6-speed and dual-range 7-speed/8-speed assemblies; their model and market notes remain important when selecting parts.

Axles, Steering, and Wheel Equipment

You get structural layouts for the front axle assemblies, steering gear mechanisms, and rear differential housings. The parts tables identify fasteners, bearings, gaskets, and seals alongside quantities and replacement references.

The 4500 front-axle listing flags a companion retaining-ring requirement when replacing the center-arm shaft. Rear-axle entries likewise identify components that must be ordered together. These notes help you check the complete replacement combination before ordering for a repair.

Wheel-weight listings cover 24-inch, 28-inch, and 30-inch configurations. The 24-inch and 28-inch figures explicitly include the 4500; the shared 30-inch figures carry broader series labels. Wheel hardware entries provide dimensions and part numbers.

4500 Hydraulics and Remote Cylinders

The Hydraulic System – 4500 and Self-Leveling Loader Control Valve Assembly – 4500 figures detail hydraulic lines, valve components, and seals. Remote control cylinder assemblies are mapped out with corresponding O-ring and seal part numbers.

Separate pump figures distinguish the Cessna gear-type hydraulic pump from the vane-type hydraulic pump. The vane-pump listing also documents a replacement conversion involving a pump and mounting kit, helping distinguish a conversion package from an individual replacement component.

Electrical Views and Repair Scope

The electrical illustrations show component locations, harness assemblies, lamps, and related hardware. They are parts-identification views, not circuit diagrams for electrical diagnosis.

This is a parts catalog. It does not provide step-by-step repair procedures, tightening-torque tables, or a workshop troubleshooting program.

Always verify your equipment's specific requirements and ensure proper safety procedures are in place before lifting or servicing heavy machinery components.

File Contents and Navigation

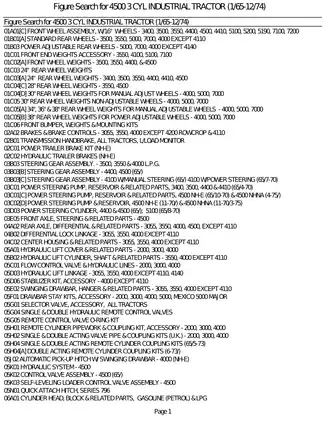

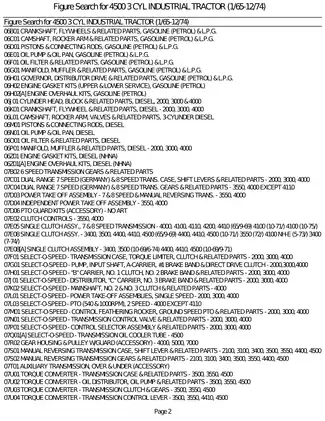

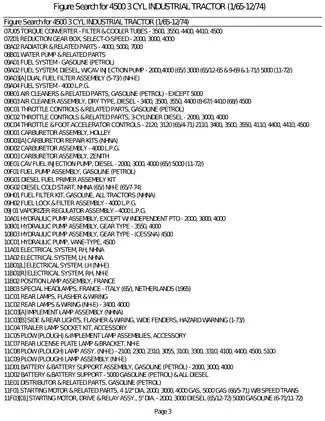

The page total includes 645 pages of parts illustrations and listings, a five-page figure index, a one-page search guide, one DealerNation cover/banner page, one blank page, 14 pages of abbreviations, and two pages of metric/inch hardware conversions.

Six PDF bookmarks open the main document sections. Figure codes support searches within the parts catalog. Illustration callouts are image-based and are not included in text searches; small reference numbers may require enlargement.
