Harley-Davidson Panhead 1948–1957 Service Manual OEM (P/N 9600–33)

• Covers 1948–1957 rigid-frame O.H.V. Twin motorcycles, with E/EL and F/FL data for 1948–1954 and FL/FLH data for 1955–1957. Solo and sidecar operation, four-speed transmission, optional three-speed/reverse transmission, and hand- or foot-shift arrangements are identified where procedures or setup data differ.
• Chassis coverage includes wheel-hub service, spoke replacement and rim truing, tire removal, Springer and Hydra-Glide fork removal and repair, steering-head bearings, fork and frame alignment, brake overhaul, and saddle spring-post service.
• Engine chapters document cylinder and piston work, cylinder-head and valve repair, rocker arms, tappets and hydraulic pushrods, oil-pump service, pressure and return lubrication circuits, timing gears, flywheels, connecting rods, crankcases, main bearings, and complete lower-end repair.
• Fuel and drivetrain sections cover Linkert Model M carburetor adjustment and overhaul, manifold service, clutch and starter-clutch repair, hand- and foot-shift controls, shifter forks, mainshaft, countershaft, main drive gear, gearbox assembly, and transmission venting.
• Electrical material includes model-year wiring diagrams for 1948, 1949–1954, and 1955–1957 standard and radio-special equipment, together with sidecar wiring and service information for generators, regulators, circuit breakers, ignition, lighting, battery, and horn systems.

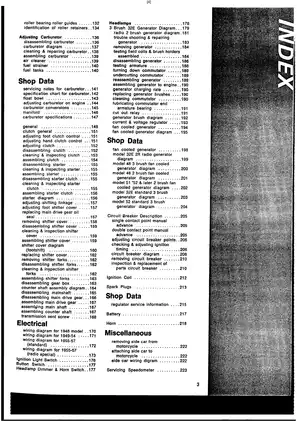

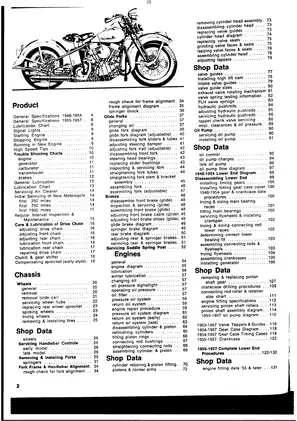

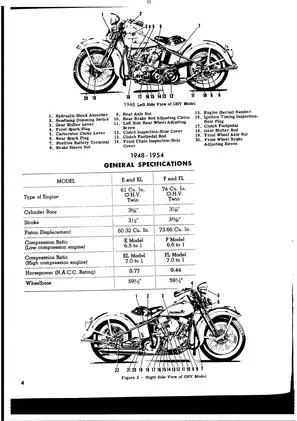

• A 225-page PDF with exploded assembly drawings, oil-flow schematics, alignment views, troubleshooting charts, shop-data tables, inspection limits, adjustment specifications, and factory special-tool references.

Rigid-Frame Panhead Coverage

This manual is built around the 1948–1957 rigid-frame O.H.V. Twin platform rather than later swingarm chassis. The opening specification sections separate the 1948–1954 E/EL and F/FL machines from the 1955–1957 FL/FLH production changes, while individual repair chapters call out additional engine-number breaks where parts or service methods changed. Sidecar information is integrated into the relevant chassis and electrical sections, including wheel removal, attachment and removal, brake adjustment and service, wiring, gearing, front-fork trail, steering-damper setup, and load-related tire data.

Engine, Lubrication, and Lower-End Work

The engine section goes well beyond routine tune-up. It covers cylinder removal and refinishing, piston and ring fitting, connecting-rod bushing work, cylinder-head disassembly, valve-guide and valve-seat repair, rocker-arm inspection, tappet adjustment, hydraulic pushrod service, and oil-pump diagnosis. Separate procedures and drawings distinguish the early and late pressure and return oil systems, the 1948–1954 lower end, the 1954–1957 gearcase, and the 1955–1957 oil-pump, crankcase, tappet-guide, and complete lower-end arrangements.

The year and engine-number notes are important when repair parts are being matched. The manual identifies the exhaust-valve rotating mechanism introduced at engine No. 52FL3910 and explains the damage risk if its valve-stem cap is displaced while pushrods are removed or an assembled head is inverted. It also warns against mixing the shorter 1951 pinion-bearing rollers with the earlier retainer—or the earlier rollers with the 1951 retainer—because the assembled bearing can lock and fail.

Chassis, Fuel, Transmission, and Electrical Systems

Front-end repair includes both Springer and Hydra-Glide equipment, with fork removal, slider and tube disassembly, steering-head bearing service, slider-bushing replacement and reaming, tube and stem inspection, reassembly, and adjustable-fork trail setup. Wheel chapters cover hub disassembly, sprocket replacement, spoke installation, rim truing, and tire work. Brake sections include front, rear, Springer, Hydra-Glide, and sidecar-wheel assemblies rather than treating the chassis as a single generic system.

The Linkert carburetor material covers adjustment, disassembly, cleaning, inspection, float-bowl service, reassembly, manifold work, and model-specific specification charts. Transmission coverage follows the clutch, kickstarter, starter clutch, linkage, shifter cover, shifter forks, main drive gear, mainshaft, countershaft, and gearbox through inspection and reassembly.

Electrical diagnosis is supported by four main motorcycle wiring diagrams, including the separate 1955–1957 radio-special circuit, plus sidecar wiring. Representative technical illustrations include the Hydra-Glide fork exploded view, frame alignment diagram, pressure and return oil-system schematics, cylinder-head exploded view, 1954–1957 gearcase view, and 1955–1957 crankcase view.

Shop Data and Service Tools

Shop-data pages supply component-specific torque tables, fits and clearances, wear and inspection limits, oil-pressure and lubrication data, carburetor specifications, transmission measurements, generator and regulator test information, and wheel and chassis setup data. Factory tools are identified where the operation depends on them, including Wheel Truing Stand 95500-29, Fork Slider Bushing Puller 96255-50, Fork Slider Bushing Reamer and Pilots 96300-50, Pinion Gear Puller and Installer 96830-51, Main Drive Gear Oil Seal Tool 95660-42, and Fork Shifter Gauge 96384-39.

This is a period service publication, so terminology and procedures reflect the original rigid-frame machines and their factory equipment. Support the motorcycle securely before wheel, brake, fork, sidecar, transmission, or engine repair, and use suitable lifting and personal protective equipment for the assembly being handled.
