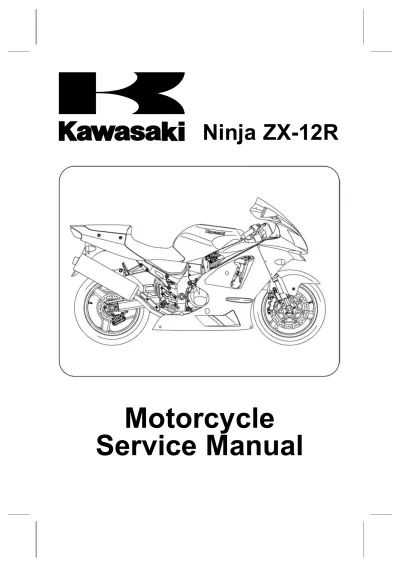

Kawasaki Ninja ZX-12R 2002–2004 Service Manual (P/N 99924-1278-03)

613 Pages • ZIP Download: Printable PDF • 11.53 MB

5.0starstarstarstarstar(1)
$17.55 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kawasaki Models Covered & Key Technical Specifications

Model: Ninja ZX-12R

Sub-models / Variants: ZX1200-B1, ZX1200-B2, ZX1200-B3. The specifications identify WVTA honeycomb-catalyst (H) and restricted-power WVTA honeycomb-catalyst (HR) variants. The ZX1200-B2 wiring legend also identifies a U.S. honeycomb-catalyst variant (HU). California evaporative-emissions routing is marked CAL.

Beginning Frame Numbers:

  • ZX1200-B1: JKAZX9B1□2A000001, JKAZXT20ABA035001, JKAZX9B1□2A035001, or ZXT20B-000001

  • ZX1200-B2: JKAZX9B1□3A008001, JKAZXT20ABA041001, or ZXT20B-008001

  • ZX1200-B3: JKAZX9B1□4A012001, JKAZXT20ABA045001, or ZXT20B-012001

In the JKAZX9B1 patterns, □ marks the ninth digit, which varies by vehicle.

Model Years: 2002–2006 (2002, 2003, 2004, 2005, 2006)


  • Engine displacement: 1 199 mL

  • Engine type: 4-stroke, DOHC, 4-cylinder, liquid-cooled

  • Compression ratio: 12.2

  • Transmission: 6-speed, constant mesh, return shift

  • Drive system: Chain drive

  • Front tire: 120/70 ZR17 M/C (58W)

  • Rear tire: 200/50 ZR17 M/C (75W)

  • Fuel tank capacity: 19.0 L (5.0 US gal)

  • Cylinder head bolt torque (M11, first / final): 23 N·m (17 ft·lb) / 59 N·m (44 ft·lb)

  • Spark plug: NGK CR9EKPA

Kawasaki Manual Features & Selected Content Preview

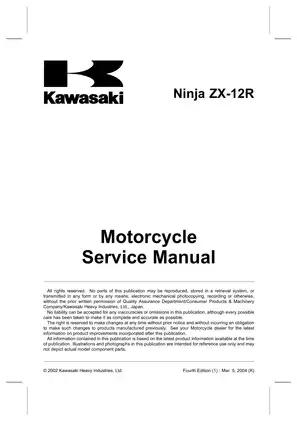

Kawasaki’s Ninja ZX-12R Motorcycle Service Manual (P/N 99924-1278-03) is the Fourth Edition (1), dated March 5, 2004. It covers the 2002 ZX1200-B1, 2003 ZX1200-B2, and 2004 ZX1200-B3. The factory model application ends with the 2004 B3.

PDF Search, Bookmarks, and Wiring Detail

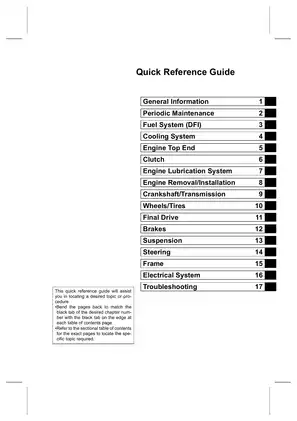

Text search and bookmarks: Search the service text or use the embedded bookmarks to jump to individual procedures. Wiring diagram headings are searchable. The labels inside the drawings are part of the images, and small pin numbers and wire codes are readable when zoomed in.

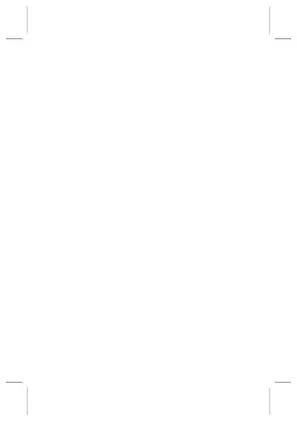

The ZIP contains one printable, 613-page PDF. That count includes the front and back covers, six preliminary pages, and ten blank pages.


Fuel Injection Diagnosis, Engine Repair, and Chassis Service

These are selected service and repair topics. The manual also covers fairing removal and drive sprocket inspection.

  • Periodic maintenance: Valve-clearance inspection, drive-chain slack and wear checks, steering-bearing lubrication, and model-specific air-cleaner service.

  • Digital fuel injection (DFI): Throttle-body disassembly, vacuum synchronization, injector testing, fuel pressure and flow checks, and separate diagnostic coverage for B1/B2 and B3 systems.

  • Engine top end: Cylinder compression testing, camshaft timing, cylinder-head removal and installation, valve guide and seat work, and piston and ring inspection.

  • Clutch and transmission: Engine removal, crankcase splitting, crankshaft bearing selection, clutch-pack setup, starter-clutch service, and transmission shaft, shift drum, and fork work.

  • Cooling and lubrication: Cooling-system pressure testing and flushing, water-pump service, and engine oil-pressure testing. The Coolant Flow Chart and Engine Oil Flow Chart show how the two circuits are routed.

  • Brakes and chassis: Caliper and master-cylinder overhaul, brake-fluid and seal service, bleeding, wheel balancing and hub bearings, front-fork rebuilding, swingarm and Uni-Trak linkage service, and steering-stem bearing replacement.

  • Electrical diagnosis: Charging, ignition, starter, lighting, meter, junction-box, switch, and sensor tests, with regional wiring diagrams and immobilizer service for equipped B3 models.

Kawasaki wrote the manual primarily for trained mechanics in equipped shops. Owners with basic mechanical and tool knowledge can also use it for routine maintenance.

Mikuni and Keihin DFI Differences

The B1 and B2 use four Mikuni 46 EIS throttle bodies. The B3 uses a Keihin assembly with four 46 mm bores and adds separate main-throttle and subthrottle checks, including a test for the subthrottle valve actuator. The maintenance chapter calls for cleaning the B1/B2 air-cleaner element and replacing it on the B3.

The DFI Diagnosis Flow Chart starts with rider-reported symptoms. The chapter explains how to read and clear stored codes and how the ECU responds to faults. Separate DFI System Wiring Diagrams for B1/B2 and B3 help you select the right circuit before testing crank and cam sensors, speed and gear inputs, the vehicle-down sensor, stick coils, or the fuel-pump relay. ECU power and ground checks help narrow down a suspected control-unit fault before replacement.

Residual pressure can spray fuel when a hose is disconnected. Unplugging DFI connections with the ignition on can damage components, and reversing battery polarity can damage the ECU.

Ram Air, Emissions, and Regional Wiring

The aluminum monocoque frame doubles as the Ram Air airbox. Separate cable, wire, and hose routing drawings distinguish the B1/B2 vacuum switch valve from the B3 air switching valve. The manual covers California evaporative-emissions hardware and KLEEN catalyst configurations. Kawasaki refers readers to the separate ZX900E service manual, No. 99924-1255, for more on KLEEN.

Full-bike wiring diagrams cover the U.S. and Canada, Australia, Malaysia, Hong Kong and Kuwait, and other market configurations. For equipped B3 models, the Immobilizer System Circuit and key-registration flow charts accompany component replacement and system inspection procedures.

Engine Assembly and Suspension Limits

Engine assembly references cover connecting-rod and main-bearing insert selection, balancer alignment, and tightening sequences. Retightening a partly loosened non-return cam-chain tensioner can damage the tensioner and chain. Turning the crankshaft with the tensioner removed can upset valve timing. Liquid gasket around the main-bearing inserts or oil passages can restrict lubrication.

Front-fork service includes oil replacement and model-specific damping settings. Rear shock coverage is limited to adjustment, removal, installation, and safe disposal.

Across the 17 chapters, exploded views identify replacement parts and where to apply oil, grease, sealant, or locking agent. Service limits and electrical test specifications accompany the procedures. Kawasaki tool references include fuel-pressure gauge adapter 57001-1417, clutch holder 57001-1243, clutch gear setting tool 57001-1455, fork oil level gauge 57001-1290, and B3 key registration unit 57001-1582.

Fuel Pressure, Pump Flow, and Fork Oil Level Examples

The DFI fuel-pressure check specifies 285–315 kPa (41–46 psi) during the pump’s three-second prime, with the engine stopped and the battery fully charged. The separate flow check calls for at least 83 mL (2.8 US oz) in three seconds under the same engine and battery conditions, with the adapter hose already filled with fuel.

The front-fork oil level is 93 ± 2 mm (3.66 ± 0.08 in.) below the top of the outer tube, measured with the fork fully compressed and the spring removed.
