2006–2008 Kawasaki KX450F Service Manual (P/N 99924-1355-01)

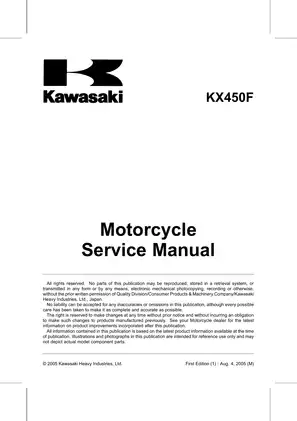

• Exact coverage and document identity: A 369-page PDF for the 2006 Kawasaki KX450D6F only, with beginning frame numbers JKAKXGDC□6A000001 (□ is a variable digit) or JKAKX450DDA000001. Official Kawasaki Part No. 99924-1355-01, First Edition (1), dated August 4, 2005.
• Engine, fuel, and cooling work: Covers KEIHIN FCR40 carburetor fuel-level checking, removal, disassembly, cleaning, inspection, assembly, and adjustment; cooling-system draining, filling, air bleeding, pressure testing, flushing, and water-pump service; plus camshaft timing, valve, cylinder-head, piston, and cylinder repair.
• Bottom-end and drivetrain procedures: Details engine removal and installation, clutch inspection and adjustment, kickstarter and external shift mechanism service, crankcase splitting and assembly, crankshaft inspection and rebuilding data, four-speed transmission disassembly, balancer timing, bearing replacement, and oil-seal inspection.
• Chassis and brake service: Provides wheel and tire removal, rim and spoke checks, hub-bearing replacement, drive-chain and wheel-alignment procedures, sprocket inspection, brake-line bleeding, caliper and master-cylinder disassembly, pad checks, and disc inspection.
• Suspension and steering procedures: Documents fork removal, oil changes, disassembly and assembly, seal and bushing replacement, damping adjustment, rear-shock oil service and spring replacement, Uni-Trak linkage and swingarm bearing work, and steering-stem bearing service.
• Electrical diagnosis and reference material: Supplies the complete wiring diagram, ignition and magneto tests, stator output and resistance checks, C.D.I. and ignition-coil inspection, crankshaft-sensor testing, throttle-sensor positioning, gear-position-switch checks, cable/wire/hose routing views, torque tables, service limits, capacities, and a system-based troubleshooting guide.

This factory service manual was written primarily for trained mechanics working in a properly equipped shop. Kawasaki also provides enough basic information for an owner with mechanical knowledge, proper tools, and workshop experience to handle basic maintenance and repair; adjustments or deeper repair work should be left to a qualified mechanic when experience or equipment is insufficient.

Engine and Drivetrain Repair Depth

The engine chapters go beyond routine tune-up information. Inspection coverage includes camshaft journal clearance and runout, cam wear, compression testing, cylinder-head warp, valve-guide clearance by the wobble method, valve-seat repair, cylinder and piston wear, ring and groove clearance, and connecting-rod condition. The camshaft section documents auto-decompressor service and the factory timing-mark and chain-pin relationship used during installation.

Separate lubrication coverage explains the semi-dry-sump system with feed and scavenge pumps, two oil screens, the relief valve, oil-pressure measurement, and the oil route between the crank room, transmission room, filter, crankshaft, and cylinder head. For major repair work, the crankshaft/transmission chapter covers case separation, bearing orientation, crankcase sealing, crankshaft runout and connecting-rod checks, shift-fork and drum wear, gear inspection, transmission-shaft assembly, and final shift-operation checks. Crankshaft disassembly and reassembly are specifically treated as shop work requiring the necessary precision equipment.

Model-Specific Data, Tools, and Illustrations

The specification sections provide component torque tables, approved lubricants and sealants, fluid capacities, adjustment data, electrical readings, standard dimensions, and service limits. Race- and hour-based maintenance schedules cover the engine, controls, chassis, brakes, wheels, final drive, suspension, and steering. Where applicable, the manual separates Europe-model carburetor jetting and pilot-screw settings from the standard specification and identifies a different outer-fork oil quantity for the EUR version.

Named Kawasaki tools are tied to the procedures, including the crankcase splitting tool assembly 57001-1362, crankshaft jig 57001-1174, valve spring compressor assembly 57001-241, throttle sensor setting adapter #1 57001-1400, peak voltage adapter 57001-1415, fork top-plug wrench 57001-1653, and fork oil-seal driver 57001-1509.

Visual reference material includes the lubrication system chart, complete electrical wiring diagram, cable/wire/hose routing views, and exploded views for the carburetor, cylinder head and valve train, and crankshaft/transmission assemblies. The appendix fault guide groups likely causes for starting trouble, poor low- or high-speed running, overheating, clutch and shifting faults, abnormal engine or drivetrain noise, handling problems, suspension behavior, and weak braking.

Repair Cautions Built Into the Procedures

The camshaft section warns that turning the crankshaft with a kinked chain can damage both the chain and lower sprocket; resistance after timing work can signal an indexing error capable of bending valves. During fork assembly, the sharp inner-tube guide-bush groove can cut the oil-seal lip if the seal passes over it unprotected.

Engine removal requires the swingarm pivot shaft to be withdrawn, separating the swingarm and rear-wheel assembly. Fork work also involves stored spring force, and brake service requires correct bleeding and postassembly checks. Follow the manual’s support, tool, and safety instructions before beginning those operations.
