VOLVO 740 & 760 Petrol Service & Repair Guide

Maintaining the legacy of Swedish engineering excellence requires precision-driven data and a deep understanding of the 700-series architecture. Overhauling B23/B230 powerplants or troubleshooting complex Bosch fuel injection systems is simplified with this comprehensive technical roadmap. Restoring road-going reliability becomes a systematic process when utilizing factory-standard benchmarks and professional diagnostic workflows.

Operational Coverage & Vehicle Compatibility

This manual provides explicit technical data, repair procedures, and maintenance specifications for the following petrol-powered models from 1982 through 1989:

• Volvo 740 Series: Base, GL, SE, GLE, GLT, and Turbo variants (1986 cc and 2316 cc).
• Volvo 760 Series: GLE and Turbo variants (2316 cc and 2849 cc V6).
• Powerplant Detail: Comprehensive coverage of 4-cylinder in-line OHC engines and the 2.8L V6 PRV (Peugeot-Renault-Volvo) cooperative engine.
• Chassis Types: Full procedural data for both 4-door Saloon and 5-door Estate body styles.
• Excluded Content: Does not cover 1990 model year revisions or Diesel engine variants.

Strategic Logistics & Documentation Data

• Total Document Depth: 370+ High-Density Pages
• Publication Reference: Haynes 1258 (8V3)
• Official Identification: ISBN 1 85010 540 5
• Format & Accessibility: High-Resolution PDF (Digital Delivery)

Investment Protection & Long-Term Reliability

• Eliminate costly "component swapping" by following logical fault-tracing trees for fuel and ignition failures.
• Protect high-value engine components by adhering to strict Stage-Tightening torque sequences and angular bolt rotations.
• Ensure drivetrain longevity with exact fluid specifications for M46/M47 manual boxes and AW71/ZF4HP22 automatics.
• Maintain factory safety standards during critical suspension and braking system overhauls.

Drive Core Benchmarks & Performance Standards

Advanced System Diagnostics & Fault Logic

• Ignition Fault Tracing: Systematic isolation of Motronic, EZ-K, and TSZ-4 electronic systems to locate HT voltage leaks or sensor failures.
• Fuel Injection Calibration: Step-by-step procedures for testing line, control, and resting pressures in Continuous Injection Systems (K-Jetronic).
• Turbocharging Logic: Diagnostic checks for wastegate actuator rods, boost pressure switches, and tamperproof seal integrity.
• Drivetrain Analysis: Troubleshooting routines for overdrive solenoid engagement and automatic transmission kickdown cable markers.

Precision Schematics & Visual Infrastructure

• Master Wiring Diagrams: High-resolution, multi-page electrical layouts for 1982-1983, 1984-1988, and 1989 model year revisions.
• Hydraulic Pathways: Detailed views of the dual-circuit braking system and ABS modulator plumbing for later models.
• Exploded Assembly Views: Component breakdowns for the Laycock J and P-type overdrive units and the ZF4HP22 transmission.
• Component Localization: Annotated under-bonnet and underside photos for rapid identification of sensors, relays, and earth points.

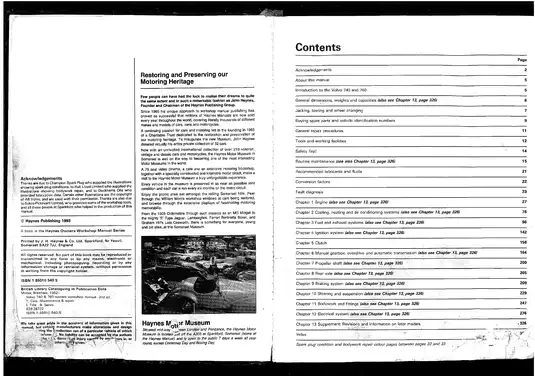

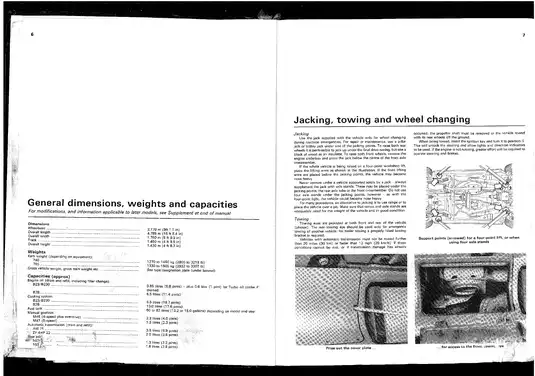

Professional Workshop Contents

• Chapter 1: Engine Overhaul (Part A: In-line / Part B: V6)
• Chapter 2: Cooling, Heating, and Air Conditioning Logic
• Chapter 3: Fuel and Exhaust (Carburettor, K-Jetronic, and Motronic)
• Chapter 4: Ignition Systems (Electronic and Computerized Control)
• Chapter 6: Manual Gearbox, Overdrive, and Automatic Transmission
• Chapter 9: Braking Systems (Including ABS Modulator procedures)
• Chapter 10: Steering and Suspension (MacPherson Strut and Multi-link data)
• Chapter 13: Supplement for Revisions and Later Model Information

FAQ

What is the precise procedure for calibrating the kickdown marker on AW and ZF automatic transmissions?

For early 700-series models with the floor-mounted marker, the retainer must be released and the marker screwed in fully. The throttle pedal is then depressed by hand to the start of the kickdown resistance point, where the marker is adjusted upwards to meet the pedal. On later models with the marker integrated into the pedal, the marker is adjusted downwards to meet the floor at the same resistance point. Correct calibration ensures the 0.25 to 1.0 mm (0.01 to 0.04 in) crimp position on the inner cable stop is maintained, preventing erratic shifting and protecting the internal transmission clutches.

Which specific Volvo engine variants and displacements are documented for overhaul procedures?

This technical resource provides deep-dive maintenance data for the B200 and B230 4-cylinder OHC engines (1986 cc and 2316 cc) and the B28/B280 2.8-litre V6 (2849 cc) petrol powerplants. Coverage includes the high-output B230ET Turbo variants producing 134 kW (180 bhp) at 5800 rpm. Having these specific engine-code benchmarks allows technicians to verify cylinder compression targets of 9 to 11 bar (131 to 160 psi), ensuring the engine meets factory air-fuel efficiency standards after a rebuild.

What are the critical valve clearance benchmarks for maintaining the B230 and B280 valvetrains?

For the 4-cylinder B230 engines, cold valve clearances must be strictly set between 0.30 and 0.40 mm for both inlet and exhaust to prevent burnt valves. The V6 B280 engine requires a tighter tolerance of 0.10 to 0.21 mm. Adhering to these precision settings is vital for "Component Longevity," as incorrect gaps lead to improper heat dissipation and mechanical noise that can prematurely wear the camshaft lobes.

How do the high-resolution schematics assist in troubleshooting the dual-circuit braking and electrical systems?

The technical diagrams provide a roadmap for the complex dual-circuit disc brake plumbing and the 1982-1989 evolution of the Volvo electrical architecture. Using these schematics, a technician can isolate faults in the starter inhibitor/reversing light switch or trace the ABS modulator paths. Specific torque values, such as the 85 Nm (63 lbf ft) wheel nut requirement, are integrated into the service workflow to ensure that chassis repairs meet the structural integrity standards required for high-speed motorway operation.

What are the fluid capacities and specifications for the heavy-duty drivetrain components?

To ensure "Field Uptime" and smooth gear synchronization, the M46 (with Overdrive) and M47 manual gearboxes must be filled with the correct lubricant based on the production year—transitioning from ATF Type F/G to Dexron IID around 1984. The rear axles require 1.3L to 1.6L of SAE 90 EP Hypoid oil. Maintaining these exact volumes and chemical properties prevents the overheating of the 1030 and 1031 type differentials under heavy load or towing conditions.
