Yamaha VK10W Professional & RS90 Snowmobile Manual Set, 2006–2007 (P/N LIT-12618-02-38)

671 Pages • ZIP Download: 2 Printable PDFs (English)

4.5starstarstarstarstar_half(2)
$17.65 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: RS90K, RS90RK, RSG90K, RS90MK, RST90K, RST90TFK, RS90NL, RS90NRL, RS90RSL, RS90GTL, RS90MSL, VK10W

Models & Model Codes:

RS90K — 8ES1 (USA/Canada)

RS90RK — 8FJ1 (USA/Canada), 8FJ2 (Europe)

RSG90K — 8FL1 (USA/Canada), 8FL2 (Europe)

RS90MK — 8FK1 (USA/Canada), 8FK2 (Europe)

RST90K — 8ET1 (USA/Canada), 8ET2 (Europe)

RST90TFK — 8FM1 (Europe), 8FM2 (Canada)

RS90NL — 8GF1 (USA/Canada)

RS90NRL — 8GH1 (USA/Canada)

RS90RSL — 8GH2 (Europe)

RS90GTL — 8GG1 (USA/Canada)

RS90MSL — 8GE1 (USA/Canada), 8GE2 (Europe)

VK10W — 8GS1 (USA/Canada), 8GS2 (Europe)

Sub-models / Variants: RS90, RS90R, RSG90, RS90M, RST90, RST90TF, USA/Canada, Europe

Model Years: 2006–2007

Transmission: V-belt automatic (all listed models); VK10W chaincase with Drive (D), Low (L), and Reverse.


  • Engine idle speed: 1,300–1,500 r/min

  • Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)

  • Coolant capacity (RS90/RS90R/RSG90): 4.8 L (5.07 US qt)

  • Engine oil capacity (with oil filter replacement): 3.0 L (3.2 US qt)

  • Fuel type/octane requirement: Regular unleaded gasoline; RS90/RSG90/RST90 families: minimum 88 pump octane (USA/Canada), 93 RON (Europe); VK10W: minimum 86 pump octane (USA/Canada), 91 RON (Europe).

  • Standard spark plug: NGK R CR8E

Yamaha Manual Features & Selected Content Preview

Publication Pages

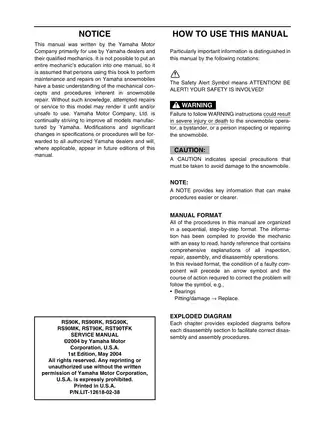

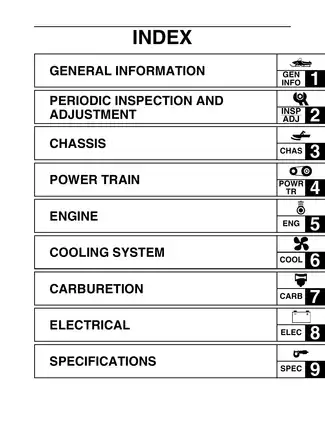

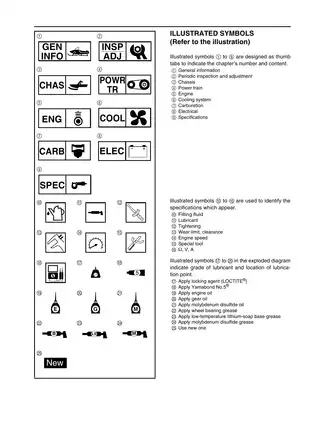

RS90K, RS90RK, RSG90K, RS90MK, RST90K and RST90TFK Service Manual — P/N LIT-12618-02-38; 8FJ-28197-10; first edition May 2004 412
RS90NL, RS90NRL, RS90RSL, RS90GTL and RS90MSL Supplementary Service Manual — P/N LIT-12618-02-47; 8GE-28197-10; first edition July 2005 156
VK10W Supplementary Service Manual — P/N LIT-12618-02-57; 8GS-28197-10; first edition July 2006 103

The RS90 supplement updates the base manual for the N-code machines and is intended for use alongside it. The VK10W supplement requires both the base manual and the earlier VK10L supplement.

Required additional publication for complete VK10W service information: The VK10L Supplementary Service Manual, P/N LIT-12618-02-42 / 8FN-28197-10, is not included in this download.

Searchable PDFs and Wiring Sheet Navigation

Text search and diagram detail: Both PDFs contain searchable text and embedded bookmarks. Several VK10W chapter-level bookmarks open the contents page; the more specific procedure bookmarks provide direct navigation. Small wiring-diagram labels are readable when enlarged.

The ZIP download contains two printable English PDFs totaling 671 pages: a 568-page file combining the base manual and RS90 supplement, plus the 103-page VK10W supplement. These totals already include the original covers and front matter, one blank page, and two wiring sheets positioned after the back covers.


Engine, Driveline and Electrical Service Coverage

The following selected coverage highlights outline the main workshop content rather than reproduce the complete contents list. Additional topics include battery charging methods and headlight beam adjustment.

  • Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve service, camshaft and timing-chain work, and crankcase disassembly and assembly.

  • Clutch and driveline: Primary- and secondary-sheave overhaul, bushing service, drive-belt checks, sheave offset, engagement-speed checks, and reverse and non-reverse chaincase procedures.

  • Brakes and chassis: Hydraulic brake bleeding, pad replacement, caliper repair, steering alignment, ski service, front suspension work, and model-specific slide-rail suspension layouts.

  • Fuel, cooling and tuning: Carburetor synchronization, fuel-level and fuel-pump checks, T.O.R.S. testing, heat-exchanger and thermostat inspection, water-pump service, and high-altitude tuning.

  • Electrical diagnosis: Ignition, starting, charging, lighting, signal, grip-warmer and carburetor-heater troubleshooting, component tests, circuit diagrams, and built-in self-diagnosis codes.

  • RS90 supplement: Revised steering, suspension, chaincase, brake, seat and fuel-tank, exhaust, carburetion, specification, cable-routing, and wiring information for the listed N-code machines.

  • VK10W revisions: Shift-lever and low/reverse chaincase service, secondary-shaft installation, brake procedures, track installation, camshaft timing, throttle-position-sensor adjustment, and reverse-buzzer diagnosis.

Yamaha wrote these publications primarily for its dealers and qualified mechanics, assuming a basic understanding of snowmobile repair; they are not introductory mechanic training.

Model-Specific Driveline and Suspension Work

Coverage is controlled by the exact Yamaha model codes, not by the broad RS90 family name alone. The base manual separates RS90M steering and ski arrangements, RST90/RST90TF passenger equipment, and the individual slide-rail suspension configurations.

The VK10W supplement documents the shift drum, shift fork, low-range gears and reverse-drive components, with inspection criteria and shift-linkage adjustment information. Its gear-position-switch and reverse-buzzer tests help distinguish an electrical warning-circuit fault from a mechanical shifting problem.

Front-axle and track illustrations show sprocket positioning and alignment references. The RS90 supplement also distinguishes RS90GT suspension arrangements from those used on the other N-code models.

Internal Engine Repair and Fuel-System Checks

Internal engine coverage extends to the A.C. magneto rotor and starter clutch, oil pan and oil pump, pistons, connecting rods, crankshaft, and balancer shaft. Inspection sections include bearing selection, wear limits, clearances, and assembly checks.

Valve-clearance and compression checks support engine-condition assessment before carburetor adjustment. The fuel sections distinguish synchronization, float-chamber fuel-level adjustment, fuel-pump testing, and throttle-position-sensor inspection; the VK10W supplement supplies its revised sensor-adjustment method.

Carburetor, clutch and gearing charts address high-altitude setup. Cooling-system procedures include heat-exchanger inspection, thermostat testing, and water-pump disassembly and assembly.

Circuit Diagrams and Fault Isolation

Named circuit diagrams include Ignition System, Electrical Starting System, Charging System, Signal System, Grip Warmer System, and Carburetor Heater System. They are paired with system-specific troubleshooting charts and component tests.

Full wiring schematics cover the base RS90 variants, the 2006 RS90N/RS90NR/RS90RS/RS90MS machines, the separate 2006 RS90GT arrangement, and the 2007 VK10W. Connector views and wire-color codes identify fuses, relays, switches, and warning indicators.

Related test sections address the gear-position circuit, fuel sender, oil-level switch, speed sensor, and coolant-temperature sensor. Self-diagnosis tables explain the displayed fault codes and associated circuit conditions.

Exploded Views, Specifications and Special Tools

Exploded assembly views accompany removal-order tables, quantities, inspection criteria, installation notes, lubricants, and component-specific tightening data. Specification chapters collect torque tables, fluid and lubrication data, wear limits, clearances, electrical test values, high-altitude settings, and cable-routing views.

The special-tool section pairs North American Yamaha numbers with their 90890-series alternatives. Examples include the YU-03097 dial gauge, YM-01312-A fuel-level gauge, YS-01487 steering-linkage alignment plate, and YU-01304 piston-pin puller.

Operation-specific callouts also identify clutch holding and pulling equipment, a carburetor synchronization gauge, cooling-system test equipment, valve-service tools, secondary-shaft fixtures, and electrical test instruments.

Repair Cautions and Safe Use

The primary-sheave section flags the spider’s left-hand thread and restricts threadlocker to the designated surface; incorrect handling can damage the sheaves or spider, while misplaced threadlocker can contaminate the bushings. During camshaft repair, uneven cap tightening can damage the cylinder head, caps, and camshafts, while crankshaft rotation during installation can cause damage or incorrect valve timing.

Powered driveline checks require the snowmobile to be securely supported, and hydraulic brake or gas-charged suspension work must be handled as safety-critical service. Follow the Yamaha warnings, special-tool callouts, and model-specific procedures before running or returning the machine to service.

A Preview of VK10W Valve and Drive-Belt Specifications

The VK10W specifications list cold valve clearances of 0.15–0.22 mm for the intake valves and 0.21–0.25 mm for the exhaust valves. These values accompany the camshaft installation and valve-clearance checking information.

For the VK10W drive belt, the listed new-belt width is 34.1 mm, with a wear-limit width of 32.1 mm. The inspection section relates belt condition and positioning to clutch operation.
