Kawasaki Z1000 / Z1000 ABS 2007–2009 Service Manual (P/N 99924-1380-01)
709 Pages • ZIP Download: 1 Printable PDF (English)
Kawasaki Models Covered & Key Technical Specifications
Models & Model Codes: Z1000 (ZR1000B7F), Z1000 ABS (ZR1000C7F)
Model Years: 2007–2009 (2007, 2008, 2009)
Beginning Frame Numbers (ZR1000B7F): JKAZRCB1□7A000001, JKAZRT00BBA000001, ZRT00B-000001
Beginning Frame Numbers (ZR1000C7F): JKAZRT00BCA000001, ZRT00C-000001
Frame Number Note: □ represents a digit that varies between machines.
-
Engine: 4-stroke, liquid-cooled, DOHC, 4-cylinder
-
Displacement: 953 cm³ (58.15 cu in.)
-
Bore and Stroke: 77.2 × 50.9 mm
-
Compression Ratio: 11.2:1
-
Idle Speed: 1100 ±50 r/min
-
Coolant Capacity: 2.9 L (3.1 US qt)
-
Engine Oil Capacity: 3.8 L (4.0 US qt) (completely dry)
-
Transmission: 6-speed, constant mesh, return shift
-
Final Drive: Chain drive (5.007 overall reduction ratio)
-
Tire Pressure (Cold, up to 180 kg load): 250 kPa (front), 290 kPa (rear)
Kawasaki Manual Features & Selected Content Preview

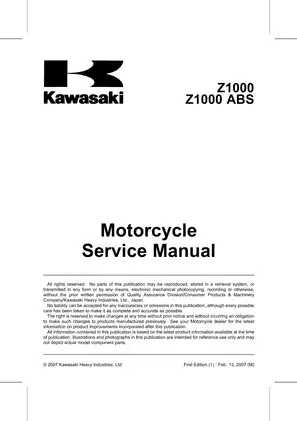

Kawasaki’s service manual covers the 2007 Z1000 (ZR1000B7F) and Z1000 ABS (ZR1000C7F). It is P/N 99924-1380-01, First Edition (1), dated February 13, 2007, with factory maintenance, diagnostic, and repair procedures.
PDF Text Search, Bookmarks, and Diagram Detail
Search and diagram navigation: Procedure text is searchable, and embedded bookmarks provide topic navigation. Labels within wiring-diagram images are not covered by text search; small component, connector, and wire-color markings need zooming.
The ZIP download contains one printable, 709-page English PDF, including the preliminary material, 14 blank pages, four labeled placeholder pages, and the model-application sheet.
DFI Troubleshooting, Engine Repair, and Chassis Service

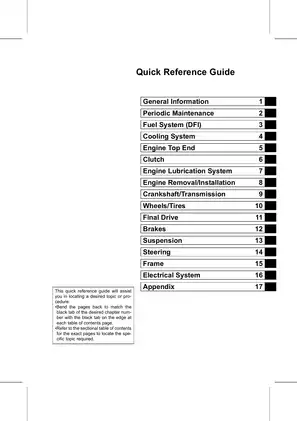

These selected coverage highlights outline the main workshop areas rather than reproduce the full contents. Other topics include headlight aiming and frame inspection.
-
DFI and fuel system: Dealer-mode self-diagnosis, service-code reading, ECU power-supply checks, sensor and actuator circuit tests, fuel-pressure and flow tests, injector diagnosis, throttle-body synchronization, and California evaporative-emissions service.
-
Engine top end: Step-by-step procedures cover compression testing, camshaft and cam-chain work, cylinder-head removal, valve-clearance adjustment, valve and guide service, valve-seat repair, piston inspection, and exhaust-butterfly cable adjustment.
-
Clutch and internal drivetrain: Clutch-pack inspection, engine removal and installation, crankcase splitting, crankshaft and connecting-rod bearing checks, starter-clutch service, transmission-shaft teardown, and shift-drum, fork, gear-dog, and groove inspection.
-
Cooling and lubrication: Pressure testing, flushing, water-pump and mechanical-seal service, radiator and thermostat checks, oil-pan and pump work, relief-valve inspection, oil-cooler service, and oil-pressure measurement.
-
Brakes and ABS: Caliper and master-cylinder overhaul, brake bleeding, ABS fault isolation, wheel-rotation sensor checks, and hydraulic-unit replacement.
-
Wheels and chassis: Wheel and hub-bearing service, drive-chain replacement, fork overhaul, swingarm and Uni-Trak bearing work, and steering-stem adjustment.
-
Electrical systems: Market-specific and ABS wiring diagrams support charging, ignition, starter, lighting, meter, relay, sensor, and immobilizer testing, including key registration and system-parts replacement where equipped.
The manual was written primarily for trained mechanics in a properly equipped shop; owners with basic mechanical knowledge and the proper tools can also use it for basic maintenance and repair.
DFI Diagnosis and Equipment Differences
The symptom-based charts connect running complaints with appropriate checks, helping distinguish a DFI problem from a general engine fault before selecting a component test.
Individual diagnostic sections address main and subthrottle position, inlet and atmospheric pressure, air and coolant temperature, crankshaft and camshaft position, speed, vehicle-down, oxygen, and exhaust-butterfly inputs. Subthrottle-actuator, stick-coil, radiator-fan relay, fuel-pump, injector, and ECU checks include the relevant circuit connections.
Voltage, resistance, peak-voltage, and continuity tests specify the required adapters and tester connections. DFI fault history cannot be erased on this model, even though the displayed service code disappears after the fault is corrected.
Identification views distinguish US/Canada and European B7F versions. California evaporative-emissions equipment, oxygen sensors, ABS, and immobilizer systems receive equipment-specific treatment where procedures differ.
ABS Fault Isolation and Immobilizer Limits
ABS diagnosis covers indicator-light behavior, solenoid valves, pump and solenoid relays, front and rear wheel-rotation sensors, supply voltage, and the hydraulic-unit ECU. Separate procedures address stored-code clearing and final self-diagnosis checks.
ABS components are replaced rather than internally repaired. The hydraulic unit is factory-adjusted and must not be disassembled.
For immobilizer-equipped models, new user-key registration requires the master key. Loss of all coded keys calls for ECU and ignition-switch replacement; the manual includes registration flowcharts and a related-parts replacement chart.
Diagrams, Reference Tables, and Shop Equipment
Visual references include the DFI System Wiring Diagram, Coolant Flow Chart, Engine Oil Flow Chart, ABS System Wiring Diagram, Immobilizer System Circuit, and Cable, Wire, and Hose Routing views.
Exploded views identify component relationships and assembly points requiring torque, grease, oil, sealant, or locking agent. The appendix’s symptom-based troubleshooting guide spans engine, fuel, cooling, clutch, transmission, brakes, suspension, steering, and electrical faults.
Reference tables provide maintenance intervals, component-specific torque and locking-agent requirements, fluid specifications, valve and bearing clearances, wear limits, pressure-test data, suspension settings, and electrical test values.
Named equipment includes Vacuum Gauge 57001-1369, Fuel Pressure Gauge Adapter 57001-1593, Compression Gauge 57001-221, Fork Spring Compressor 57001-1587, and Key Registration Unit 57001-1582. Drive-chain replacement specifies the ENUMA EK Joint Tool #50.
Cam-Chain and Throttle-Body Repair Cautions
Partially loosening and retightening the cam-chain tensioner can damage the tensioner and chain; rotating the crankshaft with the tensioner removed can disturb timing and damage valves.
The throttle sensors and subthrottle actuator are factory-set components: unauthorized adjustment or impact can damage them or require throttle-body assembly replacement.
Fuel-pressure testing, hot cooling-system work, and brake or ABS service require the manual’s safety and contamination-control precautions, suitable instruments, and experience appropriate to the work.
Valve-Clearance and Fuel-System Specification Samples
Valve-clearance specifications are 0.15–0.24 mm for the inlet valves and 0.22–0.31 mm for the exhaust valves, measured with the engine cold at room temperature.
Fuel-system test data includes a standard pressure of 294 kPa (43 psi) with the engine idling. Injector resistance is approximately 11.7–12.3 Ω at 20°C (68°F), alongside connector-specific electrical checks.
