Kawasaki VN750 Vulcan 750 1985–2004 Service & Parts Manual Set (P/N 99924-1054-14)
1985–2004 Kawasaki VN750 Vulcan Service & Parts Manual Set
Kawasaki Models Covered & Key Technical Specifications
Models: VN700, VN750, Vulcan 750
Models & Model Codes:
VN700 — VN700-A1
VN750 / Vulcan 750 — VN750-A1, VN750-A2, VN750-A3, VN750-A4, VN750-A5, VN750-A6, VN750-A7, VN750-A8, VN750-A9, VN750-A10, VN750-A11, VN750-A12, VN750-A13, VN750-A14, VN750-A15, VN750-A16, VN750-A17, VN750-A18, VN750-A19, VN750-A20
Sub-models / Variants: Service manual: VN700-A1 and VN750-A1 through VN750-A17; illustrated parts catalogs: VN750-A2 through VN750-A20 (US, Canada, Europe, West Germany, Italy, South Africa, Switzerland, and General market configurations, as applicable)
Trade Names: Vulcan, Vulcan 750 Twin
Model Years: 1985–2004 (1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)
Beginning frame numbers: Service-manual model applications begin at the following numbers. The symbol □ represents the digit that varies from one machine to another.
-
VN700-A1: US: JKAVN6A1□FA000001
-
VN750-A1: Canada: JKAVNDA1□FA000001
-
VN750-A2: US/Canada: JKAVNDA1□GA002501; US-Lincoln: JKAVNDA1□GB500001; Europe/General: VN750A-002501
-
VN750-A3: US/Canada: JKAVNDA1□HA005501; US-Lincoln: JKAVNDA1□HB508301; Europe/General: VN750A-005501
-
VN750-A4: US/Canada: JKAVNDA1□JA006701; US-Lincoln: JKAVNDA1□JB509501; Europe/General: VN750A-006701
-
VN750-A5: US/Canada: JKAVNDA1□KA007901; US-Lincoln: JKAVNDA1□KB510701; Europe/General: VN750A-007901
-
VN750-A6: US/Canada: JKAVNDA1□LA009001; US-Lincoln: JKAVNDA1□LB512901
-
VN750-A7: US/Canada: JKAVNDA1□MB515101
-
VN750-A8: US/Canada: JKAVNDA1□NB517301
-
VN750-A9: US/Canada: JKAVNDA1□PB520601; Europe/General: VN750A-600001
-
VN750-A10: US/Canada: JKAVNDA1□RB524801; Europe/General: VN750A-602001
-
VN750-A11: US-Lincoln: JKAVNDA1□SB529701
-
VN750-A12: US-Lincoln: JKAVNDA1□TB534900
-
VN750-A13: US-Lincoln: JKAVNDA1□VB536701
-
VN750-A14: JKAVNDA1□WB538501
-
VN750-A15: JKAVNDA1□XB539401
-
VN750-A16: JKAVNDA1□YB541601
-
VN750-A17: JKAVNDA1□1B543401
Engine-number break (VN750-A10 oil-filter parts): Up to and including VN750AE035710; from VN750AE035711 onward.
-
Engine type: 4-stroke, liquid-cooled, DOHC V-2
-
Displacement: 699 cc (VN700), 749 cc (VN750)
-
Transmission: 5-speed, constant mesh, return shift
-
Final drive: Shaft drive, 2.454 (15/22 x 36/10) reduction ratio; US/Canada: 2.522 (15/22 x 37/10)
-
Ignition system: Battery and coil (transistorized), electronically advanced
-
Carburetion: Keihin CVK34 x 2
-
Suspension: Telescopic front fork, swing arm rear suspension
Kawasaki Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

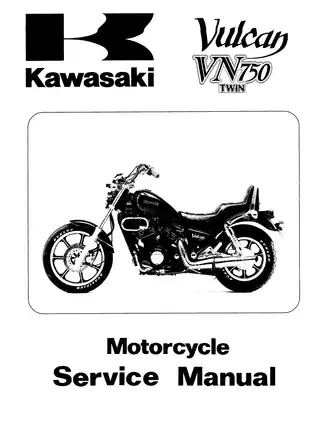

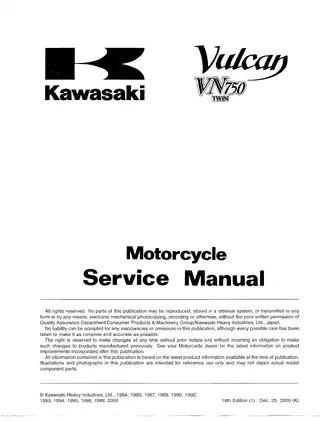

| Kawasaki Motorcycle Service Manual — 1985 VN700-A1 / VN750-A1 through 2001 VN750-A17; 14th Edition, December 25, 2000; P/N 99924-1054-14 | 331 |
| Illustrated Parts Catalog — 1986 VN750-A2 | 108 |
| Illustrated Parts Catalog — 1987 VN750-A3 | 108 |
| Illustrated Parts Catalog — 1988 VN750-A4 | 108 |
| Illustrated Parts Catalog — 1989 VN750-A5 | 108 |
| Illustrated Parts Catalog — 1990 VN750-A6 | 108 |
| Illustrated Parts Catalog — 1991 VN750-A7 | 108 |
| Illustrated Parts Catalog — 1992 VN750-A8 | 110 |
| Illustrated Parts Catalog — 1993 VN750-A9 | 110 |
| Illustrated Parts Catalog — 1994 VN750-A10 | 110 |
| Illustrated Parts Catalog — 1995 VN750-A11 | 110 |
| Illustrated Parts Catalog — 1996 VN750-A12 | 110 |
| Illustrated Parts Catalog — 1997 VN750-A13 | 110 |
| Illustrated Parts Catalog — 1998 VN750-A14 | 108 |
| Illustrated Parts Catalog — 1999 VN750-A15 | 108 |
| Illustrated Parts Catalog — 2000 VN750-A16 | 108 |
| Illustrated Parts Catalog — 2001 VN750-A17 | 108 |
| Illustrated Parts Catalog — 2002 VN750-A18 | 108 |
| Illustrated Parts Catalog — 2003 VN750-A19 | 108 |
| Illustrated Parts Catalog — 2004 VN750-A20 | 108 |
The service manual provides repair procedures, while the catalogs connect exploded assemblies with part numbers and market-specific applications. The A16 and A17 supplements are used with the preceding service chapters.
Coverage limits: The 2002 A18 and 2003 A19 catalogs list the included 14th-edition service manual. The 2004 A20 catalog specifies the later P/N 99924-1054-15, which is not included. Parts diagrams begin with the 1986 A2; there is no separate 1985 A1 parts catalog in this file.
PDF Search, Bookmarks and Wiring Detail

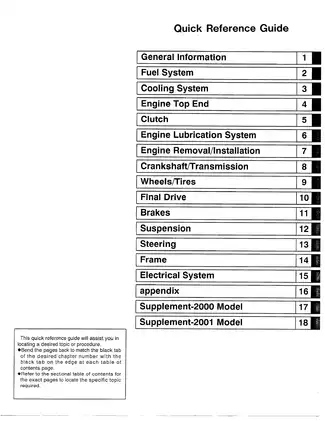

Search and diagram access: Text search works in the parts lists, but not in the service-manual pages or most exploded drawings. Embedded bookmarks provide access to service chapters and individual parts assemblies; several year-level entries incorrectly return to the cover. Small wiring labels require zooming.
The ZIP download contains one printable English PDF with 2,395 pages. This total includes eight opening pages, the six-page 2000 supplement, the eight-page 2001 supplement, and the model-application back cover.
Engine Repair, Shaft-Drive Setup and Parts Identification

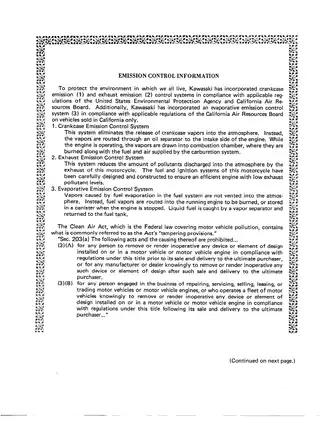

The following selected coverage highlights the main workshop areas. Further topics include evaporative-emission canister checks and clean-air-system valve tests.
-
Fuel system: Keihin CVK34 carburetor synchronization, fuel-level inspection and adjustment, carburetor disassembly, and throttle- and choke-cable service.
-
Cooling system: Pressure testing, radiator and thermostat inspection, coolant bleeding, water-pump repair, and mechanical-seal replacement procedures.
-
Engine and transmission: Compression checks, hydraulic lash-adjuster diagnosis, cam-chain timing, cylinder-head and piston work, engine removal, crankcase splitting, crankshaft inspection, clutch repair, and transmission disassembly.
-
Shaft drive: Propeller-shaft service, front and final bevel-gear disassembly, bearing setup, shim selection, backlash adjustment, and drive/coast tooth-contact checks.
-
Brakes and chassis: Front-disc and rear-drum brake repair, hydraulic bleeding, wheel and hub-bearing service, fork and rear-shock work, swingarm alignment, and steering inspection.
-
Electrical diagnosis: Charging, ignition, starter, lighting, cooling-fan, gauge, switch, and junction-box tests, supported by circuit drawings, troubleshooting charts, and model-specific wiring diagrams.
-
Illustrated parts: 1,032 exploded diagram groups with corresponding part-number lists and market spec codes, covering engine, drivetrain, electrical, suspension, brake, and body assemblies.
Kawasaki wrote the service manual primarily for trained mechanics in a properly equipped shop; owners with basic mechanical knowledge, correct tools, and sound workshop practice can also use it for basic maintenance and repair.
Internal Engine Work and Valve Timing
Step-by-step procedures cover hydraulic lash-adjuster air bleeding and leak-down measurement, valve-seat repair, cylinder boring and honing, and internal engine inspection. The Engine Oil Flow Chart accompanies oil-pressure testing and oil-pump service.
The cam-chain section warns that incorrect handling of the non-return tensioner can damage the tensioner and chain, while crankshaft movement with the tensioner removed can disturb timing and damage valves.
Bevel-Gear Setup and Parts Matching
The drive chapters distinguish bearing installation, gear backlash, and tooth-contact adjustment, with shim tables and illustrations of acceptable and incorrect contact patterns. Front and final bevel gears are factory-lapped pairs; mismatched gears or incorrect shim and contact settings can cause noise and gear damage.
The parts catalogs extend from carburetors and camshafts to front bevel gears, final drive, generator, chassis electrical equipment, and bodywork. Their application notes support parts selection beyond the model year alone—for example, the A10 oil-filter listing separates components at an engine-number break.
Electrical Tests and Circuit References
Charging-system coverage includes alternator-rotor removal, regulator/rectifier output checks, and stator resistance and insulation tests. Ignition diagnosis adds IC ignitor checks and continuity testing; starter coverage includes motor disassembly and component inspection.
The Ignition System Wiring Diagram and Ignition System Troubleshooting chart support fault tracing. The Cooling Fan System Circuit and Junction Box Internal circuit drawings cover their respective control circuits, alongside full wiring diagrams for the documented model and market configurations.
These tests provide a structured basis for investigating charging and ignition faults before selecting replacement components.
Chassis Procedures and Workshop References
Pneumatic front-fork procedures apply to VN700-A1 and VN750-A1 through A4. Chassis coverage also includes rear air-shock service, wheel balancing, steering-stem bearings, and swingarm alignment.
Service chapters pair exploded views with torque data, inspection limits, running clearances, fluid capacities, pressure-test specifications, and assembly cautions. Fuel-system references identify Fuel Level Gauge 57001-1017 and Vacuum Gauge Set 57001-1198.
Other specified tools include Oil Pressure Gauge Adapter 57001-1033, Bearing Driver Set 57001-1129, and Rotor Puller 57001-1099 or 57001-1216.

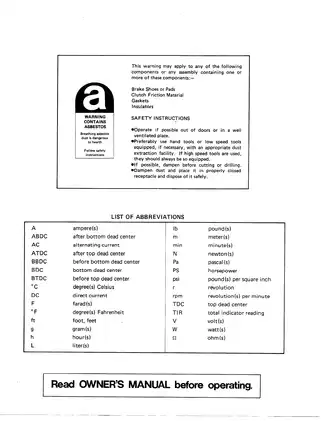

Brake hydraulics, engine handling, electrical testing, and potentially asbestos-containing friction materials require the specified equipment and appropriate experience. Use qualified assistance when the work exceeds your training or shop capability.
A Preview of Gear Backlash and Thermostat Specifications
The Final Drive specifications distinguish standard backlash of 0.07–0.10 mm for the final bevel gears from 0.10–0.15 mm for the front bevel gears. The corresponding sections explain measurement, shim selection, and tooth-contact assessment.
Cooling-system data specifies a thermostat valve-opening temperature of 80–84°C, separate from the full-open lift specification used during thermostat inspection.
