2001 Harley-Davidson XLH 883, XLH 883C, XLH 1200, XL 1200C, XL 1200S Service Manual (P/N 99484-01, 99495-01)

• Factory document set: A 554-page PDF set for 2001 Harley-Davidson Sportster models — Service Manual P/N 99484-01: 426 pages; Electrical Diagnostics P/N 99495-01: 127 pages; master contents sheet: 1 page.

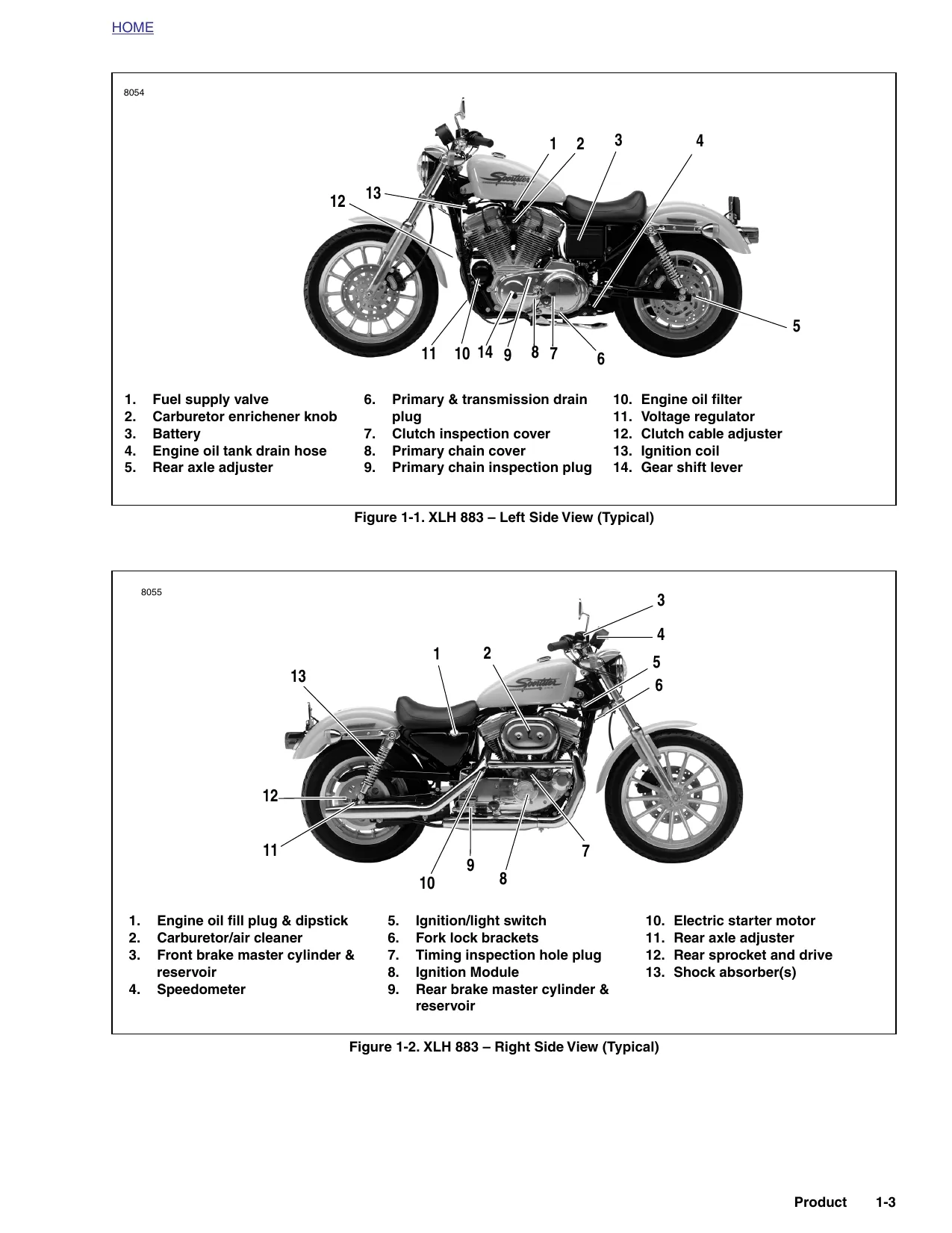

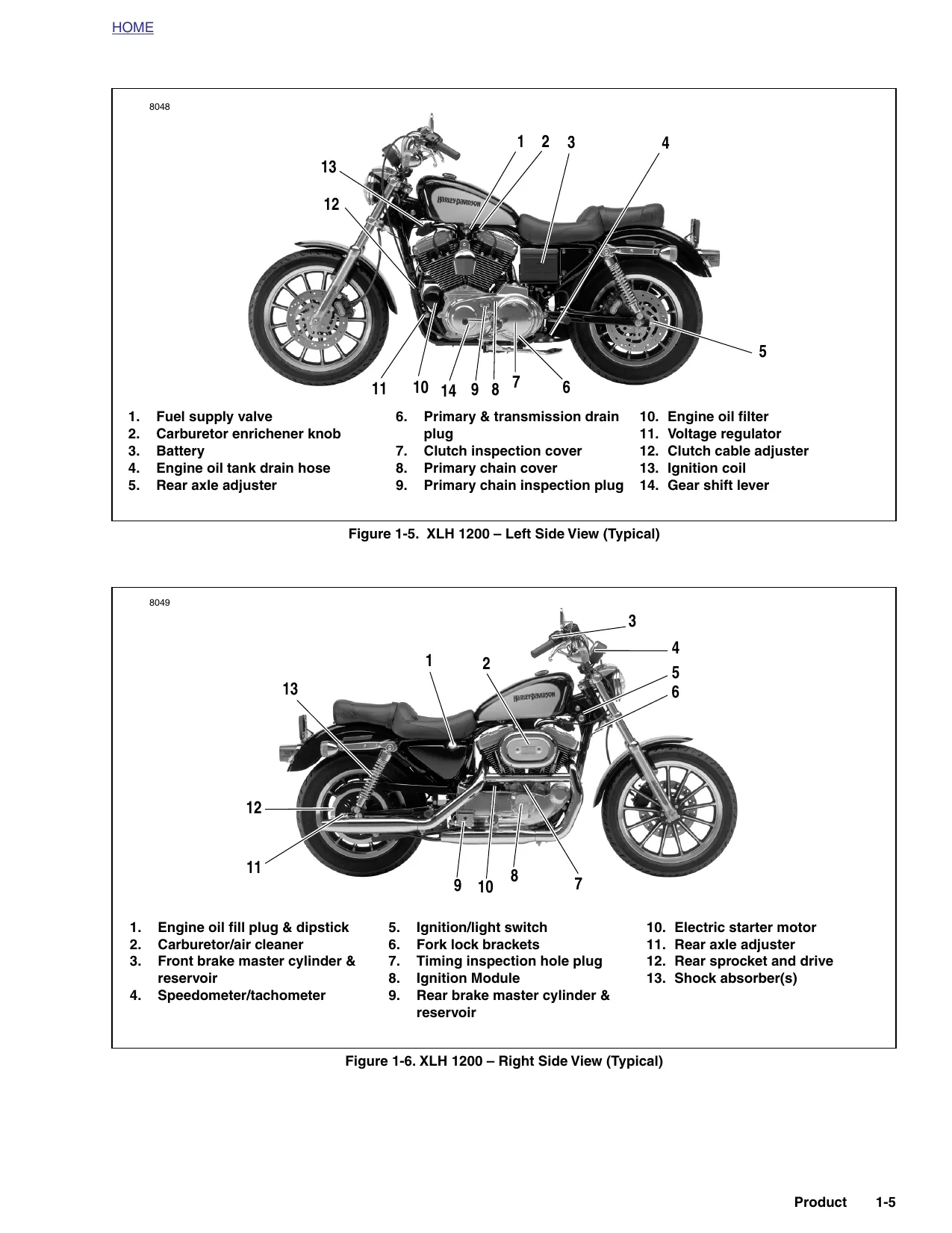

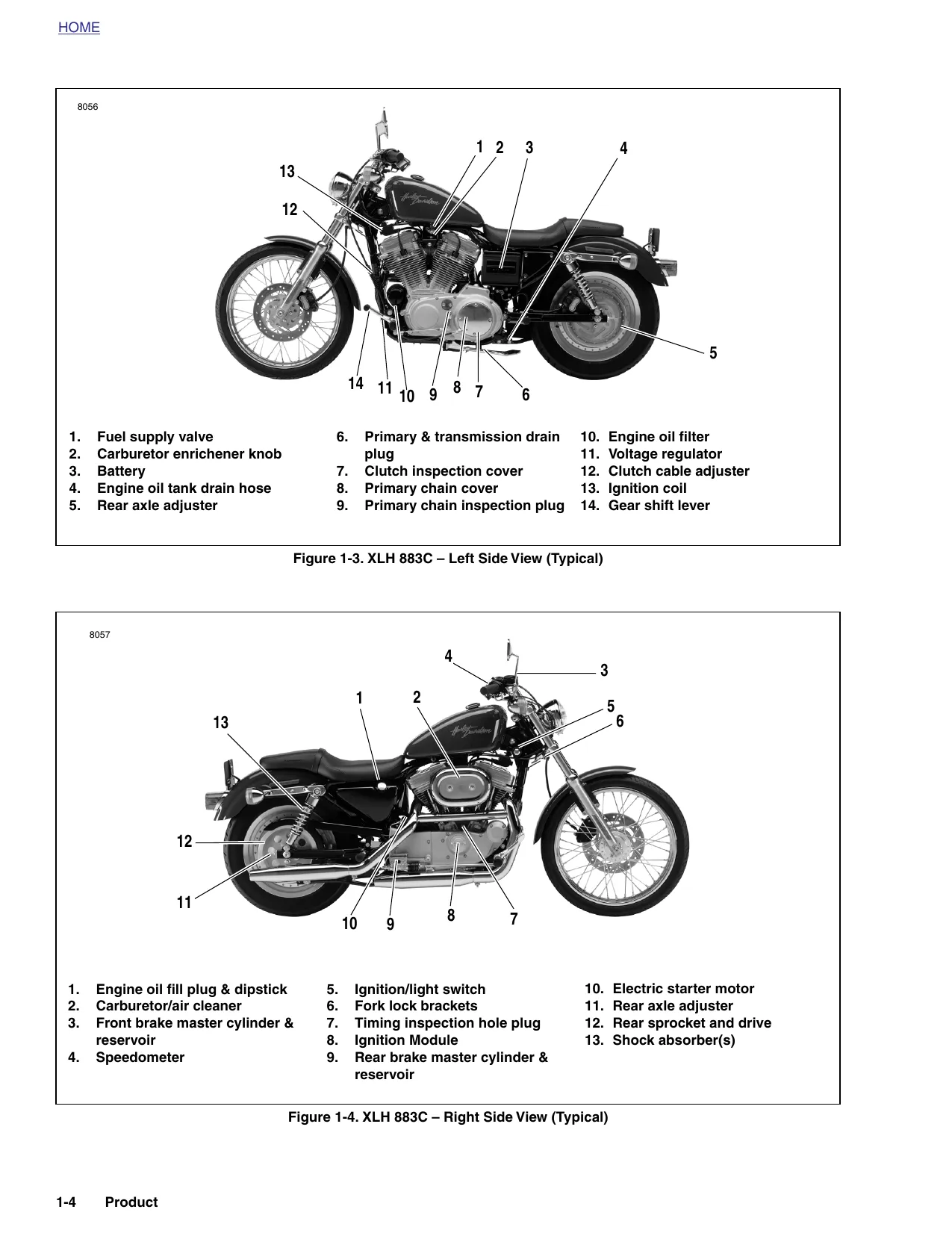

• Exact model coverage: XLH 883, XLH 883 Hugger, XL 883C Custom, XLH 1200, XL 1200C Custom, and XL 1200S Sport. The VIN section identifies the corresponding CAM, CEM, CJM, CAP, CGP, and CHP model designations.

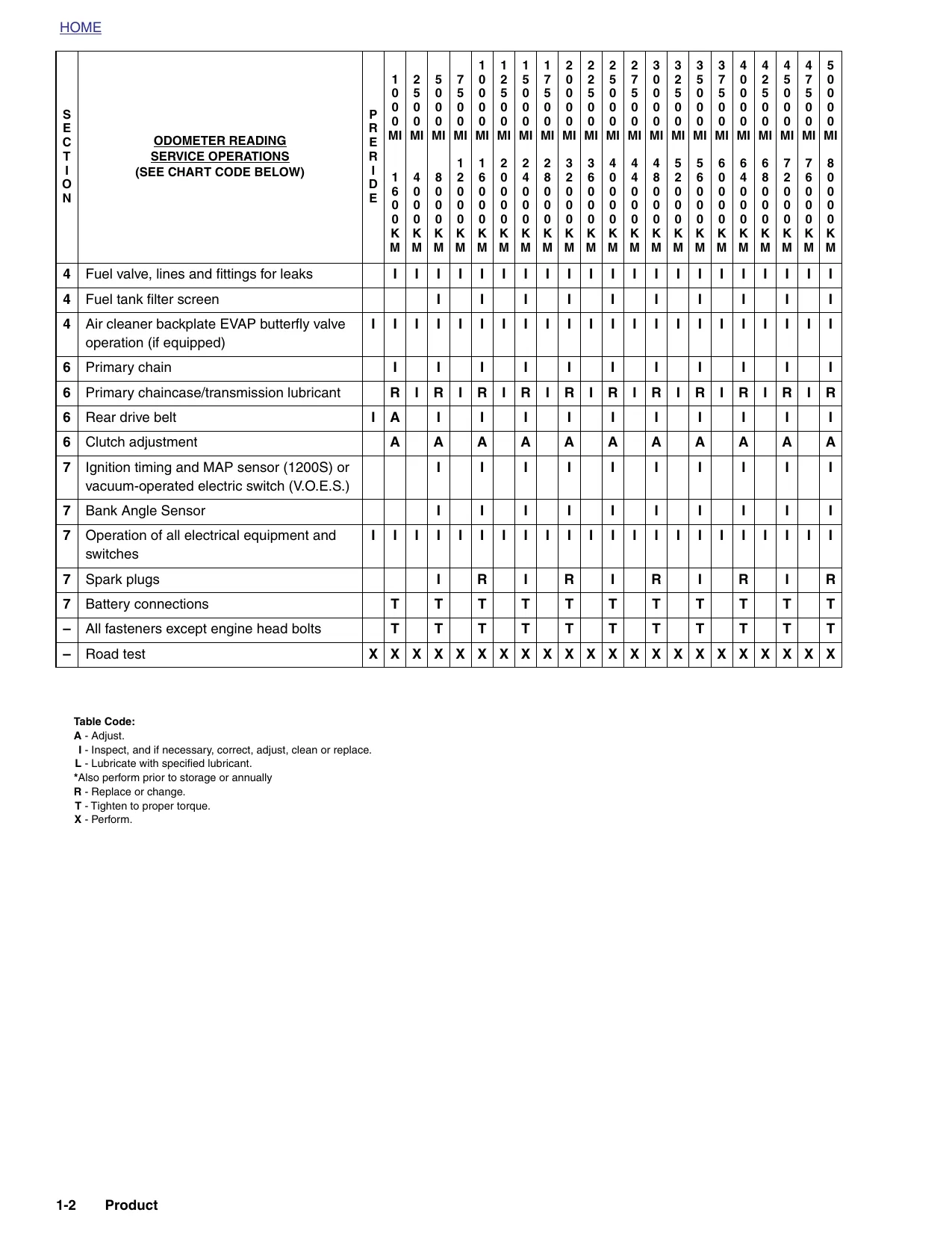

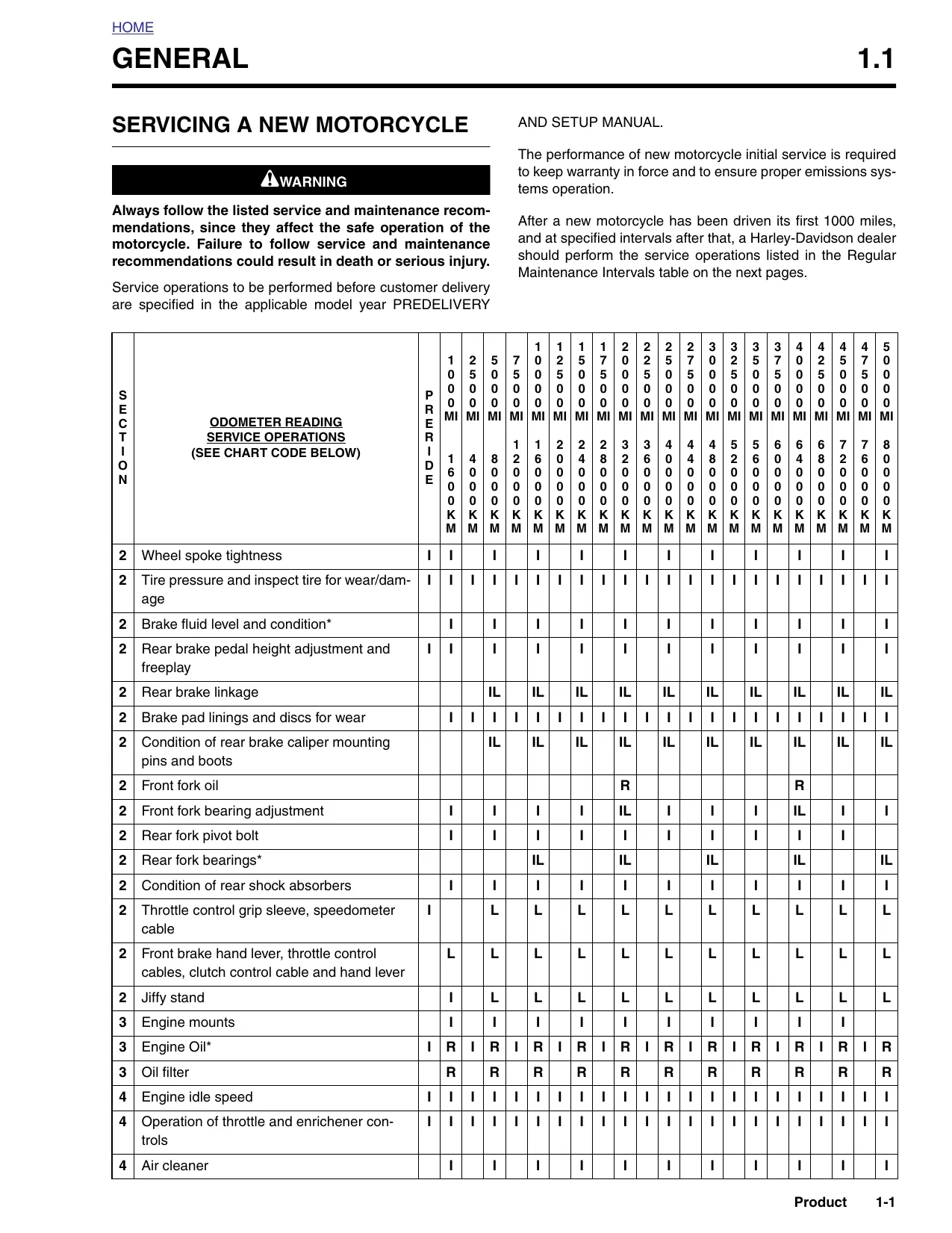

• Chassis and brake repair: Covers sealed wheel-bearing replacement, wheel lacing and truing, cast-rim inspection, tire service, master-cylinder and caliper overhaul, brake-line service and bleeding, steering-head and fork work, rear-fork service, shocks, Custom forward controls, and HDI fork-lock hardware.
• Engine, fuel, and drivetrain work: Includes compression and cylinder-leakage testing, engine removal, top- and lower-end repair, oil-pump and cam service, CV carburetor repair, California evaporative-emissions equipment, primary drive and clutch work, secondary-belt alignment, and five-speed transmission overhaul.
• Model-specific electrical diagnosis: Provides starting and charging tests, instrument and turn-signal diagnostics, separate 1200S and non-1200S ignition fault isolation, trouble-code procedures, connector repair data, and domestic/international schematics.
• Diagrams and specification data: Contains 495 numbered figures plus nine wiring-diagram sheets, backed by component torque tables, capacities, wear limits, runout and clearance data, electrical test values, connector pinouts, and crimp tables.

Chassis, Brakes, and Suspension

Wheel coverage goes well beyond removal and installation. The manual documents hub and spoke orientation, rim centering, lacing and truing procedures for 16-, 19-, and 21-inch wheels, cast-wheel runout checks, tire service, alignment, and sealed-bearing work using the factory HD-44060 installer/remover. Brake repair is divided into front and rear master cylinders, calipers, lines, pad and disc inspection, and hydraulic bleeding.

Single-disc and dual-disc front brake hardware are clearly separated. Their 9/16-inch and 11/16-inch master-cylinder assemblies are not interchangeable, an important distinction when ordering repair parts. Standard fork service and the adjustable XL 1200S Sport fork also receive different procedures. The Sport section covers preload, rebound, and compression components and identifies the HD-41549A spring compressor and HD-41551 spring plate. It warns that unthreading the rebound adjuster from the damper rod can reduce the available adjustment range if the assembly is indexed incorrectly.

Engine, Fuel, and Transmission Repair

Engine diagnosis begins with compression and cylinder-leakage tests before the manual moves into in-frame top-end work or complete engine removal. Cylinder-head coverage includes rocker arms and bushings, valve springs, guides, seats, stem protrusion, and gasket-surface inspection. Cylinder and piston procedures address bore measurement, rings, piston pins, and installation. Lower-engine work extends through the gerotor oil pump, oil-pressure testing, tappets, cam and pinion timing, cam bushings, crankcase separation, flywheel and shaft bearings, and cylinder studs.

The drive section follows the power path from primary-chain service and secondary-belt alignment through clutch repair and the removable five-speed transmission assembly. It covers shifter forks and drum, mainshaft and countershaft work, main-drive-gear and case bearings, transmission installation, and shifter-pawl adjustment. The clutch chapter calls out the marked washer orientation because reversing it can lead to clutch or transmission failure, and it specifies the HD-38515A spring compressor for diaphragm-spring work.

Fuel-system chapters cover the constant-velocity carburetor, enrichener, float, vacuum piston and diaphragm, accelerator pump, cleaning, inspection, reassembly, and installation. Separate procedures address the air cleaner, fuel valve, tank and venting, plus the California evaporative-emissions system and its solenoid-operated air-cleaner butterfly valve.

Electrical Diagnostics, Schematics, and Test Data

The companion diagnostics manual adds test-led fault isolation rather than limiting the electrical section to wire routing. Starting and charging coverage includes relay and solenoid checks, voltage-drop and current-draw testing, on-bike and bench starter tests, stator and AC-output checks, regulator output, coil tests, and battery load testing. It also provides electronic speedometer and tachometer performance checks and turn-signal canceler distance/time testing.

The XL 1200S receives dedicated single-fire, twin-plug ignition coverage with check-engine-lamp code retrieval, HD-41325 Scanalyzer operation, HD-42682 Breakout Box checks, wiggle testing, and no-start, no-spark, and misfire paths. Fault charts isolate the MAP sensor, charging voltage, front and rear coils, tachometer, bank-angle sensor, and ignition-module memory. Non-1200S models have separate V.O.E.S.-based ignition flowcharts and breakout-box checks.

Named visual references include Lacing 19-in. Wheel Hub, XL1200 Sport Front Fork Assembly, Cam, Pinion Gear and Timing Mark Indexing, Transmission Power Flow, Starting Circuit, and 1200S Ignition System. The nine wiring sheets cover main harnesses, the shared starting/charging circuit, ignition, horn and instruments, and lighting for 1200S and non-1200S domestic and international configurations.

Brake, fuel, engine, drivetrain, and electrical repair can directly affect safe motorcycle operation. Work beyond the technician’s training should be checked or completed by a qualified motorcycle professional.
