2001 Harley-Davidson Touring Repair Manual

Shop manual for Harley-Davidson Touring models, covering starting, charging, and TSM/TSSM systems. Includes troubleshooting.

5.0starstarstarstarstar(1)
Harley-Davidson Bike manual preview - 2001 Harley-Davidson Touring Repair Manual
$18.40 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
5 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Harley-Davidson Models Covered & Key Technical Specifications

Models: 2001 Harley-Davidson Touring Family (FLT models)
Sub-models / Variants: FLHR, FLHR-I, FLHRC-I, FLHT, FLHTC, FLHTC-I, FLHTCU-I, FLTR, FLTR-I
Build Years: 2001
Technical Data:

  • Battery reserve capacity: 28 Ah
  • Starter motor voltage: 12 V
  • Starter motor output capacity: 180 A
  • Main circuit breaker rating: 40 A
  • Initial main bearing torque: 115 Nm
  • Primary drive gear torque limit: 45 Nm
  • Ignition coil primary resistance: 0.5–0.7 ohms
  • Ignition coil secondary resistance: 5.5–7.5K ohms
  • Typical starter current draw: 160–180 amperes
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27983 / Thomas Smith
File Size:
104.38 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Bike
Last updated / verified
Aug 14, 2025

Harley-Davidson Manual Features & Content Preview

Technical Scope and Coverage

  • Built for owners and workshops servicing the 2001 Harley-Davidson Touring FLT family, including fuel-injected and carbureted variants such as the FLHR, FLHT, and FLTR
  • Official OEM publication P/N 99483-01, documented for the 2001 model year diagnostic cycle
  • Contains 47 diagnostic flow charts, 9 electrical circuit diagrams, and 14 component-specific tables detailing electrical and torque parameters
  • Delivered as a direct download the moment payment clears
  • Stored against your account so you can retrieve it after a hard-drive loss
  • Full-text search finds any part number in seconds
  • Suitable for printing individual sections for shop-floor use
  • An official 2001 Harley-Davidson Touring reference for electrical system maintenance and electronic diagnostic procedures

Electrical System and TSM/TSSM Diagnostics

This 100-page service publication provides technical reference for the starting, charging, instrumentation, and security systems on 2001 Harley-Davidson Touring motorcycles. The chapters outline procedures for testing the starter relay, solenoid, and battery performance under load. Detailed flow charts document the diagnostic paths for starter motor, turn signal, and speedometer operation, helping to isolate electrical faults across various wire harness connectors.

The security module documentation provides technical overview for the TSM and the optional factory-installed TSSM. This section describes the logic for bank angle sensor shutdown, security system arming, and turn signal cancellation. The understanding parts documentation for vintage Harley-Davidson provides further insight into the wiring architecture and component interconnections defined in the provided schematics.

Specification and Technical Preview

Technical specifications document critical electrical thresholds for 2001 Harley-Davidson Touring components. The electrical data section lists system voltages and resistance values for ignition coils and charging system outputs. Cylinder head and primary gear torque values are documented to define assembly limits. Reference charts cover load testing thresholds for 300 CCA batteries and resistance ranges for fuel level senders, which vary by model-specific configuration.

Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. An official 2001 Harley-Davidson Touring OEM service publication covering the TSM/TSSM security and charging systems for the FLT-family build.

Manual FAQ, Purchase & Download Details

Is the 2001 Harley-Davidson Touring service manual available as a digital PDF download? keyboard_arrow_down

Product is provided as a downloadable PDF file, which offers lifetime access for use on your compatible electronic devices.

Can you confirm which motorcycle models are included in the coverage preview for this 2001 Touring manual? keyboard_arrow_down

Document serves as a service manual for the 2001 Harley-Davidson Touring family, including various submodels such as the FLHR, FLHT, and FLTR series. It lists technical specifications for both low output and high output electrical charging system variants.

Does this manual provide detailed information regarding the starting and charging electrical systems? keyboard_arrow_down

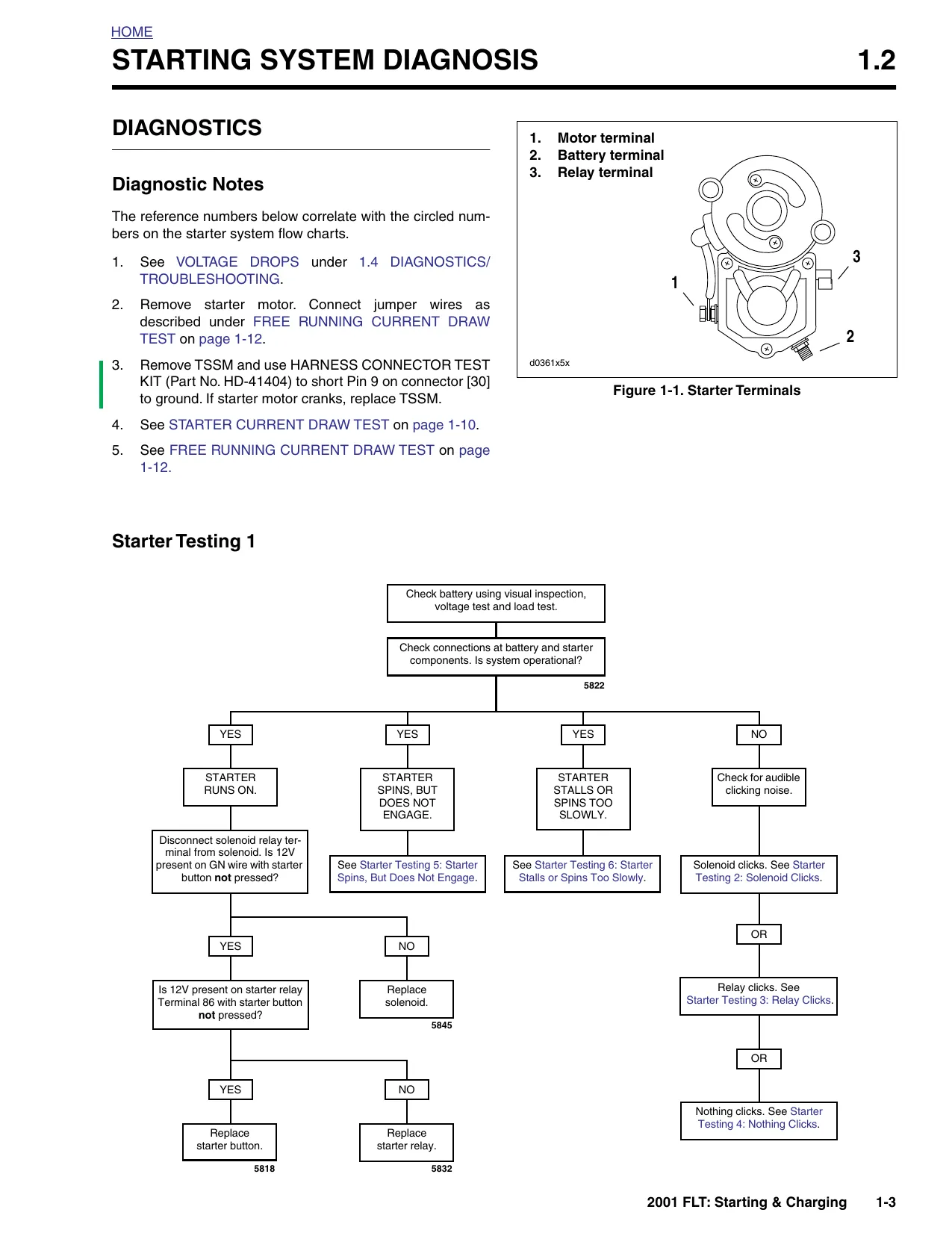

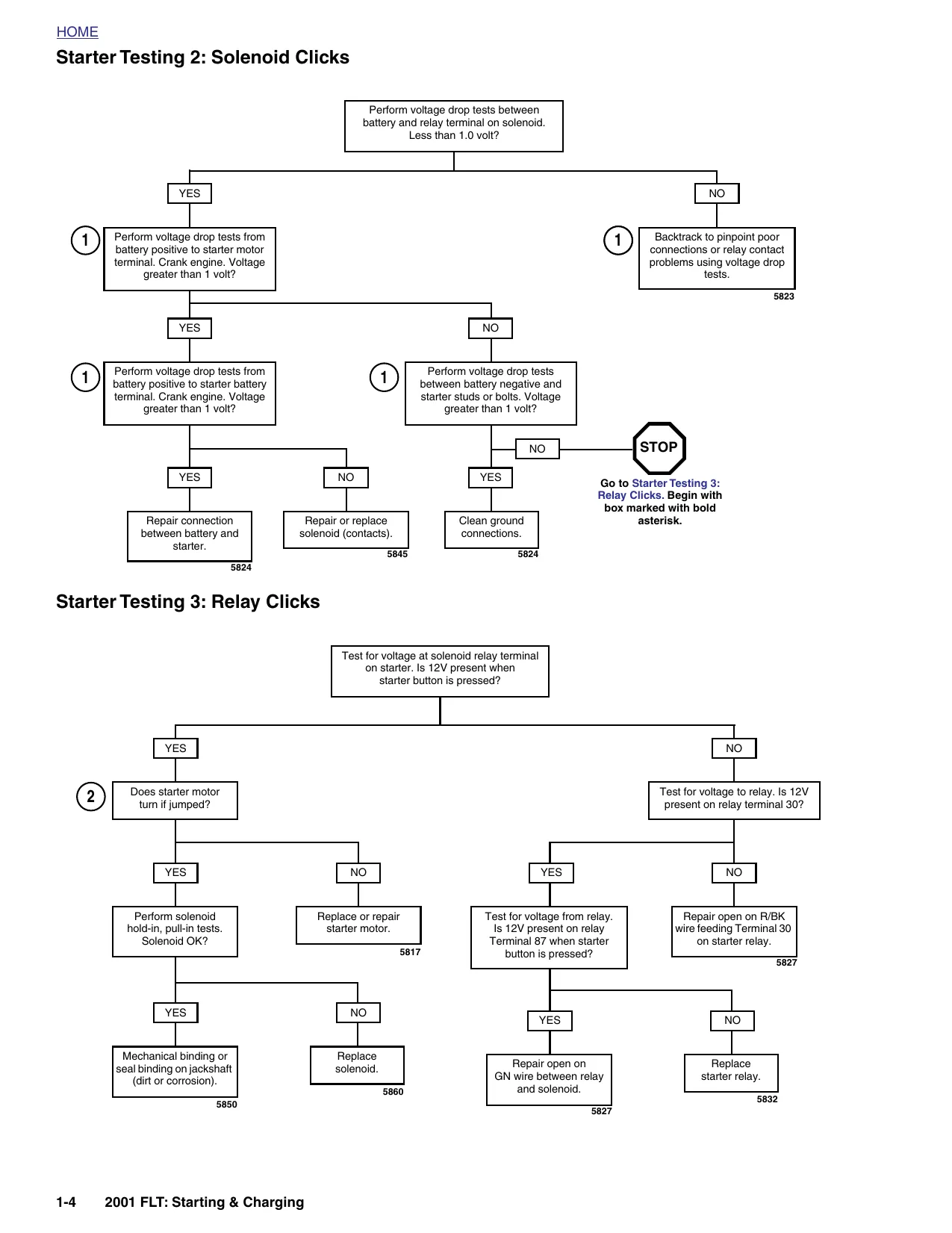

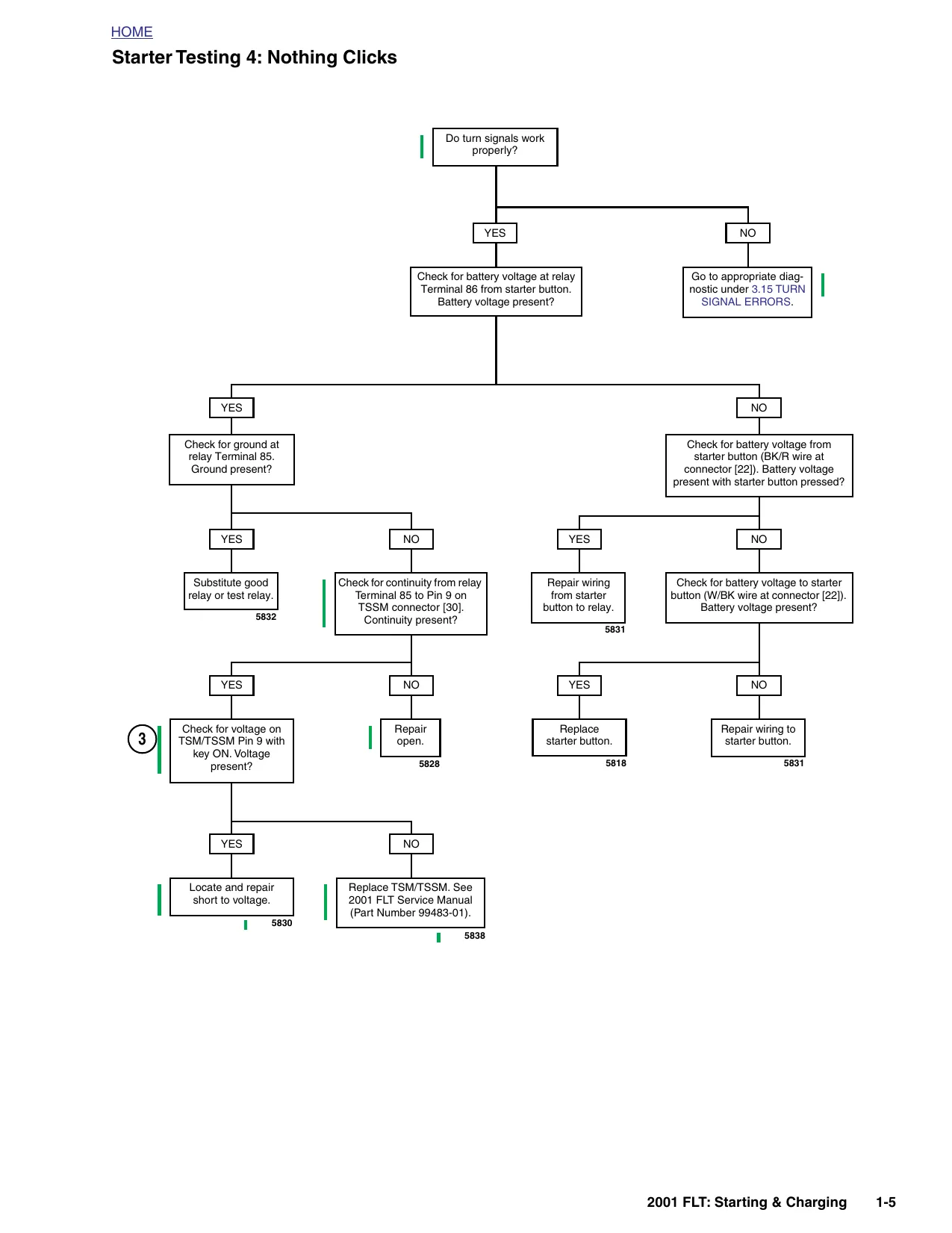

Starting and Charging chapter includes extensive diagnostic flow charts, terminal identification diagrams, and testing procedures for components like the starter motor, solenoid, and voltage regulator. It also contains reference tables for maximum milliamperage draws to assist in evaluating electrical system performance. The content is organized by subject to help users locate specific system information quickly.

Are there wiring diagrams and connector pinout references included for the electrical systems? keyboard_arrow_down

Manual includes circuit diagrams and references for the starting and charging systems, including visual guides for connector terminals and harness routing.

Which chapters cover the technical specifications and testing data for the starter motor and charging system components? keyboard_arrow_down

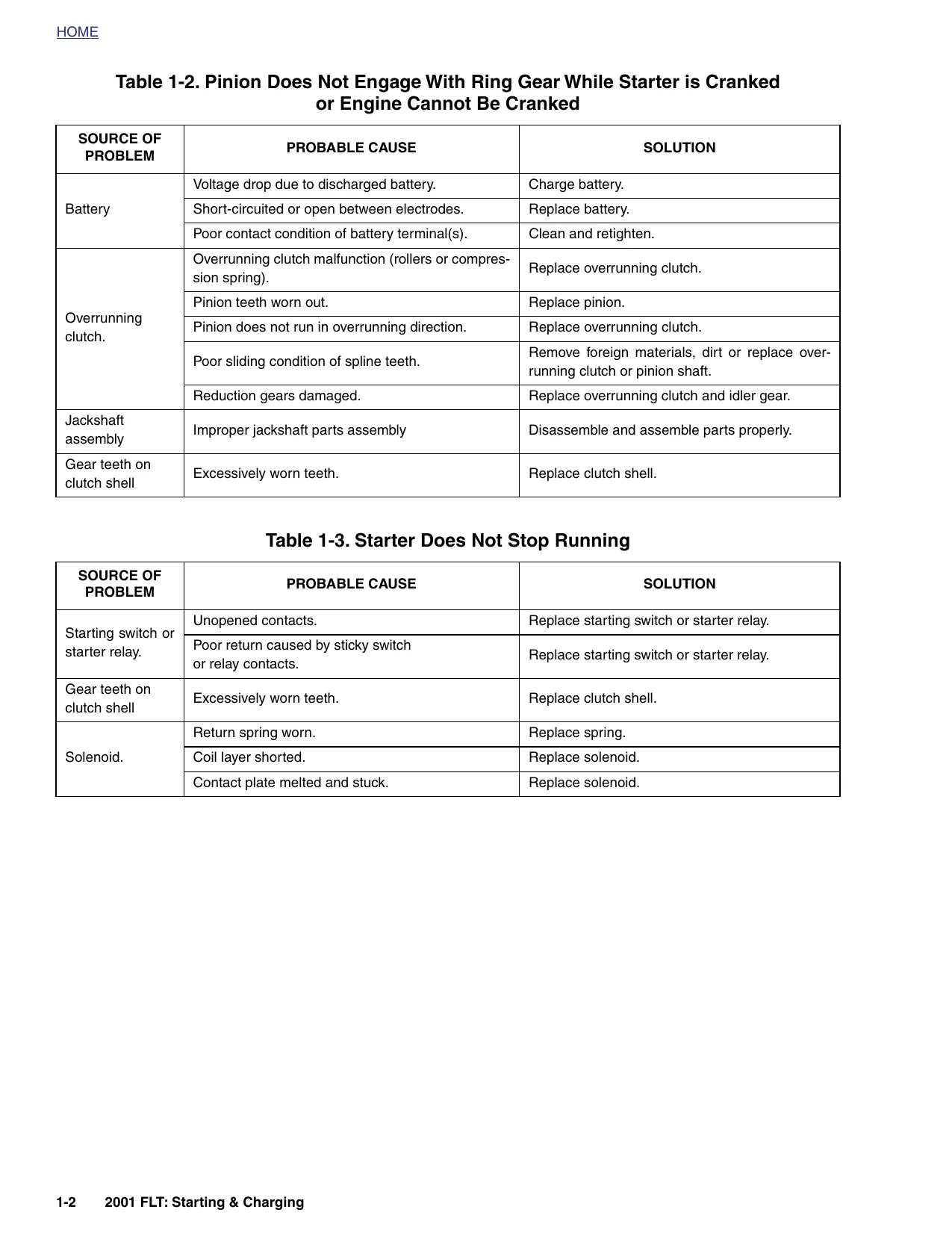

Starting and charging section of the manual contains specification tables for current output, resistance ranges, and meter reading thresholds. It also features exploded view references and diagnostic flowcharts for evaluating system operation.
