2002–2005 Detroit Diesel Series 60 EGR DDEC IV/V Technician's Manual (P/N 7SE60 0506)

Detroit Diesel's Series 60 EGR Technician's Manual, Form No. 7SE60 (June 2005 revision), covers EGR system diagnosis for engines with DDEC IV and DDEC V electronic controls.

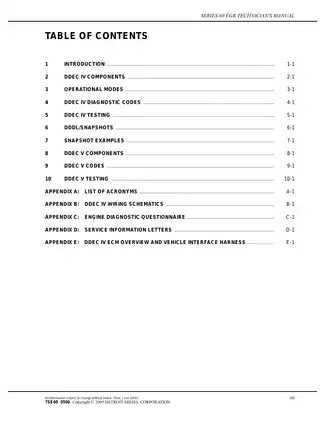

• EGR and VNT controls: Component operation, pneumatic and hydraulic actuator differences, venturi/Delta P sensing, and boost, braking, and condensation-protection modes.

• Fault-code diagnosis: Color-coded DDEC IV and DDEC V tables with PID/SID/FMI references, logic-code explanations, sensor faults, and engine-protection responses.

• Pressure and electrical testing: Charge-air-cooler leak checks, VPOD input/output and wiring tests, Delta P and barometric sensor checks, and EGR valve coil diagnosis.

• DDDL snapshots: Recording and replay instructions plus 13 illustrated examples covering normal operation, EGR leakage, charge-air-cooler leakage, and plugged Delta P ports.

• VNT actuator service: Removal, replacement, seal installation, and calibration procedures in the appended technical service letters.

• Wiring diagrams: DDEC IV and DDEC V engine and vehicle-harness schematics, ECM connector views, and pin-location illustrations.

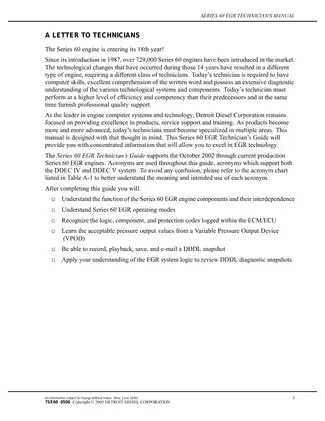

This guide is written for qualified service technicians familiar with DDEC engines, diagnostic test equipment, and Detroit Diesel Diagnostic Link (DDDL).

System Logic and Diagnostic Coverage

The DDEC IV section distinguishes the original EGR valve, cooler, delivery pipe, venturi tube, and mixer from the enhanced arrangement. Its pneumatic EGR valve and VNT use separate VPODs. DDEC V uses an engine-oil-operated EGR valve and one VPOD for the VNT.

DDEC V component coverage also includes the three-bolt-flange tube-and-shell cooler, flexible bellows, and Fey-ring exhaust-manifold sealing. The high-flow water pump is not interchangeable between EGR and non-EGR engines.

The operating-mode explanations show why reduced boost during cold-weather condensation protection can be normal. Temperature-limit tables and derate-code descriptions distinguish protective control responses from faults requiring further diagnosis.

Diagnostic Tests, Snapshots, and Repair Scope

Logic codes identify a condition rather than prove that a particular component has failed. The guide relates commanded EGR operation to Delta P, exhaust temperature, boost, and turbocharger-speed readings, helping distinguish blocked sensing pipes from actuator or sensor problems before replacement parts are selected.

Complaint-based testing addresses intermittent black smoke, power loss under heavy pull, exhaust fumes, cab odors, and coolant loss. DDEC V adds hydraulic EGR-valve current diagnosis, barometric-sensor Test D, ECU software-level verification, and tube-and-shell cooler leak testing.

Snapshot interpretation: The examples include a stuck-open EGR valve, a leaking charge air cooler, and plugged Delta P ports. These recordings were produced under controlled dynamometer conditions and are not universal pass/fail baselines.

Equipment and companion publications: The test chapters specify DDDL or a Diagnostic Data Reader, a volt-ohm meter, pressure gauges, and a resistor for electrical checks. CAC testing identifies special tool TLZ00100 or an equivalent. The guide is used alongside the separate DDEC III/IV Single ECM and DDEC V Single ECU troubleshooting guides; further engine repair procedures are referred to the Series 60 Service Manual. Those companion publications are not included.

VNT Actuator Procedures and Reference Drawings

Appendix D includes service letter 04 TS-16, which supersedes 03 TS-44 and documents actuator replacement, seal-washer installation, and calibration.

Pulling an installed sealing washer back off the actuator rod damages it and prevents proper sealing. The instructions also warn that changing the factory-set minimum crank stop can damage the engine.

The spring-loaded actuator canister is serviced as an assembly and must not be opened. Pressure-test and running-engine procedures require the manual's compressed-air and exhaust-ventilation precautions.

Control illustrations include EGR Valve and VNT Control System and Coolant Flow through the EGR Cooler. Electrical references include the DDEC IV Engine Wiring Diagram, DDEC V Engine Harness, ECM Engine Harness Connector View, and Vehicle Interface Harness Connector Pin Locations.

Examples of EGR Coil and Sensor Test Data

For DDEC V EGR-valve coil diagnosis, Table 9-2 lists 3.4–4.2 ohms at 22°C (71°F) and 4.4–5.4 ohms at 100°C (212°F). These temperature-specific ranges accompany the valve-current fault checks.

DDEC V Test D compares barometric and air-inlet pressure with ignition on and the engine off. A difference greater than 4.1 kPa (0.6 psi) is its barometric-sensor replacement criterion for the specified affected engine group.

PDF Search, Wiring Detail, and Page Count

Text search and drawing detail: Most main text supports PDF search, but the wiring sheets, questionnaire, service letters, and text within some figures do not. There are no embedded PDF bookmarks. Several small wire-color and pin labels in Appendix B remain difficult to read even when enlarged.

A printable English PDF with 195 pages, including 6 pages of cover/front matter, 160 chapter pages, and 29 appendix pages. The three-page Freightliner bulletin and 11 pages of service letters are included in those totals.
