Detroit Diesel Engine Series 149 Service Manual (P/N C4085-91017)

• Coverage and document identity: Covers Detroit Diesel Series 149 12V-149 and 16V-149, 12V-149T and 16V-149T, and 12V-149TI and 16V-149TI engines in non-turbocharged, turbocharged, and turbo-intercooled configurations for marine, industrial, and generator-set applications. The 446-page PDF set carries Publication 6SE285 (Rev. 8/74) and includes pages dated through May 1975.
• Major engine repair and overhaul: Details cylinder-block and individual cylinder-head work, valve and injector operating mechanisms, the two-piece crankshaft, bearings, pistons, rings, liners, flywheel assemblies, balance weights, camshafts, and front and rear gear trains. Procedures cover removal, disassembly, cleaning, inspection, reassembly, timing, and final checks.
• Fuel-system and governor service: Covers unit needle-valve injectors and tubes, the fuel pump, strainers, filters, manifolds, limiting-speed and variable-speed mechanical governors, SG and PSG hydraulic governors, the governor drive, operating shaft, and synchronizing motor. Tune-up content includes injector timing, rack synchronization, governor linkage setup, load-limit, droop, idle, and maximum no-load adjustments.
• Air, lubrication, and cooling systems: Includes tandem blowers, air-shutdown housings, turbochargers, intercoolers, oil pumps, regulating and relief valves, filters, oil coolers, crankcase ventilation, freshwater pumps, thermostats, radiators, heat exchangers, keel-cooling arrangements, and Jabsco raw-water pumps, with related inspection and pressure-testing procedures.
• Operation, tune-up, and engine run-in: Provides first-start and restart preparation, prelubrication guidance, configuration-specific operating-condition tables, dynamometer testing, an Engine Test Report, Basic Engine Run-In Schedule, post-run-in tune-up, and final inspection requirements for new or overhauled engines.
• Troubleshooting, diagrams, and specifications: Supplies eight organized fault-isolation charts, preventive-maintenance and storage information, electrical wiring and alarm-system schematics, timing and section views, service-tool references, torque tables, clearance data, wear limits, pressure-test specifications, and adjustment information.

Engine and Major-Assembly Repair

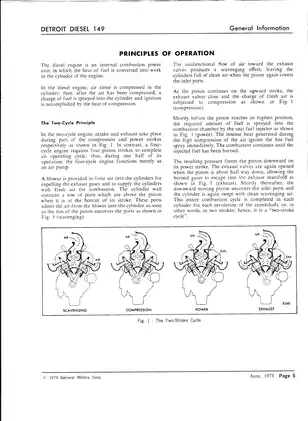

This service manual details the maintenance and repair requirements of the Series 149 two-cycle V-engine at full overhaul depth. The engine section follows the major structures from removal through inspection and assembly rather than stopping at routine service. It distinguishes former and current cylinder-block and seal-ring arrangements, including the production change at engine serial numbers 12E-1703 and 16E-361, and documents other design changes affecting water-hole sleeves, oil-system parts, camshaft arrangements, blowers, and governor-related hardware.

The procedures call out dedicated service tools needed for the work. Examples include the J 24233 water-hole sleeve installer and J 5956 fuel-system primer, along with the fixtures, pullers, gages, and checking tools used for internal repair and adjustment.

Two assembly cautions show why the correct revision matters. Camshaft drive flanges are specific to engine rotation, cylinder bank, and cylinder count; interchanging them alters engine timing and can cause severe engine damage. The injector rack stop is factory-set and is not an adjustment point during governor and rack setup.

Fuel, Air, Cooling, and Control Systems

Fuel-system coverage runs from filtration and transfer components through the unit injectors and injector racks. Separate material addresses limiting-speed and variable-speed mechanical governors as well as SG and PSG hydraulic governor installations. The tune-up section ties those assemblies together with valve-clearance inspection, injector timing, rack positioning, governor-gap checks, throttle and buffer settings, speed-droop control, and final operational verification.

Air-system chapters distinguish the non-turbocharged, turbocharged, and turbo-intercooled arrangements used across 12V and 16V engines. They cover blower repair, turbocharger removal and inspection, intercooler cleaning and pressure testing, air-inlet restriction checks, and emergency air-shutdown components. Cooling-system material separates radiator-and-fan, heat-exchanger/raw-water, and keel-cooled installations, helping the technician select the correct pump, thermostat, piping, and test information for a marine or industrial engine.

Diagnostics, Run-In, and Technical Reference

The troubleshooting section is organized around actual shop complaints: hard starting, abnormal operation, insufficient fuel, high lubricating-oil consumption, excessive crankcase pressure, low oil pressure, abnormal coolant temperature, and exhaust-smoke analysis. Operating-condition tables provide the related factory reference categories for lubrication pressure, air-box pressure, inlet restriction, crankcase pressure, exhaust back pressure, fuel delivery, coolant temperature, and compression.

Illustrations include Former and Current Cylinder Block and Seal Rings, an End Cross Section View of Series 149 Engine, Front Gear Train Timing Marks, Air Flow Through Blower and Engine, a Typical Wiring Diagram, and the Schematic Drawing of Typical Alarm System. These views support fault tracing and correct assembly orientation.

Important Scope Notes

The electrical section covers charging generators, regulators, batteries, starting motors, instruments, protective and alarm devices, an overspeed governor, and power-generator equipment, but detailed internal repair of individual electrical units is referred to the equipment-maker literature. The rear-mounted PTA-0101-H hydraulic power take-off is covered for operation, removal, installation, and checks; internal PTO overhaul is referred to Borg-Warner/Rockford Clutch information. The manual also identifies Twin Disc MG 527 and MG 540 marine gears and their oil-cooler installation, while full transmission overhaul is assigned to separate Twin Disc Forms 20SE-32 and 20SE-33.

Because Series 149 assemblies are large and heavy, engine removal, support, and test-stand work require secure lifting and holding equipment rated for the complete assembly. Follow the manual’s shop-safety precautions before teardown or dynamometer testing.
