2005 Detroit Diesel Series 60 & 60G Engine Service Manual (P/N 6SE483)

Detroit Diesel’s Series 60 Service Manual, publication 6SE483, July 2005 edition, covers on-highway service for the 11.1L, 12.7L, and 14L diesel engine families and the 12.7L Series 60G natural gas engine.

• Engine repair: Cylinder-block and cylinder-head inspection, piston and liner service, crankshaft and main-bearing work, and valve-train overhaul procedures.

• Diesel injection: N2 and N3 electronic unit injector removal and installation, injector-tube replacement, and fuel-pump disassembly, inspection, and assembly.

• Lubrication and cooling: Oil-pump service, pressure-regulating valves, oil coolers, front-mounted and gear-case-mounted water pumps, and thermostat inspection.

• Air intake and EGR: Diesel and natural gas turbocharger service, charge-air-cooler pressure checks, EGR cooler testing, and hydraulic EGR valve replacement.

• Electronic controls: DDEC I, II, III/IV, and V component service, engine sensors, harness repair, connector servicing, and electrical schematics.

• Engine tune-up: Valve-lash and injector-height adjustments, Jake Brake service, standard and compact gear-train timing, and engine run-in checks.

• PTO and accessories: Front-mounted power take-off and rear engine power take-off removal and installation, plus air-compressor and drive-hub replacement.

Written primarily for people servicing and overhauling these engines, the manual also includes operating instructions and preventive-maintenance guidance.

Engine Overhaul, Timing, and Inspection

Cylinder-block and cylinder-head repair-or-replacement flowcharts organize the inspection decisions. The procedures cover block pressure testing, cylinder-head deck inspection, valve guides and seats, piston assemblies, cylinder liners, and crankshaft condition.

Main-bearing service includes work with the crankshaft installed and identifies the J–36187–A bearing-shell remover and installer set. Standard and compact gear-train sections distinguish their timing arrangements, with related exploded drawings, section views, clearance charts, and wear-limit tables.

The crankshaft-pulley instructions warn that reusing single-use pulley or spindle mounting bolts can allow the joint to loosen and cause severe engine damage.

Diesel Injection and Series 60G Fuel Systems

The N2 and N3 sections distinguish injector construction, sealing, removal, and installation requirements. N3 internal overhaul is outside the service procedure: only its seal rings and injector washer are serviceable; a faulty solenoid requires injector replacement.

Series 60G coverage separates high-pressure and low-pressure natural gas systems. It describes pressure regulators, the pulse-width-modulated stepper motor valve, fuel mixers, and venting and leak-checking procedures.

The ignition chapter also includes Series 60G genset coil-over-plug service, covering coils, boots, the igniter module, wiring harness, and spark plugs.

Cooling, Air Systems, and EGR Testing

Water-pump procedures distinguish front-mounted and gear-case-mounted designs. Lubrication coverage includes the thermatic oil control valve, oil-filter adaptor, oil-pan service, and cleaning a contaminated lubrication system.

The tube-and-shell bolted-flange EGR cooler section addresses coolant-loss diagnosis and leak testing. Its checks distinguish cooler leakage from other cooling-system faults, helping identify the source before a cooler is replaced.

Charge-air-cooler coverage includes pressure testing and turbocharger-failure cleanup. Cooler repair, replacement, and removal procedures refer to the vehicle manufacturer’s guidance.

Electrical Service and Diagnostic Limits

Electrical sections cover alternators, starting equipment, engine sensors, DDEC II and III/IV sensor harnesses, connector tools, and splicing. Illustrations include the DDEC V schematic and Optimized Idle System Overview, alongside schematics of the diesel fuel system and current lubrication system.

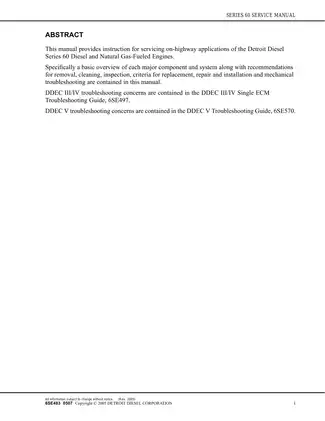

Electronic fault diagnosis requires separate publications: DDEC III/IV troubleshooting is assigned to guide 6SE497, and DDEC V troubleshooting to 6SE570. Those troubleshooting guides are not included in this PDF.

Jake Brake, PTO, and Operating Checks

Tune-up tables match injector-height and engine-brake settings to the applicable engine and component combinations. The Jake Brake section explains how retained oil in a J-Lash adjusting screw can produce an incorrect clearance setting and damage the engine or engine brake.

PTO coverage includes front-mounted assemblies and REPTO removal and installation. The front PTO is treated as a nonserviceable assembly; REPTO output-yoke and oil-seal service is covered, while internal failure calls for assembly replacement.

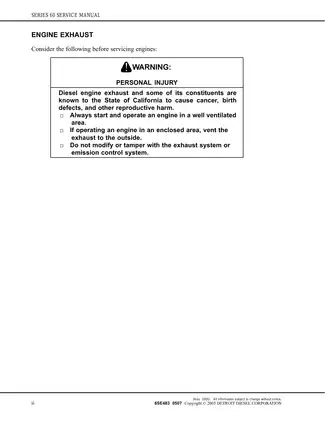

Operating sections address first startup, run-in, preventive maintenance, and storage. Follow the manual’s system-specific warnings concerning high-pressure fuel, natural gas, fluoroelastomer residues, and engine exhaust.

A Preview of Main-Bearing Inspection Specifications

For crankshaft main bearings, the manual lists a new-parts clearance of 0.040–0.127 mm (0.0016–0.005 in.). Clearance exceeding 0.1524 mm (0.006 in.) calls for replacement of all bearing shells.

The component-specific torque table lists 470–530 N·m (347–391 lb·ft) for M20 X 2.5 main-bearing-cap bolts. The assembly procedure specifies International Compound #2 on the threads and beneath the bolt heads.

Searchable Text, Diagram Detail, and PDF Contents

Text search and wiring detail: The main text is searchable, while the cover, opening warning page, and some diagram labels are not. There are no embedded PDF bookmarks. Small pin and wire labels in the Optimized Idle schematic are best read with magnification.

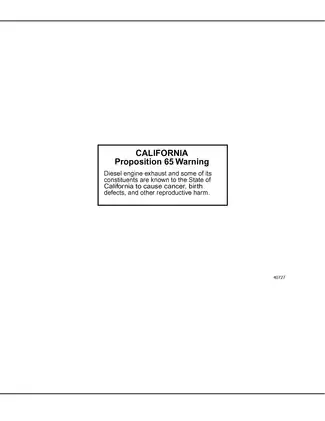

Supplied as one printable, English-language 1,669-page PDF, including the cover and separate opening warning page. Both opening pages are already included in the total.
