Detroit Diesel V-92 Engine Service Manual 1988–1994 – 6V, 8V, 12V, 16V

This is the October 1988 factory service manual for the basic Detroit Diesel V-92 two-stroke engine family: 6V-92, 8V-92, 12V-92, and 16V-92. It addresses naturally aspirated, turbocharged, aftercooled, TT/TTA, and selected DDEC-related builds used in marine, industrial, generator, coach, and other vehicle applications.

PDF Chapters, Search and Diagram Detail

Search and navigation: PDF text search and embedded bookmarks are not available in any of the files. Small labels in the alarm and shutdown wiring diagrams require zooming.

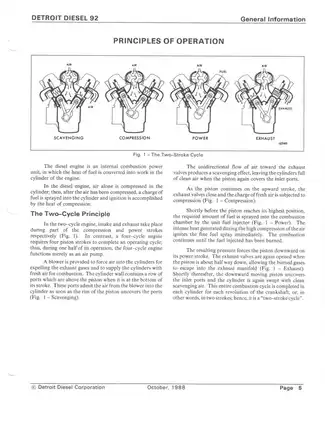

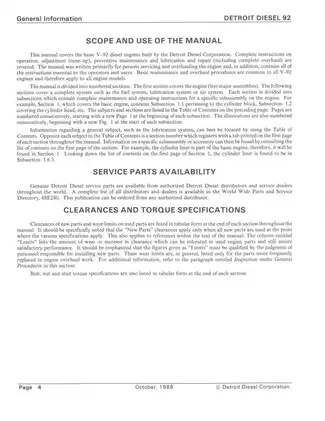

The 756-page manual comes as a RAR download containing 14 printable PDFs, including the foreword and chapter contents pages within that total. File lengths are: General Information, 15 pages; Engine, 180; Fuel System and Governors, 148; Air Intake, 76; Lubrication, 41; Cooling, 50; Exhaust, 5; Electrical Equipment, Instruments and Protective Systems, 30; Power Take-Off/Torqmatic, 1; Transmissions, 1; Special Equipment, 4; Operating Instructions, 63; Engine Tune-Up, 99; Preventive Maintenance/Troubleshooting/Storage, 43.

Engine Overhaul, Injection and Governor Adjustment

These selected topics illustrate the service coverage; further subjects include air-compressor drive-hub service and hydraulic-governor synchronizing-motor operation.

• Engine repair: Step-by-step disassembly, inspection, reassembly, and timing procedures for cylinder blocks, heads, valve gear, crankshafts, pistons, liners, camshafts, and the gear train.

• Fuel and governors: Unit-injector reconditioning, calibration, spray and rack tests, injector-tube replacement, fuel-pump repair, leak diagnosis, and mechanical or hydraulic governor service.

• Air and cooling: Blower overhaul and alignment, turbocharger disassembly and assembly, intercooler and aftercooler service, water-pump rebuilding, thermostat testing, and marine cooling work.

• Lubrication: Oil-pump, pressure-regulator and relief-valve service, oil-cooler pressure testing, filter arrangements, and crankcase ventilation.

• Tune-up and diagnosis: Exhaust-valve clearance, injector timing and rack adjustment, governor setup, TT settings, supplementary governing devices, and engine troubleshooting charts.

• Electrical protection: Alternator and starting-motor removal and installation, battery service, instruments, tachometer drives, shutdown systems, overspeed governors, and alarm-circuit tests.

• Operation and reference data: First start after repair, run-in, preventive maintenance, storage, return-to-service preparation, torque tables, pressure/flow data, new-part clearances, wear limits, and service-tool listings.

Written primarily for personnel who service and overhaul these engines, it is best suited to technicians and experienced rebuilders with precision-measuring equipment and access to the listed J-series tools.

Internal Engine Work and Build Differences

Repair coverage extends to connecting rods and main bearings, crankshaft seals, flywheel and housing, accessory drives, and balance components. The larger engines have separate procedures for their two-piece cylinder-block and crankshaft assemblies; shop notes also cover cylinder-block line boring.

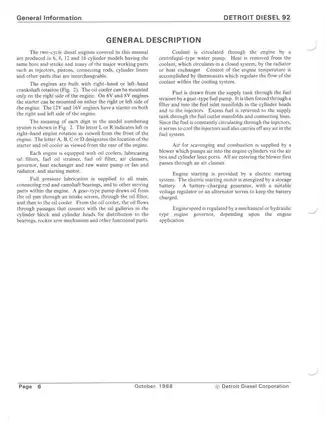

The model-number guide separates marine, industrial fan-to-flywheel, generator, and vehicle applications. It explains left- and right-hand rotation, LC/LD/RC/RD starter and oil-cooler arrangements, four-valve, turbocharged, aftercooled, customer-special, TT/TTA, and DDEC I/II design variations.

Component-specific serial breaks help match revised hardware to the engine before parts or procedures are selected. Separate overhaul stands are listed for 6V/8V and 12V/16V engines. The manual warns that an incorrectly positioned exhaust-valve bridge during rocker-shaft installation can damage the valves.

Injector Testing and Governor Service

The fuel section covers the pump, filters and strainer, fuel cooler, and injector control tubes. Mechanical-governor coverage distinguishes limiting-speed, variable low-speed, variable high-speed, and variable-speed units.

Mechanical and SG hydraulic governors have rebuilding procedures. PSG coverage addresses operation, removal and installation, linkage, compensation, and droop adjustments; hydraulic governor drives have their own service procedures.

Tune-up instructions address load-limit and power-control devices, throttle delay, shutdown-solenoid adjustment, and the fuel modulator. Tool tables identify injector tester J 23010-B, calibrator J 22410, and injector-tube service set J 22525-B.

The shop notes warn that bent or overtightened injector jumper lines can leak fuel into the lubricating oil and damage bearings.

Airflow, Cooling and Lubrication Layouts

Turbocharger procedures distinguish AiResearch and TH08A units. Cooling work includes radiator and fan service, heat-exchanger cleaning and removal, and Jabsco raw-water-pump procedures. Cooling-system pressure tester J 24460-01 appears in the tool list.

Illustrations include the Schematic Diagram of Typical Fuel System, Fuel Injector cutaway, 6V/8V and 16V lubrication schematics, and Schematic Air Flow Diagram. These layouts show the flow paths alongside the component procedures.

Fault Isolation and Post-Repair Checks

Model-specific operating-condition charts and compression, crankcase-pressure, air-box-pressure, and fuel-flow checks support diagnosis before an engine is dismantled. Troubleshooting charts address hard starting, exhaust smoke, low power, fuel supply, oil consumption, low oil pressure, and abnormal coolant temperature.

Run-in coverage includes dynamometer schedules and an engine test report. JWAC, ALCC, and AACC cooling arrangements have separate dynamometer-testing requirements; fuel, lubricant, and coolant requirements are also included.

Electrical and Drivetrain Scope

The Current Alarm System Wiring Diagram and shutdown-circuit drawings accompany protective-system tests. Component-level alternator and starter overhaul is referred to the equipment manufacturer's literature.

Sections 8 and 9 are referral pages. PTO overhaul requires Power Take-Offs Manual Form 6SE456; Torqmatic work is directed to Allison Forms SA 1058 and SA 1054. Allison transmission and Twin Disc marine-gear overhaul procedures are outside this manual.

Safety notes address starting-circuit and stop-control isolation, draining applicable oil, coolant, and fuel systems, rated lifting equipment, rotating belts and fans, and hot exhaust parts. They also cover DDEC/ECM isolation before welding.

Examples of Valve and Crankshaft Inspection Limits

For standard new valve components, the valve-to-guide clearance table gives 0.0017–0.0035 in., with 0.0050 in. listed as the used-part limit.

Crankshaft endplay is listed at 0.0040–0.0110 in. for new parts, with a 0.0180 in. used-part limit. The inspection guidance distinguishes these wear limits from new-part fits and calls for judgment when deciding whether parts can remain in service.
