Detroit Diesel V-71 Engine Service Manual – 1989 (P/N 6SE193)

Detroit Diesel Corporation’s V-71 Service Manual, P/N 6SE193, 1989 edition, covers the 6V-71, 8V-71, 12V-71 and 16V-71 engine families used in marine, industrial and heavy-vehicle applications. It combines engine overhaul instructions with fuel-system service, tune-up, operating checks and preventive maintenance.

Chapter PDFs and Wiring Diagram Readability

Search, navigation and wiring detail: The PDFs do not provide embedded text search or PDF bookmarks. Small labels in the electrical alarm and shutdown diagrams are readable with zoom; use the printed section contents and alphabetical index to locate topics.

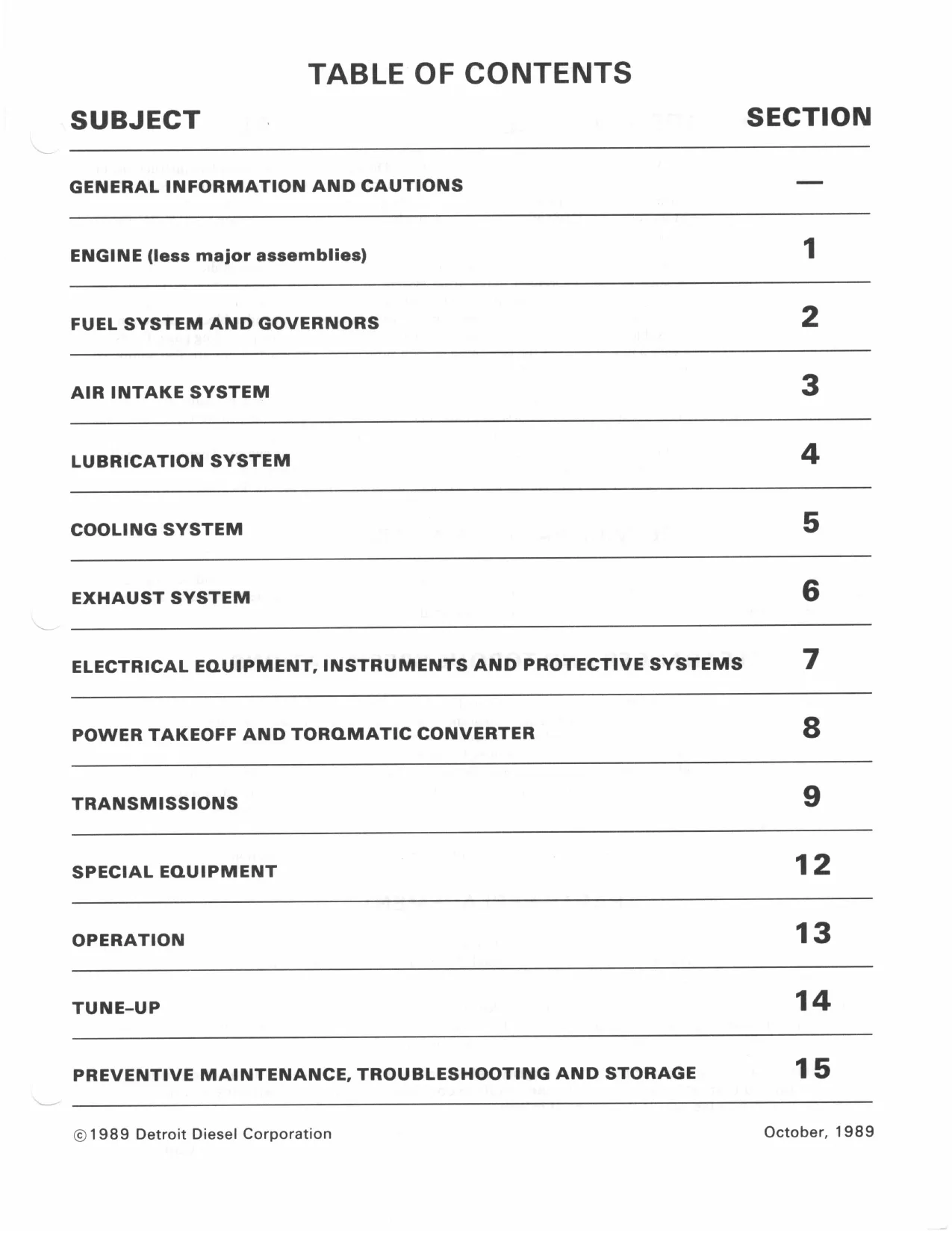

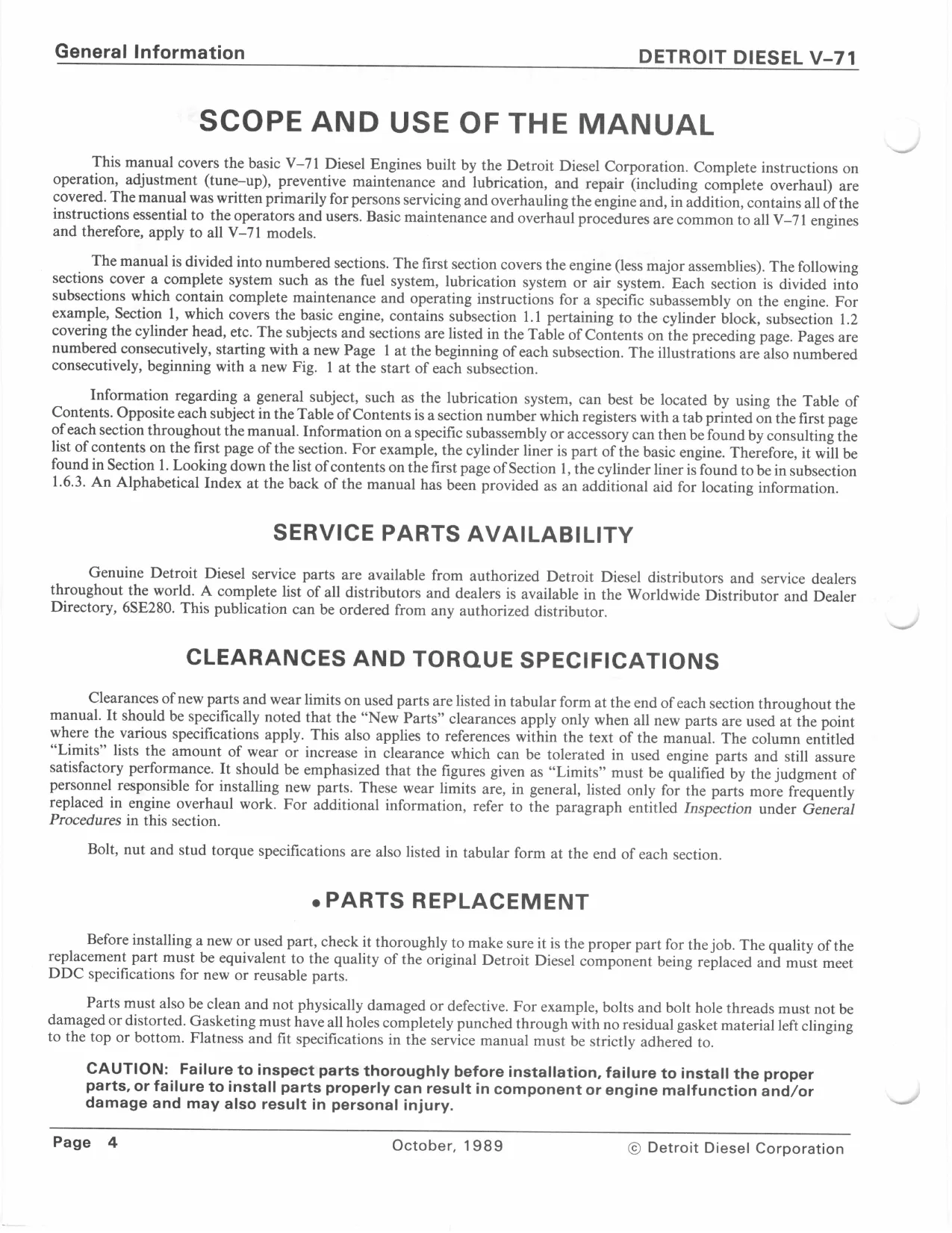

The ZIP contains 15 printable PDFs totaling 963 pages: introduction and contents, 18; engine, 217; fuel system and governors, 199; air intake, 121; lubrication, 51; cooling, 58; exhaust, 5; electrical equipment and instruments, 33; PTO/converter references, 1; transmission references, 1; special equipment, 39; operation, 67; tune-up, 101; preventive maintenance, troubleshooting and storage, 44; revision summary, 8. The total includes the cover, five blank pages, the five-page alphabetical index and the separate eight-page revision summary.

V-71 Overhaul, Injector Testing and Governor Adjustment

The following topics are selected highlights. Further sections cover bilge-pump service and cold-weather starting.

• Engine overhaul: Step-by-step procedures for cylinder-block inspection, crankshaft removal and installation, main bearings, pistons, connecting rods, cylinder liners and gear-train timing.

• Cylinder-head repair: Head removal, cleaning, pressure testing and installation, plus exhaust-valve, seat, guide, rocker-arm and valve-bridge service.

• Fuel injection: Crown-valve and needle-valve mechanical unit injector testing and overhaul, injector-tube replacement, fuel-pump service and fuel-leak diagnosis.

• Governor adjustment: Mechanical and hydraulic governor service, injector timing, rack-control adjustment, speed droop, synchronizing controls and supplementary governing devices.

• Blowers and turbochargers: Small- and large-bearing blower overhaul, rotor timing and clearance checks, Airesearch and Schwitzer turbocharger service, and intercooler/aftercooler inspection.

• Lubrication and cooling: Oil-pump, regulator and cooler service, thermostat testing, water-pump repair, heat-exchanger maintenance and Jabsco raw-water-pump procedures.

• Electrical protection and diagnosis: Alarm and shutdown wiring diagrams, protective-switch tests, overspeed controls, charging-system checks and starting-motor removal and installation.

Written primarily for personnel servicing and overhauling these engines, the manual also provides operating and maintenance instructions for engine operators.

Configuration Checks and Internal Engine Inspection

The option-plate and serial-number guidance helps separate individual engine configurations before repair data is applied. This remains useful when checking an unknown engine, confirming a replacement assembly or planning work on an engine that has been rebuilt or repowered.

The lower-end sections distinguish bearing undersize grades, cylinder-count-specific crankshaft runout limits, trunk-type and cross-head pistons, and the 16V two-piece crankshaft. Block line-boring instructions and cylinder-liner fitting data extend the coverage beyond routine component replacement.

Cylinder-head inspection includes pressure-test fixtures, fire-deck flatness checks, valve-seat work and four-valve bridge adjustment. The fuel-pipe notices explain how damaged or improperly installed jumper lines can dilute the lubricating oil and cause serious engine damage.

Injector Testing and Fuel-Control Setup

Injector inspection separates rack-freeness checks, leakage tests, spray-pattern assessment, valve-opening pressure and measured fuel output. The procedures identify the required testers and calibrator, including J 29584, J 23010-A and J 22410-A.

Governor coverage distinguishes limiting-speed and variable-speed mechanical units, SG and PSG hydraulic governors, and EG-B electric-hydraulic adjustment. The tune-up sections also address output-shaft governors, load-limit devices, throttle-delay mechanisms and fuel modulators.

These distinctions help match the adjustment procedure to the installed control system. The rack-control notices also explain how overtightened adjusting screws can damage the injector control tube.

Air Handling, Lubrication and Cooling

Blower procedures cover bearing and seal differences, rotor/end-plate assembly, timing and running clearances. Turbocharger information distinguishes Airesearch and Schwitzer internal components and identifies restrictions on interchangeability for certified automotive engines.

Intercooler pressure checks and aftercooler removal procedures are included alongside oil-cooler, thermostat and fresh-water-pump service. Marine cooling coverage adds heat exchangers and raw-water pumps rather than treating every installation as radiator-cooled.

Troubleshooting Charts and System Diagrams

Engine diagnosis includes compression testing, misfiring-cylinder checks, crankcase pressure, exhaust back pressure and air-box pressure. The operating-condition tables let technicians compare readings with the relevant engine and turbocharger configuration before selecting further inspections.

Illustrated references include Valve and Injector Operating Mechanism, the Schematic Diagram of Typical 16V Lubrication System, Current Alarm System Wiring Diagram, Time Delay Switch Testing Diagram and Hydraulic Remote Control System for Hydrostarter.

Troubleshooting charts address hard starting, abnormal engine operation, insufficient fuel, high oil consumption, low oil pressure and abnormal coolant temperature. Hydrostarter coverage adds motor, charging-pump, hand-pump and accumulator service.

PTO, Converter and Transmission Coverage Limits

The PTO/Torqmatic and transmission files are reference pages directing readers to separate service publications. They do not contain the internal overhaul procedures for those assemblies. Starting-motor bench checks likewise refer to separate Delco-Remy instructions.

Because the work involves heavy engine components, rotating assemblies and fuel and lubrication systems, repair operations require secure engine support and appropriate system isolation before disassembly.

Selected Valve-Guide Clearance Data

For four-valve cylinder heads, the specification table lists valve-to-guide clearance of 0.0020–0.0035 in. with new parts and a 0.0050 in. wear limit.

For two-valve heads, the corresponding new-part range is 0.0020–0.0038 in., with a 0.0060 in. wear limit. The separate entries distinguish initial fit from the limits used when evaluating worn components for reuse.
