Harley-Davidson V-ROD VRSC 2007 Service Manual Set (P/N 99501-07)

The service manual provides mechanical repair procedures and component replacement instructions. Electrical Diagnostics supplies the circuit tests and fault-isolation charts referenced by the service chapters, connecting component service with diagnosis of the underlying problem.

Searchable Chapter PDFs and Wiring Detail

Text search and diagram navigation: PDF text search is available throughout the technical chapters. Embedded bookmarks navigate within the chapter files; the separate chapter-contents PDFs have no bookmarks. Small pin numbers and wire-color labels on the main-harness diagrams require zooming.

The ZIP contains 42 printable PDFs totaling 963 pages: 25 service-manual files, 16 electrical-diagnostic files, and the shared one-page index. The publication totals already include their contents pages and appendices, including 15 blank contents-page backs and 16 notes pages.

Revolution Engine Service and Electrical Fault Diagnosis

These selected topics show the repair and diagnostic coverage. Other sections include wheel lacing and truing, along with headlamp alignment.

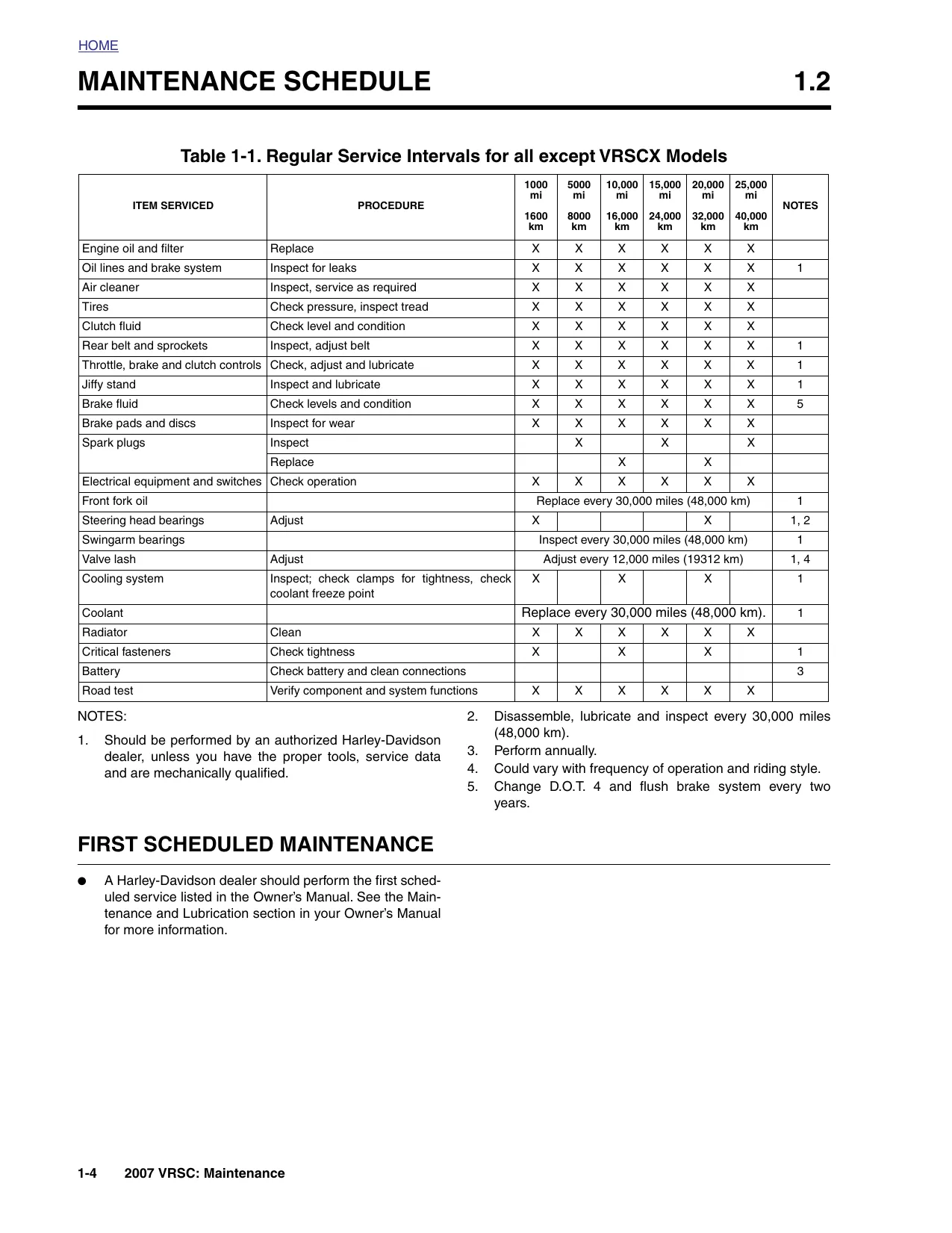

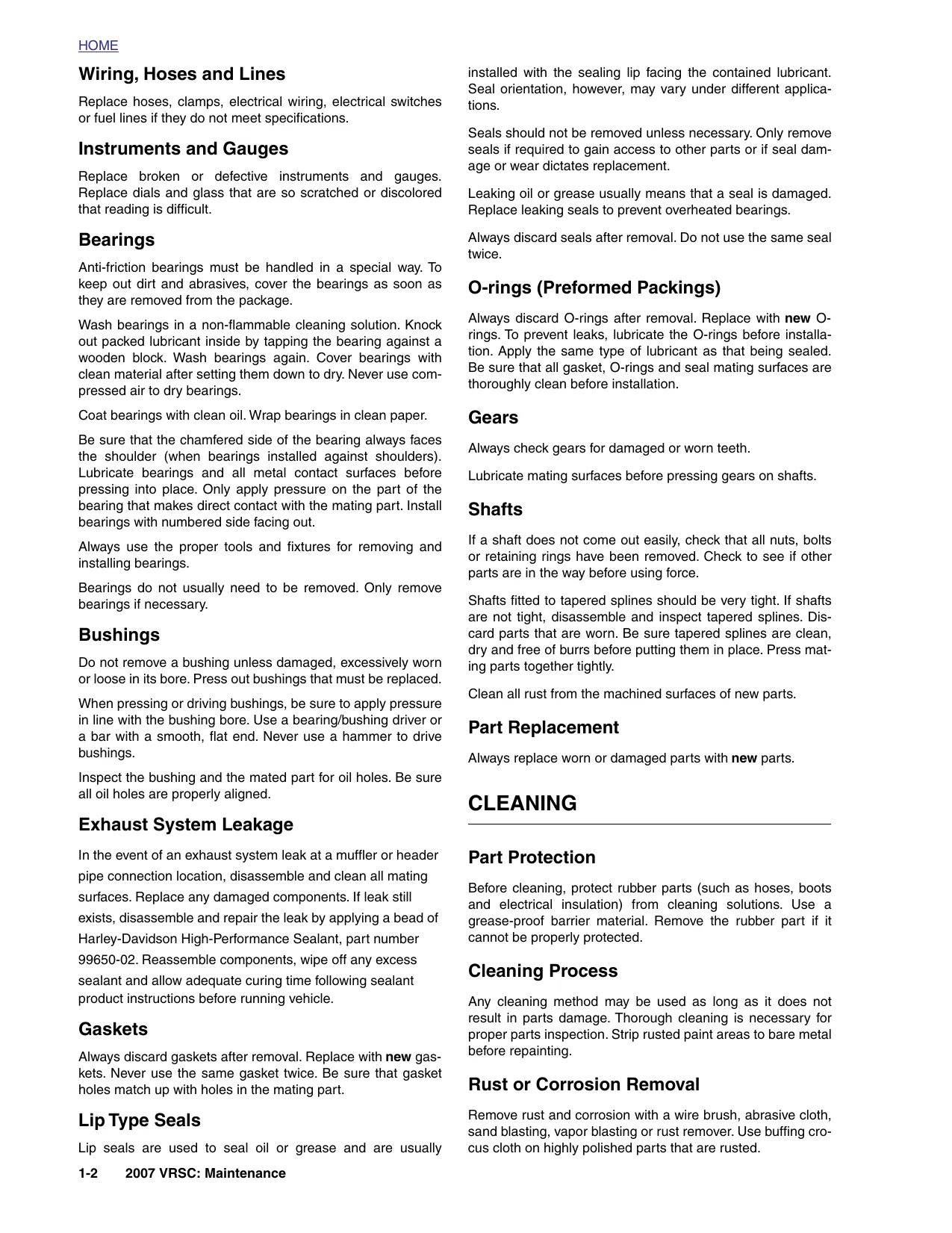

• Periodic maintenance: Separate service schedules, engine oil and filter changes, drive belt replacement, and belt and sprocket wear inspection.

• Engine repair: Compression and cylinder leakage tests, cylinder head overhaul, valve guide work, crankcase separation, and camshaft timing procedures.

• Chassis and brakes: Steering head bearing adjustment, front fork overhaul, swingarm bearing replacement, brake caliper service, and brake bleeding.

• Clutch and transmission: Hydraulic clutch bleeding, clutch pack inspection, shift mechanism checks, gearbox disassembly, and counterbalancer timing.

• Cooling system: Pressure testing, leak detection, thermostat and water pump service, and radiator/oil cooler removal.

• Fuel delivery: Fuel pressure and intake leak testing, fuel pump and filter replacement, throttle-body removal, and injector service.

• Electrical troubleshooting: Starter and charging-system tests, instrument self-diagnostics, security-system checks, DTC flowcharts, and model-specific wiring diagrams.

The internal overhaul and circuit-testing procedures suit experienced mechanics equipped for precision measurement and electrical diagnosis.

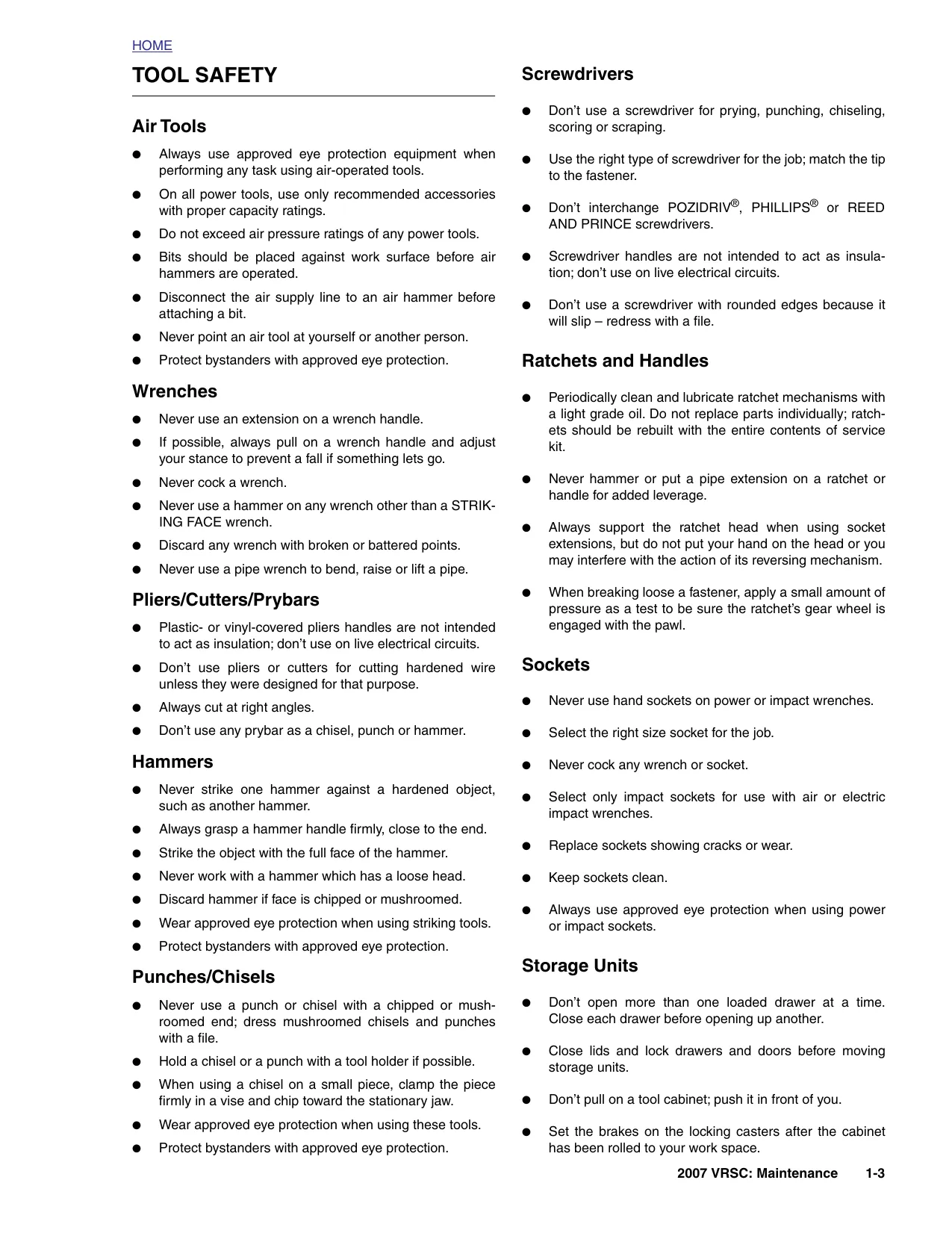

Support the motorcycle securely on a suitable lift and provide adequate ventilation during service.

Engine Overhaul, Valve Lash, and Drivetrain Work

Valve train and bottom end: Valve lash and secondary cam chain adjustment are covered with the engine in the chassis. Cylinder head overhaul and bottom end repair require engine removal. The engine chapters extend to cylinder liner replacement and main and connecting rod bearing selection.

Valve Lash Calculation Worksheets and tappet shim tables keep the original shim measurements, calculated replacement limits, and final lash readings together for each valve. The Cam Drive Timing Marks illustration identifies the chain and sprocket references used during timing work.

Clutch and gearbox: The integral five-speed transmission, gear-driven primary drive, and wet clutch share the engine lubrication system. Transmission Input Shaft and Output Shaft Assemblies views accompany the shaft service procedures. Shift-shaft and seal replacement is also described with the engine remaining in the chassis.

The bottom-end instructions identify a costly repair pitfall: damage to a piston cooling jet requires crankcase replacement.

Chassis Variants, Fuel Injection, and Cooling

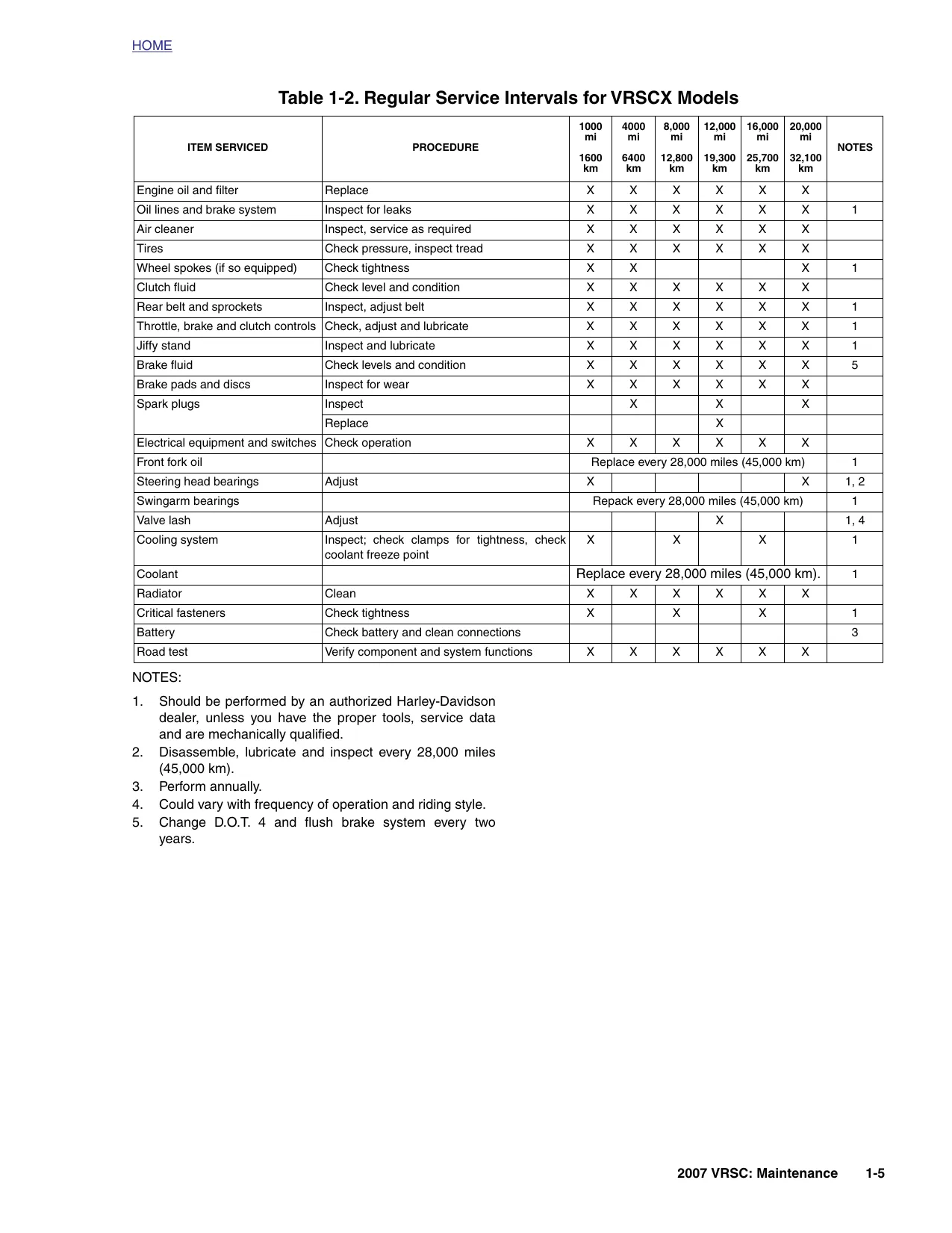

Model differences: The VRSCX has its own maintenance schedule and engine specification sections. VRSCR fork procedures are separated from those for the other models. Rear brake service distinguishes forward-mounted from mid-mounted controls, while exhaust removal and installation follow the model configuration.

The Engine Stabilizer Link illustration accompanies a warning that incorrect link adjustment can stress and crack the crankcase mounting boss.

Fuel and coolant systems: The Throttle Body and Fuel Rail assembly illustration supports intake component service. California emissions sections address carbon-canister service and purge-solenoid diagnosis. The Engine Coolant Flow diagram shows circulation through the engine, thermostat, radiator, and overflow circuit.

Tool references include the HD-45491 Tappet Compressing Tool for camshaft work and the HD-45335 Coolant System Pressure Tester for cooling-system checks.

Fault Codes, Security Modules, and Wiring Repair

Engine management: Diagnostic priority tables and symptom charts address hard starting, stalling, rough idle, and misfires. Tests cover crank position, throttle position, manifold pressure, temperature sensors, idle air control, and ignition-coil combustion feedback. Typical scan-data tables provide operating references.

The distinction between current and historic codes helps prevent a stored intermittent fault from being treated as proof that a component needs replacement. Wiring wiggle tests address intermittent connections.

Instruments and security: Dedicated tests cover fuel gauge faults, instrument-module self-diagnostics, and serial-data communication failures. Hands-Free Security Module coverage includes antenna faults, fob assignment, and password learning after module replacement. A separate appendix addresses the Japan/Korea TSM/TSSM system.

Harness repair and equipment: VRSCR main-harness diagrams are provided separately from those for the other models. Connector-location tables, terminal views, crimping procedures, and sealed-splice instructions support wiring repair.

Circuit tests call for breakout boxes and a digital volt/ohmmeter. Hands-free fob assignment requires Digital Technician at an authorized dealer; replacement-ECM diagnostic paths also specify reprogramming and password learning.

Selected Valve-Lash and Thermostat Specifications

The maintenance chapter lists intake valve lash at 0.195–0.245 mm and exhaust valve lash at 0.295–0.345 mm. These limits accompany the measurement procedure and shim-selection worksheets.

Thermostat reference data identifies initial opening at 85°C (185°F) and full opening at 100°C (212°F), providing temperature benchmarks alongside the cooling-system service procedures.
