Honda CBR600RR 2003–2008 Service & Repair Manual

This Honda service manual covers the CBR600RR, with specification and service differences for 49-state, California, and Canadian configurations. The supplied chapter files are grouped as a 2003 CBR600RR manual.

Chapter PDFs, Text Search, and Wiring Detail

Search, navigation, and diagram detail: PDF text search and embedded bookmarks are unavailable in all chapter files. The printed index and individual chapter filenames provide navigation. Small wire-color codes, connector numbers, and ECM terminal labels on the A/AC wiring diagram require zooming.

The ZIP download contains one English service manual split into 23 printable PDFs totaling 532 pages, including the two-page index and four repeated chapter-opening pages.

PGM-DSFI Diagnosis, Engine Repair, and Chassis Service

These are selected repair and diagnostic topics, rather than a complete contents list. Other sections include headlight aiming and fuel-level sensor testing.

• PGM-DSFI and fuel delivery: Self-diagnosis, MIL and DTC indexes, sensor and injector testing, fuel-pressure checks, throttle-body service, starter-valve synchronization, and ECM circuit diagnosis.

• Engine and drivetrain: Engine removal and installation, cylinder-head and valve overhaul, camshaft and timing work, clutch and starter-clutch repair, crankcase separation, and internal transmission inspection.

• Wheels, suspension, and steering: Wheel-bearing replacement, fork disassembly and seal replacement, steering-stem service, and Unit Pro-Link shock, linkage, and swingarm inspection.

• Hydraulic brakes: Fluid replacement, air bleeding, pad replacement, disc inspection, and front and rear master-cylinder and caliper disassembly, inspection, and reassembly.

• Cooling and lubrication: Cooling-system pressure testing and bleeding, thermostat inspection, water-pump replacement, oil-pressure testing, and oil-pump, strainer, relief-valve, and oil-cooler service.

• Electrical troubleshooting: Charging, ignition, and starter diagnosis; lights, meters, and switch testing; cable and harness routing; system diagrams; and the A/AC wiring diagram.

The diagnostic and overhaul sections suit mechanically qualified owners and technicians with the specified tools and test equipment; the maintenance schedule reserves certain safety-related work for an authorized Honda dealer.

Fuel Injection and California Emissions Equipment

The absolute-pressure fuel-supply explanation and PGM-DSFI layout distinguish the primary injectors in the throttle bodies from the secondary injectors above the air cleaner. Separate diagnostic routes cover MIL blink codes and DTCs read with the HDS Pocket Tester, including self-diagnosis memory reset and ECM test-harness terminal layouts.

Circuit tests address MAP, TP, IAT, ECT, bank-angle, vehicle-speed, cam-pulse, and ignition-pulse inputs. Fuel-pump and relay checks, fast-idle wax-unit service, and starter-valve repair extend the coverage beyond fault-code identification.

California-specific material covers the O2 sensor and heater, EVAP purge-control solenoid, canister plumbing, and catalyst-related equipment. Canadian specifications are included, while the dedicated full-page wiring plate is labeled A, AC type.

Engine Access, Valve Work, and Bearing Selection

The manual separates in-frame service from jobs requiring engine removal, helping plan access and workshop support. Alternator, clutch, camshaft, gearshift-linkage, oil-pump, oil-cooler, and water-pump work can remain in-frame; cylinder-head, crankshaft, piston/cylinder, and internal transmission work require engine removal.

Step-by-step procedures cover cylinder-compression testing, valve-guide replacement, valve-seat refacing, cam-chain installation, and shift-fork and shift-drum inspection. Clutch outer-guide needle-bearing selection and color-coded crankpin and main-journal bearing tables support component matching.

Selected crankshaft bearing clearances are checked with Plastigage. Incorrect clearance can cause major engine damage.

The engine-removal section specifies lifting and support equipment, warns against using the oil filter or oil cooler as jacking points, and explains torque-wrench reading correction when the engine-hanger locknut tool changes leverage.

Cooling-System Tests and Pump Replacement

Cooling diagnosis includes radiator-cap and system-pressure checks, coolant-gravity testing, thermostat testing, and fan-control relay inspection. Water-pump coverage includes mechanical-seal leakage inspection and assembly replacement; the pump body is not to be disassembled.

Lubrication troubleshooting distinguishes low, absent, and excessive oil pressure, with pump-clearance inspection and relief-valve checks.

Suspension and Brake Repair Details

Rear-suspension procedures include shock upper-mount spherical-bearing replacement, linkage needle-bearing replacement, and swingarm pivot-bearing service. The shock section covers removal, inspection, assembly replacement, and disposal, rather than internal damper overhaul.

Swingarm installation includes a specified pivot-fastener tightening sequence. The shock contains high-pressure nitrogen and requires the manual’s handling precautions.

Brake procedures include final operational checks after hydraulic work. Spilled brake fluid can severely damage instrument lenses and painted surfaces and can also harm some rubber parts.

Routing Illustrations, Circuit Diagrams, and Tools

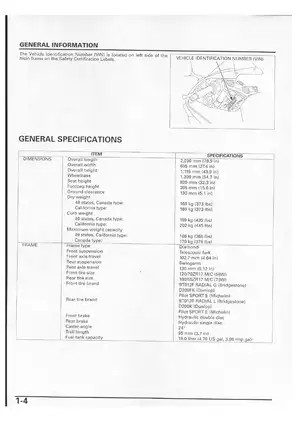

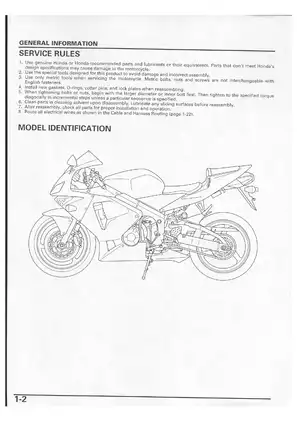

Cable and harness routing illustrations help restore connector placement after front-end, engine, airbox, or body-panel work. Identification illustrations cover the frame, engine, throttle-body, VIN, and color labels.

Illustrations include the Absolute Pressure Fuel Supply System, PGM-DSFI system layout, Unit Pro-Link suspension view, lubrication-system diagram, cooling-system flow pattern, and A/AC wiring diagram. Charging, ignition, and starter system diagrams accompany fault-tracing procedures.

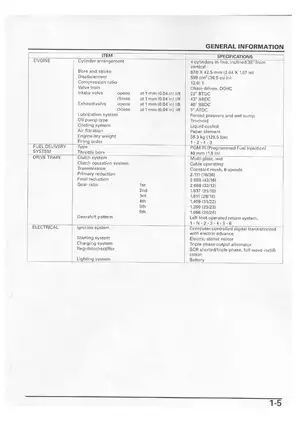

Honda tool listings include SCS service connector 070PZ-ZY30100, ECM test harness 070MZ-0010200 with two required, cam-chain tensioner holder 07ZMG-MCAA400, fork-seal driver 07KMD-KZ30100, and drive-chain tool set 07HMH-MR10103. Reference data include component-specific torque tables, fluid and adjustment specifications, service limits, and electrical test values.

Examples of Fuel-Pressure and Injector Test Data

The fuel-pressure inspection specifies 343 kPa (50 psi) at idle. Primary and secondary injector resistance is specified as 10.5–14.5 Ω at 20°C (68°F), alongside the component and circuit checks used in fuel-system diagnosis.
