Honda CBR600RR 2003–2006 OEM Service Manual (P/N 61MEE03)

• Covers 2003–2006 Honda CBR600RR models, detailing major engine, drivetrain, chassis, and electrical configurations (49-state, California, and Canadian variants)
• Official 651-page OEM publication (P/N: 61MEE03), serving as the factory reference for this specific sportbike generation
• Includes 56 exploded-view diagrams, 15 exact cable and harness routing maps, and 12 technical specification tables
• Outlines step-by-step procedures for adjusting valve clearances, rebuilding telescopic forks, synchronizing throttle bodies, splitting the crankcase, and overhauling the transmission
• Details the Dual Sequential Fuel Injection (PGM-DSFI), PAIR system, EVAP canister, IAC thermal valve, and alternator testing

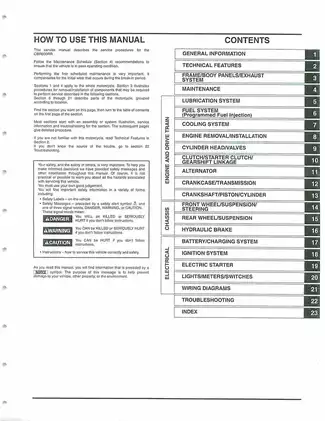

Inside the Workshop Reference

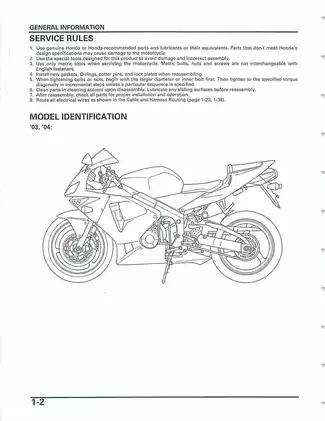

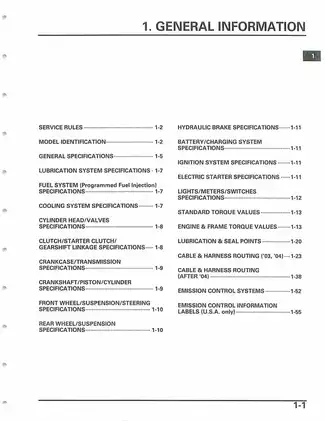

Getting the job done right in a professional bay or home garage demands accurate factory data. This PDF manual provides a direct look into the mechanical layout of the 600RR, starting with model identification and general shop procedures. Having the file open on a tablet directly at the workbench provides a specific advantage: technicians can quickly cross-reference precise fastener torque sequences and complex pinouts without breaking their workflow. Sections extensively cover the 599 cc inline-four power plant, the PGM-FI fuel delivery system, and the Unit Pro-Link rear suspension design.

Maintaining a high-performance sportbike requires strict precision to guarantee a safe repair. Always review factory warnings, safely relieve fuel pressure, and verify exact torque values before handling critical drivetrain or braking components. When servicing the 2003–2006 platform during a routine repair, mechanics often encounter erratic idling caused by improperly routing the brittle vacuum hoses to the MAP sensor and PAIR valve during reassembly. Another common pitfall is misdiagnosing a rattling noise as severe valvetrain damage; this is frequently just a failing automatic cam chain tensioner (CCT) requiring careful replacement to avoid skipping timing teeth.

The factory workshop documentation details the lubrication, cooling, and cylinder head systems, along with the complete transmission, clutch, and starter assemblies. It outlines detailed instructions for tasks that normally require an expensive dealership visit, such as steering head bearing replacement, complete engine removal, and hydraulic brake maintenance, ensuring a reliable fix. For electrical troubleshooting and diagnostic work, the guide supplies comprehensive wiring diagrams and cable routing maps. To further assist with tracing components, it features vacuum hose routing diagrams, emission control schematics, component location views, sub-harness connector layouts, and hydraulic brake line illustrations. These visuals make it straightforward to track PGM-DSFI sensor locations, identify relay positions, and trace harness paths across the different market configurations.

Key Technical Specifications

This reference delivers the exact assembly clearances and data points needed for serious wrenching:

• Engine compression: 1,226 kPa (178 psi)
• Coolant system capacity: 3.2 liters (engine and radiator)
• Primary fuel injector resistance: 10.5–14.5 ohms
• Cylinder head mounting bolt torque: 47 Nm (35 ft-lbs)
• Valve clearance (intake): 0.20 ± 0.03 mm
