Honda CR250R Service Manual, 1997–1999 (P/N 61KZ352)

316 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$17.59 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: CR250R

Model Years: 1997–1999 (1997, 1998, 1999)


  • Engine: 2-stroke

  • Transmission: 5-speed, constant mesh, wet multi-plate clutch

  • Carburetor Identification: PJ28L ('97–'98), PWK00A (After '98)

  • Coolant Capacity: 1.26 liters (change), 1.28 liters (disassembly)

  • Engine Weight: 23.3 kg (dry)

  • Spark Plug: NGK BR8EG, DENSO W24ESR-V

  • Front Axle Nut Torque: 88 N·m

  • Transmission Oil Capacity: 0.75 liter (draining), 0.85 liter (disassembly)

Honda Manual Features & Selected Content Preview

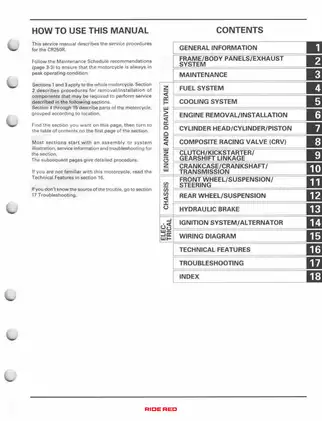

This Honda factory service manual (P/N 61KZ352) covers the 1997–1999 CR250R two-stroke competition motorcycle. Its 18 sections cover scheduled maintenance, troubleshooting, and component overhaul.

PDF Search, Bookmarks, and Wiring Diagrams

Text search and navigation: Most service pages have searchable text. The cover and opening safety notice are outside the text search. Bookmarks link to the contents and all 18 sections. Zoom in to read the small connector labels and wire-color codes on the two wiring diagrams.

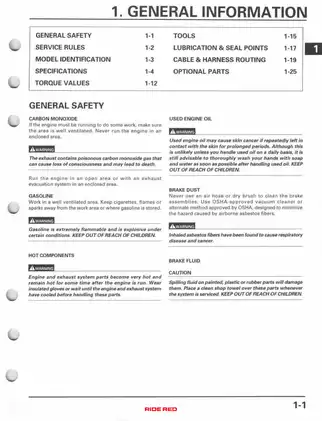

The download is one printable English PDF with 316 pages, including the cover, opening safety notice, and 11 memo pages. The General Information specifications page numbered 1-4 is missing from this PDF. A frame torque table labeled 1-13 appears in its place.


Engine Overhaul, Chassis Service, and Ignition Testing

These selected topics show the repair coverage. The manual also covers exhaust silencer repacking and air cleaner housing service.

  • Top end and CRV: Engine removal and installation, cylinder head and cylinder inspection, piston service, and Composite Racing Valve operation checks, decarbonizing, linkage adjustment, and governor and cam service.

  • Fuel and cooling: Carburetor adjustment and overhaul, temperature and altitude tuning charts, reed valve inspection, cooling system pressure testing, coolant replacement and bleeding, and water pump service.

  • Bottom end and drivetrain: Clutch, kickstarter, and gearshift linkage service, plus crankcase separation, crankshaft removal and installation, transmission teardown and inspection, and bearing and oil seal replacement.

  • Suspension and chassis: Wheel and steering stem service, fork disassembly by model year, fork damper refill and bleeding, rear shock bladder replacement and nitrogen charging, linkage and swingarm bearing service.

  • Hydraulic brakes: Front and rear fluid replacement and bleeding, pad and disc inspection, master cylinder rebuilding, caliper overhaul, and rear brake pedal service.

  • Ignition and troubleshooting: Ignition control module (ICM), ignition coil, exciter coil, and pulse generator tests, ignition timing inspection, and flowcharts for starting, power loss, high-speed performance, and handling.

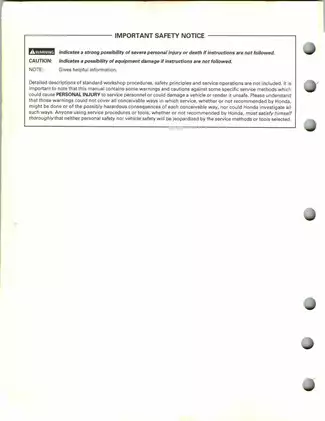

The manual is written for mechanics and owners familiar with standard workshop procedures, precision measurement, and specialty tools. Honda’s opening safety notice assumes that background.

Carburetor and Ignition Differences by Model Year

The 1997–1998 PJ28L and 1999 PWK00A carburetors have separate jetting data, tuning charts, and overhaul instructions. The power-jet solenoid test applies to the 1997–1998 setup, which also has charging-coil, regulator/rectifier, and condenser checks.

Separate wiring diagrams and cable and harness routing views help you identify the correct connectors before testing. The 1999 ignition inspection uses a different ICM and alternator connector test path. The ignition chapter supplies resistance and peak-voltage references alongside the test procedures.

Engine and CRV Service

Honda’s competition maintenance schedule includes frequent-replacement guidance. The cylinder head, cylinder, and piston procedures can be performed with the engine in the frame. The manual also covers engine removal and bottom-end overhaul.

CRV valve-position diagrams show how the flap and sub-exhaust valves work together. Honda gives the 1999 flap valve a separate removal and installation procedure and specifies a different lower engine mount torque. The valve chapter warns that bending the sub-exhaust valve shaft can impair operation. The cylinder chapter explains how a piston ring can catch on a port and break if the cylinder is rotated during installation.

Fork, Shock, and Workshop References

The suspension chapters give model-year-specific fork and shock settings and cover the 1999 handlebar lower-holder bushings. A twin-chamber fork cutaway traces oil flow. Honda refers readers to the separate Owner’s Manual for pre-ride checks and some rider-specific suspension setup.

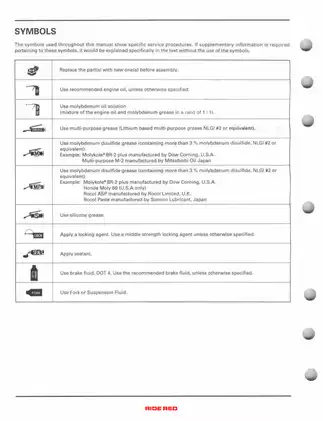

Exploded views and procedural illustrations show component orientation, measurement points, and tool placement. Tool references include crankcase pullers 07937-4300000 / 07937-4300001, fork seal drivers 07VMD-KZ30100 / 07VMD-KZ3010A, lock nut wrench 07WMA-KZ30100, and peak-voltage adapter 07HGJ-0020100. Service tables give torque values, clearances, wear limits, and fluid specifications.

The fork chapter warns that overtightening the bridge pinch bolts can deform the outer tubes. Follow Honda’s safety instructions and use the specified equipment for high-pressure nitrogen, fuel, and brake work.

Sample Piston Ring and Radiator Cap Specs

The CR250R cylinder and piston chapter lists a standard piston ring end gap of 0.40–0.55 mm and a service limit of 0.65 mm for both rings. The inspection section ties that limit to measurements made with the ring inside the cylinder.

The cooling chapter specifies a radiator cap relief pressure of 108–137 kPa (16–20 psi) for the cap pressure test.
