2002–2004 Honda CR250R Service & Repair Manual (P/N 61KZ371)

Honda’s CR250R Service Manual covers the 2002–2004 models, with separate ’02 and post-’02 service information where components or settings differ. This is the July 2002 edition, document code 61KZ371.

• Engine and transmission: Engine removal, cylinder-head and piston service, crankcase separation, crankshaft inspection, transmission rebuilding, and clutch, kickstarter, and gearshift-linkage repair.

• RC valve: Exhaust-valve operating checks, flap-valve decarbonizing, servo-motor testing, cable adjustment, and a troubleshooting flowchart for an inoperative system.

• Fuel system: Carburetor disassembly and adjustment, temperature-and-altitude tuning charts, reed-valve inspection, and separate procedures for the earlier and later reed assemblies.

• Cooling system: Radiator-cap and system pressure testing, coolant replacement and air bleeding, radiator removal, and water-pump bearing and seal replacement.

• Suspension and steering: Twin-chamber fork service, shock-absorber overhaul, linkage and swingarm bearing replacement, wheel service, and steering-head bearing adjustment.

• Hydraulic brakes: Front and rear master-cylinder and caliper rebuilding, pad replacement, disc inspection, fluid replacement, and hydraulic-system bleeding.

• Electrical diagnosis: Ignition peak-voltage and resistance tests, ECM circuit checks, alternator service, wiring diagrams, and troubleshooting charts for starting and performance problems.

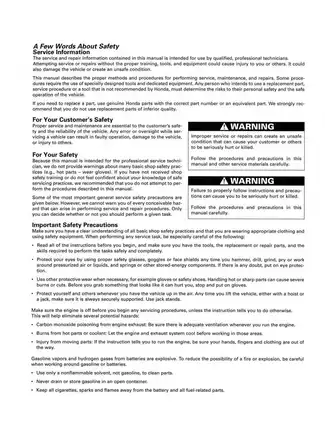

The service and repair information is intended for qualified professional technicians with shop-safety training and the tools and equipment required for the work.

Engine Rebuilding and Component Selection

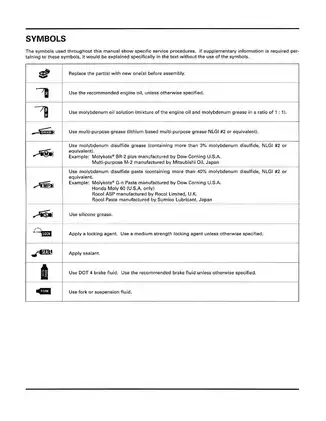

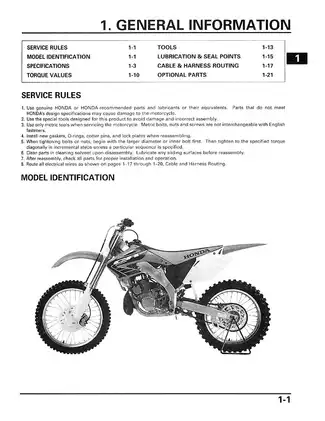

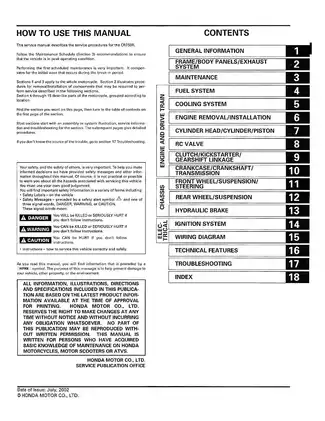

The eighteen sections start with general specifications, torque tables, special-tool requirements, lubrication and seal points, and cable-routing drawings. The maintenance chapter includes the racing service schedule, cylinder-head decarbonizing, air-cleaner service, and expansion-chamber and silencer maintenance.

Internal engine coverage extends to crankshaft runout and connecting-rod bearing checks, crankcase bearing replacement, and inspection of transmission gears, shafts, bushings, and shift forks. Exploded transmission assembly views show how the mainshaft and countershaft components fit together.

Cylinder and piston selection uses matching A/B size codes. Cylinder-installation notes also warn that rotating the cylinder during installation can snag and break the piston rings. Crankshaft and transmission work requires engine removal and crankcase separation; the top end, clutch, and RC valve have in-frame service coverage.

Carburetor Tuning and Reed-Valve Differences

The fuel-system section distinguishes the TMX 11B carburetor for ’02 from the TMX 11C used after ’02. Separate tuning charts relate temperature and altitude to jet selection, needle position, and air-screw settings.

The reed-valve procedures distinguish the earlier upper/lower reed and sub-reed arrangement from the later assembly. These differences help identify the applicable parts arrangement and tuning information before service begins. Float-level inspection specifies carburetor float-level gauge 07401-0010000.

Cooling-System Tests and Water-Pump Repair

The coolant specific gravity chart supports hydrometer testing, while the pressure-test section addresses radiator-cap operation and system leakage. Water-pump coverage includes shaft inspection and replacement procedures for the bearing, oil seal, and water seal.

The manual warns that coolant containing silicate corrosion inhibitors can cause premature water-pump seal wear or block radiator passages.

RC Valve and Ignition Fault Isolation

RC valve troubleshooting separates cable-adjustment problems, carbon buildup, mechanical binding, servo faults, and circuit faults. The servo section includes operating and resistance checks, helping distinguish mechanical exhaust-valve problems from electrical causes.

Ignition diagnosis includes a no-spark troubleshooting table, connector-specific tests, and peak-voltage adapter 07HGJ-0020100. The wiring diagram identifies the ECM connections, servo motor, ignition coil, pulse generator, alternator, and regulator/rectifier. Separate flowcharts address hard starting, power loss, and poor low- or high-speed performance.

Fork, Shock, and Brake Service

Fork procedures cover damper disassembly, oil replacement, air bleeding, and operating checks. Front-suspension section views and compression/rebound oil-flow diagrams explain the separate oil chambers.

Shock service extends to bladder replacement, damper-rod inspection, and reassembly. Baseline settings and handling troubleshooting are included; detailed rider-specific preload and damping setup refers to the separate Owner’s Manual, which is not included.

Brake coverage goes beyond pad changes to piston, seal, and master-cylinder service. Follow the manual’s precautions for hydraulic-brake work and the shock absorber’s pressurized nitrogen reservoir.

Examples of Inspection Limits and Fluid Specifications

Cylinder-head inspection specifies a warpage service limit of 0.05 mm. Transmission oil capacity is 0.65 liter after draining and 0.70 liter after disassembly.

The rear shock’s specified nitrogen pressure is 981 kPa. These reference values accompany the component-specific inspection and service procedures.

Searchable Chapters, Bookmarks, and Wiring Detail

Finding procedures and reading diagrams: OCR text supports searches throughout the service chapters, with some recognition errors in labels. The front cover has no searchable text. Embedded bookmarks provide chapter and subsection access. Small wire-color codes and connector labels on the wiring diagram require zooming for comfortable reading.

One printable English PDF contains 278 pages total, including the front and back covers and one supplementary page.
