1982–1983 John Deere Sprintfire & Snowfire Snowmobile Technical Manual (P/N TM-1269)

John Deere Technical Manual TM-1269, February 1982 edition, covers 1982–1983 Sprintfire (J34LL/J34LM) and Snowfire (J34XL/J34XM) snowmobiles, with separate service sections for their Fireburst engines.

• Engine repair: Engine removal, crankcase separation, piston and crankshaft inspection, outer bearing and seal replacement, engine pressure testing, and recoil starter repair.

• Fuel delivery: Mikuni carburetor disassembly and adjustment, carburetion recommendation charts, fuel-system troubleshooting, and Sprintfire oil-injection pump testing and cable synchronization.

• Sprintfire cooling: System and pressure-cap tests, coolant replacement, water-pump removal and installation, pump-belt adjustment, and tunnel heat-exchanger replacement.

• Electrical diagnosis: Model-specific wiring diagrams, CDI and coil-output tests, lighting and switch checks, and Snowfire RPM-limiter troubleshooting.

• Clutch and belt service: 94C and 102C drive-sheave overhaul, John Deere driven-sheave inspection, belt alignment, drive-shaft service, and mechanical disk-brake repair.

• Suspension and steering: Slide-suspension disassembly, wear-bar and rear-idler replacement, track removal and grouser-bar repair, ski alignment, and steering-linkage service.

Written for experienced technicians, this manual assumes the service background and shop equipment needed for engine, clutch, and electrical diagnosis.

Fireburst Engine Inspection and Repair

The Sprintfire TC340E and Snowfire TB340A chapters cover engine operation from power and fuel-transfer strokes through teardown, inspection, and reassembly. Service photographs accompany piston and ring positioning, crankshaft spacer placement, ignition timing, and crankcase leak testing.

Separate engine tables provide wear limits and component-specific hardware torques, including cylinder-head tightening specifications. Outer crankshaft bearings are replaceable individually; damaged inner bearings require crankshaft-assembly replacement.

Cylinder and starter work: The cylinder sections warn against honing the chrome-plated bores. The Sprintfire section permits deglazing only and explains that oversize pistons and rings are not provided. Recoil starter coverage includes pawls, return springs, and the JDM-113 starter spring winding tool.

Mikuni Carburetion and Oil Injection

The documented carburetors are the Snowfire Mikuni VM30/138 and Sprintfire VM32/230. Their Carburetion Recommendations charts distinguish temperature and altitude applications, helping match jetting and settings to operating conditions before investigating a running complaint.

Carburetor service addresses float level, needle and jet inspection, choke-plunger adjustment, and throttle-cable setup. The Snowfire recommendation chart also identifies altitude and warm-weather operating restrictions.

Sprintfire oil injection: Pump-output testing and control-cable timing accompany the installation procedures. The manual explains the need to maintain oil supply to the injection pump even when premixed fuel is used.

Sprintfire Cooling-System Service

The liquid-cooling chapter describes the belt-driven centrifugal pump, surge tank, and tunnel-mounted heat exchanger. Alongside leak and pressure-cap testing, it covers draining and filling the system and heat-exchanger replacement requiring track and suspension removal.

CDI Fault Isolation and Wiring Diagrams

The Snowfire Electrical System and Sprintfire Electrical System diagrams show wire colors, connector terminal letters, and switch-continuity positions. The RPM Limiter Diagnosis Flow Chart applies to Snowfire, while the Light Bulb Chart identifies lamps by location and John Deere part number.

Ignition testing uses the JDM-74 tester and JDM-74A-6 test harness to distinguish CDI-unit, exciter-coil, and pulser-coil faults before replacement parts are selected. The CDI section warns that using a 12-volt test light can destroy the ignition system.

Clutch Alignment, Brakes, and Chassis

Model-specific clutch recommendation charts relate primary springs, arm kits, and drive-sprocket choices to altitude. The belt section documents center-distance and offset checks using the JDG-369 Universal Clutch Alignment Tool.

The 102C procedures warn that excessive vise pressure on the JDM-41-5 Hub Lock Tool can distort the fixed-face hub.

Exploded slide-suspension and Ski Repair views show assembly relationships. Chassis coverage extends to brake-puck inspection, drive-shaft bearings, ski-spindle bushings, and tie-rod replacement, including left- and right-hand rod-end threads.

Always review the outlined safety procedures and secure the machine properly before beginning heavy engine or suspension work to prevent component damage or personal injury.

Examples of Crankshaft Limits and Flywheel Torque

These figures are a small selection of the engine inspection and assembly specifications in the manual.

For crankshaft end-play inspection, the Sprintfire limit is 0.55 mm, with no adjustment provided. The Snowfire section gives a 0.77 mm limit and describes correction with shims.

The engine torque tables list flywheel-to-crankshaft torque at 81 N·m (60 lb-ft) for both models, alongside separate specifications for crankcase, cylinder-head, and mounting hardware.

Searchable Service Text and Wiring Detail

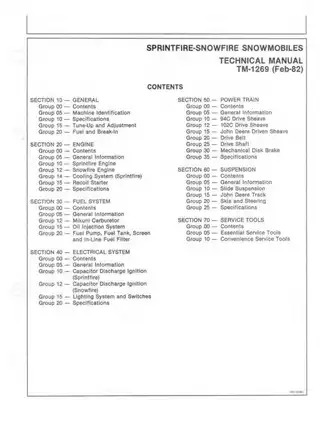

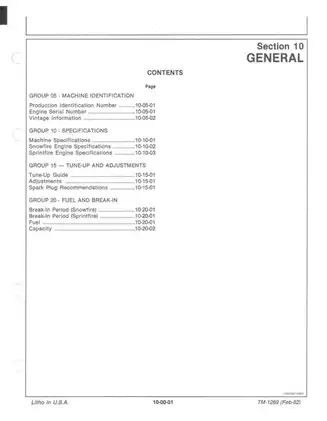

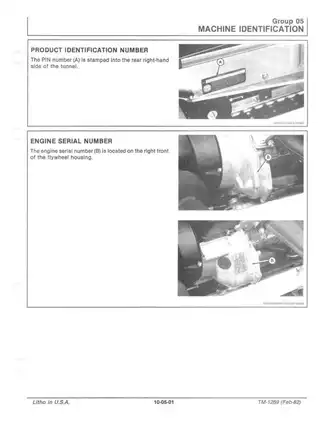

Text search, bookmarks, and diagrams: Most service text is searchable through an OCR layer. The opening contents page has no searchable text, and wiring-label searches are unreliable. Embedded bookmarks lead to the main sections and wiring diagrams. Small labels on both wiring diagrams are readable when enlarged.

The 206-page English PDF is supplied as one printable file. Its total already includes the original overall contents page, introduction, and 28 blank section pages.
