1982–1983 Suzuki GN250 Service Manual (P/N 99500-32020-01E, 99500-32020-03E)

228 Pages • 26.43 MB • Printable PDFs (ZIP Download)

5.0starstarstarstarstar(1)
visibility Preview Available
$16.79 Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW

Cards and eligible digital wallets

verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

Models: GN250

Model Years: 1982–1983

Technical Data:

  • Engine displacement: 249 cc

  • Engine type: Four-stroke, air-cooled, OHC, single cylinder

  • Transmission: 5-speed constant mesh

  • Compression ratio: 8.9:1

  • Carburetor: MIKUNI BS34SS

  • Engine oil capacity: 1.3 liters

  • Ignition type: Transistorized

  • Fuel tank capacity: 10.3 liters

  • Dry mass: 129 kg

Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24610 / Stephanie Harris
File Size:
26.43 MB
File Type:
ZIP
Language:
English
Pages:
228
Printable:
Yes
Category:
Bike
Last updated / verified
Aug 30, 2026

Suzuki Manual Features & Content Preview

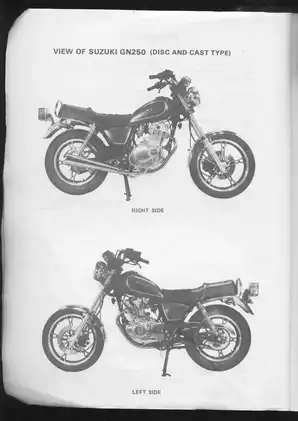

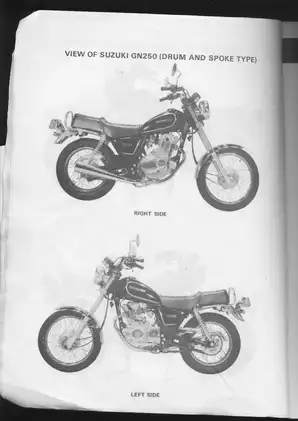

  • Coverage: A 228-page PDF for the 1982–1983 Suzuki GN250 series, using the GN250Z as the base specification and adding a dedicated 11-page GN250D ('83 model) service-data section. Model illustrations identify disc/cast-wheel, disc/spoke-wheel, and drum/spoke-wheel configurations.
  • Engine repair coverage: Covers compression and oil-pressure testing, engine removal and remounting, upper- and lower-end disassembly, inspection, servicing, and reassembly. Component coverage reaches the TSCC four-valve cylinder head, cam drive and automatic tensioner, piston and cylinder, crankshaft and counter balancer, clutch, transmission, oil pump, gearshift mechanism, starter clutch, and magneto rotor.
  • Fuel and electrical systems: Details fuel-cock and Mikuni carburetor service, float and needle-valve inspection, lubrication-system oil flow, transistorized ignition with electronic advance, charging-system diagnosis, starter-motor and relay testing, instruments, lamps, switches, and battery service.
  • Chassis procedures: Documents cast and spoke wheels, front disc and drum brake variants, caliper and master-cylinder repair, hydraulic brake bleeding, front-fork overhaul, steering-stem bearing service and adjustment, rear wheel and drum brake work, swingarm bearings, and rear shock inspection.
  • Factory reference material: Supplies system-based troubleshooting, component-specific tightening-torque tables, capacities, clearances, wear and runout limits, electrical test specifications, cable and wire routing, market-specific wiring diagrams, and a numbered catalog of 55 Suzuki special tools.
  • Diagrams and section views: Covers TSCC combustion-chamber sections, the electronic-advance ignition block diagram and signal waveform, counter-balancer force and phase diagrams, an automatic cam-chain-tensioner cutaway, carburetor system schematics, and destination-specific wiring sheets.

Engine and Chassis Maintenance Details

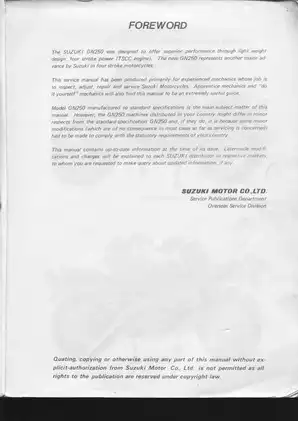

Produced by Suzuki Motor Co., Ltd.'s Service Publications Department, this service manual covers the air-cooled, four-stroke, 249 cc single-cylinder engine and its four-valve TSCC head. The periodic-maintenance section gives the factory schedule and the related inspection or adjustment methods for battery electrolyte and specific gravity, cylinder-head and exhaust fasteners, air-cleaner service, valve clearance, spark-plug condition and heat range, fuel-line and strainer checks, engine oil and filter service, idle speed, clutch and throttle cable play, drive-chain care, brakes, tires, spokes, steering, front forks, and chassis fasteners.

Engine coverage goes well beyond routine tune-up work. The manual organizes major repair around compression and oil-pressure checks, removal and installation, top-end service, bottom-end service, and final reassembly. The cylinder-head material covers the camshaft and rocker gear, valves, guides, seats, springs, and cam timing. Cylinder, piston, ring, connecting-rod, crankshaft, balancer, clutch, transmission, oil-pump, shift-mechanism, starter-clutch, and magneto components receive inspection criteria and assembly references rather than only exploded illustrations.

Two manual-specific cautions show why the factory procedures matter. The oil-filter section warns that installing the element in the wrong orientation can cause serious engine damage. During crankshaft installation, the manual calls for the specified installer rather than impact force because hammering can affect crankshaft alignment.

Chassis repair is separated by the hardware actually fitted to the motorcycle. Front-wheel and brake chapters distinguish cast-wheel and spoke-wheel arrangements, as well as hydraulic disc and mechanical drum systems. They cover wheel and bearing service, pad replacement, caliper and master-cylinder disassembly and inspection, drum-brake work, and brake-system air bleeding. Separate sections address fork removal and overhaul, fork-oil level, steering-stem and bearing-race service, rear-wheel bearings and sprocket, rear drum brakes, swingarm bearings, and rear suspension units.

Technical Data and Specifications

Service data is organized by assembly instead of being confined to a general specification page. The engine tables cover valve train, camshaft and cylinder head, piston and rings, crankshaft and balancer, oil pump, clutch, transmission, and drive chain. Additional sections provide carburetor settings, ignition and charging checks, starter-system data, brake and wheel limits, suspension information, approved fuel and oil categories, tire data, bulb ratings, and fastener torques.

The GN250D ('83 model) material is a service-data update, not a second full set of repair chapters. It records specifications that differ from the GN250Z and directs the technician back to Sections 1–7 for unchanged diagnosis and repair procedures. That distinction matters when selecting the manual for an early GN250 or planning work on a 1983 machine.

Electrical coverage is tied to the destination code shown in the manual. Separate wiring sheets are provided for E-01/E-02/E-06/E-24, E-26, E-22, and E-28 specifications, mapped to general, U.K., South African, Australian, Danish, West German, and Canadian versions. The electrical chapters also provide ignition-system fault checks, pick-up-coil and ignition-coil testing, charging-output and generator checks, regulator/rectifier inspection, starter-system tests, switch continuity charts, lamp circuits, and battery service.

The special-tool catalog identifies the factory equipment used for deeper repair work. Examples include compression-pressure adapter 09915-63210, valve-seat cutter set 09916-21110, crankcase separating tool/crankshaft remover 09920-13111, rotor remover 09930-34912, and fork-oil-seal installer 09940-50112. Together with the routing drawings, troubleshooting charts, assembly views, and specification tables, these references document component-level repair and testing rather than routine maintenance alone.

Brake-hydraulic, wheel, steering, fork, and internal-engine work can create serious safety risks if the motorcycle is not securely supported or the correct service tools are not used. Complex repairs should be handled by a trained technician when the required equipment or experience is not available.
