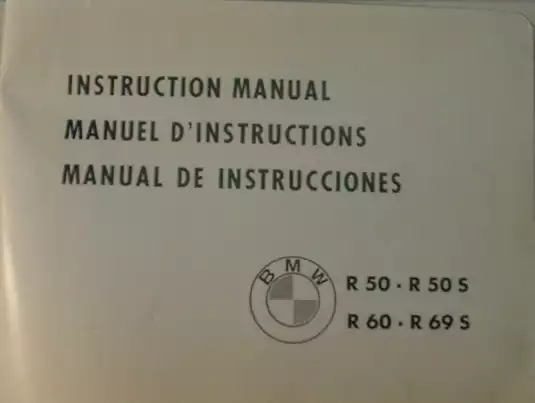

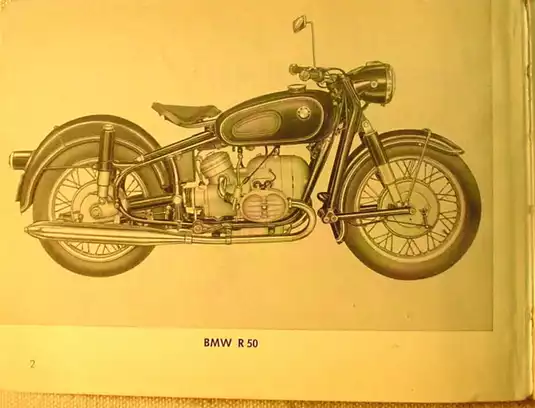

1969–1976 BMW R50, R50S, R60, R69S Instruction Manual (P/N 90 99 182 5 XI. 64)

• 162-page PDF reproducing the original BMW Instruction Manual for the R50 Touring-sport, R50S Sport, R60 Touring-sport, and R69S Sport, with text in English, French, and Spanish and rear-cover print code 90 99 182 5 XI. 64.
• Maps the major boxer-twin systems, including the light-alloy engine housing, forged crankshaft and connecting rods, forced-feed lubrication, BING carburetors, dry clutch, four-speed constant-mesh transmission, enclosed shaft drive, and spiral-bevel rear axle.
• Covers owner-level inspection, adjustment, and minor repair work for the carburetors and control cables, ignition timing and contact breaker, spark plugs, valve clearances, clutch and brake controls, and scheduled lubrication.
• Documents chassis service for the front swinging-arm fork, mechanical and hydraulic steering dampers, front and rear suspension, steering play, wheel and swinging-arm bearings, wheel removal and refitting, tire replacement, and brake checks.
• Includes BMW “Spezial” sidecar conversion coverage for solo-versus-sidecar gearing, final-drive bevel gears, steering-damper and spring changes, front-swingarm position, mounting alignment, lighting hookup, and brake synchronization.
• Provides engine, carburetor, clutch, transmission power-flow, rear-drive and suspension, and front-fork and steering-damper section views, plus a keyed full-system electrical wiring diagram. Scope note: this is the factory owner’s instruction and maintenance manual, not the separate workshop overhaul manual.

Operating, Maintenance, and Minor Repair Coverage

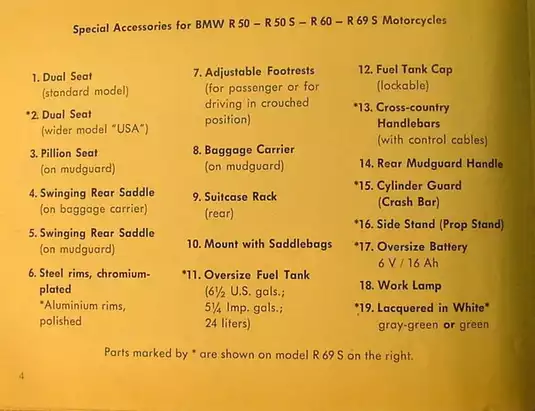

BMW organized this publication around the work an owner or mechanic could reasonably perform with the motorcycle’s supplied tool kit. It begins with technical and licensing data, frame and engine number locations, fuel and lubricant requirements, controls, starting, gear changing, running-in, and use of the kickstand. Model differences are identified throughout instead of treating all four motorcycles as mechanically identical.

The engine and drivetrain chapters explain how the major assemblies are built and operate. Coverage includes the one-piece light-alloy crankcase, sectional forged-steel crankshaft, roller-bearing connecting rods, pistons and cylinders, overhead-valve gear, geared oil pump and filtered forced-feed lubrication, BING slide carburetors, single-plate dry clutch, and four-speed gearbox with constant-mesh gears, selector forks, sliding dogs, and shift interlock. The enclosed driveshaft, universal joint, spiral-bevel final drive, and rear suspension are also shown in section.

The service chapters provide the practical adjustment and repair information most likely to be needed during routine ownership. They cover battery care, air-filter and fuel-shutoff service, carburetor removal and cleaning, warm-idle adjustment, throttle-cable synchronization, clutch and brake free play, spark-plug inspection, contact-breaker adjustment, ignition timing, cold valve-clearance checks, and cylinder-head fastener checks. Separate sections address steering adjustment, wheel-bearing and swinging-arm-bearing play, spoke inspection, wheel balancing on the sport models, front and rear wheel removal, tire changing, lamp replacement, stoplight-switch adjustment, headlight aiming, and long-term storage.

Model Differences and Sidecar Setup

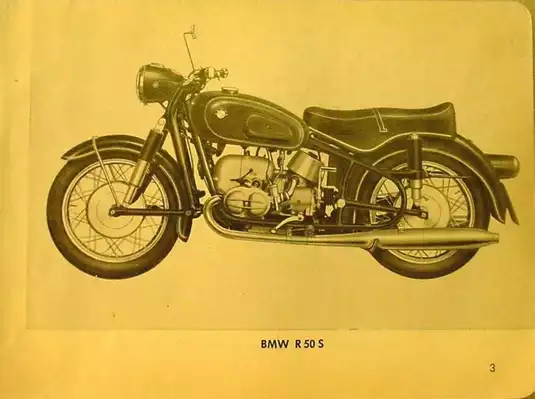

The manual distinguishes the touring-sport R50 and R60 from the R50S and R69S sport models by their intake, cylinder-head, exhaust, vibration-damper, and steering-damper arrangements. Solo R50S and R69S motorcycles use a hydraulic steering damper, while the touring models and sidecar-equipped machines use the mechanical friction type. These differences matter when selecting parts and following the correct repair section.

Sidecar coverage goes well beyond attachment points. BMW identifies the transmission and rear-drive gearing changes required for sidecar operation, along with steering-damper conversion, stronger rear springs, front-swingarm repositioning, mounting geometry, electrical connections, and sidecar brake adjustment. The R69S section also addresses factory conversion for sidecar use. A solo machine therefore cannot be treated as sidecar-ready without the specified chassis and drivetrain changes.

Drawings, Specifications, and Scope

The illustrations support the text with an engine cutaway, carburetor and clutch sections, four-speed transmission power-flow diagrams, a torque-damper diagram, rear-drive and suspension sections, a front-fork and hydraulic steering-damper view, and the complete electrical wiring diagram. Technical-data tables and maintenance schedules provide model-specific dimensions, ratios, ignition and valve settings, tire-pressure charts for solo, passenger, and sidecar use, lubricant information, capacities, and component-specific tightening data.

Several cautions reveal details that are easy to miss during repair work. The upper fuel-shutoff union uses opposing right- and left-hand threads, so forcing it as a conventional fitting can damage the union or tank connection. The wheel-service pages also call out correct brake-shoe-plate engagement with the swinging-arm guide and the removal of protruding spoke ends, helping prevent brake misalignment or inner-tube damage.

Before inspecting the mechanical or electrical systems, secure the motorcycle on a stable stand and allow the engine to cool fully. The publication is best suited to operation, scheduled maintenance, inspection, adjustment, and minor repair. It does not provide full engine or transmission teardown, machining, or workshop-overhaul procedures; those jobs require the separate BMW workshop literature.
