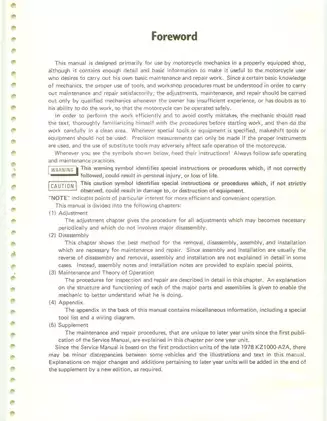

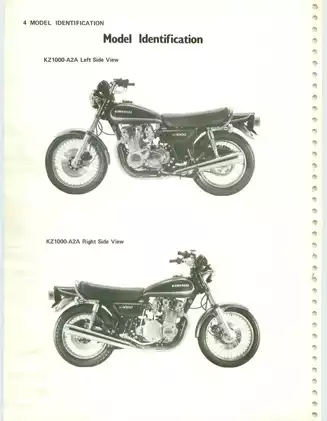

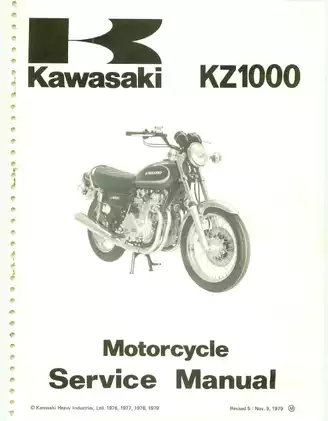

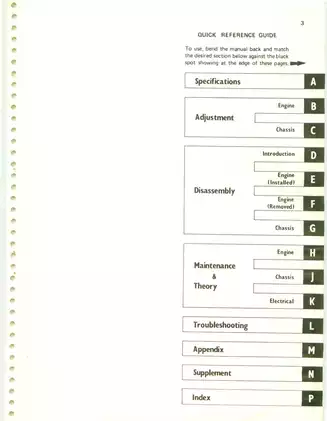

Kawasaki KZ1000 Factory Service Manual, 1976–1980

Kawasaki Heavy Industries KZ1000 Motorcycle Service Manual, Revision 5, dated November 9, 1979. The main text is based on the late-1978 KZ1000-A2A, with integrated supplements for the 1979 KZ1000-A3A and the 1980 KZ1000-A4 / KZ1000-D3.

Printable PDF, Search and Diagram Detail

Search, bookmarks and wiring labels: PDF text search is not available, and there are no embedded PDF bookmarks. Small component labels and connector markings in the wiring diagrams require zooming; several diagrams also need page rotation for comfortable reading.

The ZIP download contains one printable, 307-page PDF. That total already includes four opening pages, a one-page supplement introduction, the 43-page 1979 supplement, the 38-page 1980 supplement, and the two-page index.

Engine Overhaul, Carburetor Service and Electrical Diagnosis

The following selected topics show the repair coverage rather than reproduce the full contents. Additional subjects include cable lubrication and wheel balancing.

• Engine repair: Step-by-step procedures for engine removal, crankcase separation, cylinder-head service, piston and ring work, camshaft installation, and valve-timing checks.

• Clutch and transmission: Wet multi-disc clutch overhaul, transmission shaft disassembly, shift-drum service, external shift-mechanism inspection, and kickstarter repair.

• Fuel and carburetors: Carburetor disassembly, mechanical and vacuum synchronization, fuel-level inspection, automatic fuel-tap service, and model-specific accelerator-pump checks.

• Brakes and chassis: Disc-brake overhaul and bleeding, wheel and hub service, bearing replacement, steering-stem work, front-fork disassembly, and rear-shock inspection.

• Electrical troubleshooting: Contact-breaker and transistorized ignition diagnosis, charging-system tests, starter-circuit checks, and switch, lighting, and horn troubleshooting.

• Workshop references: Disassembly flow charts, exploded drawings, performance curves, wiring diagrams, torque and locking-agent tables, wear limits, and special-tool references.

Written primarily for motorcycle mechanics in a properly equipped shop, the manual also supports owners with basic mechanical knowledge doing basic maintenance and repair; unfamiliar work is reserved for qualified mechanics.

Model Coverage and Supplement Use

Later-model servicing requires the relevant supplement, preceding supplement sections, and base text together. Unless a D3-specific difference is called out, the manual directs the mechanic to use the A4 procedure. These distinctions help identify the applicable specifications and procedures before parts are selected.

The A2A uses Mikuni VM26SS carburetors; later covered models use VM28SS units. The supplements distinguish US accelerator-pump and clean-air-system equipment from other market configurations. Coverage is for carbureted models, not electronic fuel injection.

Engine, Valve Train and Lubrication

The engine chapters cover shim-type valve adjustment, cam-chain guides and tensioners, valve-seat repair, cylinder and piston inspection, and camshaft installation checks. Later supplements document the automatic cam-chain tensioner and revised valve-clearance measurement marks.

Crankshaft scope: Crankshaft and connecting-rod inspections are included, but crankshaft disassembly is expressly excluded. Kawasaki calls for assembly replacement or rebuilding by a properly equipped Kawasaki rebuilding station.

Lubrication coverage connects oil-pressure testing with oil-pump inspection, filter and bypass-valve operation, and the Engine Oil Flow Chart. Transmission inspection addresses shift-fork wear, gear engagement, shaft clearances, and the neutral-detent changes in later models.

Carburetors and US Clean-Air Equipment

Fuel-system documentation explains the starter, pilot, and main carburetor circuits, with cleaning, float-level checks, and synchronization procedures. The later-model sections add accelerator-pump inspection and market-specific air-screw arrangements.

The US clean-air-system section covers air-suction reed inspection and vacuum-switch-valve testing. Its troubleshooting notes connect faults in these components with unstable idle, reduced output, and exhaust backfiring.

Brakes, Suspension and D3 Equipment

Chassis repair includes drive-chain and sprocket inspection, front and rear wheel bearings, steering bearings, telescopic forks, and rear shocks. Brake chapters cover pads, calipers, master cylinders, hoses, discs, and hydraulic bleeding.

The D3 supplement adds fairing removal, power-chamber exhaust service, headlight work, and its cable-operated front master cylinder, together with D3-specific fork and brake information.

Handling cautions: Petroleum-based cleaners can deteriorate brake-system rubber parts, while contaminated pads or discs impair braking. The sealed speedometer and tachometer can lose damping oil and malfunction if left upside down or sideways.

Ignition, Charging and Wiring References

The A2A chapters document contact breakers, coils, capacitors, timing advancer, dynamo, separate rectifier and regulator, and starter components. Later supplements add pick-up coils, the igniter, integrated regulator/rectifier testing, and ignition fault-isolation charts.

D3 electrical coverage includes US reserve lighting, automatic turn-signal cancelling, fuel-gauge tests, and the Ammeter Circuit. Color wiring references include the KZ1000-A2A Wiring Diagram, Z1000-A4 diagrams for European and West German models, and the KZ1000-D3 US/Canadian diagram.

Specified tools: References include valve lifter holder 57001-113, vacuum gauge set 57001-127, oil-pressure gauge 57001-125, front-fork oil-seal driver 57001-141, and Electro Tester 57001-980.

During valve-seat repair, overcutting can reduce valve clearance until it is no longer adjustable. Because this manual includes running-engine carburetor synchronization, open fuel-system work, hydraulic brake service, and high-voltage ignition testing, the factory safety cautions and specified test equipment should be followed during repair work.

Selected Valve, Compression and Lubrication Specifications

Valve adjustment: Cold valve clearance is 0.05–0.10 mm for the A2A. The A3A supplement changes it to 0.05–0.15 mm for intake and exhaust valves; A4/D3 servicing follows that supplemented specification.

Base-engine checks: A2A compression is 9–11 kg/cm² (128–156 psi), with a 7 kg/cm² (100 psi) service limit and less than 1 kg/cm² difference between cylinders. Conditions are a hot engine, all plugs removed, throttle fully open, and starter-motor cranking. Warm-engine carburetor synchronization lists 20–28 cm Hg at idle, with less than 2 cm Hg difference between cylinders.

Lubrication and fasteners: The A2A oil-pressure reference is about 0.2 kg/cm² (2.8 psi) at 3,000 rpm and 60°C (140°F) oil temperature. Its cylinder-head nut torque table specifies 3.7–4.3 kg-m (27–31 ft-lbs), with a defined tightening sequence.
