Kawasaki KZ900, Z1 & Z900 Shop Manual 1973–1976 (P/N 99997-700-05)

Kawasaki’s factory shop manual, P/N 99997-700-05, Revision 4, November 15, 1975, covers the 1973 Z1, 1974 Z1A, 1975 Z1B, and the 1976 KZ900-A4 (U.S.) and Z900-A4 (Europe). The integrated supplement explains the service changes made after the original Z1 edition.

PDF Navigation and Wiring Diagram Legibility

Search and diagram detail: The PDF has no text search or embedded bookmarks. Small connector labels and switch-table entries generally need zooming. Some wire traces remain faint, especially on the U.S./Canada A4 diagram.

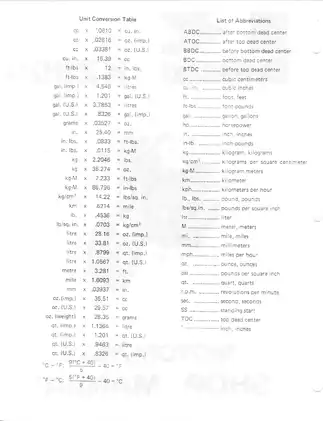

The ZIP contains one printable English PDF with 191 pages, including the covers, two reference sheets, the appendix, the 34-page supplement, two blank wiring-diagram backs, and one repeated regulator page.

Engine, Carburetor, Chassis, and Electrical Service

These selected workshop topics show what the manual covers. Other procedures include wheel balancing and oil-pressure switch testing.

• Engine repair: Step-by-step procedures cover engine removal, cylinder head and valve service, camshaft and cam-chain timing, piston and cylinder inspection, and crankcase separation.
• Clutch and transmission: Covers clutch disassembly, the external shift mechanism, transmission shaft and gear inspection, kick-starter service, and engine oil pump repair.
• Carburetors: Covers bank removal and disassembly, fuel-level and float checks, throttle-valve setup, idle adjustment, and vacuum-gauge synchronization.
• Wheels and suspension: Covers front and rear hubs, bearings, rims, spokes, tires, steering stem, swingarm, front forks, rear shocks, drive chain, and sprockets.
• Brakes: Covers hydraulic front-disc service and bleeding, rear-drum inspection, and the revised A4 front caliper.
• Electrical diagnosis: Test procedures cover the generator, rectifier, regulator, breaker-point ignition, coils, starter, switches, lights, turn signals, and the A4 hazard circuit.
• Workshop references: Includes periodic maintenance, special-tool numbers, component torque tables, fasteners requiring locking compound, troubleshooting charts, inspection limits, and a valve-shim selection chart.

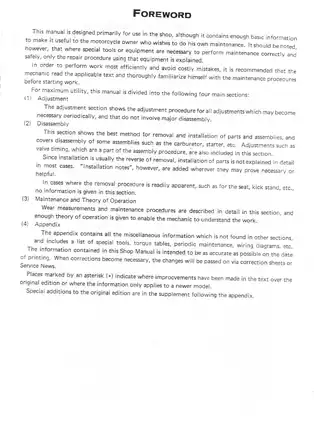

Kawasaki wrote this manual primarily for shop mechanics and included routine maintenance for owners who service their own motorcycles. Jobs that require special equipment are described using the specified tools.

Model Changes and Procedure Selection

The Z1A added a rear brake lining wear indicator and received revised VM28SC carburetors during production. The frame-number breaks help identify which carburetor settings, timing-advancer checks, and regulator test connections apply. The Z1B introduced a different drive chain and dropped the separate chain oil pump.

The A4 supplement covers the VM26SS carburetor bank, redesigned air cleaner, front hub, caliper, mufflers, turn signals, and hazard circuit. It also documents the European Z900-A4’s dual front discs and sprocket specifications, rear-brake changes from the Z1A onward, and fork component, spring, and oil specifications by version.

Engine Inspection and Special Tools

The inspection tables give cylinder compression, camshaft lobe and journal dimensions and runout, valve stem and guide clearances, valve seat and spring limits, piston and ring clearances, connecting-rod and crankshaft checks, clutch plate thickness and warp, transmission backlash, and oil pump clearances. The manual covers inspection of the pressed crankshaft assembly and directs internal rebuilding to a properly equipped Kawasaki rebuilding station. The crankshaft bearing caps and crankcase are a matched set.

The tool list identifies the valve lifter holder 57001-113, dynamo rotor puller 57001-116, clutch hub holder 57001-119, vacuum gauge 57001-127, and oil pressure and compression gauge set 57001-129, along with valve-seat, bearing, wheel, and fork tools.

The valve adjustment notes explain how a ground shim can fracture and how shim stock can let a shim pop out at high rpm. Turning a cam lobe into the installed lifter holder can also damage the engine.

Brake, Fork, and Wiring References

The brake procedures cover master cylinder and caliper disassembly, piston and seal inspection, pad and disc checks, line service, and final operation checks. The A4 caliper section flags the crush hazard when compressed air ejects the piston. The fork cross section supports internal inspection, oil seal replacement, and reassembly.

The specifications identify the Kokusan AR3703 generator and RS2127 regulator. The brake lamp indicator table distinguishes a burned-out bulb from normal operation with the brakes applied and released. Separate wiring diagrams cover the Z1, Z1A, KZ900-A4 (U.S./Canada), and Z900-A4 (Europe).

Sample Carburetor and Valve Settings

The base VM28SC carburetor table lists the air screw at 1½ turns out. The table for the revised VM28SC bank lists 1¼ turns out.

For engines from Z1E18866~, the supplement specifies a cold valve lifter clearance of 0.05–0.10 mm (0.002–0.004 in.) between the cam and shim.
