Oldsmobile Aurora 2001–2002 & Intrigue Repair Manual Collection

The vehicle-system sections provide component replacement procedures, connector information, and circuit diagrams. Separate engine and transaxle articles add mechanical repair and overhaul coverage.

Coverage varies by publication. Most Intrigue sections carry 1999 headers; the HVAC, exhaust, and shift-lock sections carry 2002 headers. The Aurora engine article covers LX5 engine mechanical work rather than the entire vehicle. The Lumina transmission-servicing article retains its own M15 application and should not be treated as an Aurora- or Intrigue-specific service chapter.

Text Search, Bookmarks, and Diagram Detail

Search and navigation: Text search is available in 79 files, although many diagram labels and some specification tables are embedded images. The two identical 3.8L engine files have no searchable text. Numbered bookmarks are present in 57 files; the remaining 24 have none. Small wire codes and connector labels on the sampled engine-control, power-distribution, ABS, and HVAC diagrams are best read with zoom.

The ZIP contains 81 printable PDFs totaling 3,201 pages, including the duplicate 48-page engine article. The distinct document content totals 3,153 pages.

Engine, Transaxle, and Intrigue System Repairs

The following is a selected content overview, rather than a complete contents list. Additional topics include rear-window defogger grid repair and sunroof track-and-motor synchronization.

• Engine mechanical repair: Aurora LX5 timing-chain, camshaft, cylinder-head, sealing, lubrication, engine-mount, and engine replacement procedures, plus a separate 3.8L engine article.

• Engine controls and cooling: Intrigue PCM replacement/programming, crankshaft variation learning, fuel-system component replacement, and separate LX5/L36 cooling-system procedures.

• Automatic transaxle overhaul: 4T65-E disassembly, clutch and differential work, valve-body and oil-pump service, end-play checks, and reassembly.

• Brakes and ABS: Bosch 5.3 and Delco VI component replacement, system-specific bleeding, master-cylinder overhaul, and disc-caliper repair.

• Steering and suspension: Steering-gear service, variable-effort steering, wheel-bearing and strut replacement, and drive-shaft joint and boot repair.

• HVAC and body systems: Manual and automatic climate-control repairs, refrigerant-system service, doors, windows, seats, lighting, and restraint-system procedures.

• Electrical reference: Power and ground distribution diagrams, engine-control schematics, connector end views, and circuit sheets for body and accessory systems.

The procedures are suited to professional technicians and experienced DIY mechanics with scan-tool access, electrical test equipment, and the lifting and special-tool equipment required for the work.

Aurora LX5 Diagnosis and Mechanical Repair

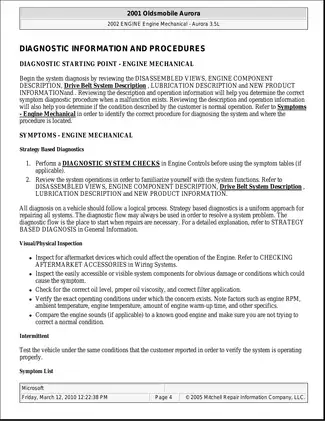

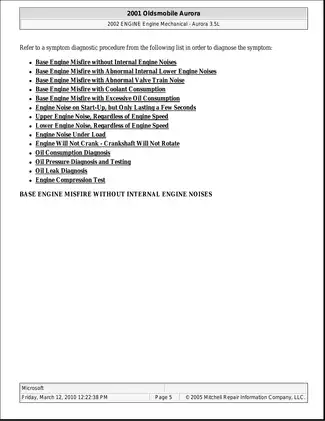

The diagnostic material is organized around recognizable shop symptoms. Misfire charts distinguish faults accompanied by lower-engine noise, valvetrain noise, coolant consumption, or excessive oil use from cases without abnormal mechanical noise. Separate charts address startup noise, noise under load, and a crankshaft that will not rotate.

Accessory-drive charts cover belt chirp, squeal, whine, rumble, vibration, derailment, excessive wear, and tensioner faults. Oil-leak diagnosis includes visual inspection, powder tracing, and black-light dye methods. Oil-pressure testing identifies the J 21867 gauge and J 43027 adapter; compression testing and crankcase-ventilation inspection are also included.

Timing and cylinder heads: Step-by-step procedures distinguish the primary drive from the left and right secondary camshaft drives. Supporting views show chain-link locations, sprocket positions, and bearing-cap identification. Tool references include the J 42038 camshaft holding fixture, J 42042 chain/sprocket holding fixture, J 42039 valve-spring compressor, and J 43059 valve-stem key remover/installer.

Sealing and engine replacement: Coverage extends to rocker arms, hydraulic lash adjusters, valve springs and stem seals, intake manifold, PCV components, crankshaft balancer, front cover, oil pump, oil pan, pickup pipe and screen, and flywheel. Rear crankshaft seal procedures identify J 42841 and J 42842 tools.

Engine replacement documents engine/transaxle separation and reinstallation, front and right mount work, steering-column indexing, brake-pipe connections, and support with the J 39580 engine support table.

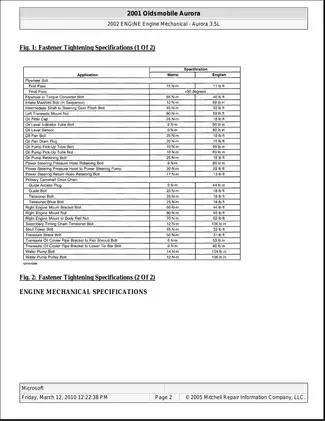

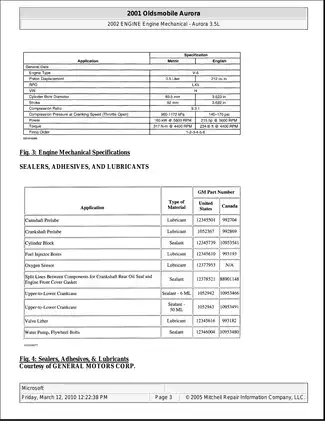

The engine article contains 470 numbered figures, component-specific torque and torque-angle tables, tightening-sequence drawings, and GM sealer and lubricant references. Its six-page tool appendix illustrates 24 tools and equipment items. Complete LX5 short-block overhaul procedures are outside this article’s scope.

The manual warns that prying on spark-plug boots or using ordinary pliers can damage them. It also identifies excessive force on a misaligned fuel rail as a risk to injector seals and the intake manifold.

3.8L Engine Inspection and Internal Service

The separate engine article distinguishes W-body procedures from other vehicle applications. It covers intake and exhaust manifolds, cylinder heads, timing components, rocker arms, push rods, lifters, camshaft, balance shaft, oil pump, and crankshaft seals.

Internal-service material includes bearing, piston, ring, cylinder-block, and cylinder-head inspection data. The article also discusses supercharged applications for other listed vehicles; those sections do not establish supercharged Intrigue coverage.

Intrigue Controls, Chassis, and Electrical Systems

Engine management: PCM connector tables and engine-control schematics accompany fuel-rail, injector, throttle-body, sensor, ignition, EVAP, and EGR component procedures. PCM programming and crankshaft variation learning describe the required scan-tool functions and equipment.

Brakes and steering: Separate Bosch 5.3 and Delco VI bleeding procedures help identify the correct brake-system workflow before repairs are selected. The steering material distinguishes L36/Delco VI from LX5/Bosch 5.3 arrangements and includes steering-wheel position-sensor centering.

HVAC and body: Coverage includes V7 compressor clutch service, refrigerant recovery and recharging, evaporator and heater-core replacement, and manual/automatic control components. Door adjustment, window regulators, seat mechanisms, SIR components, and seat belts have dedicated repair sections.

Circuit references include “Power, Ground, DLC, and MIL,” “LX5 Engine Grounds G100, G110, and G113,” “EBTCM, Power, Grounds, and Brake Modulator,” and “Power, Grounds, and Blower Controls.” Used with connector end views, these sheets support tracing circuits between modules, connectors, and grounds.

The safety material addresses hoist and jack-stand support, stored valve-spring loads, SIR disabling, and refrigerant handling.

4T65-E Overhaul and Application Differences

The overhaul article explicitly lists Aurora 3.5L and Intrigue 3.5L with RPO MN3. It extends beyond removal to clutch assemblies, sprags, bands, planetary components, differential carriers, the control valve body, and oil pump, with inspection limits and selective thrust-washer information.

The separate removal article lists Intrigue M15 and MN3 applications and distinguishes body-specific procedures. Its application tables should be checked before using an individual section.

Examples of Tightening and Clearance Data

For Aurora LX5 intake-manifold installation, the tightening-sequence illustration accompanies a bolt specification of 10 N·m (89 lb in). The 3.8L engine article lists oil-pump gear end clearance of 0.0010–0.0035 in (0.025–0.089 mm).

The 4T65-E overhaul article specifies front differential carrier end play of 0.005–0.025 in (0.13–0.64 mm), supported by a measuring procedure and selective-part information.
