Suzuki TL1000R 1998–2002 Service Manual (P/N 99500-39170-03E)

Suzuki Motor Corporation's TL1000R Service Manual, P/N 99500-39170-03E, was printed in Japan in April 1998. The cover lists 1998–2002; the factory text uses TL1000RW ('98 model) as its base, with E-code market differences. Match the market code and specification to the motorcycle before repair. Separate TL1000RX, TL1000RY, TL1000RK1, and TL1000RK2 supplements are not included.

PDF Bookmarks, Wiring Detail, and Page Count

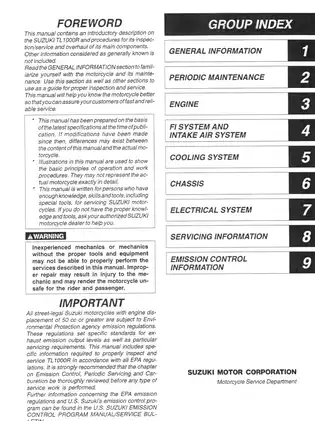

Chapter access and diagram detail: Embedded bookmarks link to the front matter and all nine main sections. PDF text search is unavailable. Dense wiring diagrams require zooming to read small component labels, terminal numbers, and wire codes.

One printable, English-language PDF with 512 pages total, including the cover, preliminary pages, closing publication page, seven blank pages, and one additional introductory page.

Engine Overhaul, FI Diagnosis, and Chassis Service

These selected contents show the main workshop coverage rather than the full table of contents. Other topics include fairing installation and fuel-tank support arrangements.

• Engine and drivetrain: Step-by-step engine removal, disassembly, and reassembly, with cylinder-head repair, clutch service, primary-drive work, gearshift linkage, and transmission inspection.

• Fuel injection and intake: Fuel-pressure testing, throttle-body service, injector checks, synchronization, TPS setting, ECM self-diagnosis, fail-safe operation, and intake-air control valve testing.

• Cooling system: Radiator removal, leak and cap-pressure tests, thermostat inspection, cooling-fan and thermo-switch checks, coolant-temperature sensor testing, and water-pump service.

• Suspension and steering: Front-fork service and adjustment, steering-head and wheel-bearing work, rotary-damper and spring-unit inspection, suspension linkage repair, and swingarm service.

• Brakes and final drive: Front and rear hydraulic brake repair, caliper and master-cylinder overhaul, bleeding, clutch master-cylinder service, tire work, and drive-chain cutting and connecting.

• Electrical diagnosis: Charging, starter, ignition, and side-stand/ignition-interlock troubleshooting, combination-meter checks, lamps, relays, switches, battery charging, and market-specific wiring diagrams.

• Workshop references: Maintenance schedules, exploded assemblies, Suzuki special-tool references, torque tables, fluid data, wear limits, adjustment specifications, and electrical test values.

The manual is written for people with the knowledge, mechanical skills, and special tools needed to service Suzuki motorcycles.

Cylinder Heads, Cam Timing, and Lower-End Repair

Repair planning: A component-access chart distinguishes work possible with the engine in the frame from jobs requiring removal. It lets you check access requirements before planning a clutch, cylinder-head, or internal engine repair.

Engine procedures cover TSCC cylinder-head service, camshaft inspection, valve-guide replacement, valve-seat servicing, and piston-ring and cylinder checks. Lower-end coverage includes crankcase separation and crankshaft/connecting-rod bearing selection.

Cam-drive references: The cam timing diagram and timing table explain the paired idle-gear/sprocket arrangement for the front and rear cylinders. The illustrations distinguish compression TDC from exhaust TDC, since incorrect indexing produces improper valve timing.

The primary-drive gear nut has a left-hand thread; the manual warns that turning it in the wrong direction can damage the assembly. Separate procedures cover the clutch release cylinder, water pump/clutch cover, starter torque limiter inspection, generator, and crankshaft-position sensor.

FI Fault Isolation and Fuel-System Repair

User and dealer modes lead into customer-complaint analysis, malfunction-code tables, circuit checks, and component inspections for the listed codes from C11 through C42. These connect fault indications to the relevant wiring and tests, helping distinguish sensor, connection, and circuit faults before selecting a replacement component.

The sensor coverage includes camshaft and crankshaft position, intake and atmospheric pressure, throttle position, coolant and intake-air temperature, tip-over detection, and the gear-position switch. Ignition signals, injectors, the fuel-pump relay, and the ignition-switch circuit also have code-based checks.

Fuel-system procedures extend to pump and filter removal, mesh-filter cleaning, throttle-body disassembly and cleaning, and fast-idle adjustment. The FI system diagram and FI system wiring diagram show how the ECM, sensors, and actuators connect.

Cooling, Lubrication, and Market-Specific Equipment

Cooling-system tests distinguish radiator leaks, cap faults, fan-control problems, and thermostat faults. Lubrication coverage includes the oil pump, pressure regulator, cooler, and piston-cooling nozzles; the engine lubrication system chart traces oil flow through the crankshaft, camshafts, transmission, and piston-cooling circuits.

California evaporative-emission coverage includes canister inspection, tank-pressure control valve checks, and hose routing. PAIR diagrams, routing drawings, and control-valve inspections identify the applicable air-supply equipment.

Forks, Rotary Damper, and Brake Hydraulics

Front-fork procedures cover seal replacement, oil-level setup, spring preload, and damping adjustment. Cartridge removal is included, but the cartridge and complete fork-cap assembly must not be disassembled.

The rear-suspension section explains rotary-damper operation and its oil circuit, then covers removal, inspection, linkage bearings, reassembly, and suspension settings. The rotary damper and spring unit are replacement assemblies; their internal disassembly is expressly excluded.

Steering-tension checks and brake-disc inspection accompany the chassis procedures. Brake coverage also includes pad and fluid replacement. Incorrect timing, brake, suspension, or fuel-system service can make the motorcycle unsafe for the rider and passenger.

Electrical Routing and Special Tools

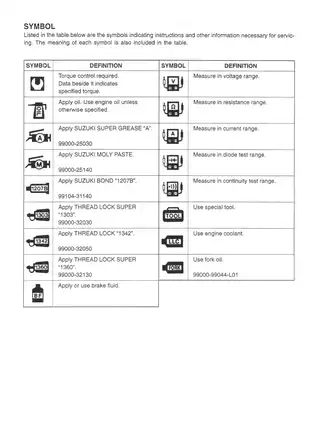

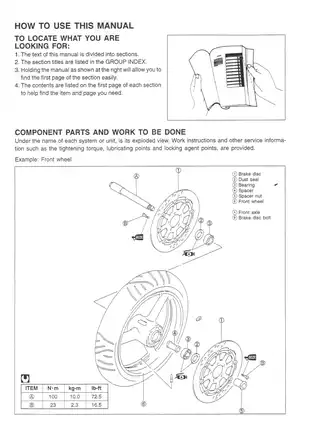

Servicing Information combines engine, cooling, chassis, brake, electrical, and battery troubleshooting with harness, control-cable, fuel, coolant, brake, clutch, and PAIR hose-routing drawings. Exploded views carry torque, lubricant, sealant, and thread-lock callouts.

Special-tool references include crankcase separator 09920-13120, clutch sleeve hub holder 09920-53740, generator rotor remover 09930-30450, and vacuum pump gauge 09917-47010. A consolidated tool index supports checking equipment requirements before disassembly.

A Preview of Valve-Clearance and Fuel-Pressure Data

For the TL1000RW, tappet clearance with the engine cold and each cylinder at compression TDC is 0.10–0.20 mm at the intake valves and 0.20–0.30 mm at the exhaust valves. The adjustment section includes tappet-shim selection tables.

Fuel-pressure inspection specifies 290 kPa (41 psi) with the ignition switched on. The accompanying diagnosis separates causes of low pressure from restrictions and regulator faults that can produce excessive pressure.
