1997–2001 Suzuki TL1000S/W/X/Y/K1 Service Manual (P/N 99500-39144-03E)

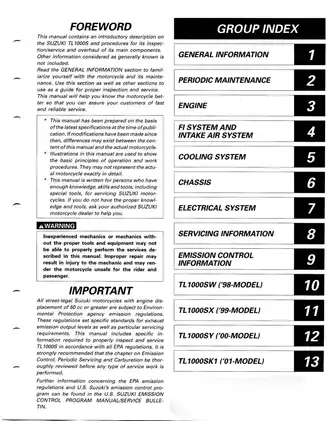

• Model coverage and document ID: Covers the 1997 TL1000SV base model, followed by dedicated update sections for the 1998 TL1000SW, 1999 TL1000SX, 2000 TL1000SY, and 2001 TL1000SK1. This is a 586-page PDF of the Suzuki factory service manual, Part No. 99500-39144-03E, 4th Edition, October 2000.
• Engine repair and overhaul: Documents engine removal and installation, complete disassembly and reassembly, cam-drive and cylinder-head service, valve and piston work, clutch repair, crankcase separation, transmission service, and crankshaft/conrod bearing selection.
• Fuel injection and SRAD intake: Provides user- and dealer-mode self-diagnosis, fail-safe and malfunction-code information, sensor-circuit testing, fuel-pressure checks, pump/filter and injector service, throttle-body overhaul, fast-idle adjustment, throttle-valve synchronization, and intake-air control testing.
• Chassis and brake service: Covers front-fork teardown and setup, steering-head work, wheels and tires, swingarm service, rotary-damper linkage inspection, plus front and rear caliper, master-cylinder, brake-fluid, and disc procedures.
• Cooling and electrical troubleshooting: Details radiator, fan, thermostat, water-pump, and hose work alongside charging, starter, side-stand/ignition interlock, ignition, meter, lighting, switch, relay, and battery diagnosis.
• Workshop reference: Includes exploded assembly views, market-specific wiring diagrams, harness and hose-routing drawings, troubleshooting charts, special-tool listings, torque tables, fluid data, adjustment specifications, and inspection limits.

Service and Maintenance Structure

The manual is built around the TL1000S's 996cc liquid-cooled DOHC 90-degree V-twin, six-speed transmission, fuel injection, and model-specific chassis systems. Suzuki states that it is written for people who already have the knowledge, skills, shop equipment, and special tools needed to service Suzuki motorcycles, making it suited to professional technicians and genuinely experienced, well-equipped owners rather than first-time mechanics.

Routine maintenance is handled with schedules, lubrication maps, valve-clearance inspection, spark-plug and air-cleaner service, throttle-valve synchronization, cooling-system checks, drive-chain adjustment, brake and suspension inspections, and compression- and oil-pressure testing. The engine chapters then move into component-level repair. They distinguish parts serviceable with the engine installed from work requiring removal. Top-end coverage includes valve-guide and valve-seat service, cam timing, and piston and cylinder inspection; the lower-engine sections address the clutch, starter torque limiter, generator, gearshift mechanism, transmission, bearing selection, crankshaft thrust adjustment, and lubrication system.

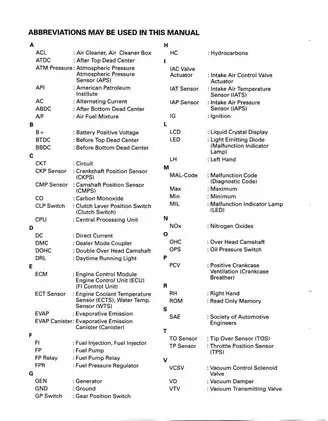

The fuel-injection section covers both system operation and workshop diagnosis. It explains ECM inputs and injection control, maps component locations, and supplies customer-complaint analysis and fault isolation for camshaft and crankshaft position, intake pressure, throttle position, temperature, tip-over, ignition, injector, gear-position, and fuel-pump relay circuits. Separate procedures cover fuel-tank access, fuel-pressure inspection, throttle-body disassembly and cleaning, injector checks, synchronization, and SRAD intake-air control diagnosis.

Model-Year Updates and Scope

The SW, SX, SY, and SK1 sections are cumulative change supplements rather than stand-alone mini manuals; unchanged work refers back to the preceding sections. The SW material adds revised engine, FI, cooling, steering-damper, rear-suspension, hose-routing, and PAIR-emissions procedures. SX pages concentrate on the clutch, transmission, crankshaft, and revised service data. SY adds oil-separator, valve-spring, conrod-bearing, oil-pump, and PAIR-routing changes, while SK1 supplies updated specifications and service data with revised clutch layout, front-brake-hose routing, and crankcase-breather information.

The base specifications also distinguish market codes, including U.S., California, Canada, U.K., and other E-code versions. That matters when checking lighting, electrical, fuel, and emissions information. California-model evaporative-emissions material and the later PAIR air-supply system are covered in their respective sections.

Engineering Specifications and Technical Data

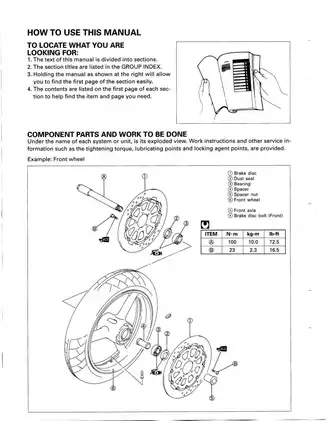

Exploded views show assembly order and identify fastener torque, lubrication, and thread-lock locations. Representative factory tools include the mode-selection switch 09930-82710, crankcase separating tool 09920-13120, clutch sleeve-hub holder 09920-53740, front-fork assembling tool 09940-30221, and fuel-pressure-gauge adapter 09940-40210. The service-data pages collect component-specific torques, capacities, clearances, wear limits, suspension settings, and electrical test specifications.

Useful visual references include the FI-system wiring diagram, the U.S./Canada full wiring diagram, E-code market wiring diagrams, wire-harness routing, cooling- and PAIR-hose routing, and front/rear brake-hose layouts. Repair cautions are equally specific: the primary-drive fastener has a left-hand thread, so treating it like a conventional fastener can damage the assembly, while incorrect meter connections or reversed battery polarity can damage the ECM and sensors. The rear-suspension section covers removal, setup, linkage and bearing inspection, and replacement, but explicitly says not to disassemble the rotary damper or spring unit.

The manual carries explicit safety warnings for hot coolant, pressurized fuel, brake fluid, and tire inflation. Those procedures require the specified shop equipment and the experience level Suzuki assumes throughout the publication.
